  • CEDRUS DG12E-3F diesel generator set features low noise level. The model can withstand significant loads that do not cause a loss of power.
List price:3 774,24 €
Regular price: 3 774,24 € / pcs.(Discount -5%)

3 585,52 €

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
You can buy for pts.
of
Product Available
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product Available
Shipment
14 days to return
Find out in which store you can check the product and buy it right away
CEDRUS DG12E-3F GENERATOR GENERATOR 12kW / 20 hp 230/400V AVR SILENT VERSION CEDRUS 12 kW KD292FA DIESEL
CEDRUS DG12E-3F GENERATOR GENERATOR 12kW / 20 hp 230/400V AVR SILENT VERSION CEDRUS 12 kW KD292FA DIESEL
Safe shopping
After purchase you will receive pts.
Average 4.7 on Opineo see
Free returns
Authorized distributor internet, see
Guarantee of reliability and timeliness

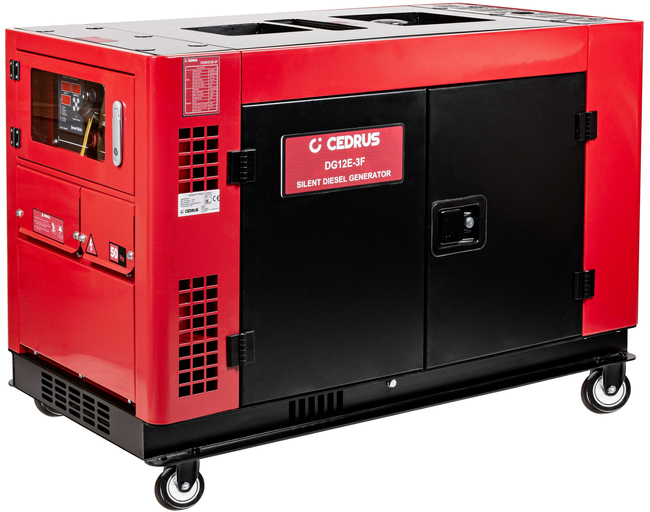

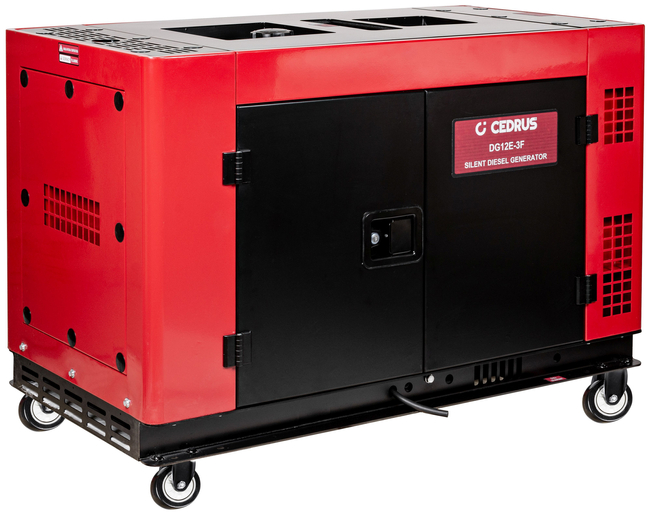

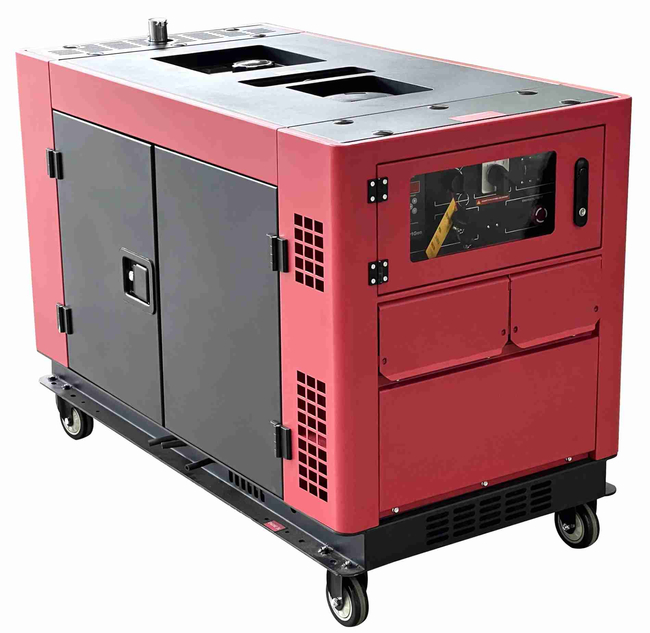

CEDRUS DG12E-3F GENERATOR GENERATOR 12kW / 20 hp 230/400V AVR

CEDRUS 12 kW KD292FA DIESEL

MUTED VERSION SUPER SILENT

CEDRUS DG12E-3F is a built-in 3-phase power generator which can be can be retrofitted with ATS / АВР automatics.
Thanks to the new design of the U-type air duct, through which all intake and exhaust air passes, a sound insulation effect is achieved.

Cedrus 12 kW generator set KD292FA Diesel

Power generator with diesel engines are very often chosen for the emergency power system. When AST automation (ATS) detects a drop in voltage from the grid, the genset will automatically start up, and when the grid voltage reappears, the genset will shut down by itself.

Versatile application allows the unit to be used in various situations for many hours. Specially designed three-phase alternator with copper winding guarantees reliable operation.

Innovative technology Dual Power guarantees identical output power in both phases (230 V/380 V), which makes it possible to power both single-phase and three-phase devices. The switch located on the control panel allows you to easily change the mode of operation.

Fuel system venting system and engine warm-up function allow for easy starting even after extended periods of inactivity or in minus temperatures.

Generator set CEDRUS DG12E-3F in the Super Silent diesel body, it withstands significant loads that do not cause a drop in power. Ideally suited for emergency power supply to residential buildings, stores, businesses, where we are particularly concerned about comfort of use.

The device is equipped with a digital control panel that allows you to control the functions of automatic on/off, remote start-up and shutdown, as well as measurement parameters. The given model is compatible with the automatic reserve switching (ATS) module.

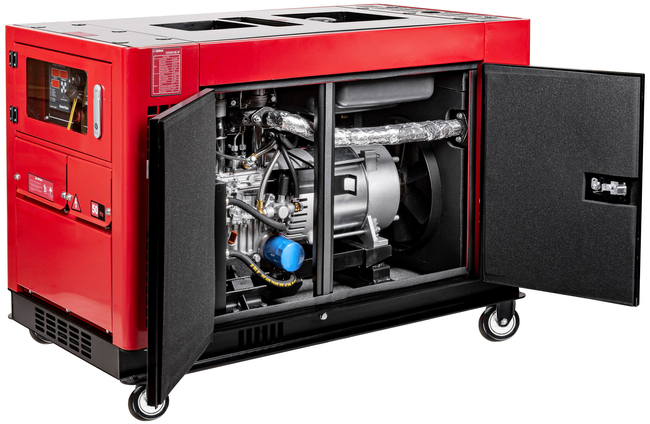

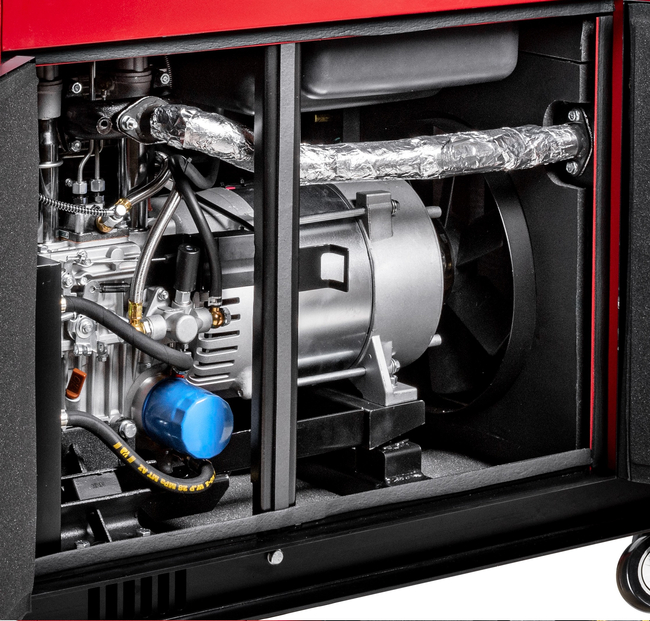

Powerful Euro V diesel engine - the 997cc, single-cylinder, air-cooled engine generates a constant power of 11 kW (nominal power), and 12 kW (starting power). The unit is equipped with an electric starter. The total weight of the aggregate is 320 kg.

AVR system provides voltage stabilization to protect powered loads from voltage fluctuations.

Oil sensor will shut down the genset at low oil level protecting the engine from seizure.

In addition, our units are equipped with circuit fuses.

Features of the CEDRUS DG12E-3F generator set :

  • New canopy design with thicker base frame to increase the structural strength of the generator, while achieving sound insulation and vibration reduction effects.
  • 100% copper generator, F-class insulation, high conversion efficiency, intelligent AVR controller ensures stable voltage and less voltage waveform distortion.
  • Electric starter
  • Sound-absorbing housing Super Silent
  • Digital control panel with hour meter
  • Stable operation and fuel savings of up to 15%
  • The unit is powered by a diesel, single-cylinder, air-cooled, 997 cm³, 3,000 rpm, Euro V combustion engine that satisfies the only about 4 liters of fuel per hour worked.
  • The maximum capacity of the tank is 26 liters
  • Possibility of connecting an automatic АВР
  • AVR - automatic voltage stabilization
  • Copper winding of the alternator
  • Intelligent overload protection
  • Electric start
  • Oil level sensor with engine stop system
  • Innovative technology DUAL POWER
  • 2 modes of operation: 230 V/ 380 V
  • Sound-absorbing housing Super Silent
  • Automatic fuel system vent
  • Pre-start engine heating
  • Metal fuel tank
  • Bearing-mounted wheels
  • Possibility of optional connection of the system of automatic switching on of the genset in case of power failure SZR / ATS
  • The engine meets the latest emission standard EURO 5, providing maximum comfort.

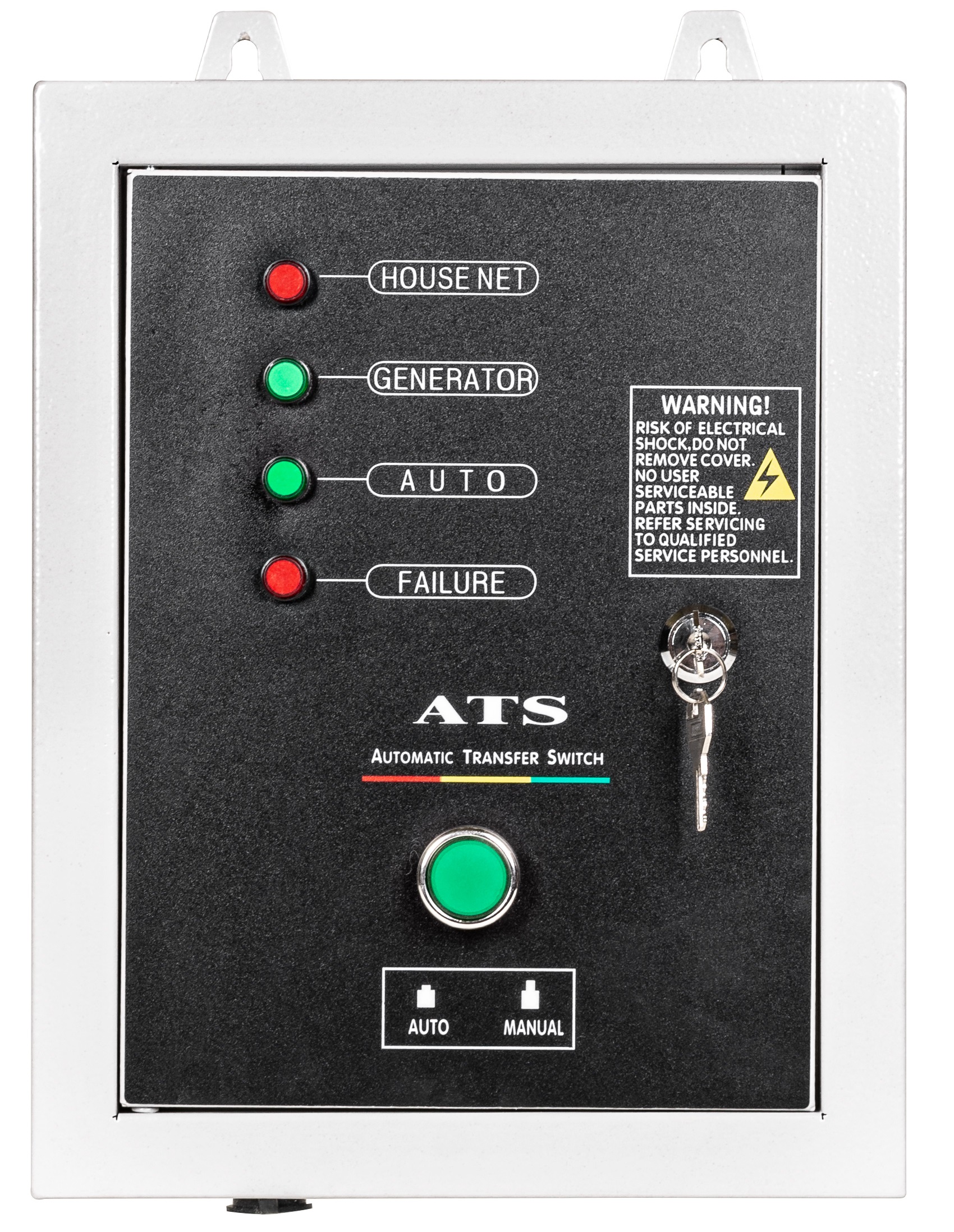

POSSIBILITY TO CONNECT SHR MODULE (ATS)
The unit is compatible with the automatic reserve switching module. ATS activates the genset in the event of a power failure or voltage drop in the primary grid.

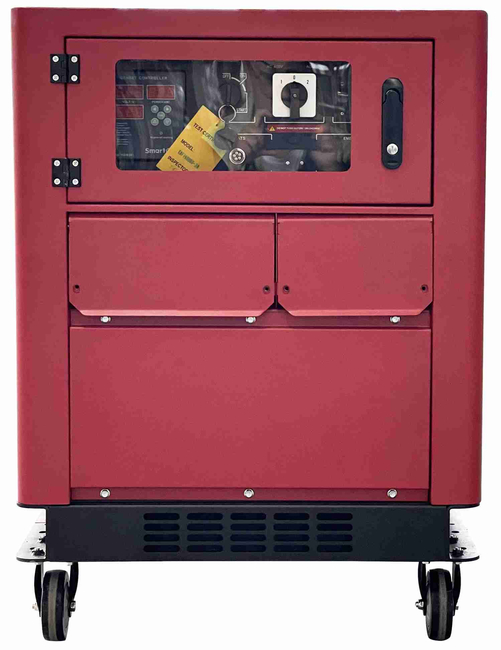

DIGITAL CONTROL PANEL

It was equipped with a microprocessor that allows you to control m.in. functions for automatic start-up and shutdown, remote start-up, and shutdown if critical parameters are exceeded. Digital display shows current, voltage and operating time (hour meter).

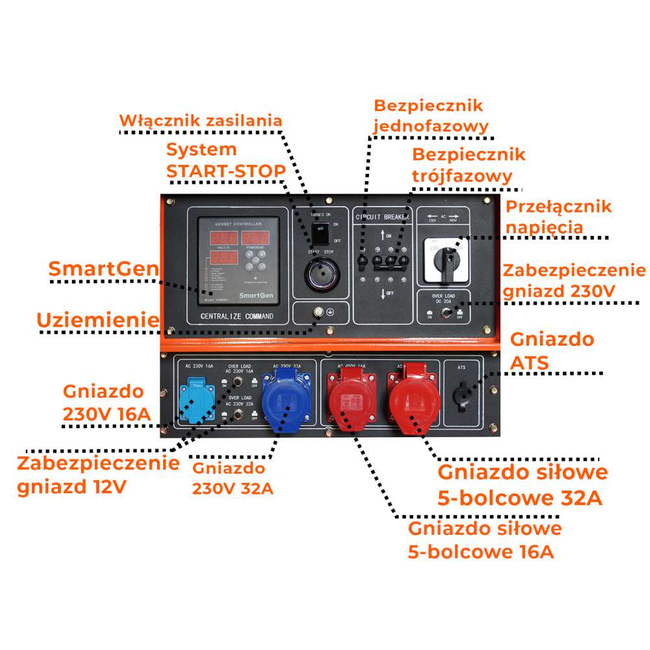

Control panel - SmartGen

The generator set is equipped with an intelligent digital controller aggregate control. The module allows precise measurement of many parameters, which can be configured using the controller. The device is intuitive and easy to use.

Characteristics:

1. Two LED displays allow:

  • single-phase voltage display
  • display of total active power voltage (calculated based on single-phase power at balanced load

2. Multifunction LED display with the ability to switch between:

  • single-phase frequency
  • single-phase current
  • battery voltage
  • total working time
  • engine and generator temperatures

3. Alert in case of detection:

  • undervoltage
  • overvoltage
  • frequency too low
  • too high a frequency
  • overloads
  • overheats

4. Shutdown of the unit when too low oil pressure is detected (oil light)

Specification:

  • display: LED Nixie Tube
  • operating panel: PET
  • digital input: 1
  • relay output: 2
  • analog input: 2
  • air conditioning system: 1P2W
  • alternator voltage: (30-360) V (ph-N)
  • alternator frequency: 50/60 Hz
  • interface programming: LINK
  • power supply: DC (9-18) V
  • operating temperature: -25/+70 °C

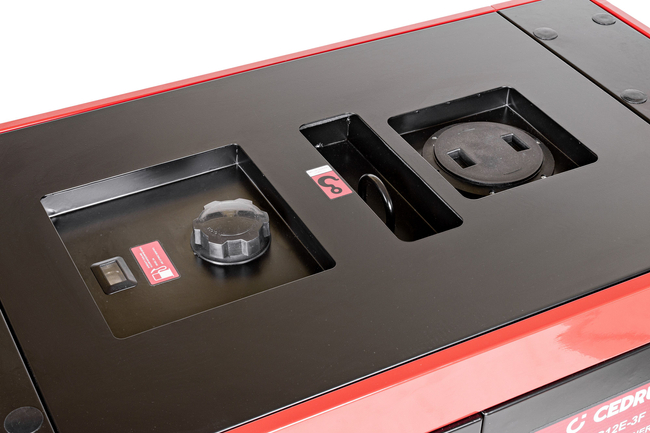

ENLARGED FUEL TANK

Allows you to extend the time of uninterrupted operation on a single refueling.

SUPER SILENT SOUND ENCLOSURE

Helps reduce noise levels, making long-term use much more comfortable.

ELECTRIC START

Thanks to the built-in electric starter and battery, the genset can be started by turning the key, without having to pull the cord.

DUAL POWER 230 V/380 V

Innovative Dual Power technology guarantees identical output power in both phases (230 V/380 V). The switch located on the control panel allows you to easily change the mode of operation.

Technical Data:

  • Cedrus
  • 3 phase 230V/400V 50Hz
  • 12V/8.3A
  • optionally
  • two-cylinder, air-cooled
  • 0,8
  • 320 kg
  • 1275*680*880mm
  • 10000 W
  • 11000 W
  • 12000 W
  • 11000 W
  • 997 cm³
  • Diesel Euro V engine
  • copper winding, electric start, quiet
  • Yes
  • electric
  • 2 30 V / 400 V / 50Hz
  • Diesel (DIESEL)
  • 26 l
  • optional ATS (ATS)

Engine parameters:

  • engine type: v-type diesel
  • number of cylinders: 2
  • direct injection: yes
  • cooling type: air
  • displacement: 997 cm3
  • number of revolutions per minute: 3000rpm
  • automatic speed control: yes
  • oil level sensor: yes
  • oil pressure sensor: yes
  • fuel vent: yes
  • type of valve train: gear-driven valve train
  • starter: 1.4 kW
  • lubrication method: oil pump motor
  • type of valve: electromagnetic
  • recommended oil: 10W40 semi-synthetic

Features:

  • dOUBLE POWER technology: yes
  • aVR voltage regulator: yes
  • keyless START-STOP system: yes
  • type of starting: electric
  • oil sensor: yes
  • oil pump: yes
  • fuel level indicator: yes
  • smartgen: yes
  • power consumption indicator: yes
  • voltmeter: yes
  • multifunctional display: yes
  • emergency stop: yes
  • current protection: yes
  • battery: yes, 36Ah
