CEDRUS DG8.5E-3F GENERATOR GENERATOR 8.5kW / 18hp 230/400V AVR SILENT VERSION CEDRUS 8.5 kW KD1100F DIESEL
CEDRUS DG8.5E-3F GENERATOR GENERATOR 8.5kW / 18hp 230/400V AVR SILENT VERSION CEDRUS 8.5 kW KD1100F DIESEL
CEDRUS DG8.5E-3F GENERATOR GENERATOR 8.5kW / 18hp 230/400V AVR SILENT VERSION CEDRUS 8.5 kW KD1100F DIESEL
CEDRUS DG8.5E-3F GENERATOR GENERATOR 8.5kW / 18hp 230/400V AVR SILENT VERSION CEDRUS 8.5 kW KD1100F DIESEL
CEDRUS DG8.5E-3F GENERATOR GENERATOR 8.5kW / 18hp 230/400V AVR SILENT VERSION CEDRUS 8.5 kW KD1100F DIESEL
CEDRUS DG8.5E-3F GENERATOR GENERATOR 8.5kW / 18hp 230/400V AVR SILENT VERSION CEDRUS 8.5 kW KD1100F DIESEL
CEDRUS DG8.5E-3F GENERATOR GENERATOR 8.5kW / 18hp 230/400V AVR SILENT VERSION CEDRUS 8.5 kW KD1100F DIESEL
CEDRUS DG8.5E-3F GENERATOR GENERATOR 8.5kW / 18hp 230/400V AVR SILENT VERSION CEDRUS 8.5 kW KD1100F DIESEL
CEDRUS DG8.5E-3F GENERATOR GENERATOR 8.5kW / 18hp 230/400V AVR SILENT VERSION CEDRUS 8.5 kW KD1100F DIESEL
CEDRUS DG8.5E-3F GENERATOR GENERATOR 8.5kW / 18hp 230/400V AVR SILENT VERSION CEDRUS 8.5 kW KD1100F DIESEL
true

CEDRUS DG8.5E-3F GENERATOR GENERATOR 8.5kW / 18hp 230/400V AVR SILENT VERSION CEDRUS 8.5 kW KD1100F DIESEL

  • CEDRUS DG8.5E-3F diesel generator set features low noise level. The model can withstand significant loads that do not cause a loss of power.
List price2 053,93 €
2 053,93 €(Discount 5%)
1 951,22 €
incl. VAT / pcs.
Express checkout 1-Click(without registration)
Product Available
Product Available
14 days to return
Find out in which store you can check the product and buy it right away
CEDRUS DG8.5E-3F GENERATOR GENERATOR 8.5kW / 18hp 230/400V AVR SILENT VERSION CEDRUS 8.5 kW KD1100F DIESEL
CEDRUS DG8.5E-3F GENERATOR GENERATOR 8.5kW / 18hp 230/400V AVR SILENT VERSION CEDRUS 8.5 kW KD1100F DIESEL
Safe shopping
Average 4.7 on Opineo see
Free returns
Authorized distributor internet, see
Guarantee of reliability and timeliness

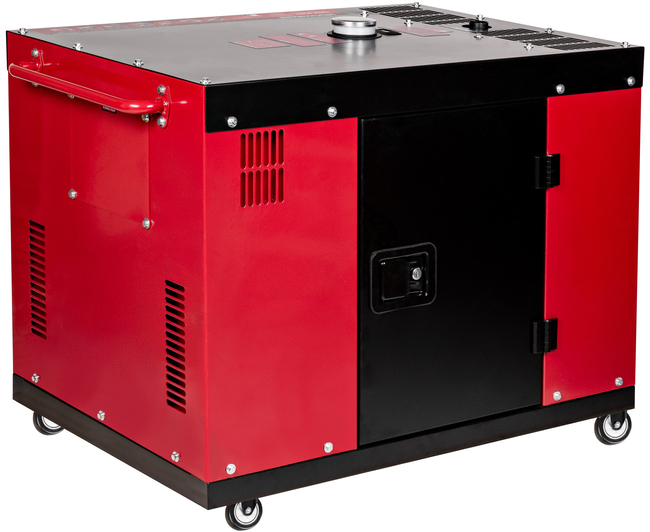

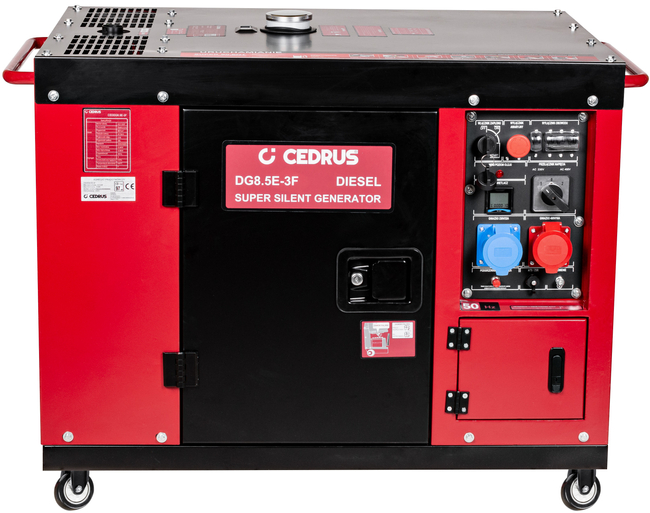

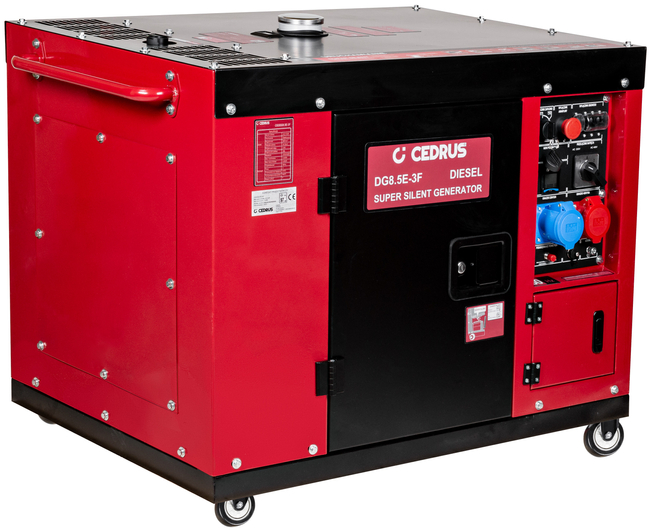

CEDRUS DG8.5E-3F GENERATOR 8.5kW / 18 hp 230/400V AVR

CEDRUS 8.5 kW KD1100F DIESEL

MUTED VERSION SUPER SILENT

CEDRUS DG8.5E-3F is a built-in 3-phase power generator which can be can be retrofitted with ATS / АВР automatics.
Thanks to the new design of the U-type air duct, through which all intake and exhaust air passes, a sound insulation effect is achieved.

Cedrus 8.5 kW generator set KD1100F Diesel

Power generator with diesel engines are very often chosen for the emergency power system. When AST automation (ATS) detects a drop in voltage from the grid, the genset will automatically start up, and when the grid voltage reappears, the genset will shut down by itself.

Versatile application allows the unit to be used in various situations for many hours. Specially designed three-phase alternator with copper winding guarantees reliable operation.

Innovative technology Dual Power guarantees identical output power in both phases (230 V/380 V), which makes it possible to power both single-phase and three-phase devices. The switch located on the control panel allows you to easily change the mode of operation.

Fuel system venting system and engine warm-up function allow for easy starting even after extended periods of inactivity or in minus temperatures.

Generator set CEDRUS DG8.5E-3F in the Super Silent diesel body, it withstands significant loads that do not cause a drop in power. Ideally suited for emergency power supply to residential buildings, stores, businesses, where we are particularly concerned about comfort of use.

The device is equipped with a digital control panel that allows you to control the functions of automatic on/off, remote startup and shutdown, as well as measurement parameters. The given model is compatible with the automatic reserve switching (ATS) module.

Powerful Euro V diesel engine - a single-cylinder, air-cooled, 667cc engine generates a constant power of 8 kW (nominal power), and 8.5 kW (starting power). The unit is equipped with an electric starter. The total weight of the unit is 210 kg.

AVR system provides voltage stabilization to protect powered loads from voltage fluctuations.

Oil sensor will shut down the genset at low oil level protecting the engine from seizure.

In addition, our units are equipped with circuit fuses.

Features of the DG8E-3F generator set:

  • New canopy design with thicker base frame to increase the structural strength of the generator, while achieving sound insulation and vibration reduction effects.
  • 100% copper generator, F-class insulation, high conversion efficiency, intelligent AVR controller ensures stable voltage and less voltage waveform distortion.
  • Electric starter
  • Sound-absorbing housing Super Silent
  • Digital control panel with hour meter
  • Stable operation and fuel savings of up to 15%
  • The unit is powered by a diesel, single-cylinder, air-cooled, 667 cm³, 3000 rpm, Euro V combustion engine that satisfies the only about 3 liters of fuel per hour worked.
  • The maximum capacity of the tank is 26 liters
  • Possibility of connecting an automatic АВР
  • AVR - automatic voltage stabilization
  • Copper winding of the alternator
  • Intelligent overload protection
  • Electric start
  • Oil level sensor with engine stop system
  • Innovative technology DUAL POWER
  • 2 modes of operation: 230 V/ 380 V
  • Sound-absorbing housing Super Silent
  • Automatic fuel system vent
  • Pre-start engine heating
  • Metal fuel tank
  • Bearing-mounted wheels
  • Possibility of optional connection of the system of automatic switching on of the genset in case of power failure SZR / ATS
  • The engine meets the latest emission standard EURO 5, providing maximum comfort.

POSSIBILITY TO CONNECT SHR MODULE (ATS)
The unit is compatible with the automatic reserve switching module. The ATS activates the genset in the event of a power failure or voltage drop in the primary grid.

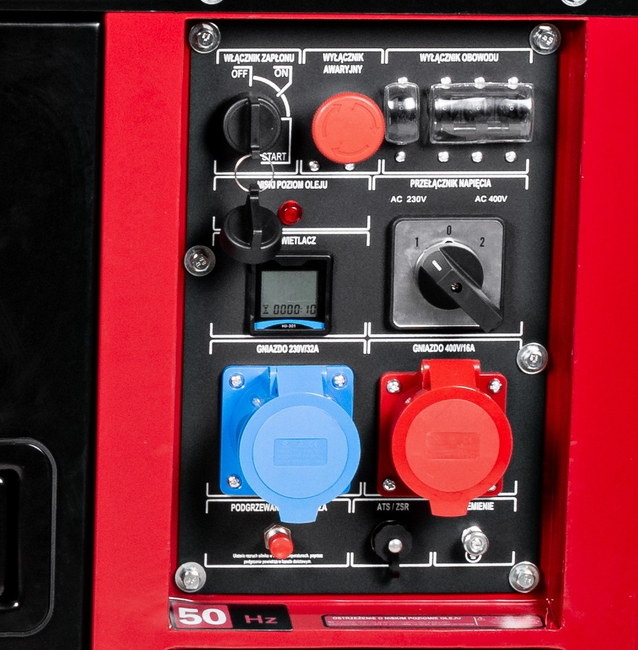

DIGITAL CONTROL PANEL

It was equipped with a microprocessor that allows you to control m.in. functions for automatic start-up and shutdown, remote start-up, and shutdown if critical parameters are exceeded. Digital display shows current, voltage and operating time (hour meter).

ENLARGED FUEL TANK

Allows you to extend the time of uninterrupted operation on a single refueling.

SUPER SILENT SOUND ENCLOSURE

Helps reduce noise levels, making long-term use much more comfortable.

ELECTRIC START

Thanks to the built-in electric starter and battery, the genset can be started by turning the key, without having to pull the cord.

DUAL POWER 230 V/380 V

Innovative Dual Power technology guarantees identical output power in both phases (230 V/380 V). The switch located on the control panel allows you to easily change the mode of operation.

Technical Data:

  • euro V diesel engine
  • CEDDG8.5E-3F
  • single-cylinder
  • air-cooled
  • 667 cc
  • 3000 rpm./min
  • electric start
  • 3 phase generator 230V/400V 50Hz
  • AVR
  • copper winding
  • power max 8,5 kW
  • rated power 8.0kW
  • dC socket 12V/8,3A
  • fuel tank 26l
  • dimensions 1140*735*880 mm
  • net weight 210 kg
  • quiet
  • optional ATS (ATS)

Symbol:
CEDRUS DG8.5E-3F AGREGAT GENERATOR PRĄDOTWÓRC
Producer code:
5903228182501
Packing length [mm]
1150
Package width [mm]
740
Packing height [mm]
860
Weight
220.000 kg
CEDRUS Extended Warranty for 3 Years

WARRANTY AND SERVICE CONDITIONS

  • Goods purchased from our store are new and original and come with a full manufacturer's or importer's warranty.

  • In the event of a complaint, report the defect to the Seller or Authorized Service Point of the manufacturer of the device in question. If the defective product is covered by a door-to-door warranty, follow the procedure listed on the warranty card.
  • Detailed Warranty Terms and Conditions can be found in the user manual

Warranty terms and conditions


1. The warranty is provided by Cedrus Joint Stock Company for a period of 24 months from the date of sale for consumer purchases or for 12 months from the date of sale in other cases.
The warranty covers goods/devices purchased on the territory of the Republic of Poland. Entitlements under this warranty do not extend to other claims relating to
damage to the goods/device and claims for loss of profits or incurred costs resulting from damage to the goods/device.
2. For extended warranties of some manufacturers beyond 24 months, annual service inspections are required (annotations in the warranty card):
- weibang mowers 60 months,
- cedrus tractors, Simplicity 36 months,
- ariens zero-turn tractors Edge series 24 months or 150 hours, Ikon Xd 36 months or 300 hours, Apex 48 months or 500 hours (whichever comes first),Zenith 48 months or 750 hours (whichever comes first)
- ferris tractors 24 months unlimited hours, 48 months or 500 hours (whichever comes first). Drive belts, tires, brake pads, batteries, knives
are guaranteed for 90 days. the 2-belt drivetrain used on IS 6200, ISX 3300, IS 3200Z, ISX 2200, IS 2100Z and ISX 800 models is warranted for 36 months or 300 hours (the warranty covers parts and labor in the first year, parts only in the second and third years). Coilover shock absorbers and all suspension related components are warranted for 60 months with no limit on hours.
Knife drive belts on FW35, FM35, SRSZ1 models are warranted for 12 months or 100 hours.
- pubert soilers with Honda engine 60 months,
- cedrus mowers with Kawasaki engine 36 months,
- wiper robotic mowers: Trekker series 72 months (annotated in the warranty card and Wiper service application).
3. For equipment with extended warranties from some manufacturers, the warranty for motors (manufacturer) and gearboxes is 24 months consumer purchase or 12 months in the
other cases.
4. Warranty repair is understood to be activities of a specialized nature appropriate for the removal of a physical defect covered by the warranty.
5. Warranty is not covered:
(a) parts subject to normal wear and tear:
- components of the cutting system (guides, chains, adapters, knives, wheels, discs, drills, grinding wheels, holders of components),
- cables: starter, drive, brake, adjustment cables,
- drive components (clutch drums, clutches drive wheels, drive shafts, pulleys, V-belts and toothed belts, equipment running wheels),
- filters for air, oil, fuel, water, hydraulic fluids,
- spark plugs, ignition wires, springs, rubber dampers, diaphragms, nozzles and carburetor valves,
- electrical wires, brushes, brush-holders, fuses, light bulbs, manual and electric starters.
b) damage resulting from the use of oils other than those recommended by Cedrus Joint Stock Company and the manufacturer (applies to 2-stroke as well as 4-stroke engines).
(c) damage caused by the use of fuel, low-quality mixture.
d) damage that occurred as a result of repairs outside the service network of Cedrus Joint Stock Company.
(e) mechanical, thermal, chemical and all other damages caused by an act or omission by the User.
f) damage caused by natural partial or complete wear and tear in accordance with the characteristics or intended use of the equipment.
(g) damage caused by failure to follow the manufacturer's recommendations from the operating instructions and service messages.
(h) damage resulting from:
- alterations, repairs and structural changes made by the User,
- improper or inconsistent with the instructions for installation, use, lack of care for the equipment (use of non-original materials),
- transportation.
(i) intentional damage to equipment.
(j) maintenance activities - cleaning, replacement of consumables, service inspections.
6. Batteries are guaranteed for a period of 6 months.
7. Repairs and inspections of the equipment should be carried out in the service network of Cedrus Joint Stock Company.
8. The warranty for the parts used in the repair of the so-called "inserted parts" is given for a period of 6 months.
9. The complainant has the right to exchange the goods/device for a new one in the event that the Authorized Service Center determines in writing that removal of the defect is impossible or economically unreasonable.
10. The complainant should deliver the goods/device to the Authorized Service Center. The goods/device under complaint should be complete and in the condition they were in at the time of damage. It should also come in a suitably protective package.
11. The Authorized Service Provider is obliged to consider the legitimacy of the complaint within 14 days from the date of delivery by the Complainant of the goods/device. In the case of recognition of the warranty, the Authorized Service Provider is obliged to perform its obligations within 30 days.
12. The warranty card must be properly filled out. Warranty rights can be exercised only upon presentation by the user of a valid warranty card and proof of purchase. Any arbitrary changes to the entries on the warranty card or making repairs on your own will void the warranty.
13. In the case of a warranty for rechargeable devices, the serial numbers of all components of the set must be entered in the warranty card.
