LONCIN LC5000-AS
3x230V AVR

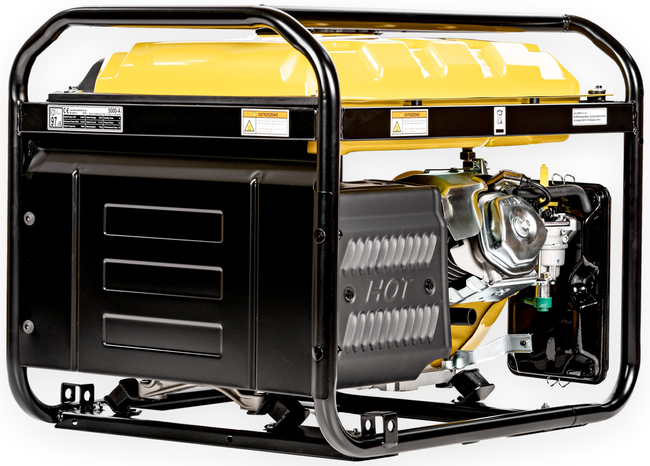

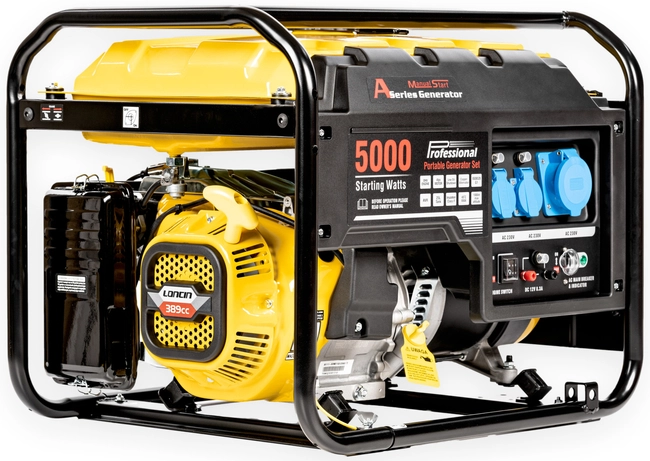

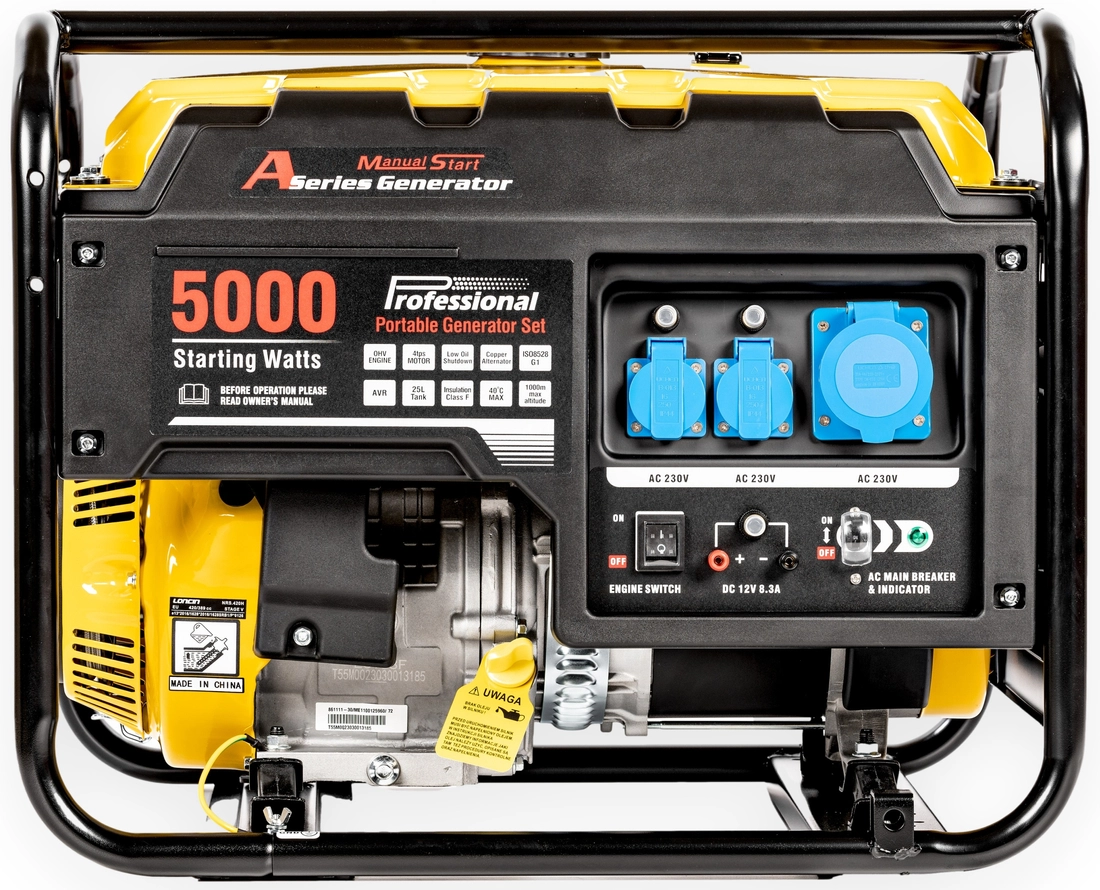

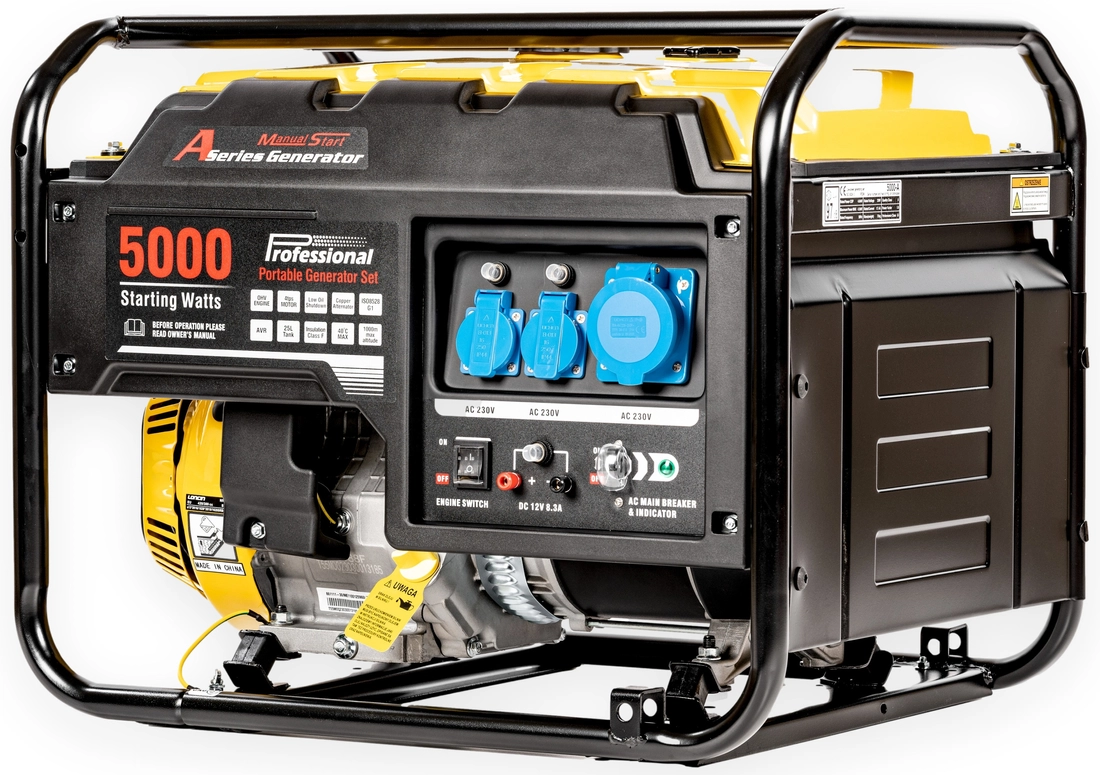

LONCIN LC5000-AS gasoline generator set powered by a 4-stroke engine. Maximum power 5000W. Gasoline tank with a capacity of 25 liters. Noise level 96 dB. 230V output: 3 pcs. It has a fuse and grounding system. Unit designed to work in harsh conditions. The advantage is the high power of the alternator and AVR voltage stabilization. High-powered aggregate used in farms domestic or in public works. It will easily maintain power supply, thanks to voltage stabilizer. You can connect multiple devices without losing power.
Loncin LC5000-AS single-phase generator set
Loncin generator puts energy where we need it. Places that are without power from an outlet are no longer a problem thanks to generators. The LC5000-AS is the choice for undemanding users who need to connect not a large number of energy-consuming devices to the unit. Single-phase units will work best for connecting products like refrigerators, televisions or electrical appliances.

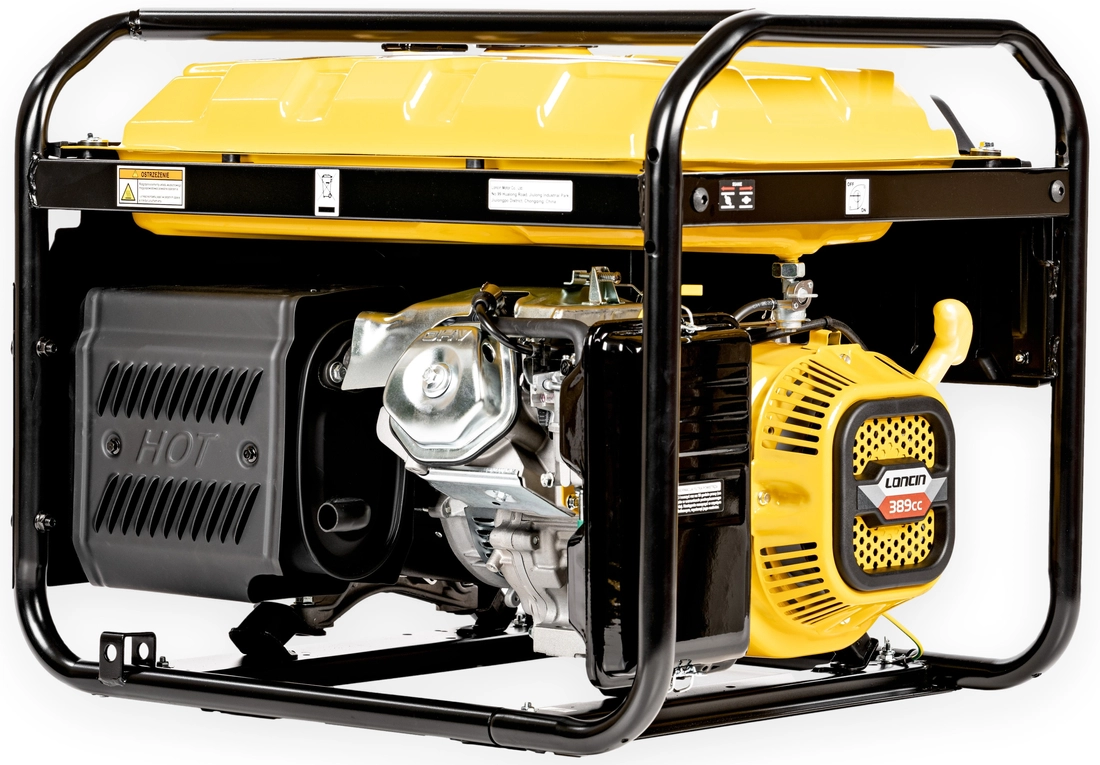

The unit uses a reliable and proven engine with a capacity of 389 cm3, nominal power 4000W, starting power 5000W.
The aggregate with a total weight of 73 kg. Specially designed alternator with copper winding guarantees reliable operation.
AVR system provides voltage stabilization to protect powered loads from voltage fluctuations.
Oil sensor will shut down the genset at low oil level protecting the engine from seizure.
In addition, the unit is equipped with circuit fuses.
Product characteristics:
- Small size aggregate
- 3x230 V socket
- Fuse
- Grounding system
- AVR voltage regulator
Technical data:
- Brand: Loncin
- Nominal power - 230V: 4000 W
- Starting power - 230V: 5000 W
- Number of phases: 1
- Mobility: Wheels and transport handle as optional equipment
- Engine Capacity: 389 cm³
- Max motor power: 13 KM
- Engine manufacturer: Loncin
- Engine model: G390
- AVR: Yes

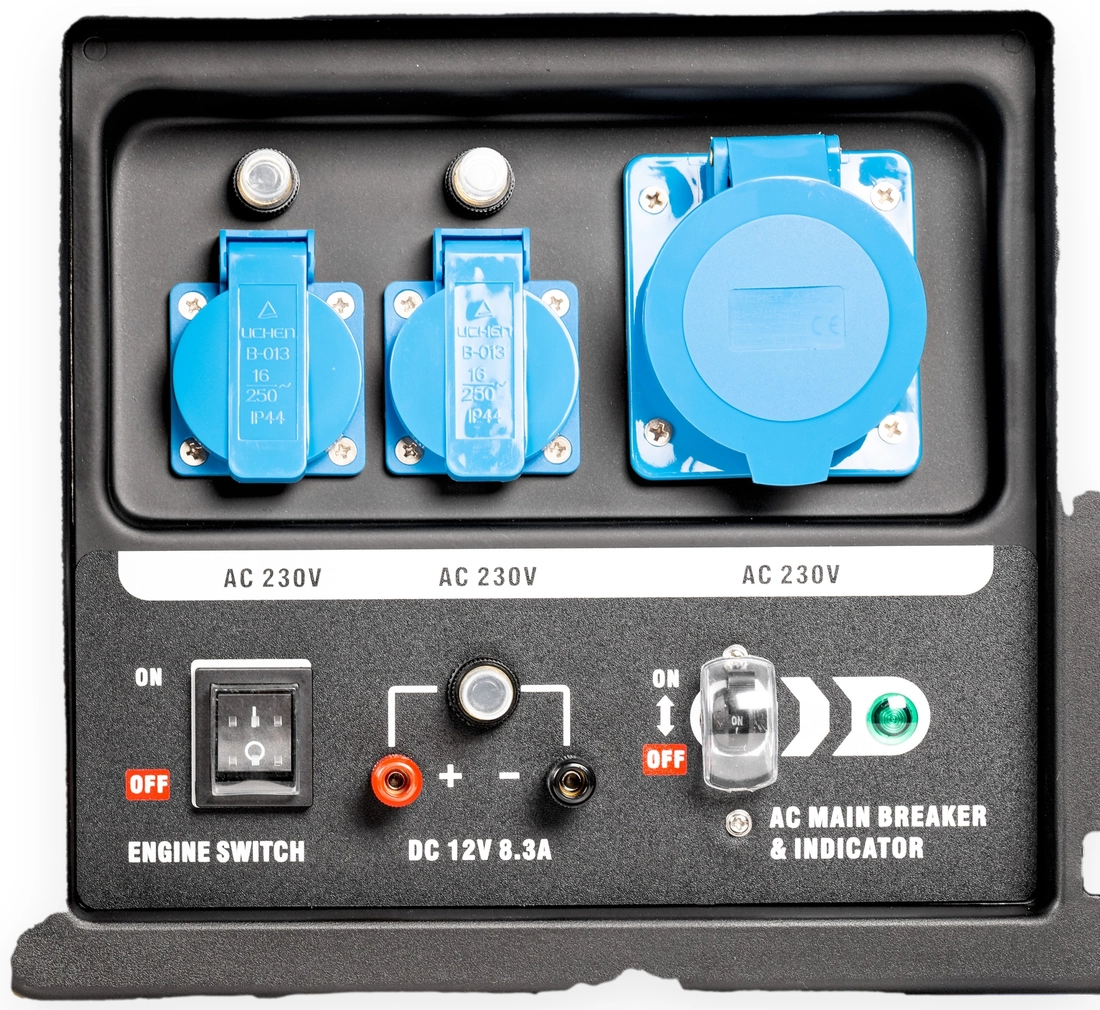

- Power outlets: 2 x 230V / 16A, 1 x DC 12V , 2 x USB
- Automatic shutdown at low oil level: Yes
- Starter: manual by means of a reversible cable
- Voltage/frequency: 230V / 50Hz
- Fuel type: Gasoline
- Fuel tank capacity: 25 l
- Combustion (50% power / 100% power ) 2.5 / 4.5 L / h
- Operating time on full tank (50% power / 100% power ) 10h / 5.5h
- Lion Noise: 98 dB(A) / at a distance of 7 meters from the unit the value drops to 76dB(A)
- Net weight: 73 kg

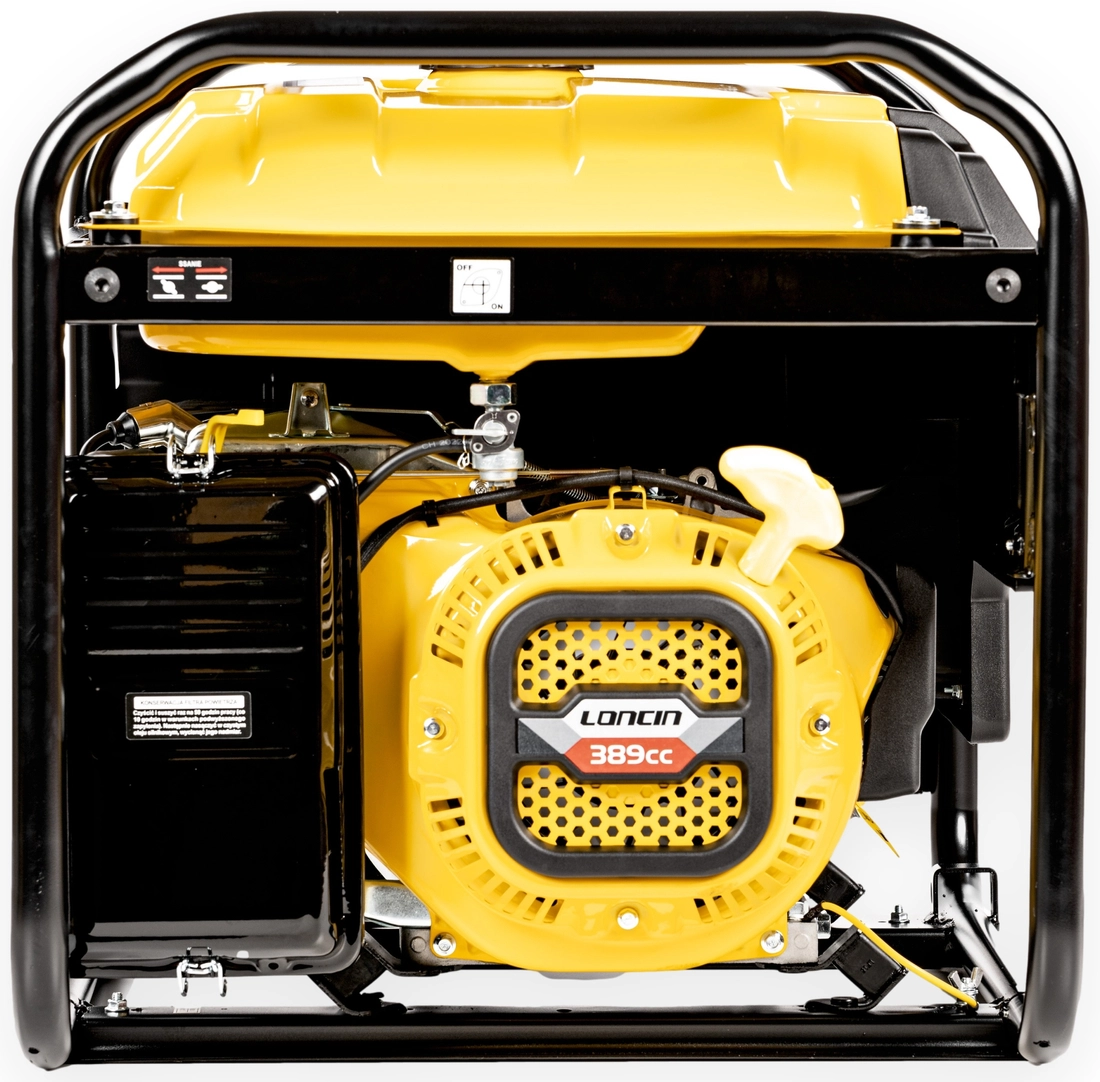

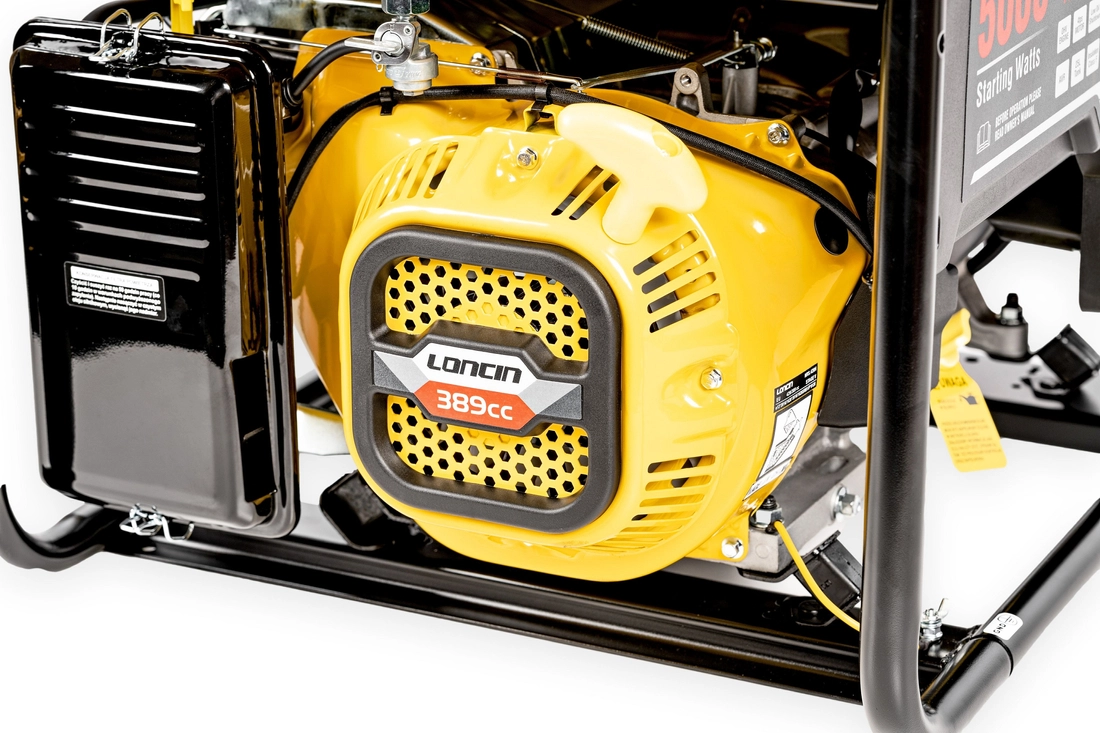

Engine specifications:

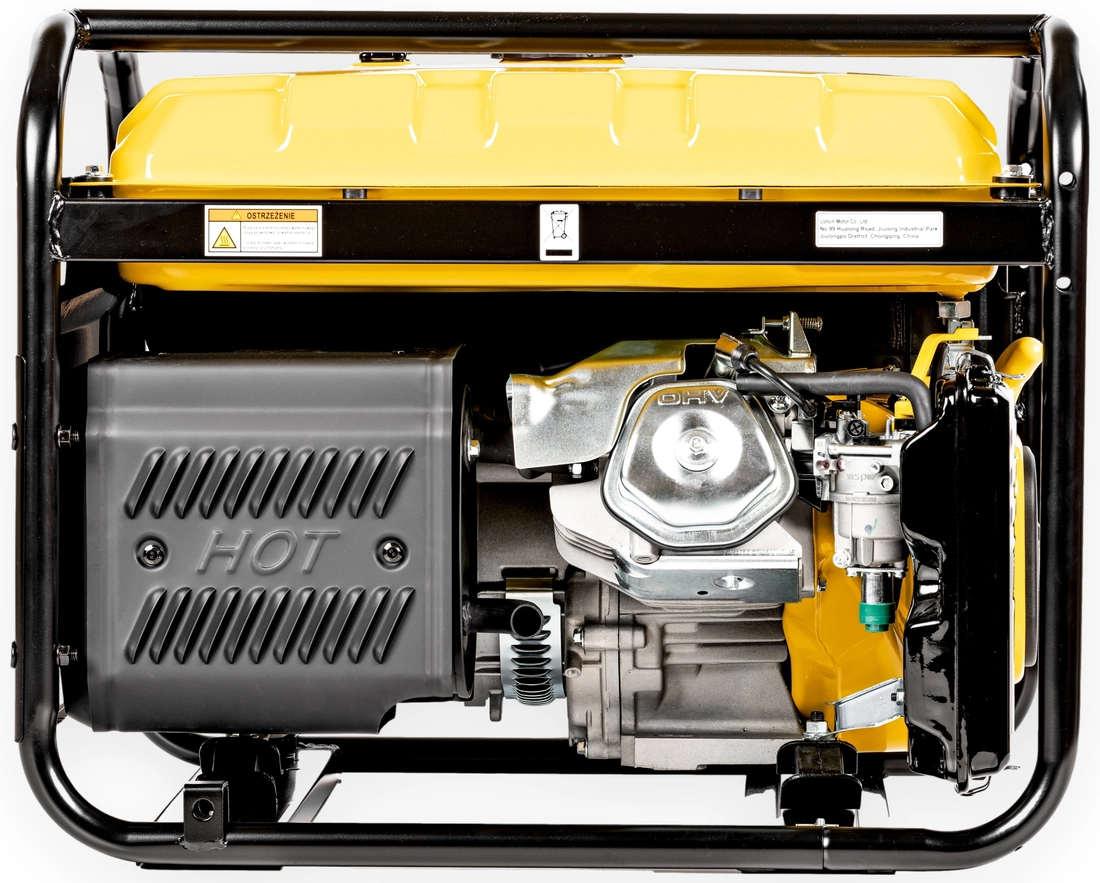

- Type Single-cylinder, 4-stroke, air-cooled, OHV, gasoline engine
- Engine capacity 389cc
- Max engine speed 3600rpm
- Usable power 7.7kW(10.5Hp)
- Maximum power 8.4kW(11.4Hp) (old standard 13HP)
- Diameter x cylinder stroke 88x 64mm
- Maximum torque 22.6Nm/2500rpm
- Compression 8.5:1
- Direction of rotation of the drive shaft Against the clock
- Start-up system Manual start-up
- Ignition system T.C.I. electronic ignition
- Type of fuel Pb95
- Fuel tank capacity - not applicable
- Maximum fuel consumption 4.19L/hour
- Type of oil 10w30
- Oil sump capacity 1.1L
- Lubrication type Splash
- Oil sensor Yes
- Net weight ≤31.5kg
- Dimensions /length. x width. x height./ 390 x 470 x 450mm
LONCIN LC5000-AS generator set from the renowned LONCIN brand is a professional, durable and powerful device. The generator is powered by a 4-stroke engine . Generator is a quiet and stable product for both amateurs and professionals. It can be used as a backup power source. It is mainly used in households as well as construction work. Thanks to the voltage stabilizer, it will maintain the voltage without much trouble.
