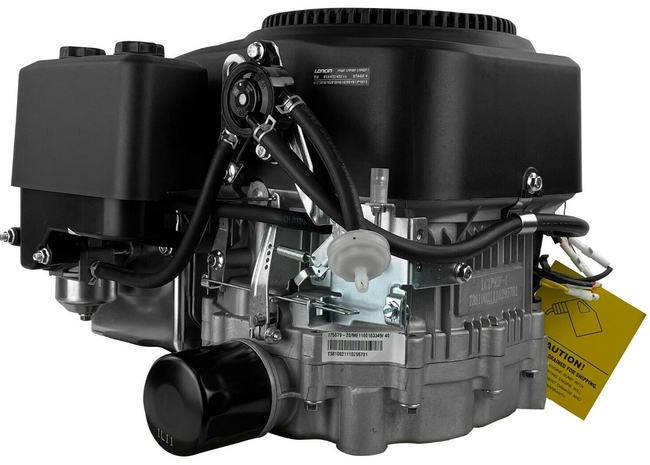

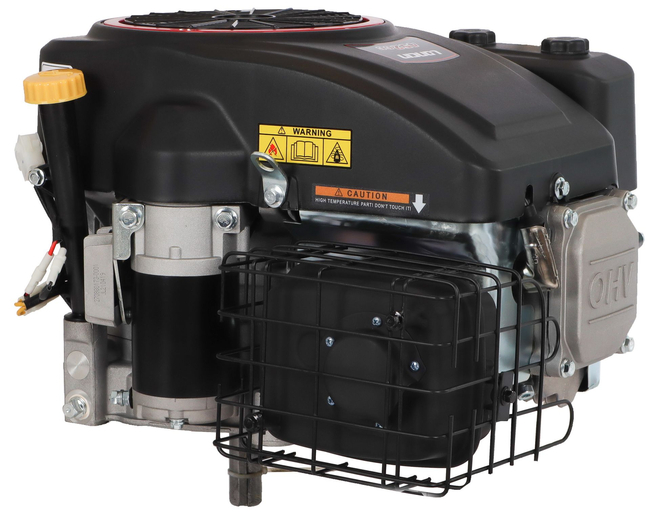

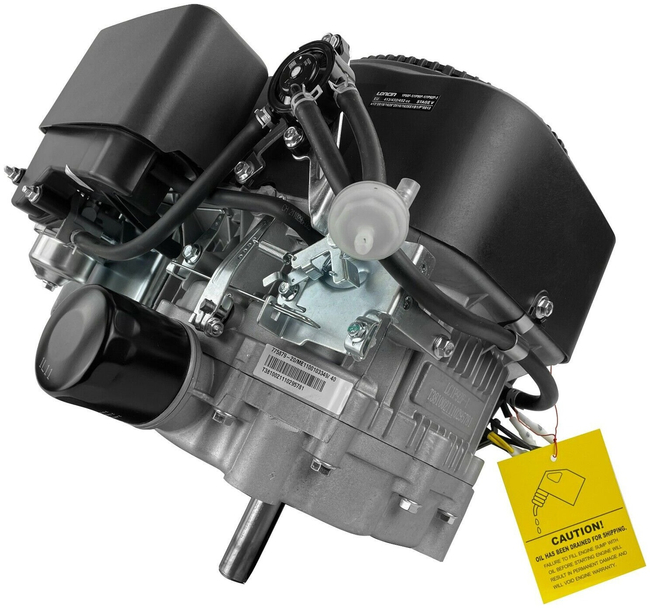

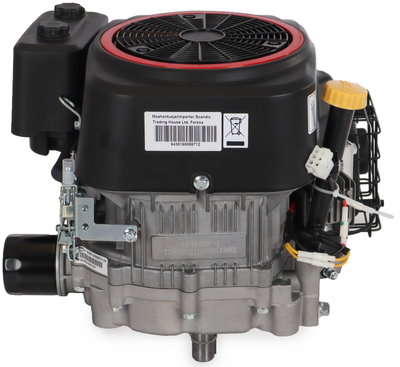

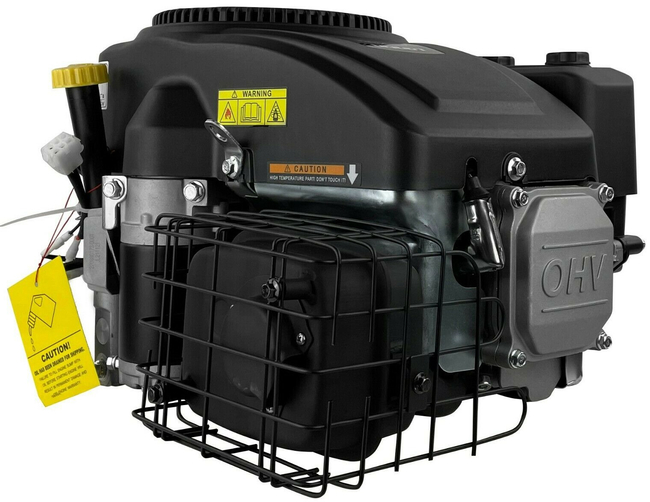

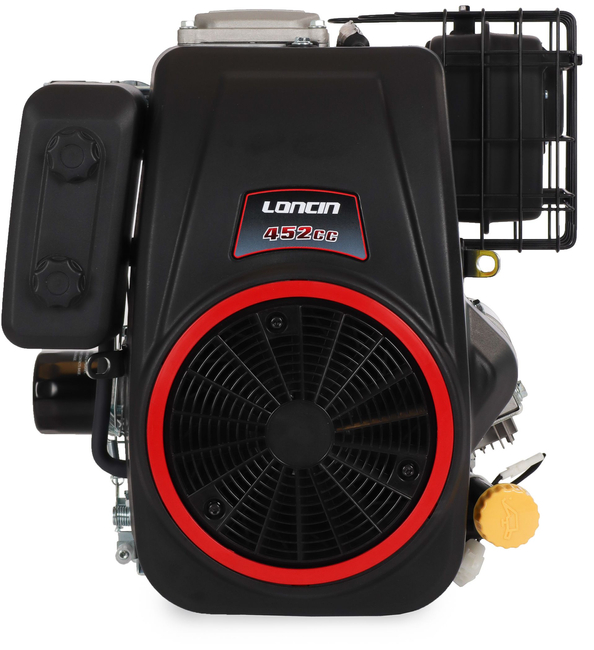

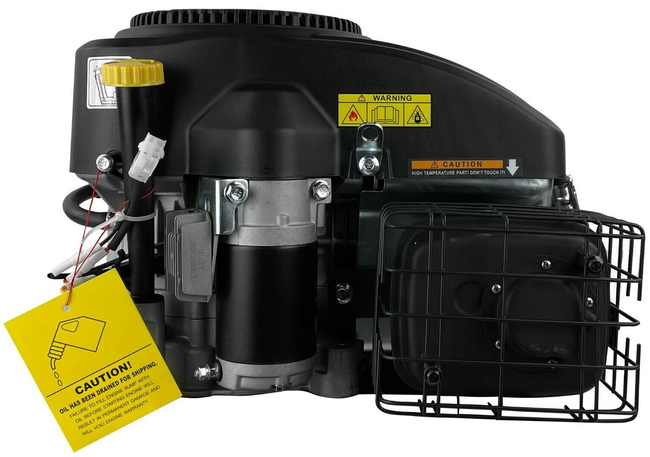

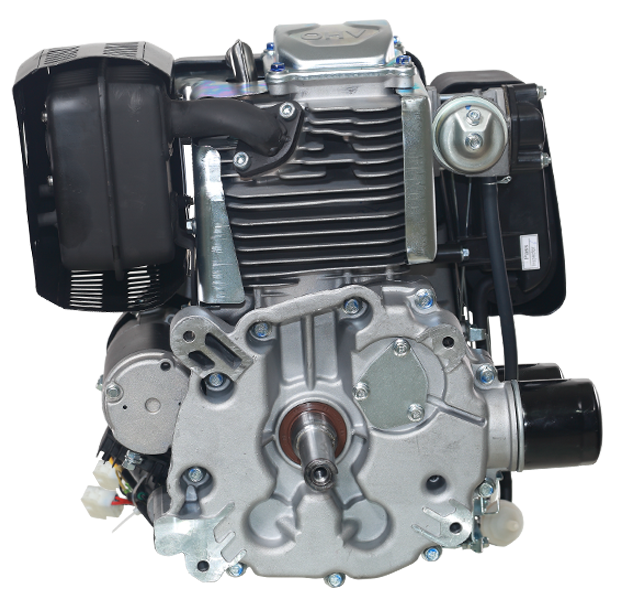

LONCIN ENGINE LC1P92F / EMAK K1600 /
One of the largest and most powerful air-cooled single-cylinder engines for garden tractor 16 hp and 22 nm, 452 ccm with electric starter.
COMPLETE ENGINE / RICHEST VERSION OF EQUIPMENT ON THE MARKET - GRATIS SUCH EQUIPMENT AS :
- BACKGROUND
- OIL PUMP
- OIL FILTER
- FUEL PUMP
- ELECTRIC STARTER
- Charge coil and voltage regulator
Loncin uses modern technology in the production of engines and other products to meet customer demands. Much attention is also paid to environmental issues. The result is the production of fuel-efficient engines, which reduces the financial cost of fuel purchases and reduces carbon dioxide emissions into the environment.
Four-stroke,single-cylinder gasoline engine with power 16 KM is a universal power supply device.
Motor used for lawnmowers with seat, tractors, etc.
For brands: Stiga, Oleo-Mac, AL-KO , Alpina, Mountfield, McCulloch, Husqvarna, Stihl, Viking, Jonsered, Partner, etc.
Trade Names :
- LONCIN 1P92F MOTOR - LC1P92F-1-A
- OLEO-MAC EMAK K1600 AWD ENGINE - SGN482349032L
- AL-KO PRO 450 ENGINE - 464929
Loncin engine is a single-cylinder, four-stroke unit in an overhead-valve configuration, air-cooled.
It has air filter, fuel filter and fuel pump, muffler
It is cooled by a forced-air circulation system that has proven itself in practice.
Loncin LC1P92F engine is a 1-cylinder power unit used by many tractor manufacturers. This engine can be found in tractors from Oleo-Mac or SOLO by AL-KO , CEDRUS etc. Very powerful and trouble-free engine with a cast iron sleeve in the cylinder and with a pump .
Your old, worn-out engine needs a major overhaul, the cost of which exceeds the value of the engine? The solution that is easiest and safest for you is to replace the engine with a new one!
Loncin LC1P92F engine is a large, powerful drive motor designed for garden tractors working on larger areas. It has 1 cylinder , and its displacement is 452 ccm. It offers you a maximum power of 16 horsepower at 3,600 rpm. /min and a maximum torque of 22 Nm available at just 2,400 rpm./min.
The oil pump and oil filter ensure proper lubrication and support air cooling of the engine during continuous operation. Cast iron cylinder liners and a bearing-mounted crankshaft significantly extend the life of the engine. The air filter consists of a preliminary and a main part, thanks to which it more effectively captures impurities sucked into the engine's interior.
The fuel pump feeds the carburetor through forced circulation of gasoline in the fuel system. This is important if you have a tractor in which the fuel tank is located at the rear under the seat, because in this situation gravity feeding of the carburetor is not possible!

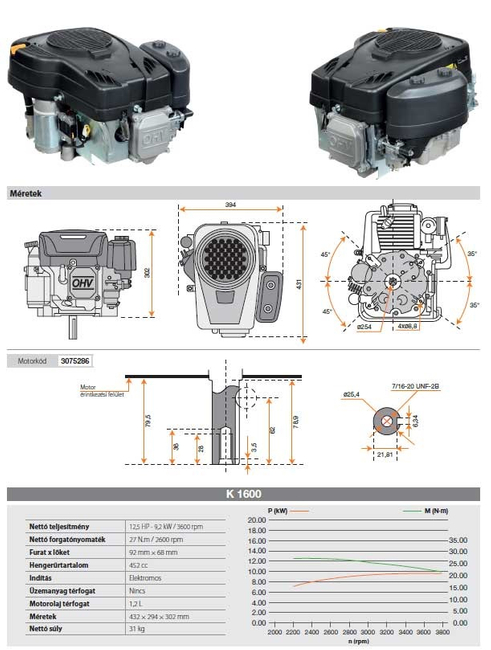

The mounting bolts have standard spacing, so it will fit in place of your old engine without too much trouble. The external dimensions are: 432x388x300 mm and allow installation under most engine covers. A shaft with a diameter of 25.4 mm and a length of 80 mm is also standard!
The engine runs evenly, smoothly making sounds that are pleasant to the ear. Thanks to the aforementioned high torque and high power, you don't have to worry about whether the tractor can handle mowing dense grass. This motor has been used for many years in top tractor models by the most well-known manufacturers!
Optimized balancing system , reduces vibration and results in more stable operation.
The best recommendation is the fact that this engine has been installed in tractors from leading manufacturers for many years.
Application:
Number of cylinders: 1 , vertical cylindrical shaft
Charging coil 130W 11Ah
THE PRODUCT COMES FROM THE OFFICIAL DISTRIBUTION TO THE POLISH MARKET !
NOTE: The LONCIN engine is packaged without oil, so it is necessary to pour oil before the first use and it is recommended to read the instruction manual.
The wedge (keyway) is not part of the engine equipment and is a separate part not assigned to the engine. It is always found in an old engine or tractor.
