GENERATOR
INVERTER CASE

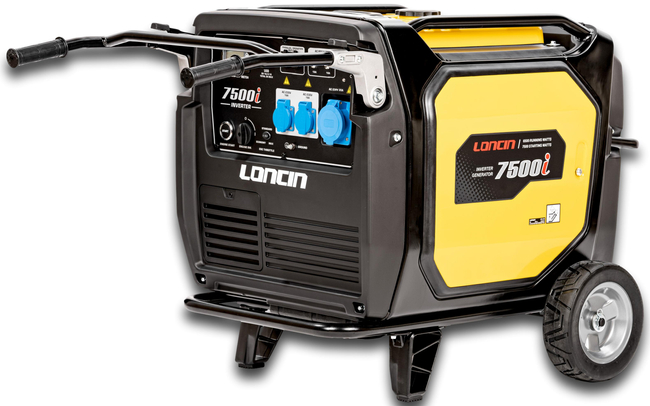

LONCIN LC7500i 7.5 KW
Electric Starter - Estart
LONCIN aggregates is a novelty in our offer. We used reliable and proven LONCIN engines in them .This is a twin model of the Atlas Copco P6000I genset
The LONCIN LC7500I GENERGENCY GENERATOR is twin Atlas Copco brand power generator P6000i - a portable unit developed for professionals and contractors, but can successfully serve individuals as well. The durable design of this unit guarantees reliable operation for long-term use, even in the harshest operating conditions. The advantages of the device include efficient fuel consumption, compact size and its loudness. Intelligent speed control combined with the parallel operation function deliver efficient power at the lowest fuel consumption, adapting engine speed to the load.
Why choose a LONCIN portable generator ?
LONCIN iP Series portable generators are compact plug and play solutions with low fuel consumption.
They are powered by gasoline engines, made with inverter technology. Very quiet in use, can operate at night, for example, in campgrounds. The noise level (LpA) is only 63-65 dB(A). Power: 1.6-6.5 kW.
The inverter generator is powered by an inverter motor, making it better suited to powering electronic devices than a "regular" power generator. Thus, it is safer for them and guarantees that they will not be damaged by voltage changes.
Loncin inverters are designed with the utmost care. They are equipped with electronic systems to protect the equipment they power. Their biggest advantages include low weight, small size, quiet operation, and automatic speed control depending on the load.
Suitable for voltage-sensitive electronics. Thanks to the voltage stabilizer, it will maintain the voltage without much trouble. The device has a classic 230V outlet.

Product Characteristics:

A sound power level of no more than 88 dB(A) allows the iP Series units to operate anywhere, anytime.
Features and Benefits:
- protected electrical outlets give safety during use;
- Robust, soundproof housing minimizes the risk of damage and ensures quiet operation;

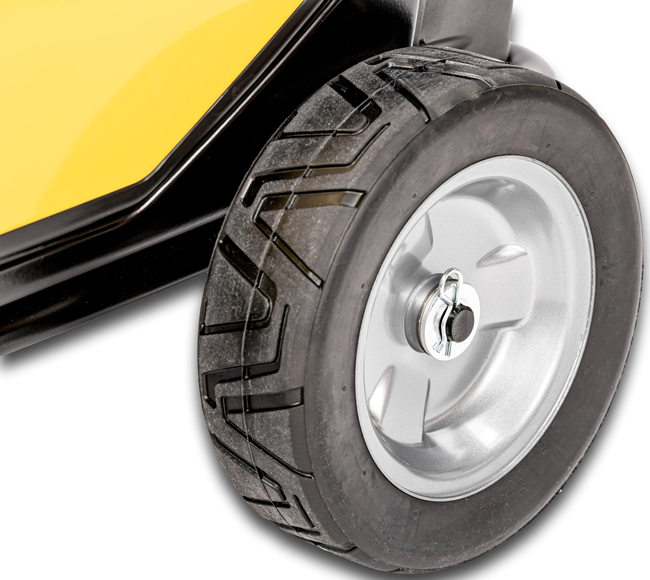

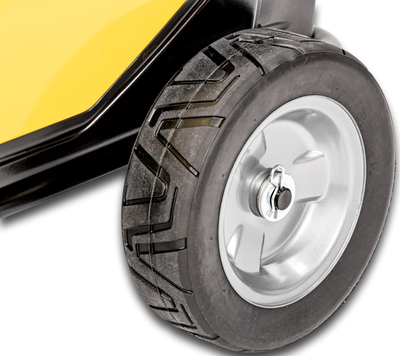

- Transport wheels make it easy to move the unit;

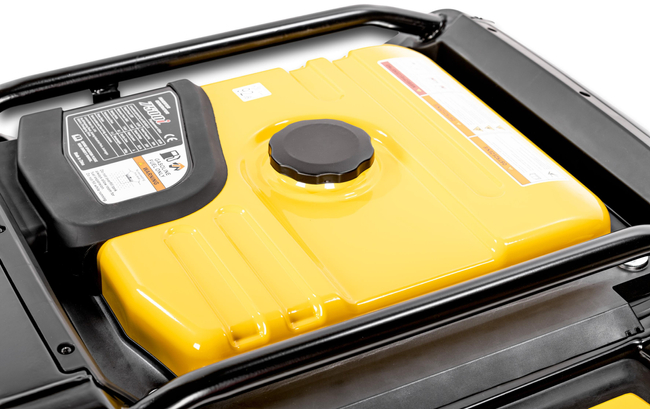

- The large tank ensures long operation without refueling;
- Thermal protection provides protection for the generator;
- Engine alarms inform of low oil levels and prevent overloading;
- Speed control ensures efficient fuel consumption;
- The unit is equipped with connectors and cables for parallel operation;
- automatic voltage regulation (AVR) allows to work with receivers sensitive to voltage quality.

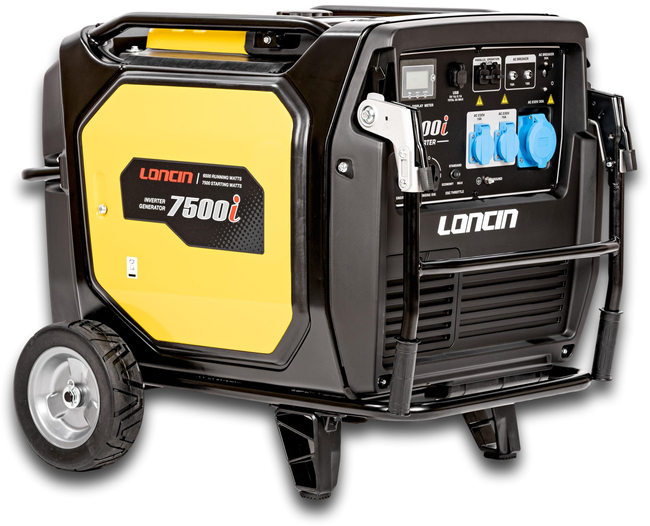

LONCIN LC7500i is a brand new generator suitable for all kinds of electronic devices, equipped with the latest technology and is one of the most efficient generators available on the market today. The CPU speed for the inverter system is four times faster than most units and is much more accurate across the board. Power quality exceeds GB 2820 G2 and THD (total harmonic distortion) meets the requirements of the Power International standard. The power output is fully compliant with European EMC (Electromagnetic Compatibility) .Intelligent engine control system saves 11% a fuel and meets the latest US EPA3 environmental emission standards.
High-performance charging operation
In the power rating of 7500i generator, real-time power supply of high quality and high purity current is guaranteed, which meets the requirements of computer power supply, emergency power supply, audio equipment, communication equipment, medical equipment, electromagnetic microwave heating equipment and other apparatus controlled electronic chips
Core technology innovation
LONCIN 7500i Generator adopts the latest innovative technologies; ESC engine intelligent control system, PMA indirect frequency permanent magnet generator and newly designed air duct
Environmentally friendly and clean energy LCPOWER
7500i generator set is equipped with "LC-POWER" engine low-emission power generation that complies with US and European emission standards.

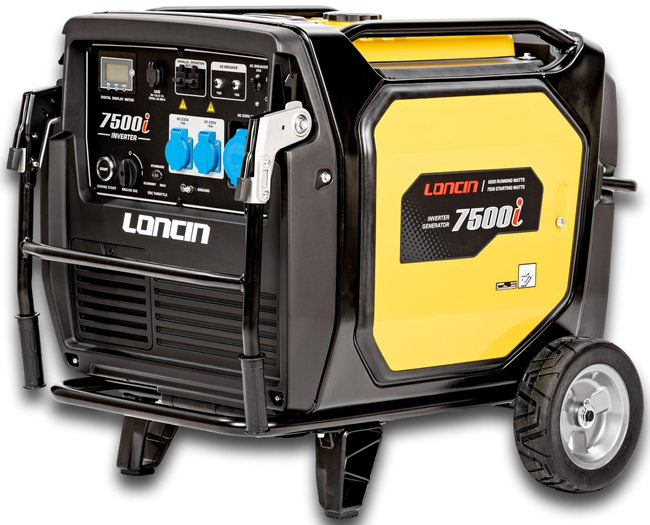

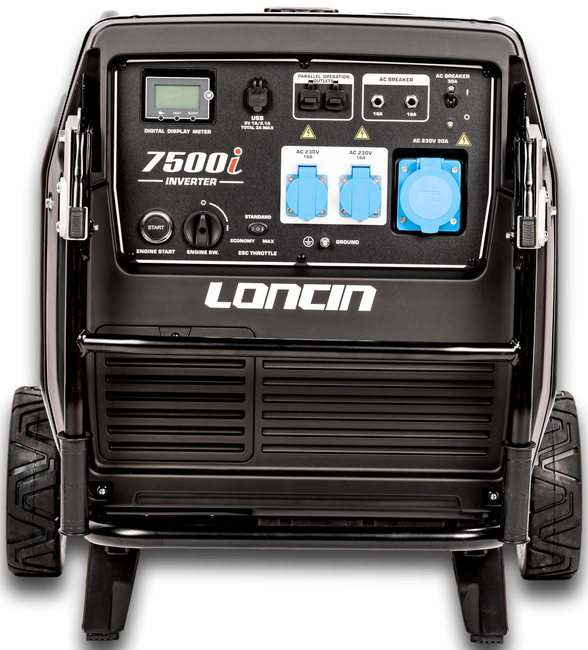

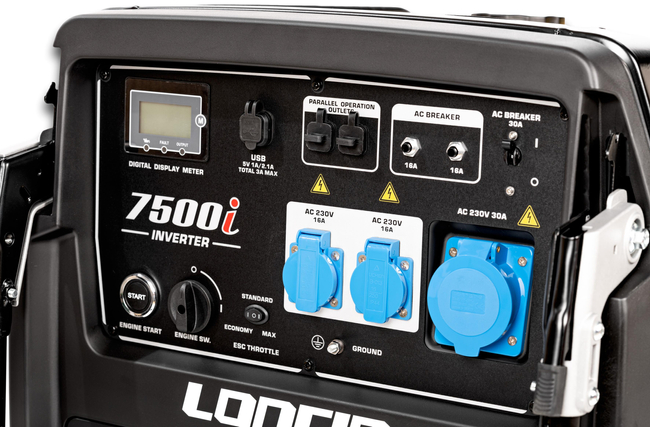

The control panel can display the status of the generator and some simple signs to indicate generator output, overload or oil shortage. Status can be confirmed by indicator lights.

Loncin LC7500I inverter genset
Inverter units are one of the latest technologies on the market. They feature high power capable of powering devices such as a computer or refrigerator. Thanks to its modern design, the generator retains its small compactness without taking up much space. It is ideal for camping trips or forest camping - where the power in the wires does not reach.
One of the novelties in these genset models is the inverter or inverter. Inverter initiates production of "pure" alternating current converted later into direct current. After reducing the voltage distortion waves to the lowest limit, the DC current is transformed back into a clean and smoothed AC output current.

Technical Data:
| power rating: | 6.5 / 6.5 [kVA / kW] |
|---|---|
| maximum power: | 7.5 / 7.5 [kVA / kW] |
| voltage rating: | 230 [V] |
| engine: | LONCIN AC 190FD |
| type of startup: | manual / electric |
| fuel type: | gasoline |
| rated speed: | 3600 [rpm] |
| fuel consumption at 100% nominal power: | 3.8 [l/h] |
| fuel tank capacity: | 25 [l] |
| operating time at 100% nominal power: | 6,5 [h] |
| outlets: | 2 x 230V 16A, 1 x 230V 32A,12 Vdc output 8 A |
| lWA sound power: | 90 [dB (A)] |
| max. sound pressure level at a distance. 4 m: | 70 [dB(A)] |
| length: | 950 [mm] |
| width: | 765 [mm] |
| height: | 773 [mm] |
| weight (without fuel): | 130 [kg] |
| standard equipment: | electric starter, large fuel tank, engine oil level control, thermal protection, soundproof enclosure, complies with CE noise emission requirements, outlets, key start electric (12 volts), automatic voltage regulation (AVR), instrumentation panel, voltmeter, hour meter, circuit breaker, wheels, engine alarms: low oil, overload, intelligent speed control for efficient fuel consumption, connectors for parallel operation |
THE PRODUCT COMES FROM THE OFFICIAL DISTRIBUTION TO THE POLISH MARKET !
Application:
LC7500i is the top shelf in inverter generators with a power of about 7kW , suffice it to say that this generator comes as a model P6000i no 8170023370 under the brand Atlas Copco, for Chicago Pneumatic appears under catalog number 8170023375 and model CPPG 6i,
