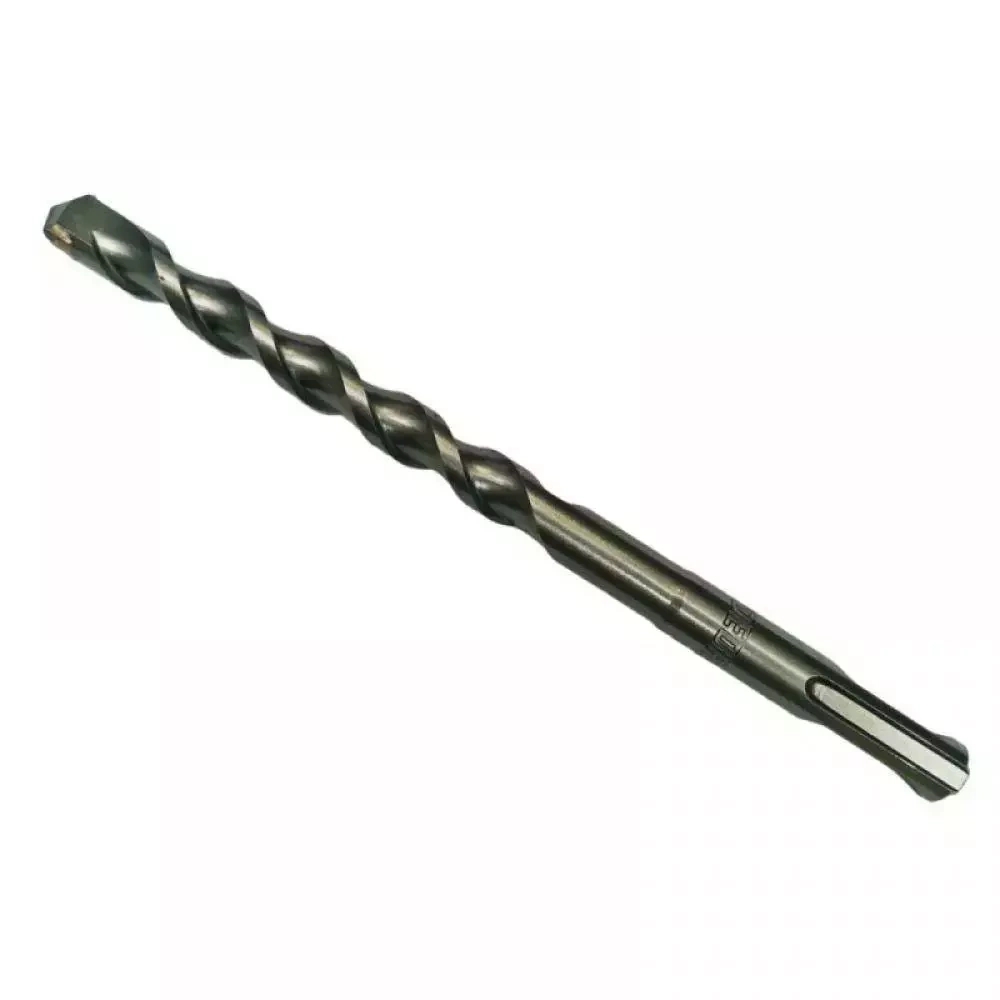

DEDRA WP1680 SDS+ Concrete Drill Bit 16x800/740 mm – Hammer Drill Bit for Concrete, Brick, and Stone

DEDRA WP1680 is a professional 16 mm SDS+ concrete drill bit, designed for hammer drilling in hard building materials such as concrete, brick, stone, and aerated concrete.Thanks to its total length of 800 mm and a working length of 740 mm , it is ideal for any application requiring a deep, stable, and even mounting hole.The product is made of tool steel and features a tip HMtip, which ensures durability, load resistance, and effective impact operation.

SDS PLUS drill bit for concrete.

This is a practical choice for construction crews, installers, fitters, electricians, plumbers, and DIY enthusiasts who expect reliable accessories for their hammer drill.Model DEDRA WP1680 enables quick preparation of holes for anchors, dowels, conduit, structural fasteners, and mounting hardware in common building materials.

DEDRA WP1680 SDS+ Drill Bit, 16x800/740 mm – a sturdy tool for demanding construction projects

DEDRA WP1680 This drill bit is designed for use in concrete and mineral-based materials, where impact resistance, stable guidance, and effective chip removal are essential.Diameter 16 mm allows for drilling holes for common mounting hardware, and the long working length facilitates work involving drilling through thick walls, ceilings, or structural elements.

The most important benefits for the user are:

• Wide drilling range – the 800/740 mm length allows for drilling deep holes in walls and building materials,
• Durable construction – tool steel and a carbide tip ensure a long service life for the tool,
• Reliable operation with a hammer action – The SDS+ chuck ensures a secure fit in a compatible hammer drill.

For everyday use, this drill bit is ideal for installing handles, brackets, anchors, and utility systems; routing cables; and drilling through holes in brick, aerated concrete, or masonry.This tool helps minimize downtime and work more efficiently, even during intensive renovation and construction projects.

What is the DEDRA WP1680 SDS+ Concrete Drill Bit 16x800/740 mm??

DEDRA WP1680 is a single-flute, hammer-action SDS+ concrete drill bit with a diameter of 16 mm.It is designed for drilling holes in building materials using a power tool with an SDS+ chuck.The drill bit is designed for use with a hammer drill, which means that the tool not only rotates within the material but also harnesses the hammer drill’s impact energy to break up concrete, brick, or stone more quickly.

End HM increases the working part’s resistance to contact with hard surfaces.Vertex angle 135° ensures precise drilling initiation and stable performance in the material.The spiral section of the drill bit helps remove dust and cuttings from the hole, resulting in smoother drilling and a lower risk of the tool becoming wedged.

This product is especially useful when a standard short drill bit isn't enough.Working length 740 mm allows for deep drilling, which is why the WP1680 model is ideal for drilling through thicker partitions, creating installation holes, and mounting components that require fastening at significant depths.

Where is the DEDRA WP1680 SDS+ drill bit installed??

Drill bit DEDRA WP1680 is designed for use in power tools equipped with an SDS+ chuck, primarily in hammer drills and impact drills compatible with this mounting system.The SDS+ chuck allows for quick bit insertion without the need for traditional jaw clamping, while ensuring that impact energy is properly transferred to the bit tip.

To install the drill bit properly, insert the SDS+ shank into the tool's chuck until it locks into place.Before starting work, make sure the drill bit is securely seated and has the characteristic slight axial play required by the SDS+ system..It is precisely this operating clearance that enables the impact mechanism to function effectively.

The WP1680 model is designed for tools with the SDS+ system.Do not install it directly in the chuck SDS Max or a standard cylindrical chuck unless the power tool is designed for this purpose.Choosing the right chuck is crucial for the safety, precision, and durability of both the drill bit and the hammer drill itself.

Using a drill bit for concrete, brick, stone, and aerated concrete

DEDRA WP1680 SDS+ Drill Bit is designed for use in materials commonly found on construction sites and during renovations.With a diameter of 16 mm and a long working length, it is ideal for drilling holes for mounting heavier components, creating installation passages, and making technical fastenings.

Example applications:

• Drilling in concrete – holes for anchors, expansion bolts, mounting rods, and structural components,
• drilling into brick – installation of handles, brackets, guides, installation components, and fixtures,
• drilling in stone – drilling holes in hard mineral substrates,
• Drilling in aerated concrete – creating holes for installations, conduits, and fasteners in lightweight building materials,
• Installation work – routing cables, pipes, conduits, and fasteners through walls or partitions,
• Installation work – preparing holes for mounting brackets, clamps, stands, auxiliary structures, and technical equipment components.

In practice, a drill is useful both on a construction site and in a workshop or when renovating a home.It can be used for securing steel structures to walls, installing ventilation systems, running electrical wiring, creating openings for pipes, or mounting technical components in garages, basements, boiler rooms, or utility rooms.

Durability, precision, and reliability in impact work

One of the most important advantages of the DEDRA WP1680 is the combination of a durable tool steel body with an HM tip.This combination of materials ensures effective drilling in mineral substrates and reduces rapid wear on the cutting edge.This is especially important when the tool is used regularly and the user expects consistent results over an extended period of time.

The drill bit is designed for use in hammer mode, so it works well with SDS+ hammer drills.The clamping system reduces the risk of the tool slipping in the chuck, improves power transfer, and makes it easier to quickly prepare the tool for use.For the user, this means greater convenience, more efficient drilling, and better control when guiding the drill bit.

A long work section requires maintaining proper work technique.When drilling, it is important to guide the drill bit axially, avoid applying excessive pressure, and periodically remove the cuttings from the hole.As a result, the tool can operate more efficiently, and the hole remains cleaner and more uniform.

Technical Specifications for the DEDRA WP1680

Manufacturer / Series	DEDRA
Model	WP1680
EAN	5902628920508
Product Type	SDS+ concrete drill bit
Drill bit type	Concrete drill bit
Handle Type	SDS+
Drill bit diameter	16 mm
Drill bit length	800/740 mm
Dimensions	860.00 x 35.00 x 16.00 mm
Material	Tool steel + HM
Vertex angle of a drill bit	135°
Purpose	Concrete, brick, stone, cellular concrete
Number included	1 piece
External system code	WP1680

Why Choose the DEDRA WP1680??

When choosing the DEDRA WP1680 SDS+ drill bit, you get a tool designed for specific, demanding tasks.This product combines a long length, the popular 16-mm diameter, and an SDS+ chuck, making it well-suited to the needs of professionals and users performing heavy-duty installation work.

• Professional working length – ideal for deeper holes and installation passages.
• Versatile use – one drill bit for concrete, brick, stone, and aerated concrete.
• Compatibility with SDS+ – Quick installation in popular hammer drills.
• Durable materials – tool steel and a carbide tip for impact work.
• Precise 16 mm diameter – suitable for many common construction fasteners.
• Practical set – the set includes 1 ready-to-use drill bit.

This is a good choice if you're looking for a drill bit that will help you drill deep holes in hard materials without having to use several shorter bits.The WP1680 model enhances work comfort, speeds up installation, and ensures reliable performance during typical construction, renovation, and installation projects.

FAQ - frequently asked questions

Does the DEDRA WP1680 fit any drill??

This drill bit is compatible with power tools equipped with an SDS+.It is not designed for standard cylindrical chucks or SDS Max chucks unless the tool has the appropriate adapter or a compatible mounting system.

What materials can this drill bit be used on??

Model DEDRA WP1680 is designed for drilling in concrete, brick, stone, and aerated concrete.It works best when used with the hammer action of an SDS+ hammer drill.

What is the diameter of the hole made by the drill bit??

The drill bit has a diameter of 16 mm, so it drills holes suitable for fasteners, dowels, anchors, and mounting hardware designed for this diameter.

Is this drill bit suitable for deep holes??

Yes.Drill bit length 800/740 mm makes the product ideal for deep drilling, creating passages through thicker walls, and preparing installation holes.

Can a drill bit be used for non-hammer drilling??

The drill bit is primarily designed for hammer drilling in mineral materials.When drilling into concrete, stone, and solid brick, using the hammer action significantly improves drilling efficiency.When working with lighter materials, such as aerated concrete, the operating mode should be selected in accordance with the power tool manufacturer’s recommendations and the type of substrate.

What's Included?

The set includes 1 drill bit DEDRA WP1680 SDS+ concrete drill bit, 16x800/740 mm.
