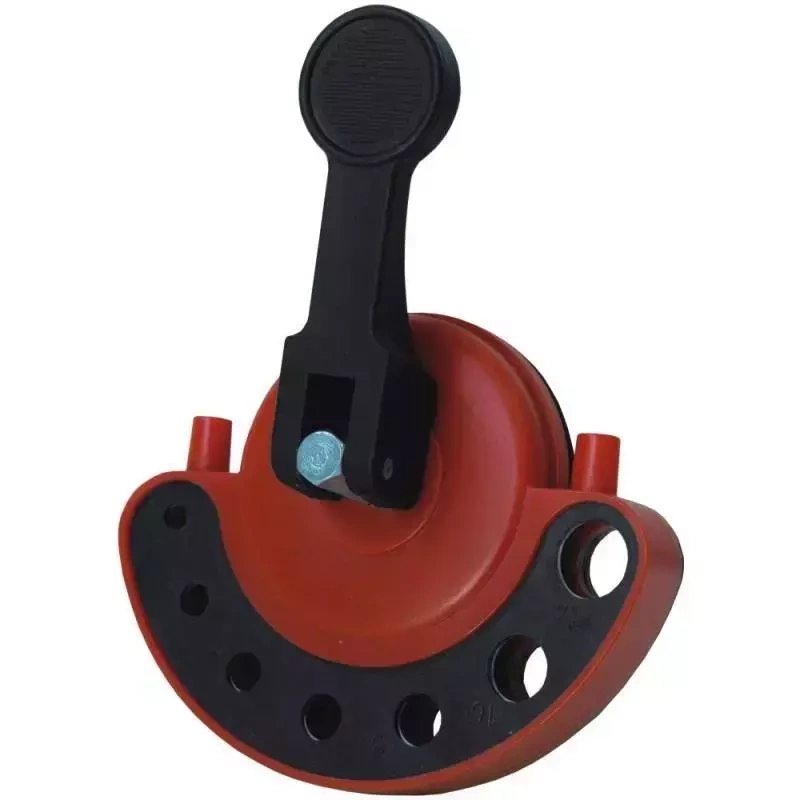

DEDRA DED1569 Coolant Dispensing System, 4–12 mm Core Drill Guide
- DEDRA DED1569 Coolant Dosing System with Drill Guide for 4–12 mm Core Drills. It facilitates precise drilling in porcelain tile, terracotta, glass, ceramics, and stone by cooling the tool and increasing comfort while working.
DEDRA DED1569 Coolant Dispensing System and Guide for 4–12 mm Core Bits for Porcelain Tile, Glass, Ceramics, and Stone
DEDRA DED1569 is a practical coolant delivery system with a guide for core bits, designed for precise drilling in hard and challenging materials such as porcelain tile, terracotta, glass, white ceramic, and stone.This product makes it easier to start drilling without the drill bit slipping, helps maintain a stable drilling path, and simultaneously aids in cooling the tool at the work site.
This solution is particularly recommended for tiling, renovation, installation, and finishing work, where precision, aesthetics, and minimizing the risk of surface damage are key.Thanks to the availability of core bits in popular diameters 4, 5, 6, 7, 8, 10, and 12 mm, the DEDRA DED1569 model is ideal for both home workshops and professional contractors.
Designed for drill bits with diameters of 4, 5, 6, 7, 8, 10, and 12 mm.
DEDRA DED1569 Coolant Dosing System – Precision, Control, and Drilling Safety
The DEDRA DED1569 coolant delivery system was designed to provide greater control when drilling holes in materials that are prone to cracking, chipping, or overheating.When working with core bits, especially in porcelain tile and glass, it is very important to guide the bit steadily and ensure adequate cooling of the drilling area.This product combines both functions into one convenient accessory.
The guide helps keep the drill bit in the desired position, which is especially important on smooth, slippery surfaces such as tiles, glass, or ceramics.This makes it easier to drill a hole exactly where it was marked, without having to use makeshift supports or temporary templates.
Coolant dosing improves working comfort, as it helps limit the heating of the core drill bit.Cooling has a positive effect on tool life, improves drilling performance, and reduces the risk of the cutting edge overheating.In practice, this means greater predictability in the work and higher-quality holes.
Stable guidance and cooling are particularly useful when installing bathroom fixtures, handles, grab bars, shelves, plumbing components, cable grommets, or decorative elements mounted on tiles.The DEDRA DED1569 allows you to work more accurately and confidently, even when the hole is in plain sight.
What is the DEDRA DED1569, and where is the guide for core drill bits mounted??
DEDRA DED1569 is a drilling accessory that serves as a core drill guide and coolant dispenser.The product is applied directly at the drilling site, on the surface being worked on, such as porcelain tile, glazed tile, terracotta, glass, ceramics, or stone.
The guide is mounted on the work surface at the point where the hole is to be drilled.Once the guide hole has been set to match the drill bit's diameter, the user can begin drilling with confidence.This method is particularly convenient when working with hard and slippery materials, on which a core bit could slip across the surface if not guided.
This product is designed for use with core bits in the following common sizes: 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, and 12 mm.As a result, a single accessory can handle many common installation tasks, from small holes for dowels and fasteners to larger cable entries.
In everyday use, the DEDRA DED1569 is ideal for drilling holes for bathroom fixtures, faucets, shelves, moldings, decorative elements, sensors, kitchen accessories, slides, brackets, and tile-mounted handles.This provides practical support wherever precision in execution affects the overall appearance of the work.
Suitable for use on porcelain tiles, terracotta, glass, white ceramics, and stone
The DEDRA DED1569 is designed for materials that require special care when drilling.Porcelain stoneware and terracotta are hard, yet they can chip if a hole is drilled without proper control.The guide helps minimize this problem because it stabilizes the drill bit during the initial phase of drilling.
Glass and white ceramics require smooth, even movement and adequate cooling.Coolant delivery aids in heat dissipation from the drilling site, which helps produce a cleaner, more aesthetically pleasing hole.This is especially important for visible components, where a perfect finish is essential.
Stone is a material that requires tools and accessories that provide greater control over the work.The DEDRA DED1569 can be used for drilling in certain types of stone surfaces, provided that appropriate core bits are used and the correct operating parameters are maintained.When used with the right accessories, the guide helps you drill holes more accurately, more comfortably, and with less risk of the tool shifting.
This product is suitable for tasks such as installing bathroom fixtures, drilling holes for kitchen fixtures, preparing installation holes in tiles, installing wall decorations, creating cable channels, and finishing work that requires precise hole positioning.
Key benefits for the user—accuracy, convenience, and longer equipment life
The first key benefit is greater drilling precision.The guide reduces the risk of the drill bit "running off course" across the surface of the tile or glass.This allows the user to start drilling at a precisely marked point, which is particularly important when installing components that must be aligned evenly and symmetrically.
The second advantage is better temperature control.The coolant dispenser helps deliver the coolant to the area where the drill bit is operating, which helps prevent the tool from overheating.Less heat means greater comfort while working, smoother drilling, and a potentially longer service life for the core bit being used.
The third important feature is its versatility.Compatibility with core bits in diameters of 4, 5, 6, 7, 8, 10, and 12 mm means that a single accessory can be used for many common tasks.From small holes for dowels, to mounting plumbing fixtures, to preparing holes for mounting hardware—the DEDRA DED1569 is a practical addition to any workshop’s equipment.
For DIYers, this means easier and more predictable drilling in tiles.For professionals—faster workflow organization, consistent results, and greater confidence when carrying out client projects.This small accessory can significantly improve the quality of work in situations where every millimeter counts.
DEDRA's Quality Craftsmanship – A Durable Tool for Renovation and Installation Projects
The DEDRA brand is known for its practical tools and accessories designed for workshop, renovation, and construction work.Model DED1569 was designed for users who are looking for a simple, functional, and reliable solution for drilling into tough materials.
Use of materials specified as tool steel + HM indicates that the product is designed for durability and resistance when working with demanding surfaces.The guide's design is intended to promote stability and precision while remaining easy to use during typical assembly work.
This product is particularly useful for tasks where a mistake could result in having to replace the board, correct a hole, or cover up damage.The DEDRA DED1569 helps reduce the risk of unsightly misalignments, makes it easier to maintain the drilling axis, and allows you to work with greater peace of mind.
Thanks to its compact dimensions 40 x 120 x 200 mm , the guide rail is easy to store and transport.You can keep it handy in your toolbox, tool bag, or workshop so you can use it quickly when drilling into tiles, ceramics, glass, or stone.
Technical Specifications for DEDRA DED1569
| Product name | DEDRA DED1569 Coolant Dispensing System, 4–12 mm Core Drill Guide |
| Product code | DED1569 |
| EAN | 5902628156907 |
| Type | Coolant Dosing System |
| Drill type | Crown drill bit |
| Supported drill bit diameters | 4, 5, 6, 7, 8, 10, 12 mm |
| Destination | Stoneware, terracotta, glass, white ceramic, stone |
| Material | Tool steel + HM |
| Series | DEDRA |
| Number included | 1 |
| Dimensions | 40.00 x 120.00 x 200.00 mm |
| Drill diameter | N/a |
| Handle type | N/a |
Why Choose the DEDRA DED1569 Guide Rail??
- Helps you start drilling with precision in slippery and hard materials.
- It aids in cooling the core drill bit, which improves working comfort and reduces overheating.
- Makes it easier to drill into porcelain tile, terracotta, glass, ceramics, and stone.
- Supports common drill bit diameters: 4, 5, 6, 7, 8, 10, and 12 mm.
- It's ideal for renovation, installation, and finishing work.
- Reduces the risk of the drill bit shifting when starting the hole.
- Convenient size makes storage and transport easier.
- A DEDRA product – a great choice for DIYers and contractors.
If you want to drill accurately in tiles, glass, ceramics, or stone, the DEDRA DED1569 coolant dispenser and core drill guide system will be a practical aid during your work.This accessory helps you gain better control over the tool, improve the finish of your holes, and work with greater confidence, even on difficult surfaces.
FAQ - frequently asked questions
What is the DEDRA DED1569 used for??
The DEDRA DED1569 is used to guide core bits and dispense coolant when drilling into hard and delicate materials, such as porcelain tile, terracotta, glass, white ceramic, and stone.
Where is the DEDRA DED1569 guide rail installed??
The guide is positioned directly on the workpiece surface, at the location of the planned hole.This allows the drill bit to be guided steadily from the start of the operation.
What drill bit diameters is this system compatible with??
This product is designed for core bits with diameters of 4, 5, 6, 7, 8, 10, and 12 mm.
Is the DEDRA DED1569 suitable for drilling into porcelain tile??
Yes, the product is designed for use on porcelain tile..It helps stabilize the drill bit and aids in cooling, which is especially important when working with hard porcelain tiles.
Can this guide be used for glass??
Yes, the DEDRA DED1569 is also designed for use on glass.When working, use the appropriate core bit and exercise caution to minimize the risk of the material cracking.
Is the drill bit included in the set??
The specifications indicate that this is a coolant dispensing system and a guide for core bits..The set includes 1 piece.Core bits should be selected based on the required size and the material being machined.
Why It's Important to Cool the Drill Bit While Drilling?
Cooling helps prevent the tool from overheating, improves working comfort, and can have a positive effect on the service life of the core drill bit.This is especially important when drilling into hard materials such as porcelain tile, stone, or ceramics.
