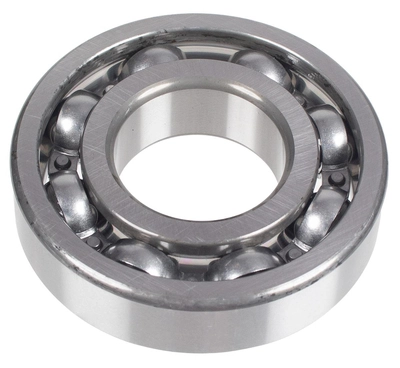

6309-C3 Cedrus bearing for CEDZG120L compactor, part number 541077
- Cedrus 6309-C3 bearing (part no. 541077) for CEDZG80L, CEDZG90L, and CEDZG120L compactors. A durable replacement part that ensures smooth operation, longevity, and reliability of the device. Perfect for servicing and repairing Cedrus machines.
6309-C3 Cedrus 541077 Bearing for the CEDZG120L, CEDZG90L, and CEDZG80L compactors
6309-C3 Cedrus Bearing for CEDZG120L Compactor 541077 is a durable replacement part designed for use in Cedrus compactors.This component ensures the smooth rotation of the interacting parts, reduces friction, and maintains stable operation of the mechanism during the compaction of soil, ballast, paving stones, or other working surfaces..
This product is ideal for maintenance, repairs, and the periodic replacement of worn parts in Cedrus construction machinery.Thanks to the marking 6309-C3 , the bearing has increased C3-type internal clearance, which is important in applications exposed to loads, vibrations, and elevated operating temperatures.This is a practical choice for users who expect reliability, durability, and a secure fit with selected compactor models.
6309-C3 Cedrus 541077 Bearing – a durable replacement part for compactors
The 6309-C3 Cedrus 541077 bearing is a consumable part used in compactors, where it ensures the proper transmission of rotational motion and reduces operating resistance.In practice, this means smoother machine operation, a lower risk of unwanted vibrations caused by component wear, and improved operational performance.
From the user's perspective, the product's most important advantages are:
- High durability – the bearing is designed for the demanding operating conditions typical of compactors.
- Stable machine operation – a properly selected bearing helps ensure the smooth operation of the working mechanism.
- Compatible with selected Cedrus models – Part designed for the CEDZG80L, CEDZG90L, and CEDZG120L compactors.
In everyday use, the bearing is useful during pavement repairs, paving work, preparing the subbase for pavers, and compacting ballast, sand, gravel, and other materials used on construction sites.Regular inspection and replacement of worn bearings can help prevent costly downtime and reduce the risk of damage to other machine components.
Where is the 6309-C3 Cedrus bearing installed on the CEDZG120L compactor??
The bearing is installed in the compactor's operating system, in the location designed to accommodate the component designated 6309-C3.This component works in conjunction with the mechanism responsible for rotation and load transfer; therefore, its proper installation has a direct impact on the reliability of the device.
This product is primarily intended for servicing Cedrus compactors, in which a worn bearing may manifest as louder operation, noticeable play, excessive vibration, overheating of components, or a loss of smooth operation.Replacing the bearing with a properly selected one restores the machine's performance and prepares it for continued heavy-duty operation.
Before installation, it is a good idea to compare the part number of the old bearing with that of the new part, check the condition of the mounting seat, and make sure that the other mating components are not damaged.This approach improves the effectiveness of the repair and extends the service life of the entire mechanism.
Applications for the Cedrus 6309-C3 Bearing – Models CEDZG80L, CEDZG90L, and CEDZG120L
The 6309-C3 Cedrus 541077 bearing is used in select models of Cedrus compactors.This section is intended for private users, paving companies, construction crews, machine service providers, and equipment rental companies that need reliable components for the ongoing maintenance of their equipment.
Application:
CEDZG80L
CEDZG90L
CEDZG120L
Thanks to its compatibility with popular Cedrus compactor models, the bearing can be used during routine maintenance and to restore the machine to working order after intensive use.This is particularly important during the construction season, when any breakdown can lead to delays in completing projects.
Technical Specifications and Product Identification
Designation 6309-C3 makes it easy to identify the bearing type.This is a common size of ball bearing, used in many machines and devices that require reliable guidance of rotating components.Symbol C3 indicates increased internal clearance, which is beneficial under operating conditions involving higher loads, vibrations, or temperatures.
| Product name | 6309-C3 Cedrus bearing for CEDZG120L compactor, part number 541077 |
| Part Type | Ball bearing |
| Designation | 6309-C3 |
| Internal clearance | C3 – increased internal clearance |
| Typical dimensions for part number 6309 | 45 x 100 x 25 mm |
| Compatible Models | CEDZG80L, CEDZG90L, CEDZG120L |
| Machine brand | Cedrus |
| Product code / system code | 541077 |
| EAN | 5906434261053 |
If the compactor being repaired is used in harsh conditions—for example, on a construction site, for compacting subbase, during roadwork, or for intensive paving work—choosing the right bearing is very important.A well-chosen part helps keep the machine in good working order, improves the operator's comfort, and promotes safe use of the equipment.
Why Choose the Cedrus 541077 6309-C3 Bearing??
Choosing the right replacement part is an investment in the machine's reliability.The 6309-C3 Cedrus 541077 bearing has been selected for specific compactor models, making it easier to perform quick and effective repairs.This product is designed for people who want to minimize downtime, keep their equipment running at peak performance, and ensure its long service life.
- Secure Fit – designed for the CEDZG80L, CEDZG90L, and CEDZG120L models.
- Resistance to demanding operating conditions – suitable for machines exposed to vibrations and loads.
- Supports smooth operation of the device – helps reduce friction and improve the mechanism’s stability.
- Practical Maintenance Applications – ideal for repairs, inspections, and routine replacement.
- Easy Identification – Code 541077 and EAN 5906434261053 make it easy to select the right part.
This product is especially recommended when the compactor begins to run unevenly, unusual noises occur, vibrations increase, or there is a suspicion of wear on rotating parts.In such situations, quickly replacing the bearing can prevent further damage and allow for a safe return to work.
FAQ - frequently asked questions
What is the 6309-C3 Cedrus bearing for the CEDZG120L compactor (part number 541077)??
This is a replacement part for Cedrus compactors designed to ensure smooth rotation of the working components, reduce friction, and ensure stable operation of the mechanism.The designation 6309-C3 indicates the bearing type and the increased internal clearance (C3)..
Which models is this bearing compatible with??
This bearing is designed for use in Cedrus CEDZG80L, CEDZG90L, and CEDZG120L compactors.
Where is the 6309-C3 bearing installed in a compactor??
The bearing is installed in the compactor's operating system, in the location designated for the component marked 6309-C3.Before installation, compare the markings with those on the removed part and check the condition of the socket.
What are the typical dimensions of a 6309 bearing??
The typical dimensions of a bearing with the designation 6309 are 45 x 100 x 25 mm.Before purchasing, it's a good idea to make sure that this size meets the requirements of the machine you're repairing.
What does the symbol C3 mean??
The symbol C3 indicates increased internal bearing clearance.This solution is often used in equipment operating under load, in vibrating conditions, or at elevated temperatures.
When Should You Replace a Bearing in a Compactor??
Replacement is recommended when noise, excessive vibration, noticeable play, overheating of components, or a decrease in the machine's smooth operation occur..Regular inspection of bearings helps prevent more serious breakdowns.
What is the product code??
The product code is 541077, and the EAN code is 5906434261053.
