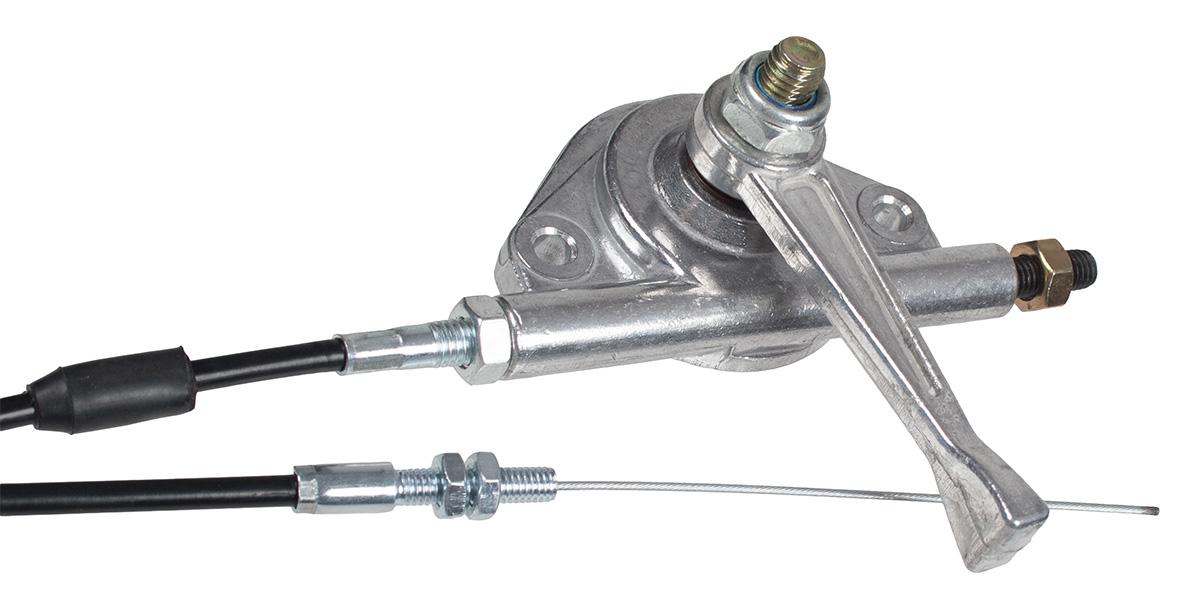

Cedrus Throttle Lever with Cable, CEDST77H-PRO Vibrating Foot 540617
- Cedrus 540617 Cable-Operated Throttle Lever for the CEDST77H-PRO Vibrating Foot. This genuine replacement part ensures precise speed control, durability, and quick installation. Perfect for servicing the Cedrus compactor.
Cedrus CEDST77H-PRO 540617 Throttle Lever with Cable – Genuine Replacement Part for a Vibrating Plate
Cedrus CEDST77H-PRO Vibrating Plate Throttle Lever with Cable 540617 is a practical, precise, and durable control element for engine speed, designed for the Cedrus CEDST77H-PRO professional vibrating plate.This product provides smooth throttle control, which means it regulates the rotational speed of the drive unit while the device is in operation.Thanks to the cable assembly, it efficiently transfers the lever’s movement to the throttle mechanism, which results in convenient operation, stable machine performance, and better control over the soil compaction process.
Cedrus 540617 Cable-Operated Throttle Lever for the CEDST77H-PRO Vibrating Foot.This genuine replacement part ensures precise speed control, durability, and quick installation.Perfect for servicing the Cedrus compactor.
This part is highly recommended for replacement in the event of wear, damage, sticking, or imprecise operation of the old throttle grip or control cable.When selecting a part designed specifically for the CEDST77H-PRO, you can be sure of a perfect fit, safe installation, and proper operating parameters for the device.
Cedrus CEDST77H-PRO Cable-Operated Throttle Lever – Precise Engine RPM Control
The product's most important feature is that it allows the operator to conveniently and precisely adjust the motor speed.A smooth-operating throttle lever allows you to adjust the intensity of the vibrating plate to suit the type of task being performed.When compacting ballast, soil in an excavation, or the subgrade for paving stones, or when working on linear installations, the ability to smoothly increase and decrease the speed is crucial for both the quality and pace of the work.
The three key features of this component are precision, comfort, and control. Precision ensures a stable throttle setting without accidental changes in RPM.Comfort stems from the ergonomic design of the lever, which should be easily accessible to the operator while operating the machine.Control means the ability to respond quickly to changes in working conditions—for example, when transitioning from looser soil to harder, more challenging terrain.
In everyday use, a properly functioning throttle lever with a cable allows you to start the machine safely, gradually bring it up to operating speed, and then reduce the engine speed once the task is complete.This is particularly important for construction service providers, equipment rental companies, paving crews, and earthwork contractors, where equipment is used intensively and must operate reliably throughout the day.
Where is the Cedrus 540617 cable-operated throttle lever installed??
The cable-operated throttle lever is installed in the rotation control system of the Cedrus CEDST77H-PRO vibrating foot..The lever itself is located within the operator's reach, usually near the machine's operating handle or control panel, while the cable runs to the throttle control mechanism near the engine.Its function is to mechanically transmit the operator's hand movements to the throttle control system.
The most important installation features are fit, completeness, and quick replacement. "Compatibility" means that the product is compatible with the CEDST77H-PRO model, which reduces the risk of installation issues.The set is complete in that it includes a lever and a cable—the basic components needed to restore proper throttle control.Quick replacement is essential in maintenance operations—a damaged component can be replaced with a new one, minimizing equipment downtime.
For example, if an operator notices during operation that the vibrating plate does not respond smoothly to changes in the throttle position, the RPM fluctuates, the lever is loose, or the cable is stiff, replacing the entire assembly may restore proper machine operation.It's a small part, but it has a big impact on the comfort and safety of the entire device's operation.
Use of the Cedrus CEDST77H-PRO Vibratory Foot in Maintenance Work
The Cedrus 540617 cable-operated throttle lever is designed for maintenance, repair, and operational work on the CEDST77H-PRO vibrating foot.It is suitable both for the scheduled replacement of a worn-out component and for repairing a failure caused by intensive use in harsh construction conditions.Vibrating feet are exposed to vibrations, dust, moisture, dirt, and frequent load changes; therefore, the gas control system should be kept in very good condition.
In service applications, reliability, durability, and safety are what matter most. Reliability allows the operator to control the machine without unexpected interruptions.Durability is important because the component operates in a device that generates significant vibrations.Safety is ensured by the ability to quickly reduce the speed and properly adjust the engine's operating mode depending on the situation at the construction site.
The product is used for m.in.during the overhaul of the gas control system, replacement of a damaged cable, repair of the lever after mechanical impact, restoration of the machine’s full functionality after a long period of operation, and preparation of the equipment for the season.This is a good choice for service providers, construction companies, pavers, installers, equipment rental companies, and users who want to keep their Cedrus vibrating plate ready for use.
Genuine Cedrus Replacement Parts – Quality, Durability, and a Perfect Fit
Choosing an original replacement part is an investment in the machine's reliability.The Cedrus 540617 throttle lever with cable is designed specifically for a particular model of vibrating plate, making it a safer solution than random replacements with uncertain cable lengths, different mounting methods, or improper operating characteristics.
The key benefits for the customer are a secure fit, reliable operation, and reduced downtime. A secure fit makes installation easier and reduces the risk of having to make adjustments.Smooth operation helps maintain the proper speed during compaction, which improves work efficiency.Minimizing downtime is particularly important in companies where every hour of equipment downtime results in delays and additional costs.
In practice, this means that after replacing a worn lever, the operator can once again smoothly control the operation of the vibrating foot.When compacting narrow trenches, curbs, sidewalk subbases, or hard-to-reach areas, a precise response to the gas is very important.A reliable control system enhances operator comfort and helps you get the most out of the Cedrus CEDST77H-PRO machine.
Technical and product identification data
The information below helps you correctly identify a part before purchasing it and match it to the correct device.When it comes to replacement parts, the product code and machine model are particularly important, as similar parts may differ in terms of mounting, cable length, or operating range.
| Product name | Cedrus Throttle Lever with Cable, CEDST77H-PRO Vibrating Foot 540617 |
| Product type | Throttle lever with cable / throttle control |
| Brand | Cedrus |
| Destination | Cedrus CEDST77H-PRO Vibratory Plate |
| Product code / symbol | 540617 |
| EAN code | 5906434258480 |
| External system code | 540617 |
| Assembly | In the gas control system for the vibrating foot: a lever at the operator's station, a cable running to the throttle mechanism |
| Application | Service, repair, and replacement of the speed control component in the Cedrus vibrating foot |
| Weight | No data available |
Why Choose the Cedrus 540617 Cable-Operated Throttle Lever??
This product is a good choice if you want to quickly regain full control over the operation of the vibrating foot.A properly functioning gas system not only enhances ease of use, but also improves compression efficiency and ensures proper utilization of engine power.The Cedrus 540617 cable-operated throttle lever is a component that helps keep the machine in good working order and prepare it for heavy-duty field work.
- Precise speed control – makes it easy to adjust the foot's operation to the type of surface.
- Dedicated to the CEDST77H-PRO model – ensures proper installation.
- Set with a cable – allows you to replace a key component of the throttle control system.
- Cedrus Genuine Replacement Part – the right choice for servicing and repairing your device.
- Improved operator comfort – a smooth-operating lever improves control over the machine during operation.
- Minimizing Downtime – Quick replacement helps get equipment back up and running.
The Cedrus CEDST77H-PRO 540617 vibrating foot throttle lever with cable is a small but very important working component.If your vibrating foot does not respond properly to the throttle, the cable is damaged, the lever is stiff, or the speed control has become imprecise, replacing this part can significantly improve the device's performance.This is a practical solution for anyone who expects construction equipment to be reliable, durable, and ready for use in demanding conditions.
FAQ - frequently asked questions
What is the Cedrus 540617 cable-operated throttle lever??
This is a component of the motor speed control system in the Cedrus CEDST77H-PRO vibrating foot..The lever allows the operator to adjust the throttle, and the cable transmits the lever's movement to the throttle mechanism.
Which model does this throttle lever fit??
This product is designed for use with the Cedrus CEDST77H-PRO vibrating foot.Before making a purchase, it's a good idea to compare part number 540617 and the device model number.
Where is the cable-operated throttle lever mounted??
The lever is mounted in a location accessible to the operator, while the cable is routed to the speed control system on the motor.This component controls the operation of the throttle valve.
When Should You Replace a Cable-Operated Throttle Lever??
Replacement is recommended if the lever is damaged, the cable feels stiff, the speed adjustment is imprecise, the speed does not respond smoothly to the throttle lever, or the part has become mechanically worn during use.
Does the product include a throttle cable??
Yes, this is a cable-operated throttle lever—a kit designed to replace the speed control component in the Cedrus CEDST77H-PRO vibrating foot..
What is the EAN code of the product?
The product's EAN code is 5906434258480, and the part number is 540617.
