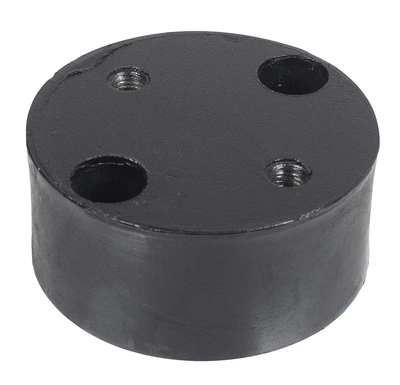

Cedrus Shock Absorber, CEDST77H-PRO Vibrating Foot, 540620
- The Cedrus CEDST77H-PRO 540620 vibration damper is a durable replacement part that dampens vibrations and stabilizes the operation of the device. The perfect choice for the maintenance and repair of Cedrus equipment.
Cedrus CEDST77H-PRO 540620 Vibration Dampener – a durable anti-vibration foot for stable operation of the compactor
Cedrus Vibration Dampener CEDST77H-PRO 540620 is a practical replacement part designed to dampen vibrations, stabilize the device’s operation, and protect components from excessive stress during heavy-duty use.This component acts as an anti-vibration mount, which helps reduce the transmission of vibrations to the machine's structure, improving operator comfort and ensuring proper operation of the compactor.
This product is designed for the Cedrus CEDST77H-PRO vibrating plate and is the right choice for servicing, maintaining, or repairing construction equipment.Thanks to its robust construction, the shock absorber performs well in demanding operating conditions where the equipment is exposed to constant shocks, pressure, and contact with a dusty work environment.
The Cedrus CEDST77H-PRO 540620 vibration damper is a durable replacement part that dampens vibrations and stabilizes the operation of the device.The perfect choice for the maintenance and repair of Cedrus equipment.
Cedrus CEDST77H-PRO 540620 Shock Absorber – Vibration Damping, Stabilization, and Machine Protection
Effective Vibration Control During Operation
The main function of the shock absorber is to reduce the vibrations generated during the operation of the vibrating foot.Pestles and reciprocating compactors perform intense operational movements, which is why anti-vibration components are crucial for the proper operation of the entire machine.A properly functioning shock absorber helps reduce the transmission of vibrations to the machine's structure, which can limit the loosening of connections, unwanted noise, and excessive stress on adjacent components.
In everyday use, this means smoother operation of the equipment when compacting soil for paving stones, laying ballast, preparing the subgrade for foundations, compacting utility trenches, or working on curbs.It is a small component that has a significant impact on the device's stability during demanding operation.
Stabilizing the Operation of a Vibratory Plate
The shock absorber also serves a stabilizing function.A properly selected anti-vibration mount supports the correct alignment and operation of machine components, helping to maintain predictable machine behavior during compaction.This is particularly important when working on construction sites, where equipment is used for many hours, often on uneven, dusty, and heavily trafficked surfaces.
The device's stable operation translates into greater control over the machine and more consistent task execution.In practice, the Cedrus 540620 shock absorber performs well in paving, road construction, earthwork, and renovation projects, where consistency, effectiveness, and reliability of the equipment are key.
Protecting components from excessive loads
Intense vibrations can accelerate wear and tear on structural components, bolts, fasteners, and working parts.That is precisely why a properly functioning shock absorber is an important part of preventive maintenance.Regular inspection and replacement of worn anti-vibration pads help keep the machine in good working order and reduce the risk of costly breakdowns resulting from operating with a damaged or deteriorated damping component.
The Cedrus CEDST77H-PRO 540620 vibration damper should be installed when you notice increased vibrations, reduced operational stability, unusual knocking sounds, cracks in the rubber component, or visible surface wear..Quick replacement of this part helps ensure workplace safety and extends the device's service life.
Where is the Cedrus 540620 shock absorber installed, and when should it be replaced??
Installation location in the vibrating base
The Cedrus 540620 shock absorber is installed in the Cedrus CEDST77H-PRO vibrating foot assembly to dampen vibrations between the device's interacting components.Its function is to absorb some of the dynamic loads generated during the machine's operation.Thanks to the mounting holes, the component can be installed in the designated location in accordance with the design of the specific device model.
Before installation, it’s a good idea to compare the part number, shape, hole pattern, and dimensions of the component being removed with those of the new shock absorber.This ensures that the part is compatible with a specific version of the device and will function properly once installed.
Applications in Service, Repair, and Maintenance
This product is recommended for routine repairs and periodic inspections of the vibrating foot..It works well both at a professional service center and when a user with the appropriate tools and experience replaces parts on their own.It’s a good idea to replace the shock absorber as a preventive measure during a major machine inspection, especially if the machine is used intensively by a construction, paving, or plumbing company, or by an equipment rental company..
In day-to-day operations, this component is used in equipment designed to compact sand, crushed stone, gravel, and soil in excavations, on subgrades, and in areas with limited working space.A properly functioning shock absorber ensures smooth, stable, and predictable machine operation.
Durability and reliability in demanding conditions
A shock absorber for a vibrating foot must withstand frequent impacts, pressure, vibrations, and loads that occur during field work.The Cedrus 540620 model was designed as a durable replacement part for Cedrus equipment, making it a good choice for those who expect reliable performance and a secure fit with the CEDST77H-PRO machine.
A properly selected and installed anti-vibration component helps reduce unnecessary downtime.This is particularly important on a construction site, where equipment failure can delay subsequent stages of work, such as laying pavers, backfilling trenches, or preparing the ground for subsequent structural layers.
Technical and Identification Data
| Product name | Cedrus Shock Absorber, CEDST77H-PRO Vibrating Foot, 540620 |
| Type of part | Shock absorber / anti-vibration foot / vibration-damping element |
| Brand | Cedrus |
| Device model | CEDST77H-PRO |
| Product code / system code | 540620 |
| EAN code | 5906434258503 |
| Application | Vibration Damping and Stabilization of the Cedrus Vibrating Foot |
| Weight | No data available |
Key benefits for the user
- Improved vibration damping – this component helps reduce vibrations generated during the compactor’s operation.
- More stable machine operation – ensures proper machine performance during soil compaction.
- Component Protection – helps reduce the loads transferred to the structure and fasteners.
- Compatible with the Cedrus CEDST77H-PRO model – part designed for a specific device.
- A good choice for service – ideal for repairs, maintenance, and periodic inspections.
- Equipment Reliability Support – Replacing a worn shock absorber helps prevent unplanned downtime.
FAQ - frequently asked questions
What is the Cedrus CEDST77H-PRO 540620 Vibration Dampener??
This is a replacement part that serves as an anti-vibration component.Its purpose is to dampen vibrations, stabilize the operation of the device, and protect the vibration foot assembly from excessive loads.
Which vehicle is the Cedrus 540620 shock absorber compatible with??
The shock absorber is designed for the Cedrus CEDST77H-PRO vibrating foot.Before purchasing, it is a good idea to compare part number 540620 and EAN code 5906434258503 with the documentation or the removed part.
Where is this shock absorber installed??
The component is installed in the vibration foot assembly to dampen vibrations between the machine's interacting components.The exact installation location should be selected based on the device's design and service documentation.
When Should You Replace the Shock Absorber in a Vibrating Foot??
Replacement is recommended in the event of visible wear, cracks, deformation, excessive vibration, or a decline in the device's operational stability, or during a major service inspection..
Does a properly functioning shock absorber affect work comfort??
Yes.A properly functioning anti-vibration component helps reduce the transmission of vibrations, which can improve the machine's operating characteristics and increase control over the equipment during soil compaction.
Is this product suitable for professional use??
Yes, the Cedrus 540620 shock absorber is suitable for servicing equipment used in construction, paving, roadwork, and installation projects, where the equipment is used intensively and is subjected to heavy loads.
