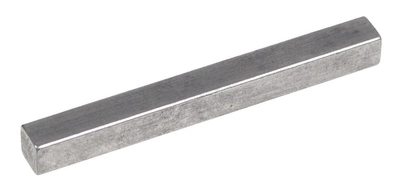

- CEDRUS 486169 5x5x45 Axle Wedge for C-TRAC-83HC-1, C-TRAC-93HC-1, C-TRAC-93HC-H, and C-TRAC-103HC-H Tractors. Genuine replacement part that ensures a secure fit, durability, and a perfect match for the garden tractor's axle.
Cedtus / CEDRUS 486169 5x5x45 Axle Wedge for C-TRAC-83HC-1, C-TRAC-93HC-1, C-TRAC-93HC-H, and C-TRAC-103HC-H Tractors
Cedtus Axle Wedge for C-TRAC-83HC-1, C-TRAC-93HC-1, C-TRAC-93HC-H, and C-TRAC-103HC-H Tractors 486169 is a precisely matched replacement part designed for select models of CEDRUS / C-TRAC garden tractors.This component ensures that the mating parts are securely and stably mounted on the shaft, helping to transmit torque and maintain the proper position of the components while the machine is in operation.
It's a small but very important technical detail.Properly selected 5x5x45 axle wedge ensures safe operation of the tractor, reduces the risk of play, slippage of working parts, and malfunction of the drive or mounting system.Product with code 486169 is designed for specific tractor models, making it easy to quickly and accurately replace a worn part.
CEDRUS 486169 5x5x45 Axle Wedge – Precise Mounting for Garden Tractors
CEDRUS 486169 Axial Wedge is a mounting component used in mechanical connections where it is necessary to securely fix parts relative to an axis or shaft.Its purpose is to fill a special keyway and prevent the component from rotating independently of the axis.This allows the tractor to operate more stably, and ensures that the interacting components remain in the correct position.
In practice, the axle pin proves its worth during the day-to-day use of a garden tractor: when mowing the lawn, driving over uneven terrain, maneuvering around trees, flower beds, and borders, and during work that requires frequent changes in direction.Under such conditions, fasteners are exposed to vibrations, overloads, and gradual wear; therefore, using the right wedge is crucial for the machine's reliability.
The most important benefits for the user are a precise fit, a secure fit and durability during use.A wedge measuring 5x5x45 has been selected for the specified C-TRAC tractor models, which reduces the risk of installing an incompatible part and restores proper system operation after replacement.
Where is the Cedtus 486169 axle wedge installed on C-TRAC tractors??
Cedtus / CEDRUS 486169 Axle Wedge is installed at the point where an axle or shaft connects to a mating component, which must be securely mounted and prevented from rotating.This is a common solution used in the mechanisms of garden tractors, where it is important to transmit force and keep the parts in a single, correct position.
During assembly, the key is placed in the appropriate keyway or groove on the shaft.Once the mating component is inserted, the wedge locks it in place.This makes the connection more resistant to displacement, play, and unwanted rotation.This is particularly important for garden machinery that operates in varying conditions: on grass, slopes, damp ground, and in areas that require frequent starting and stopping.
It may be necessary to replace the wedge if the existing one is worn out, deformed, cracked, lost during disassembly, or no longer ensures a secure fit.Symptoms of problems may include noticeable play, malfunctioning of a mounted component, noise, vibration, or difficulty reassembling the mechanism properly after service.
Use of the axle wedge for C-TRAC-83HC-1, C-TRAC-93HC-1, C-TRAC-93HC-H, and C-TRAC-103HC-H tractors
Axle wedge 486169 is used in select C-TRAC series garden tractors.It is designed for the following models: C-TRAC-83HC-1, C-TRAC-93HC-1, C-TRAC-93HC-H and C-TRAC-103HC-H.Selecting parts based on the tractor's part number and model is very important, because even a slight difference in dimensions can affect the quality of the connection and the mechanism's durability..
This product is recommended for both routine repairs and seasonal inspections.Before the busy mowing season begins, it’s a good idea to check the condition of the fasteners, because small parts—such as the axle wedge—can have a real impact on the comfort and safety of using the lawn tractor.A properly selected wedge helps maintain the stability of the connection, thereby reducing the risk of unplanned downtime.
Some of these will be useful on a farm, at a landscaping company, at a garden equipment repair shop, and anywhere else where a C-TRAC compact tractor is regularly used to mow larger areas.This is a practical solution for users who want to keep their equipment in good working order and avoid problems caused by installing random, incompatible replacement parts.
Genuine CEDRUS Replacement Parts – Quality, Durability, and Guaranteed Fit
When choosing the genuine CEDRUS 486169 axle wedge, you’re getting a part designed specifically for certain models of garden tractors.An original replacement part ensures greater confidence in proper installation, correct dimensions, and compatibility with the machine's design.For the user, this means fewer problems during service and greater confidence in the tractor's performance after repairs.
The durability of the wedge is particularly important when the tractor is used regularly for many hours during the season.When mowing large lawns, maintaining properties, recreational areas, or home gardens, the axle components are constantly under load.A properly selected wedge helps keep the mechanism in the correct position and ensures the smooth operation of the components.
This product is a good choice for people who value proven service solutions.Instead of trying to fit a random part with uncertain dimensions, you can use a part with a specific part number 486169 and dimensions of 5x5x45.This is a simple way to effectively repair your garden tractor and maintain its high reliability.
Technical Specifications for the CEDRUS 486169 Axle Wedge
| Product name | Cedtus / CEDRUS Axle Wedge for C-TRAC Tractors |
| Product code | 486169 |
| Dimensions | 5x5x45 |
| Part Type | Axle wedge / fastener |
| Application | C-TRAC Garden Tractors |
| Compatible models | C-TRAC-83HC-1, C-TRAC-93HC-1, C-TRAC-93HC-H, C-TRAC-103HC-H |
| EAN code | 5906434275142 |
| Weight | No data available |
Product description
CEDRUS 486169 5x5x45 Axle Wedge for C-TRAC-83HC-1, C-TRAC-93HC-1, C-TRAC-93HC-H, and C-TRAC-103HC-H Tractors.Genuine replacement part that ensures a secure fit, durability, and a perfect match for the garden tractor's axle.
5x5x45
Why Choose the Cedtus / CEDRUS 486169 Axle Wedge??
- Compatibility with specific models – Part designed for the C-TRAC-83HC-1, C-TRAC-93HC-1, C-TRAC-93HC-H, and C-TRAC-103HC-H tractors.
- Dimensions: 5x5x45 – the precise dimensions facilitate proper installation in the correct position on the axle.
- Genuine replacement part – greater assurance of compatibility and reliability compared to generic replacements.
- Secure mounting – the wedge helps keep mechanical components in the correct position.
- Supporting the tractor's durability – A properly selected part reduces the risk of play and operational problems.
- Practical Maintenance Applications – the perfect choice for repairs, seasonal inspections, or replacing a worn-out V-belt.
FAQ - frequently asked questions
What is the CEDRUS 486169 axle wedge??
This is a fastener used in axial connections on a garden tractor.Its purpose is to securely mount the mating part on an axle or shaft and to minimize the risk of its uncontrolled rotation.
Where is the 5x5x45 axle wedge installed??
The wedge is installed in the appropriate groove or slot on the axle, at the point where it connects to the component, which must be securely locked in place and properly seated.
Which tractors is the 486169 axle wedge compatible with??
This product is compatible with the C-TRAC-83HC-1, C-TRAC-93HC-1, C-TRAC-93HC-H, and C-TRAC-103HC-H models.
What are the dimensions of the CEDRUS 486169 axle wedge??
The dimensions of the wedge are 5x5x45.
When Should You Replace the Axle Wedge on a Tractor??
Replacement is recommended when the wedge is worn, damaged, deformed, lost during disassembly, or when play or malfunction occurs in the component mounted on the axle.
Is this an original replacement part??
Yes, the CEDRUS 486169 axle wedge is an original replacement part designed for the specified C-TRAC tractor models..
