Tractor APACHE 92 PRO 2WD EMAK 68129120 Mulching mower grubber grubber - tractor for tall grass and waste land
- Tractor APACHE 92 PRO 2WD Emak 68129120 - professional mulching mower and grubber for tall grass, brush and waste land. A powerful 708 cm³ V-twin engine, hydrostatic drive, differential lock and a cutting width of 92 cm guarantee a productive
APACHE 92 PRO 2WD Emak Tractor is a specialized self-propelled mulching mower and grubber for difficult terrain, tall grass, brush, waste land and slopes. Equipped with a powerful 708 cm³ V-twin Emak K2400 OHV engine, hydrostatic drive and differential lock, it provides efficient, comfortable and safe operation even in extreme conditions. Its working width of 92 cm, central cutting height adjustment and massive design make it an ideal machine for demanding professional users and owners of large sites.
What is the APACHE 92 PRO 2WD EMAK tractor 68129120?
It is a professional tractor - ride-on mower and grubber, designed to quickly and safely clear areas of tall grass, volunteer trees, young trees and shrubs. Thanks to the special design of the cutting unit with a single blade with movable tips and mulching technology, the machine shreds vegetation into small fragments that remain on the surface as a natural fertilizer.
Where the APACHE 92 PRO 2WD tractor is used?
The device works directly on the ground - it is guided by an operator sitting on a comfortable fully adjustable chair. The tractor is used on:
- wasteland overgrown with tall grass and weeds,
- areas with shrubs and self-sown trees,
- slopes, slopes, roadsides, ditch banks,
- meadows, orchards, woodlands and suburban recreational plots,
- backyard, sprawling properties and on farms.
Use of the tractor - mulching mower and grubber
APACHE 92 PRO 2WD is designed for intensive use by service companies, municipalities, road services, foresters, farmers and demanding individual users. It works where traditional garden tractors fail - on soft, uneven ground, in dense bushes, in tall grass, on areas with steep slopes.
Apache 92 PRO 2WD Emak self-propelled tractor - powerful V-twin engine, hydrostatic drive and differential lock
1. Professional Emak K2400 OHV 708 cm³ engine - reliable power in all conditions
At the heart of the machine is a two-cylinder Emak K2400 OHV engine with a displacement of 708 cm³ and a useful power of 13.7 kW at 3000 rpm./min. V-twin design for high torque, smooth operation and lower vibration. Thanks to this tractor:
- it can handle dense, tall grass without a problem,
- it effectively cuts down overgrowth, volunteer bushes and shrubs,
- maintains consistent power even under heavy loads on the slopes.
In practice, this means that you can easily drive into perennial wastelands or overgrown plots of land and turn them into a level, cleared surface in one pass.
2. Hydrostatic drive - infinitely variable speed control without shifting gears
The tractor is equipped with hydrostatic transmission, with which you adjust your speed smoothly, with a single lever or pedal, without having to switch gears. This is a huge benefit during:
- precise maneuvering in dense thickets, between trees and obstacles,
- driving on uneven roads, where frequent deceleration and acceleration are necessary,
- work on the slopes - you can more easily control the speed of descent and ascent.
3. Locking differential - traction on steep and slippery terrain
The driven rear wheels work together with self-locking differential, which can be locked in difficult terrain. With this:
- you retain traction on muddy meadows and marshy wastelands,
- the machine starts better on slippery ground,
- you can more easily overcome steep slopes and escarpments.
A locking differential is an advantage that standard garden tractors do not offer - here you get capabilities comparable to a small off-road vehicle.

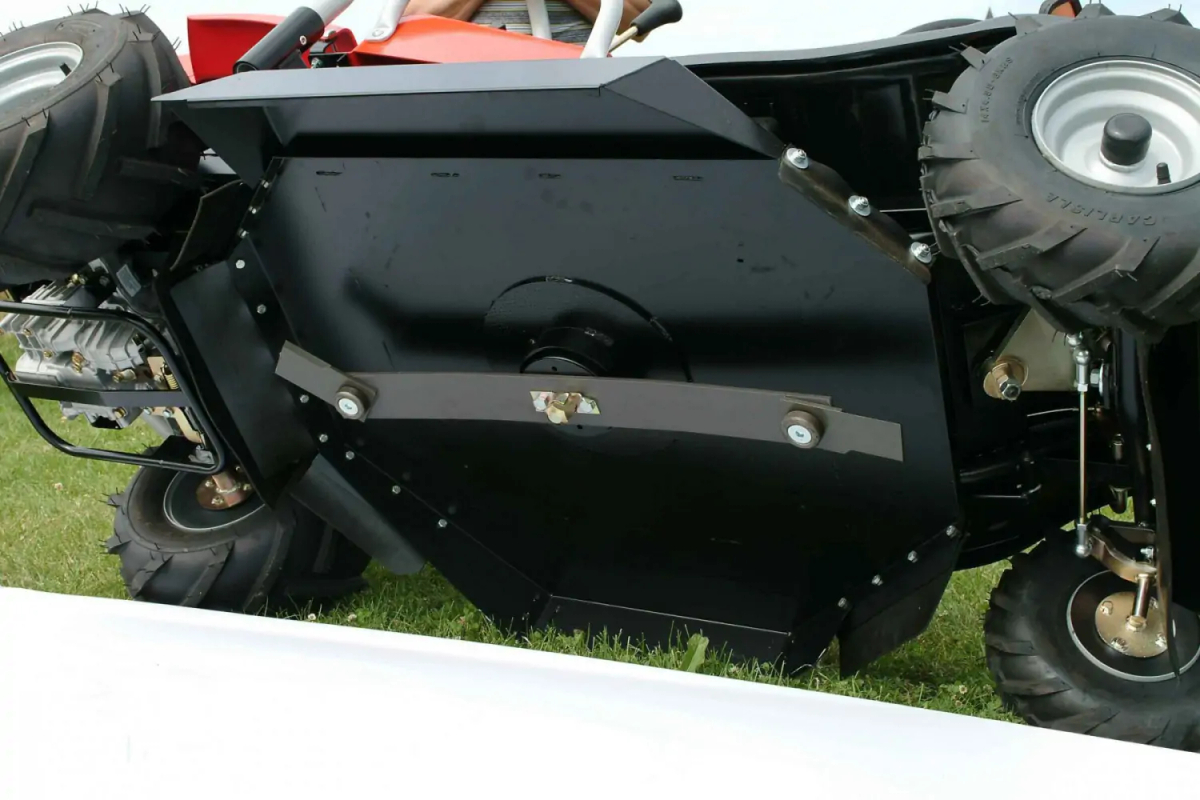

Cutting deck 92 cm with blade with movable tips - efficient mulching of tall grass and brush
1. Cutting width of 92 cm - fast cleaning of large areas
Cutting unit with a width of 92 cm allows you to work efficiently on large areas. With one pass, you cover a wide strip of land, which significantly reduces the time for mowing wasteland, meadows or roadside lanes.
2. Blade with movable tips - impact resistance and high durability
The tractor is equipped with one massive blade z movable tips. Such a design:
- reduces the risk of damage when hitting rocks, roots or stumps,
- extends the life of the blade and the entire unit,
- allows you to safely work on uncleared, "wild" areas.
So you don't have to worry about every unseen obstacle - the tractor is designed to work hard in tough conditions.
3. Mulching - natural fertilizer and no need to collect grass
The APACHE 92 PRO 2WD works in the following modes mulching, that is, intensive shredding of vegetation into small fragments that remain on the surface as a layer of mulch. This brings many benefits:
- you don't have to collect and dispose of the mowed mass,
- shredded grass and vegetation form a natural fertilizer, improving soil structure,
- the work goes faster and the cost of maintaining the site is lower.
Stable construction and off-road tires - safety on slopes and unevenness
1. Low center of gravity - maximum stability
The structure of the tractor was designed so that the the center of gravity is as low as possible. Combined with a wide wheelbase, this ensures:
- high stability on slopes and slopes,
- safe operation on uneven, undulating terrain,
- less risk of tipping while overcoming obstacles.
2. Wide treads - grip and ground protection
Large wheels in sizes 16x6.50-8 (front) and 20x10.00-8 (rear) with aggressive, wide tread guarantee very good grip even on soft ground. At the same time, the contact surface with the ground is large enough that the tractor does not easily sink into the ground and does not damage the turf excessively.
3. Ideal for extremely rough terrain and slopes
With its sturdy frame, low center of gravity and off-road tires, the APACHE 92 PRO 2WD is designed especially for:
- mowing steep slopes next to roads and drainage ditches,
- maintenance of inclined embankments, dikes,
- working on hilly, untidy plots of land and forested accesses.
Operator comfort and ease of use - equipment for professionals and demanding private users
1. Ergonomic workstation
The tractor is equipped with a comfortable, cushioned seat with a high backrest and armrests. All major controls (gas, drive, cutting unit, height adjustment) are within the operator's reach. With this:
- you can work for many hours without feeling tired,
- you respond easily to changing terrain conditions,
- precisely control the machine even in dense bushes.
2. Electromagnetic clutch and central cutting height adjustment
Starting of the cutting unit is done by the electromagnetic clutch - with a single motion you turn the knife on or off. Central cutting height adjustment 50-100 mm (6 positions, 120 mm - transport position) allows you to quickly adapt the machine to current conditions:
- lower cut with regular site maintenance,
- a higher cut when first passing through very tall grass or brush,
- transport position for travel between plots.
3. Easy servicing and cleaning of the unit
The design of the unit and guards allows convenient access to the blade and undercarriage. Regular cleaning after work (removal of grass, mud and plant debris) is thus quick and easy, extending the life of the machine and ensuring trouble-free operation.
Practical use of the APACHE 92 PRO 2WD EMAK tractor 68129120 - examples of daily operation
1. Maintenance of wasteland and recreational plots of land
If you have a large plot of land that has become overgrown with tall grass, weeds and bushes over the years, the APACHE 92 PRO 2WD will allow you to do so in no time:
- remove dense vegetation and volunteer trees,
- transform wasteland into an area for a future garden, orchard or flower meadow,
- maintain cleanliness on a regular basis without having to hire outside companies.
2. Municipal works - roadsides, slopes, ditches
The machine will be ideal in the hands of service companies and municipal units for:
- mowing the roadsides of local and municipal roads,
- maintenance of areas around drainage ditches, embankments and embankments,
- clearing strips under power lines or fences.
3. Farms and forests - access roads, balks, field edges
In agriculture and forestry, the APACHE 92 PRO 2WD will help in:
- maintenance of passable access roads and maneuvering areas,
- mowing of baulks, field edges and areas near farm buildings,
- clearing the areas bordering the forest of excessive vegetation.
Technical specifications of the APACHE 92 PRO 2WD Emak tractor
Apache 92 PRO 2WD self-propelled mower Emak
Apache 92 all-purpose riding mowers are characterized by high durability and reliability, making them ideal for clearing wasteland that also contains perennial vegetation, trees and shrubs, in rough areas and on slopes.
- They are equipped with powerful single-blade cutting tools with movable tips.
- Wide treads and a low center of gravity allow the machine to maintain maximum stability even on rough terrain and on banks and near ditches.
- Equipped with numerous tools to make the operator's job easier, such as an electromagnetic clutch, a hydrostatic transmission, a lockable differential that allows operation in almost any terrain conditions, and central cutting height adjustment..
- Ideal for extremely uneven terrain or areas with steep slopes.
Technical parameters:
| The useful power of the device | 13.7 kW - at 3000 rpm |
| Battery data | 12 V / 32 Ah |
| Engine capacity | Emak K2400 OHV 708 cm³; two cylinders |
| Drive | hydrostatic; self-locking differential |
| Weight | 322 kg |
| Cutting width | 92 cm |
| Cutting height adjustment | 50-100 mm (6 positions) (120 mm - transport height) |
| Wheels | 16x6.50-8 / 20x10.00-8 |
| Dimensions | 221 x 104 x 145 cm |
| Driving speed | 0 to 8.5 km/h (front) and 0 to 4.5 km/h (rear) |
| Turning radius | 65 cm |
| Fuel tank | 19 l |
| Product code | 68129120 |
FAQ - frequently asked questions about the APACHE 92 PRO 2WD EMAK tractor 68129120
1. For what maximum height of grass and brush is this tractor suitable?
APACHE 92 PRO 2WD is designed to work in wasteland and heavily overgrown areas. It can handle very tall grass, weeds and low shrubs and self-seeders without a problem. In the case of extremely tall vegetation, it is recommended to make the first passes with a higher aggregate setting and then lower the cutting height.
2. Can the tractor be used on steep slopes?
Yes. Thanks to its low center of gravity, wide wheelbase, off-road tread and locking differential, the machine is suitable for work on steep slopes. However, always follow the manufacturer's recommendations regarding the maximum allowable tilt angle and safety rules.
3. How is the service and maintenance?
Regular maintenance includes checking oil and fuel levels, cleaning filters, checking the condition of the blade, and removing crop residue from the cutting unit and chassis after work is completed. Access to key components is made easier, reducing maintenance time and operating costs.
4. Is the tractor suitable for typical low mowing of the lawn by the house?
APACHE 92 PRO 2WD first and foremost is a machine for special tasks - for tall grass, weeds and brush. It can also be used to mow lower-maintained areas, but it is not a classic "lawn" tractor. If the main purpose is to care for a decorative lawn, a typical garden tractor will be better. APACHE will be ideal as a supplement - for heavier work.
5. How much fuel the tank holds and how long you can run on a single fill-up?
The fuel tank has a capacity of 19 liters. Actual operating time per refueling depends on load, terrain conditions and the operator's driving style, but with typical use, it allows for hours of continuous operation without frequent refueling.
6. Does the operator need to have a special license to operate the tractor?
For most applications, no special authorizations are required, but always read the operating instructions, follow health and safety rules and use the recommended personal protective equipment (work shoes, ear protection, goggles). In municipal applications, the employer's internal regulations and local regulations apply.
7. What are the main advantages of the APACHE 92 PRO 2WD over ordinary garden tractors?
Key advantages include: powerful 708 cm³ V-twin engine, cutting deck suitable for grubbing, blade with movable tips, hydrostatic drive, locking differential, low center of gravity and off-road tires. As a result, the tractor copes where standard lawn mowers and garden tractors fall short or are prone to rapid damage.
