Front wheel bearing 61904-2RZ Cedrus tractor C-TRAC-86MC C-TRAC-86MS C-TRAC-92HC C-TRAC-98HS C 760137
- Cedrus front wheel bearing 61904-2RZ for C-TRAC-86MC, 86MS, 92HC, 98HS, 102HC, 112HC tractors. Durable precision bearing ensures smooth ride, stability and reliable operation of the front wheels. Ideal as a spare part.
Front wheel bearing 61904-2RZ Cedrus tractor C-TRAC-86MC C-TRAC-86MS C-TRAC-92HC C-TRAC-98HS C 760137 is a high quality, precision ball bearing designed specifically for the front wheels of Cedrus C-TRAC series garden tractors. Its purpose is to provide light, smooth wheel rotation and steering stability for mowing, maneuvering and working in more difficult terrain. Makes an ideal replacement part if the factory bearing is worn out or if you are upgrading your running gear.

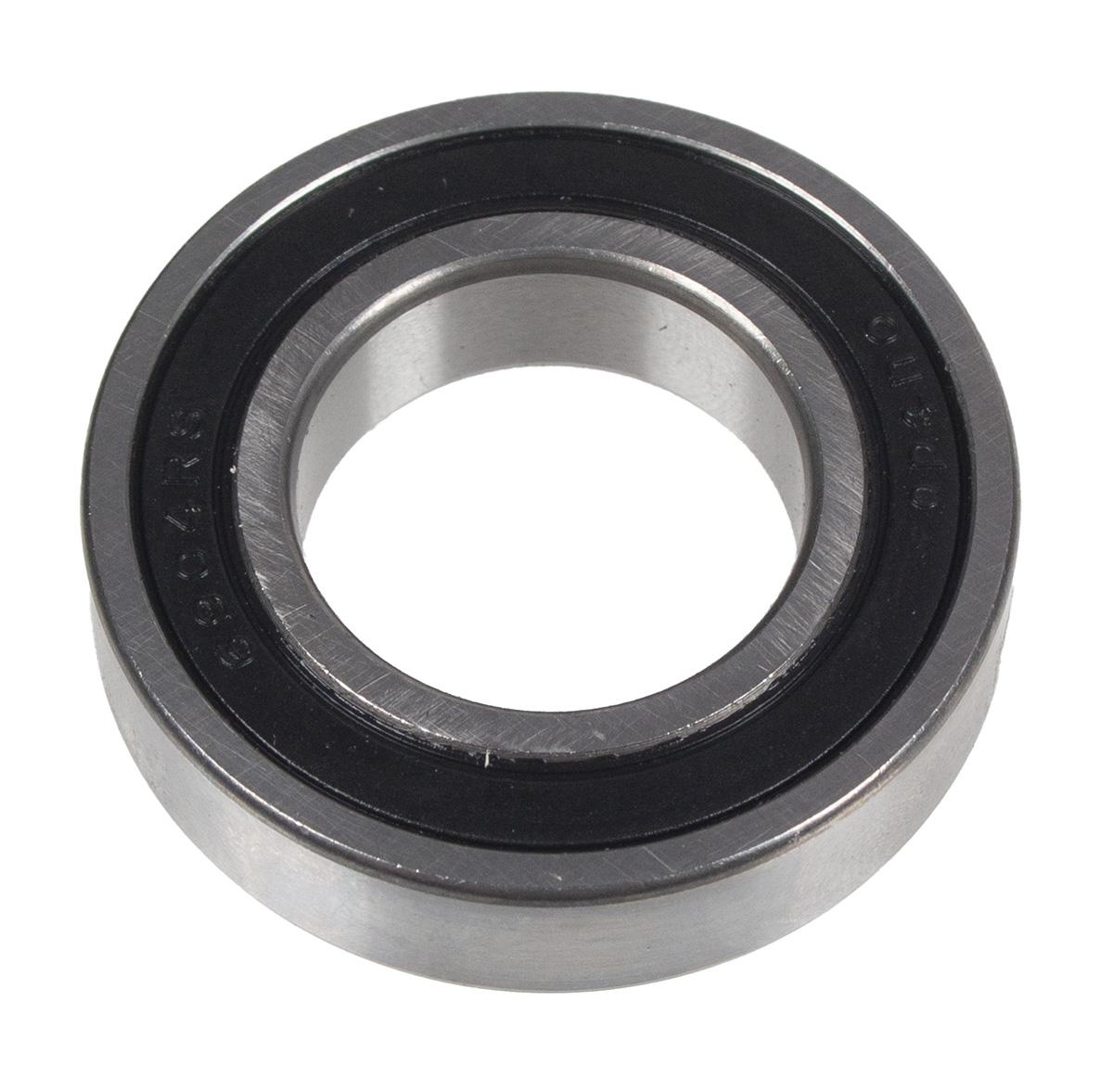

What is the front wheel bearing 61904-2RZ Cedrus?
It is a sealed, double-sided protected ball bearing type 61904-2RZ, equivalent to popular designations 61904RS and 6904RS. Precise workmanship, low rolling resistance and increased resistance to dirt and moisture make it perfectly able to withstand the stresses arising from garden tractor operation. The compact dimensions allow installation in the hub of the front wheel, where the bearing takes up the radial and axial forces generated during driving.
Where the bearing 61904-2RZ Cedrus 760137 is mounted?
The bearing is designed for installation in front wheels cedrus C-TRAC series tractors. It is located in the hub of the wheel, between the axle (pin / front axle) and the rim, allowing the wheel to rotate precisely and freely without backlash or unwanted vibration. Replacement involves dismantling the wheel, removing the old bearing from the hub and seating the new component using appropriate tools (such as a press or puller) while maintaining alignment.
Application of Cedrus 61904-2RZ 760137 front wheel bearing
The product is used on popular models of Cedrus garden tractors, m.in.:
- C-TRAC-102HC
- C-TRAC-112HC
- C-TRAC-86MC
- C-TRAC-86MS
- C-TRAC-92HC
- C-TRAC-98HS
Thanks to its wide compatibility, it can also replace bearings with part numbers and replacements: 760137, 760622, 20061595, 120098, 081087, 61904RS, 6904RS. It's a proven choice for residential users, garden machinery service centers, and stores that sell lawn mower and tractor spare parts.
Benefits of using Cedrus 61904-2RZ front wheel bearing
- Smoother tractor ride - Reduced rolling resistance, easier turning and maneuvering around trees, shrubs, flowerbeds or other terrain obstacles.
- Higher comfort at work - No unpleasant rasp, play or vibration on the steering wheel, which translates into comfort during long-term mowing of large garden and allotment areas.
- Security and stability - confident guidance of the machine even on inclines, unevenness or with frequent turning at the ends of working belts.
- Protection of other elements - A good bearing reduces the loads transferred to the axle, knuckles, hubs and tires, extending the life of the entire chassis system.
- Saving time and money - Replacement of one small component avoids complex repairs in the future and keeps the tractor in full working order.
Full description of compatibility and replacements
Cedrus 61904-2RZ front wheel bearing - precision engineering and reliability for everyday tractor operation
Front wheel bearing 61904-2RZ Cedrus was made of high-quality bearing steel, characterized by high hardness, wear resistance and dimensional stability. As a result, the item retains its properties even under heavy use during the lawn mowing season. Precision grinding of the raceways and balls ensures low rolling resistance and quiet operation, which is especially appreciated by users who spend many hours on the tractor while tending extensive grounds.
In practice, this means that during daily mowing on a recreational plot, in a home garden or on company premises, the tractor drives lightly, does not "pull" in any direction, and the wheels turn evenly. Even when frequently driving over small bumps, curbs, holes or soft patches of turf, the bearing maintains rotational stability and does not wear out quickly.
Owners of landscape mowing service companies appreciate this bearing model for its repeatable quality and trouble-free operation. Less service downtime means more jobs completed for the season and better efficiency for the entire tractor fleet.
Durability and resistance to garden conditions - Cedrus front bearing C-TRAC-86MC / C-TRAC-92HC / C-TRAC-98HS
The working environment of a garden tractor is demanding - dust, grass, sand, moisture and varying temperatures. Front bearing 61904-2RZ has been equipped with effective RZ/RS type seals, which protect its interior from dirt and loss of lubricant. As a result, the component remains operational for a long time without the need for frequent maintenance.
In practice, the user can operate the tractor on rainy days, on damp ground or in areas with increased dust (such as gravel paths) without worrying about accelerated wear on the bearings. This is a concrete benefit for those maintaining extensive gardens, orchards, recreational fields, playing fields or areas next to companies - the machine remains fully functional for many seasons, and the risk of failure at the least opportune moment is reduced.
Bearing durability is also crucial for users who operate the tractor in semi-professional mode, such as when servicing several neighboring properties, residential communities or resort areas. Stable, overload-resistant bearing means fewer service visits and lower fleet maintenance costs.
Wide compatibility and easy installation - one bearing for many Cedrus C-TRAC models
The big advantage of the bearing 61904-2RZ Cedrus 760137 is its broad compatibility with many models of C-TRAC series garden tractors, including: C-TRAC-86MC, C-TRAC-86MS, C-TRAC-92HC, C-TRAC-98HS, C-TRAC-102HC, C-TRAC-112HC. One type of spare part fits several popular machines, which greatly simplifies inventory management and equipment servicing.
The bearing is also a replacement or equivalent for items with designations: 760137, 760622, 20061595, 120098, 081087, 61904RS, 6904RS. In practice, this means that a mechanic or self-service user can easily identify the correct product and easily replace a worn or damaged bearing with a new one.
Installation of the bearing is simple for any person with basic technical skills. In everyday use, it looks like this: after noticing play in the wheel, noise or difficult turning, the user removes the wheel, carefully knocks out the worn bearing and presses in a new one, taking care to maintain alignment. After such an operation, the tractor regains its former smoothness of driving, and work on the plot or in the garden becomes comfortable again.
Technical specifications of Cedrus 61904-2RZ 760137 front wheel bearing
- Bearing type: ball bearing, single row, sealed (2RZ/RS)
- Manufacturer Designation: 61904-2RZ
- Equivalents: 61904RS, 6904RS
- Replacement / catalog numbers: 760137, 760622, 20061595, 120098, 081087
- Purpose: cedrus C-TRAC garden tractor front wheel
- Compatible models: C-TRAC-86MC, C-TRAC-86MS, C-TRAC-92HC, C-TRAC-98HS, C-TRAC-102HC, C-TRAC-112HC
- EAN code: 5906434225017
- System code (external): 760137
- Product weight: about. 0.037 kg
- Package dimensions: length 3,600 mm; width 3,600 mm; height 1,000 mm (system values - unit packaging)
The carefully selected dimensions and strength parameters of the bearing make it a perfect fit for the factory slots in the front wheel hubs of Cedrus tractors. The user is assured that the replacement part will work properly with the rest of the chassis components, without the need for modifications or adjustments.
When to replace the front wheel bearing on a Cedrus C-TRAC tractor?
Regular inspection of the condition of the front wheel bearings helps avoid more serious failures. A new bearing is worth considering 61904-2RZ Cedrus, when the following symptoms appear:
- Perceptible backlash on the front wheel - the wheel "sways" from side to side when raising the machine.
- Loud operation - Metallic grinding, crunching or noise when turning the wheel by hand or while driving.
- Difficulties with turning - The steering wheel turns harder, especially at low speed or when maneuvering in tight spaces.
- Uneven tire wear - excessive tread wear on one side may indicate bearing and geometry problems.
For example, a user of a C-TRAC-92HC tractor who regularly mows a large garden of several acres may notice that the machine has begun to "pull" to one side, and the wheel makes disturbing sounds. In such a situation, replacing the worn bearing with a new 61904-2RZ will immediately restore the correct handling of the tractor and significantly increase the safety of operation.
Why choose the original Cedrus 61904-2RZ front wheel bearing?
Deciding to buy the original front wheel bearing Cedrus 61904-2RZ 760137, the customer gains confidence in its quality, technical parameters and full compatibility with the machine. Unlike random replacements of unknown origin, the product dedicated to specific models of C-TRAC tractors guarantees the preservation of all functions and safety of use.
The original bearing will be suitable both for private users who expect trouble-free operation of the tractor when caring for their own property, and for professionals performing contract mowing services. Stable quality, availability of part numbers and EAN facilitates identification of parts, and repeatability of parameters speeds up service work.
With this bearing 61904-2RZ Cedrus becomes an investment in the long-term efficiency of the tractor - a small cost compared to replacing entire wheel assemblies, axles or steering knuckles that could be damaged by operating on a worn or blocked bearing.
FAQ - frequently asked questions about the 61904-2RZ Cedrus C-TRAC front wheel bearing
Question 1: Will this bearing fit my Cedrus C-TRAC-86MC tractor?
Yes. Front wheel bearing 61904-2RZ Cedrus 760137 is dedicated to m.in. for models C-TRAC-86MC, C-TRAC-86MS, C-TRAC-92HC, C-TRAC-98HS, C-TRAC-102HC, C-TRAC-112HC. If you own one of these tractors, the product will be suitable.
Question 2: How to recognize that the bearing in the front wheel needs to be replaced?
The need for replacement is evidenced by: noticeable play on the wheel, loud noises or crunching when turning the wheel, difficulty turning, and uneven tire wear. If you notice any of these symptoms, an inspection and possible replacement of the bearing is recommended.
Question 3: Can the bearing 61904-2RZ be replaced by another designation, such as 61904RS or 6904RS?
Yes. Designations 61904-2RZ, 61904RS and 6904RS refer to the same type of bearing or its replacements. If the old component bears one of these markings, the presented bearing will be the right choice.
Question 4: Are specialized tools needed to replace the bearing?
It is best to use a press or a suitable puller to press in the new bearing without damage and maintain alignment. In many cases, experienced users can cope with basic workshop tools, but care must be taken not to damage the hub or the bearing itself.
Question 5: Is the bearing lubricated and sealed at the factory?
Yes. Bearing 61904-2RZ Cedrus is factory lubricated and equipped with double-sided seals, ensuring readiness for installation right out of the box and long-lasting, maintenance-free operation under typical garden conditions.
