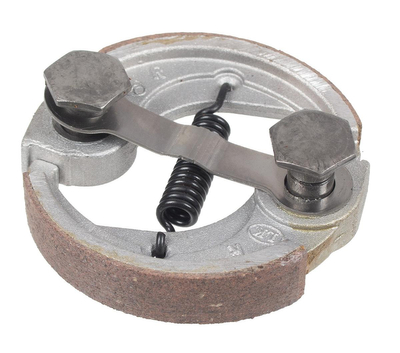

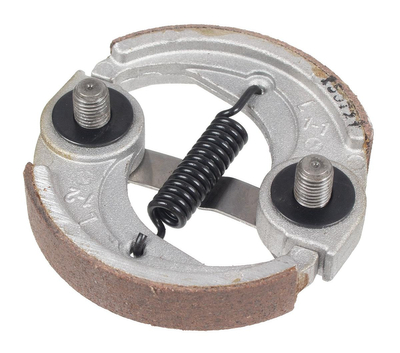

KPL clutch. Cedrus mower CEDKW45PRO 210128
- Original Cedrus 210128 centrifugal clutch for CEDKW45PRO mower with Kawasaki TJ45E engine. Ensures smooth power transmission, less vibration, safe starting and long, trouble-free operation of the mower. Ideal for intensive, professional trashing
KPL clutch. Cedrus mower CEDKW45PRO 210128 is a complete, original centrifugal clutch designed for Cedrus KW45PRO professional petrol mower with Kawasaki TJ45E engine. This component is responsible for the smooth transfer of power from the engine crankshaft to the clutch drum and further to the drive shaft and cutting head. A properly functioning clutch guarantees safe starting, control of the cutting tool rotation and long life of the entire drive unit.
The clutch presented here is an original service part with part number 13081-2220, optimized for operation at high revolutions and under the load typical of professional-grade brushcutters. Thanks to the use of high-quality materials and precision machining, the clutch ensures stable, reliable operation of the machine for many seasons.
What is the KPL clutch. Cedrus mower CEDKW45PRO 210128 and how it works?
KPL clutch. Cedrus mower CEDKW45PRO 210128 is a complete centrifugal clutch, which includes friction linings, clutch jaws, spring and mounting components. It is mounted directly on the engine shaft and takes advantage of the centrifugal force created when the speed increases. At low speed, the cladding remains at rest, so the cutting head does not rotate - the mower can idle without the risk of accidental mowing. As the speed increases, the clutch jaws move apart and press against the inner surface of the clutch drum, smoothly transferring torque to the drive shaft.
Such a solution is particularly advantageous for the user - it allows easy, safe starting of the device, reduces engine wear and tear, and increases the comfort of work. The original Cedrus clutch is precisely balanced to reduce vibration and noise, thereby protecting other drive components from premature wear and tear.
Where does the 210128 clutch mount on the Cedrus CEDKW45PRO trimmer?
Clutch 210128 is mounted in the drive compartment of the mower, directly on the crankshaft journal of the Kawasaki TJ45E engine. It works with the original clutch drum with an operating diameter of about 78 mm, which then transmits the drive to the drive shaft and bevel gear of the cutting head. In the entire drive unit of the Cedrus CEDKW45PRO mower, a key role is played:
- centrifugal clutch - an element that engages/disengages the drive depending on engine speed,
- clutch drum - working with friction linings to ensure proper torque transmission,
- drive shaft and bevel gear - responsible for delivering power to the cutting head or blade.
A properly installed clutch is therefore the central link between the engine and the rest of the drivetrain. Its technical condition has a direct impact on the machine's operating culture, vibration level, safety and mowing efficiency.
Application of KPL clutch. Cedrus CEDKW45PRO 210128
The clutch presented was designed specifically for use in:
- cedrus CEDKW45PRO petrol mowers with Kawasaki TJ45E engine,
- devices with similar drive design, using a centrifugal coupling with an operating diameter of approx. 78 mm (after prior confirmation of size compatibility by user or service).
The clutch is perfect for heavy use:
- when tending extensive home gardens, recreational plots and orchards,
- in municipal work - maintenance of urban greenery, roadsides, fire lanes,
- in service companies engaged in professional mowing of large areas,
- on farms where the mower often works in harsh conditions with tall grass and bushes.
Thanks to its robust design and high wear resistance, the KPL clutch. Cedrus ensures that the engine power is transferred reliably even when running at high rpm for long periods of time. This is an investment that realistically extends the trouble-free life of the entire mower.
KPL clutch. Cedrus mower CEDKW45PRO 210128 - key features and advantages
When you choose a genuine Cedrus clutch, you're getting a part that has been designed and tested specifically for use with the Kawasaki TJ45E engine and the Cedrus KW45PRO mower drive unit. The most important benefits for the user are:
- High durability of friction linings - Wear-resistant, guarantee long and stable operation, even when the drive is frequently switched on and off.
- Precise balancing - Reduced vibration, less strain on bearings, gears and operator's hands.
- Smooth engagement of the drive - No sudden jerks during the transition from idling to running under load.
- Original part number 13081-2220 - easy identification and confidence in selecting the right part.
- Compatible with 78 mm diameter clutch drum - compliance with Cedrus / Kawasaki drive train specifications.
- Safety of use - properly functioning clutch stops the rotation of the cutting tool when the engine speed is reduced, protecting the user and the environment.
Dimensions, weight and product specifications
We provide basic product information for your convenience:
- Part number (OEM): 13081-2220
- Manufacturer/System Code: 210128
- EAN code: 5906434238598
- Clutch type: automatic centrifugal, two jaw
- Purpose: cedrus CEDKW45PRO mower (Kawasaki TJ45E engine)
- Approximate working diameter of the clutch system: about. 78 mm
- Product weight: 0.120 kg
- Package dimensions: length 8.7 cm, width 8.0 cm, height 3.0 cm
Compact dimensions and light weight make it easy to store spare parts and ship them, while accurate markings allow you to identify the right clutch model without error.
Cedrus 210128 centrifugal clutch - why you should replace it with a new one?
The clutch in the mower is subjected to very high mechanical and thermal overloads. High revolutions, frequent engagement of the drive, operation in dust and in contact with grass or dust cause gradual wear of the linings, weakening of the spring and deterioration of the operation of the entire system. Symptoms that indicate the need to replace the clutch are m.in.:
- drive slippage - the engine enters high speed, and the cutting head rotates weakly or irregularly,
- sudden jerks when turning on the drive,
- increased vibration and noise around the engine and clutch cover,
- clear signs of overheating or cracks in the friction linings.
Replacing a worn clutch with a new, original KPL clutch. Cedrus 210128, you restore the machine to full working order and comfort. This is a particularly cost-effective solution for heavy-duty professional scythes - the cost of parts is disproportionately lower than possible repairs to the engine or the entire drive train resulting from prolonged operation on a faulty clutch.
Comfort and safety at work with the Cedrus KW45PRO mower
The original clutch has a direct impact on user comfort. Reduced vibration of the handles and tube translates into less hand and arm fatigue, even when mowing for long periods of time. Smooth engagement of the drive reduces the risk of "jerking" the machine, which is especially important when working near obstacles, fences, trees or buildings.
An efficient clutch, combined with a suitable clutch guard and a properly selected drum, also ensures a high level of safety: once the high speed is dropped, the cutting head stops rotating, making it easy to move with the mower, put it away or perform adjustment work.
For whom the KPL clutch is intended. Cedrus CEDKW45PRO 210128?
The product is aimed at both individual users and professionals:
- Homeowners and landowners - Who want to independently maintain their Cedrus mower in perfect working order.
- Garden and service companies - For whom the reliability of equipment is crucial to the execution of orders.
- Utilities and road services - operating Cedrus equipment in difficult field conditions.
- Service and repair shops - looking for reliable, original spare parts of proven quality.
The use of original drive components significantly simplifies service, reduces repair time and allows to maintain operating parameters in accordance with the manufacturer's assumptions.
Packaging and transportation - the convenience of online ordering
The Cedrus 210128 coupling comes in a practical, compact package measuring 87 × 80 × 30 mm. The weight of only 0.120 kg makes the shipment lightweight, yet properly protected for transportation. As a result, the part arrives at the customer in perfect condition, ready for immediate installation in the mower.
How to take care of the clutch in a Cedrus scythe to make it last longer?
To maximize the life of a new clutch, it is worth following a few simple operating rules:
- use the correct fuel-oil mixture recommended for the Kawasaki TJ45E engine,
- avoid prolonged operation with the clutch partially engaged (half gas),
- regularly check the condition of the clutch cover and drum,
- do not allow excessive loading of the cutting head (cutting too thick branches, wooden parts, etc.).),
- report worrying symptoms (slipping, burning smell, increased vibration) and seek service if necessary.
With these simple measures, the new KPL clutch. Cedrus CEDKW45PRO 210128 will work reliably for many seasons, and your mower will maintain full power and mowing efficiency.
FAQ - Frequently asked questions about the KPL clutch. Cedrus mower CEDKW45PRO 210128
1. Does this clutch fit any Cedrus mower model?
Not. KPL clutch. 210128 is primarily dedicated to the Cedrus CEDKW45PRO mower with Kawasaki TJ45E engine. Before purchasing, always compare the part number and technical specifications of your device.
2. How to identify a worn clutch in a petrol cutter?
Typical symptoms include drive slippage (the engine enters high revs and the cutting head does not accelerate), pronounced jerks when starting, a metallic noise near the clutch, severe heating of the housing, and visible cracks or burns in the friction linings.
3. Does clutch replacement require specialized tools?
In most cases, standard workshop tools will suffice: wrenches, a piston lock or a suitable device to immobilize the clutch, and basic safety precautions. However, less experienced people should consider entrusting the replacement to an authorized service center to avoid damage to the shaft or other drive components.
4. After replacing the clutch, is additional adjustment of the mower necessary?
Usually no special adjustment is required other than the standard idle speed setting and checking for proper carburetor operation. After installing a new clutch, it is a good idea to carry out a test at idle and under light load, observing the smoothness of the engagement of the drive and any vibration.
5. How to store the clutch as a spare part?
Store the coupling in its original packaging, in a dry room, away from moisture and aggressive chemicals. Avoid hitting and dropping so as not to damage the friction linings or spring elements. Under such conditions, the part will retain its properties for a long time.
6. Does the use of the original clutch affect the warranty of the device?
The use of genuine Cedrus parts is in accordance with the manufacturer's recommendations and helps to maintain warranty terms and full component compatibility. Using substitutes of unknown origin can lead to fit problems and accelerated wear of other drive components.
