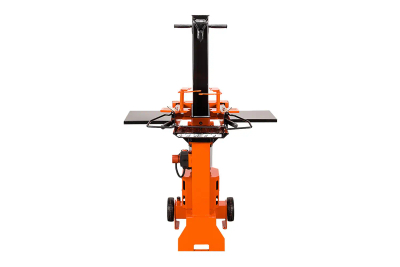

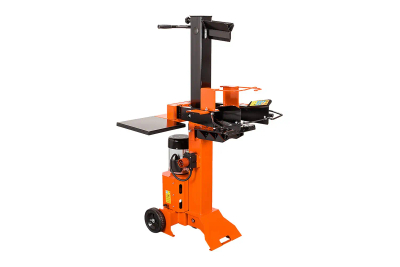

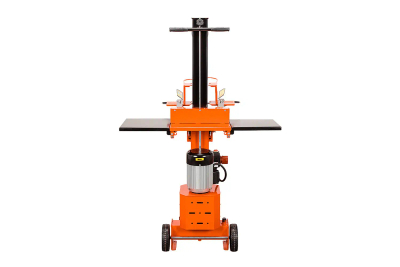

HYDRAULIC ELECTRIC WOOD SPLITTER OLEO-MAC OM-LINE ELD7 OO-OTHELD7
- Electric splitter ELD7 OO-OTHELD7 - power 3.0 kW and pressure 7 t. Vertical wood splitter with a length of up to 52 cm and a diameter of up to 30 cm. Ideal for home, workshop and farm.
Electric splitter ELD7 OO-OTHELD7 is a powerful, reliable and extremely convenient to use device for the rapid preparation of firewood. Thanks to its 7-tonne pressure, robust design and powerful 3.0 kW motor powered by a 230-volt household outlet, the splitter significantly speeds up woodworking while minimizing the user's physical effort.
What is an electric splitter ELD7 OO-OTHELD7?
The ELD7 OO-OTHELD7 electric wood splitter is a vertical wood splitter designed to split blocks and branches of lengths up to 520 mm i diameter up to 300 mm. The device uses the force of pressure 7 tons, so it can easily handle both softer and harder wood, significantly reducing firewood preparation time compared to a traditional axe.
Its construction is based on a stable steel frame weighing 90 kg, which guarantees safe operation, no vibration and long life. Applied single-phase electric motor 230 V with power of 3,0 kW provides high efficiency, while allowing the device to be connected to a standard electrical system in the home, workshop or farm.
Where to install and how to set up the ELD7 OO-OTHELD7 electric splitter?
The ELD7 OO-OTHELD7 splitter is installed and operated on a stable, hard and even ground, both indoors (garage, shed, workshop) and outdoors (under a wood shed, on a paved driveway). Thanks to its solid base and heavy weight, the device remains stable even during intensive work.
The device is equipped with practical transport wheels, that make it easy to move the splitter around the yard or farm. For the safety and comfort of the user, it is recommended to set it as close as possible to the stored wood - this reduces the need to carry heavy blocks over long distances.
The splitter only requires connection to a standard 230 V outlet with properly rated electrical protection. No complicated installations are needed - all you need is access to electricity, adequate working space and following basic safety rules.
Use of ELD7 OO-OTHELD7 electric splitter in daily operation
ELD7 OO-OTHELD7 splitter was developed for users who regularly prepare firewood for fireplace, CO stove, wood boiler or goat. It works well in households as well as in smaller service companies, carpentry workshops or gardening plants.
Typical applications:
- Preparation of firewood - splitting logs into smaller pieces suitable for burning in a fireplace, goat or tiled stove.
- Preparation of fuel for wood boilers - Quickly dividing blocks from pre-cut logs into sizes to fit the combustion chamber.
- Work on the farm and in the forest - splitting timber obtained from thinning, felling of domestic trees and shrubs.
- Support in small service establishments - firewood outlets, sawmills, fuel depots.
Thanks to the high pressure of 7 t, the splitter can handle most species of wood found in Poland - from pine or spruce, through birch and alder, to harder species such as oak or beech (within the limits of acceptable dimensions of the block).
ELD7 branch splitter - 3.0 kW power, 7 t thrust, maximum working safety
ELD7 branch splitter is distinguished by an optimal combination of power, performance and safety. Applied motor electric single-phase 230 V 3,0 kW provides smooth operation and high operating culture - no exhaust fumes, no noisy internal combustion engine or need for fuel handling. It is an ideal solution for users who value convenience, cleanliness and low operating costs.
Pressure 7 tons allows you to split well-seasoned blocks in seconds, as well as deal with most fresh wood. For the user, this means huge time savings - tasks that used to take all day with an axe can now be done in one-two hours.
The design of the splitter takes into account modern safety standards. The vertical working arrangement makes it easier to handle the blocks, and the sturdy guards and guide elements help keep the wood in a stable position. Operation is carried out using ergonomic levers, which reduces hand fatigue and allows comfortable operation even for long periods of time.
Ergonomics and convenience of the ELD7 OO-OTHELD7 electric splitter
The design of the ELD7 OO-OTHELD7 splitter takes into account the needs of users who value comfort and speed of work. Stable, vertical design allows you to work in a comfortable standing position without having to constantly bend over or lift the wood above your head.
Durable worktops and supports make it easier to position the block in the right place, which speeds up work and reduces the risk of it falling out during splitting. Large, easy-to-read controls allow intuitive operation even for those who have not worked with a splitter before.
An additional advantage is a total weight of 90 kg. Such a high weight means stability during operation, reduced vibration and less strain on the structure over a longer period of use. In turn, the mounted transport wheels make it possible, despite its considerable weight, to move the splitter comfortably within the property - for example, from the garage under the shed or closer to the stored wood.
Examples of daily use of ergonomic design:
- Preparation of wood for the CO boiler after work - fast, repetitive cycles without excessive fatigue.
- Operation by different people on the farm - simplicity of control and comfortable working position.
- Seasonal woodworking in a carpentry workshop - the ability to work for several hours in a row without straining your muscles.
Technical specifications of the ELD7 branch splitter
ELD7 branch splitter - technical data:
- Engine: electric, single-phase
- Supply voltage: 230 V
- Rated power: 3.0 kW
- Maximum Pressure: 7 t
- Maximum length of wood: 520 mm
- Maximum log diameter: 300 mm
- Weight: 90 kg
Such a set of parameters makes ELD7 OO-OTHELD7 a universal splitter for demanding users. On the one hand, the 230-volt power supply and compact form allow for convenient operation around the house, on the other hand, the 3.0 kW power output and 7 t thrust provide enough capacity to handle quite a lot of wood each heating season.
Benefits of purchasing the ELD7 OO-OTHELD7 electric splitter
- Saving time and strength - Instant wood splitting without tiring axe work.
- Occupational safety - Stable design, vertical layout and work guards minimize the risk of injury.
- High performance - pressure of 7 t and power of 3.0 kW allow to process large amounts of wood in a short time.
- Universal power supply - operation from a 230 V outlet, without the need for fuel or special installations.
- Stability and durability - weight of 90 kg and massive steel frame guarantee long life of the device.
- Mobility - practical transport wheels make it easy to move the splitter around the property.
FAQ - Frequently asked questions about ELD7 OO-OTHELD7 electric splitter
1. What kind of wood is the ELD7 splitter best suited for??
The ELD7 OO-OTHELD7 splitter works best with firewood up to 520 mm in length and up to 300 mm in diameter, both coniferous (pine, spruce) and deciduous (birch, alder, oak, beech). The better seasoned the wood, the faster the splitting process, but the device can also cope with fresh raw material within the specified dimensions.
2. Can the splitter be plugged into a regular 230 V outlet?
Yes. The splitter is equipped with single-phase 230 V motor with a power of 3.0 kW, so it can be powered from a standard wall outlet. It is only important that the electrical system is in working order and properly protected against overloading.
3. Is the operation of the device complicated?
Operation of the ELD7 splitter is intuitive and requires no specialized knowledge. All you need to do is read the instructions, set the device on a stable surface, connect it to the power supply and follow the splitting procedure. Ergonomic control levers and an easy-to-read work layout make it easy to work even for those who have not dealt with similar equipment before.
4. Can the splitter be used outdoors?
Yes, the ELD7 splitter can work outdoors, provided you provide a stable, dry and level ground and protection from the direct effects of precipitation. The best place will be a shed, a covered part of the driveway or a paved area. After operation, it is recommended to store the device indoors, which will extend its life.
5. What are the main advantages of an electric splitter over an axe?
Electric splitter ELD7 OO-OTHELD7 first of all saves time and health. Instead of a few hard blows with an axe, all you have to do is position the block in the work zone and start the actuator. Splitting is repeatable, fast and less tiring, which is of great importance when preparing large amounts of wood for the entire heating season.
6. Can the splitter be easily moved?
Despite its high total weight (90 kg), the splitter is equipped with transport wheels, which allow the device to be conveniently rolled on a paved surface. This makes it easy to both change the work location and store the splitter outside the heating season.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
