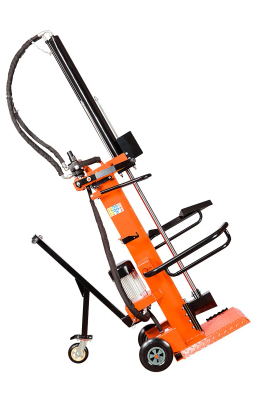

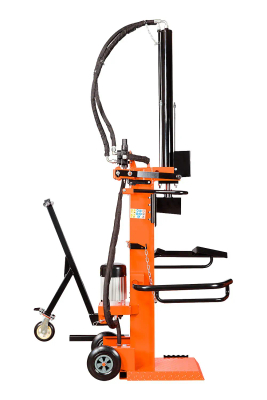

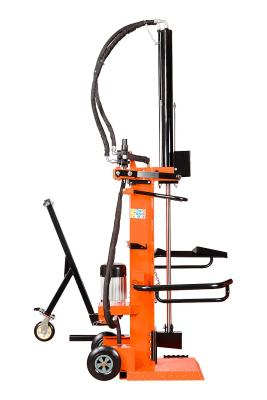

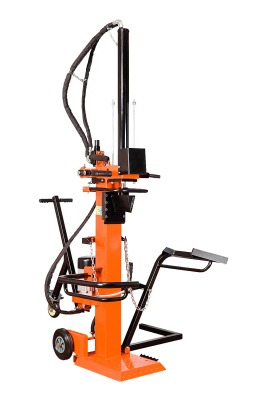

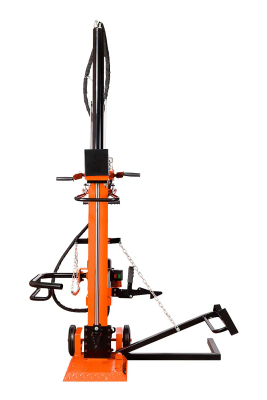

HYDRAULIC ELECTRIC WOOD SPLITTER OLEO-MAC OM-LINE ELD10 OO-OTHELD10
- Electric splitter ELD10 OO-OTHELD10 10T 3.7 kW 400 V is a vertical professional firewood splitter. Splits logs up to 1000 mm in length and 400 mm in diameter, ideal for homes, farms, forestry and small service companies.
ELECTRIC SHELLER ELD10 OO-OTHELD10 - professional wood splitter with 10 tons of pressure for demanding users
What is the ELD10 OO-OTHELD10 electric splitter and who it was made for?
ELD10 ELECTRIC SHELVING MACHINE OO-OTHELD10 is a professional vertical splitter for firewood and large-diameter logs, designed for intensive work in households, farms, forestry and small service companies. Thanks to the 400 V electric motor with a power of 3.7 kW and a pressure of as much as 10 tons, the device effectively splits even hard wood species, significantly reducing the time of preparing fuel for boilers, fireplaces, wood stoves or heating workshops.
The machine eliminates the need to chop wood manually with an axe or hammer, providing convenience, safety and high productivity. This is ideal for users who prepare larger quantities of wood every year - from several to several dozen spatial meters - and appreciate reliable and durable workshop and garden equipment.
Where the ELD10 OO-OTHELD10 splitter is installed and how to prepare the workstation?
ELD10 OO-OTHELD10 electric splitter is designed for stationary vertical operation. The device is set up on a stable, level and paved surface - this can be a concrete yard by the boiler room, a paved section of the yard, the floor in the garage, wood storage or utility sheds. Solid, wide base with non-slip surface provides excellent stability when splitting heavy logs.
The splitter is equipped with transport wheels and handles, making it easy to move it around the property. The user can easily drive the machine closer to the wood pile, and then transport it back to the utility room when the work is finished. With a three-phase 400-volt power supply, the device is best connected near a power outlet - for example, in a boiler room, workshop, garage or outbuilding.
The workstation should provide unobstructed access to the work table and safe space around the machine so that logs up to 1000 mm in length and up to 400 mm in diameter can be fed comfortably. It is best to place the device in the immediate vicinity of the wood block storage area or at the entrance to the woodshed - this reduces the need to carry heavy items over long distances.
ELD10 branch splitter - full description and technical parameters
ELD10 branch splitter
- 400 V 3.7 kW single-phase electric motor
- Pressure 10 t
- Maximum length of wood 1000 mm
- Maximum log diameter 400 mm
- Weight 186 kg
Technical specifications:
| Rated power | 3.7 kW |
| Weight | 186 kg |
| Voltage | 400 V |
Such selected technical parameters make the ELD10 splitter handle both soft coniferous wood and hard hardwood - such as oak, beech, ash, acacia. The high unladen weight of 186 kg minimizes vibration during operation, and the three-phase drive guarantees smooth, reliable operation even under heavy hydraulic loads.
High power and pressure of 10 tons - the performance of the ELD10 OO-OTHELD10 electric splitter in practice
A 3.7 kW electric motor working together with a hydraulic system that generates a pressure of 10 tons provides impressive splitting power. This means that the splitter can easily handle:
- logs up to 400 mm in diameter - typical logs from logging, firewood from oak, beech, birch, ash or pine,
- blocks of up to 1,000 mm in length - wood suitable for both large feed stoves and insert fireplaces,
- fresh and dried wood - also with single knots and thickening.
In practice, this means that home preparation of even several meters of wood per day is no longer a problem. Instead of days of tiring work with an axe or crowbar, the user can split a large stack of logs into convenient logs in a matter of hours, ready for seasoning or immediate burning.
Examples of everyday applications:
- preparation of firewood for an eco-pea/wood boiler in a single-family home,
- regularly splitting logs from their own forest or from bulk purchase,
- operating a farm with a fireplace and wood stoves as the main source of heat,
- wood splitting services for local residents in a small workshop or carpentry shop.
Safety, ergonomics and comfort of the ELD10 wood splitter
ELD10 OO-OTHELD10 electric splitter is designed for safe and convenient operation by a single operator. Robust workpiece guards, log stabilizing guides, and comfortable control handles provide full control over the splitting process.
The most important elements affecting safety and ergonomics:
- vertical columnar structure - The logs are placed directly on the work base, reducing the risk of moving them during splitting,
- stable, non-slip base - With a clear tread that prevents the wood and the machine from slipping,
- metal guides and side handles - make it easier to position the log properly and support the wood as it is worked,
- clear control panel - The operator easily controls the movement of the splitting wedge, and the design of the handles is conducive to working with protective gloves,
- high unladen weight of 186 kg - reduces vibration and "bouncing" of the machine, which increases comfort and safety.
In everyday home or business practice, this means significantly less operator fatigue and a reduction in injuries typical of manual wood chopping - such as axe bounces, muscle strains and spinal strains. The splitter takes over all the hardest work, and the user merely feeds the logs and controls the splitting cycle.
Mobility, durability and reliability of the ELD10 OO-OTHELD10 electric splitter
Despite its heavy weight, the ELD10 splitter remains convenient to transport thanks to its sturdy transport wheels and practical handles. The device can be easily moved around the yard and even around the larger farm - for example, between the woodshed, shed and garage. The use of a strong vertical frame and thick-walled steel profiles guarantees many years of resistance to mechanical loads and harsh outdoor conditions.
The most important benefits to the user in daily use:
- long service life - Robust frame construction, resistant welds and high-quality paint finish protect against corrosion,
- low failure rate - simple, refined hydraulic and electrical design, suitable for long-term operation,
- easy cleaning and maintenance - Access to working components is convenient, making it easy to lubricate, check oil levels or remove wood residue,
- year-round comfort - the device works both in positive and lower temperatures, which allows you to prepare wood on an ongoing or seasonal basis.
In practice, by investing in the ELD10 splitter, the user gains many years of support in preparing fuel - regardless of whether he smokes in the stove from autumn to spring or only occasionally lights the fireplace in the living room.
Application of the ELD10 OO-OTHELD10 splitter - from a single-family home to a small business
The ELD10 electric splitter will prove itself in a very wide range of applications. With its high horsepower and 10 t pressure, it is a versatile tool that can be used in many scenarios:
- single-family house with wood boiler - annual preparation of several meters of wood for heating the house, garage or workshop,
- farms and forestry - Processing wood from your own forest, orchards or plantations, preparing firewood for the farm and household,
- agrotourism and rest homes - Regular replenishment of wood for fireplaces and tiled stoves,
- service wood splitting - Small businesses and companies that offer finished firewood to customers can use the ELD10 splitter to increase productivity and reduce lead times.
In each of the above cases, the device translates into real savings in time and physical energy. Instead of hiring additional people to chop by hand, one person is able to operate the splitter and prepare large quantities of wood in a short period of time.
Why choose the ELD10 OO-OTHELD10 electric splitter - summary of benefits
- Professional performance - power of 3.7 kW and pressure of 10 tons allow to split hard wood species with diameter up to 400 mm and length up to 1000 mm.
- High security - stable vertical structure, non-slip base, guards and guides protect the operator during operation.
- Comfort of use - ergonomic handles, convenient access to the work table and the ability to work with gloves significantly facilitate use.
- Mobility within the farm - transport wheels and handles allow easy movement of the machine.
- Durability and reliability - sturdy steel construction with a weight of 186 kg, resistant to intensive long-term use.
- Universal application - From domestic applications to small service businesses and farms.
FAQ - frequently asked questions about the ELD10 OO-OTHELD10 electric splitter
1. What power supply is required for the ELD10 splitter to work?
ELD10 electric splitter requires a three-phase 400 V power supply. Before purchasing, it is a good idea to make sure that a suitable power outlet is available at the place of use. Thanks to this power supply, the 3.7 kW motor runs stably and provides full splitting power.
2. What are the maximum dimensions of logs this splitter can handle?
The device is designed for splitting logs with a maximum length of up to 1000 mm and a maximum diameter of up to 400 mm. This allows the processing of typical firewood used in stoves, boilers and fireplaces.
3. Can the ELD10 splitter be used for very hard wood, such as oak or beech?
Yes. With a pressure of 10 tons, the ELD10 splitter can effectively handle hard woods such as oak, beech and ash. However, it is always necessary to follow the manufacturer's recommendations, place the logs properly on the work table and work with protective gloves.
4. Do you need a special license to operate a splitting machine?
For standard household use of the splitter, no special authorization is required, but it is recommended to carefully read the instruction manual and follow the general rules of occupational safety and health. For occupational applications, comply with current regulations for the operation of machinery in workplaces.
5. Can the splitter be stored outside?
It is best to store the machine under a roof - in a garage, shed or shed. Prolonged exposure to rain and moisture can accelerate corrosion of metal parts. After the season is over, it's a good idea to clean the unit of wood debris, check the oil level and protect working parts from corrosion.
6. For which type of user the ELD10 OO-OTHELD10 splitter is most suitable?
The ELD10 splitter is an ideal choice for owners of single-family houses heated with wood, farmers and foresters with their own stock of wood, as well as for small service companies that want to offer finished, chopped firewood to customers. Its technical parameters and durable design make it ideal for use wherever performance, quality and reliability matter.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
