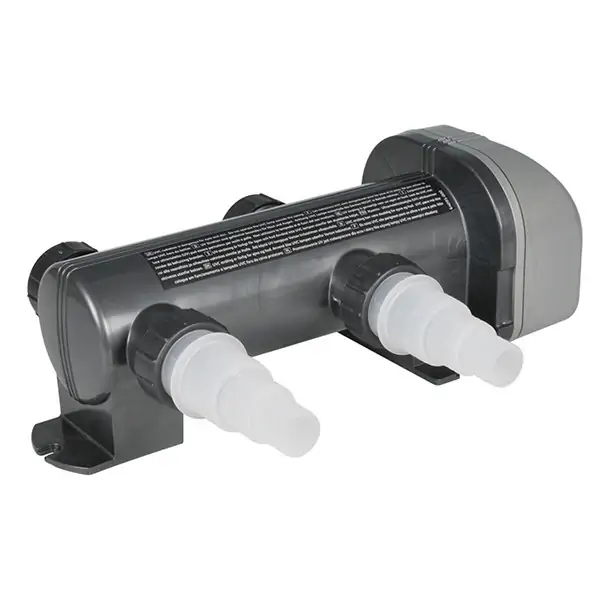

RADIANT UV VORTON 18 FOR PONDS UP TO 6000L OO-HOZ15541240
- VORTON 18 UV RADIATOR OO-HOZ15541240 effectively removes algae and water turbidity in ponds up to 6000 l. UV-C 18 Watt lamp in quartz tube provides crystal clear water, healthy fish and plants and reduces the need for chemicals. Ideal
VORTON 18 UV RADIATOR FOR WATER PONS UP TO 6000L OO-HOZ15541240 - crystal clear water in your garden pond
What is and how does the Vorton 18 UV pond heater for ponds up to 6,000 liters work?
The Vorton 18 UV irradiator is a powerful device designed for the treatment of water in ponds and domestic ponds with a capacity of up to 6,000 liters. At its heart is a special ultraviolet lamp of 18 watts, enclosed in a durable quartz tube. The radiator is mounted in the water circuit - between the pump and the filter - and works continuously when the filtration system is on.
It is used to remove contaminants in the form of algae. Ultraviolet rays concentrate microscopic, individual algal cells into clumps, which in turn makes it easier to remove them from the water with a filter in the next cycle. The high efficiency of Vorton radiant heaters is achieved by using quartz tubes as lamp covers. Ponds up to 600 l, bulb power - 1 x 18 W.
In practice, this means that after a few days of operation of the device, the cloudy green water regains clarity, and the bottom of the pond, fish and plants are again clearly visible. For the user, the most important results are: less algae, less sediment, less manual cleaning work, and definitely a more pleasant appearance of the entire garden.

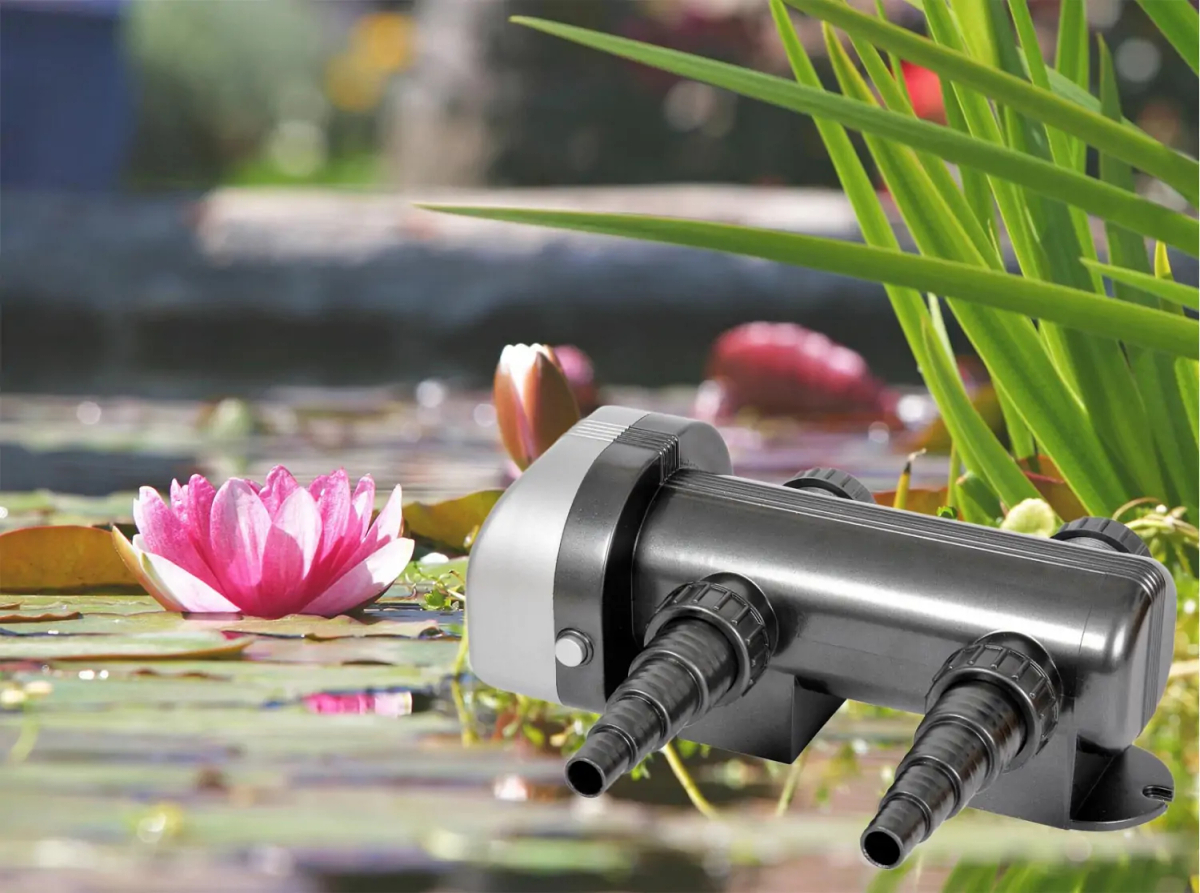

Where the Vorton 18 OO-HOZ15541240 UV illuminator is mounted?

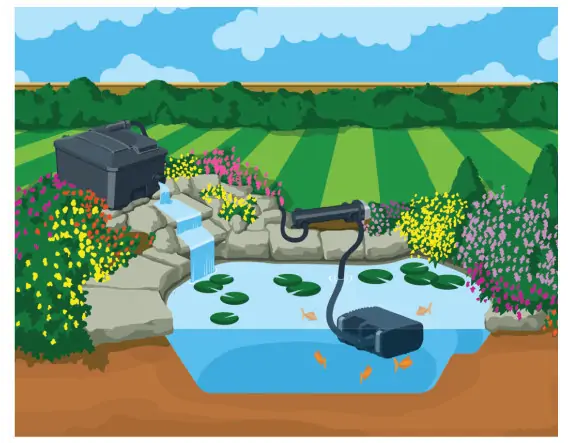

The Vorton 18 UV heater is installed in the external water circuit of the pond. It is most often placed:
- between the pump and the filter - The pump sucks water from the pond, directs it to the UV irradiator, where it is irradiated with ultraviolet rays, and then the water goes to the mechanical and biological filter;
- on the edge of the pond or in a dry place next to the pond - The housing of the device is designed for outdoor use, but it is recommended to mount above the water table, on a stable surface, which makes it easier to operate and replace the lamp;
- in a horizontal or slightly inclined position - depending on the routing of the hoses and the layout of the garden, which facilitates the aesthetic routing of the installation.
In daily use, the installation is as follows: you take the hose out of the submersible pump in the pond, connect it to the inlet port of the Vorton 18 radiant heater, and from the other port you take the hose to the external filter or to the cascade. With a wide range of spigot diameters (typically approx. 20-40 mm) you will easily fit the device to standard garden hoses used in water technology.
The use of the Vorton 18 UV heater in garden ponds
The Vorton 18 UV heater has been designed for backyard tank owners who care about permanently improving water clarity and fish health. Its application mainly includes:
- ornamental ponds up to 6000 l - The ideal choice for medium-sized ponds where green water blooms often appear on sunny days;
- ponds with decorative fish (e.g., carp, koi carp) - Reducing the amount of planktonic algae benefits the comfort of fish and reduces the risk of oxygen deficiency in the water;
- small ponds and reservoirs by the terraces - provides clean water, so that aquatic plants (lilies, calamari, irises) look better and are not drowned out by algae.
In practical terms, the Vorton 18 UV heater will work well in any garden where:
- the water in the pond quickly "greens up" in spring and summer,
- a mechanical filter is not enough to maintain clarity,
- the owner is keen to reduce the use of pool chemicals and algae control products.
Properly selected and properly installed UV illuminator significantly reduces the frequency of manual pond cleaning, filter cleaning or water changes. This saves time, money and has a real impact on the aesthetics and microclimate of the garden.

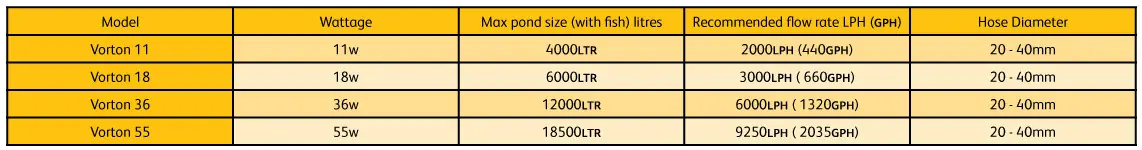

The Vorton 18 UV Radiator - performance, power and technical parameters
Choosing the right UV heater for the size of the tank is crucial to the effectiveness of water treatment. The Vorton 18 model offers parameters ideally suited to typical backyard ponds:
- Maximum mesh capacity: up to 6,000 liters of water (with fish), which covers most standard ornamental ponds in gardens next to single-family homes;
- UV lamp power: 18 W - the optimal combination of algae-fighting effectiveness and low electricity consumption;
- Recommended water flow: about. 3000 l/h - such a flow rate ensures adequate contact time between water and UV rays;
- Hose diameter: about. 20-40 mm - standard size in pond technology, easy to fit most pumps and filters.
In daily use, this means that for an average pond with a capacity of 3,000-5,000 liters, water passes through the radiator up to several times a day. Repeated UV irradiation gradually destroys algae cells and prevents their further multiplication, making the effect of clean water permanent and stable.
Quality and durability - why you should choose the Vorton 18 UV irradiator for your pond?
Radiant heaters of the Vorton series are distinguished by their robust construction and refined details, which translate into many years of trouble-free operation. The Vorton 18 model uses m.in.:
- quartz tube as UV lamp cover - Quartz glass has a very high ultraviolet transmittance, which increases the effectiveness of water exposure and extends the life of the lamp;
- sealed housing resistant to external conditions - made of durable materials resistant to UV radiation, temperature changes and moisture, so the unit can operate outdoors throughout the season;
- robust connection ferrules with clamping rings - provide a secure and tight connection to hoses of different diameters, minimizing the risk of leakage.
Regular replacement of the UV lamp itself (usually once a season or according to the manufacturer's recommendations) allows you to maintain full performance without replacing the entire unit. It is a cost-effective solution for demanding users who care about low operating costs and high reliability.
Benefits for the user - clean water, less work, better appearance of the pond
When you choose the Vorton 18 OO-HOZ15541240 UV illuminator, you gain a number of specific benefits:
- Crystal clear water - The reduction of plankton algae makes the water no longer cloudy and green, and the bottom of the tank and fish are clearly visible;
- Healthier environment for fish and plants - Stable water conditions promote the growth of aquatic plants and improve the well-being of fish;
- Less cleaning work - The mechanical filter removes UV clumped algae from the water, so you need to desludge the bottom of the pond and clean the filter less often;
- Saving on water chemistry - Algae reduction is done physically, without the need for aggressive chemical preparations;
- Aesthetics and prestige of the garden - clear water and clearly visible fish become a natural decoration of the property, increasing its visual value.
It is an ideal choice for both experienced pond enthusiasts and novice users who want to quickly and effectively solve the problem of cloudy green water without complicated procedures.
Examples of practical applications of the Vorton 18 UV illuminator
The Vorton 18 UV heater will work well in many typical backyard water feature arrangements. Here are some examples of daily use:
- Pond by the terrace with a capacity of 3000 l - The device works with a small pump and pressure filter, providing clear water visible from the living room window;
- Japanese garden with water cascade - Water is pumped from the pond into the cascade, passing through a UV light on the way, making the stream look fresh and clean;
- Pond with koi carp up to 6000 l - Vorton 18 supports biological filtration, reducing algae and bacteria to promote healthy fish growth.
Whether you're setting up a new reservoir or upgrading an existing pond, the Vorton 18 UV Radiator is a component that greatly enhances the comfort of your water system and allows you to fully enjoy the beauty of your garden pond.
Technical data UV RADIATOR VORTON 18 FOR WATER LAKES UP TO 6000L OO-HOZ15541240
- Model: Vorton 18
- Purpose: ponds and garden ponds to approx. 6000 l (with fish)
- UV lamp power: 18 W (1 x 18 W)
- Radiation type: UV-C for plankton algae control
- Lamp cover: quartz tube
- Recommended flow: about. 3000 l/h
- Hose diameter: about. 20-40 mm (several degrees of reduction on spigots)
- Maximum tank capacity: up to 6,000 liters of water with fish
- Application: external element of the filtration system, mounting on the edge of the pond
- Product code: OO-HOZ15541240
- EAN code: 5010646034227
FAQ - Frequently Asked Questions about VORTON 18 UV RADIATOR FOR WATER LAKES UP TO 6000L
1. Is the Vorton 18 UV light safe for fish and plants?
Yes. The radiant heater works on microorganisms flowing inside the device, in a closed chamber. UV radiation does not escape, so there is no contact with fish, plants or the user. The water is only irradiated during the flow, which destroys plankton algae and improves its clarity.
2. How often do you need to replace the UV lamp on the Vorton 18 model?
The standard recommendation is to replace the UV lamp once a year, preferably at the beginning of the spring season. Over time, the effectiveness of radiation decreases, even if the lamp is still lit, so regular replacement ensures that the radiant tube is fully effective.
3. Is the Vorton 18 UV heater enough to keep water clean without a filter?
Not. UV light clumps and inactivates algae and some microorganisms, but does not mechanically remove them from the water. Therefore, it should always be used together with a properly selected mechanical and biological filter that will retain dead algae and pollutants.
4. What pump do I need to work with the Vorton 18?
It is best to use a pump with a capacity close to 3,000 l/h, matched to the capacity of your pond. A pump that is too weak will not fully circulate the water, while one that is too strong may reduce the contact time of the water with UV light, reducing the effectiveness of the operation.
5. Can the device work around the clock?
Yes, the Vorton 18 UV heater is designed for continuous operation during the season. Most often it is turned on together with the pump and filter for the entire spring and summer period. During the winter, when the pond is not working, the device should be unplugged and stored in a dry place, protecting it from frost.
6. Is the installation of a radiant heater complicated?
Assembly is simple and can be done by yourself. All you need to do is connect the hoses from the pump and filter to the spigots of the device, make sure the connections are tight, and set the radiant heater on a stable base above the water table. It is then connected to the power supply and started along with the pump.
7. What to do if, despite the operation of the radiant heater, the water is still cloudy?
In such a situation, it is worth checking a few things: the performance of the pump (whether the water flows through the irradiator at the recommended speed), the cleanliness of the mechanical filter, the age of the UV lamp (whether it needs replacing), and the capacity of the pond - if it is larger than 6,000 liters, you may need a more powerful device or a second irradiator.
8. Does the Vorton 18 UV irradiator use a lot of electricity?
Not. Lamp power is only 18 watts, which translates into very low power consumption for continuous operation. Compared to the cost of maintaining a pond without a radiator (chemistry, frequent water changes, cleaning), it is not only convenient, but also economical.
