BIOFORCE SERVICE KIT OO-HOZ1510
- Genuine BIOFORCE SERVICE KIT OO-HOZ1510 for Hozelock Bioforce Revolution 6000/9000/14000 filters. Complete set of gaskets: body, control valve and quartz sleeves, guaranteeing full tightness and trouble-free operation of the filter and UV lamp.
BIOFORCE SERVICE KIT OO-HOZ1510 - original gaskets for Hozelock Bioforce Revolution 6000 / 9000 / 14000 filters
BIOFORCE SERVICE KIT OO-HOZ1510 is a complete, original service gasket set designed for pressure filters Hozelock Bioforce Revolution. With it, you will quickly and effectively restore the full tightness and efficiency of the filter operation in a pond, decorative pond or small backyard pond. The kit contains all the key sealing components that naturally wear out over the life of the device.
Original Hozelock service kit.
Suitable for:
* Hozelock Bioforce Revolution 6000
* Hozelock Bioforce Revolution 9000
* Hozelock Bioforce Revolution 14000

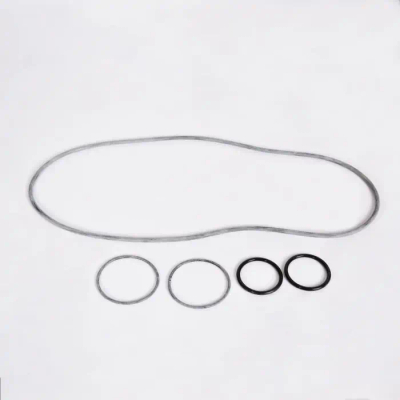

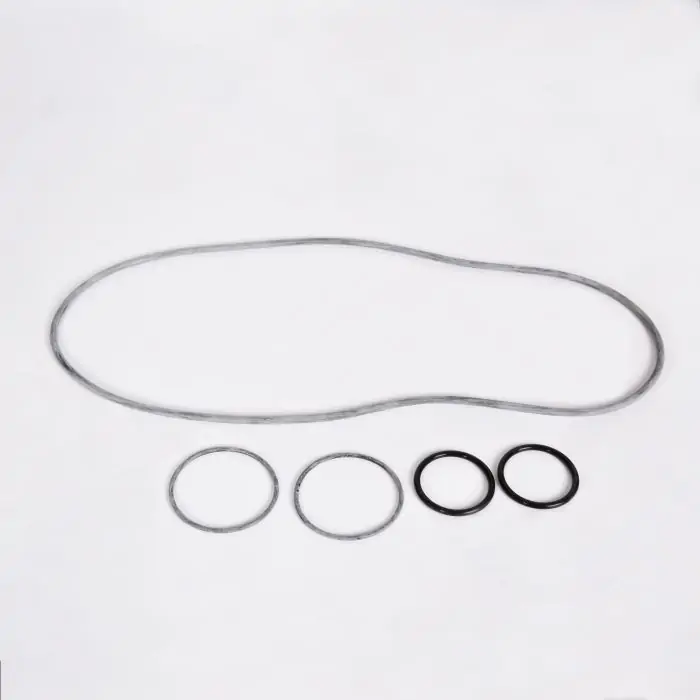

The set includes:
main body gasket
control valve gasket
quartz sleeve seals
What is BIOFORCE SERVICE KIT OO-HOZ1510?
Bioforce service kit OO-HOZ1510 is an original set of gaskets designed specifically for pressure filters Hozelock Bioforce Revolution 6000, 9000 and 14000. The set includes:
- Main body gasket - Responsible for the tightness of the filter cover and tank, prevents water leakage and air intake into the system.
- Control valve gasket - takes care of the tightness where the water flow is regulated, which has a direct impact on the efficiency and safety of the filter's operation.
- Quartz sleeve seals - specialized gaskets used in the area of the UV lamp and sleeve elements to prevent water from entering the chamber with the filament.
These elements are made of high quality materials resistant to UV rays, temperature changes and constant contact with water. When you choose an original service kit, you get full compatibility with your device and the assurance of long-lasting, trouble-free operation of the filter.
Where the BIOFORCE SERVICE KIT OO-HOZ1510 is installed?
Gaskets from OO-HOZ1510 set mounts directly into pressure filters Hozelock Bioforce Revolution - inside and at the interface of key components of the device. Proper installation is critical to maintaining the tightness of the filtration system and the safety of the UV lamp operation.
Typical installation locations:
- Connection of the cover to the filter body - long perimeter gasket is inserted into the groove on the edge of the body or cover. Before installation, it is recommended that the socket be thoroughly cleaned of sediment and dirt.
- Flow control valve - the smaller seal is installed within the valve that changes the direction and intensity of water flow. Replacing this gasket solves most leakage problems at the valve.
- UV lamp area, quartz sleeves - quartz sleeve gaskets seal where the sleeve passes through the UV lamp housing. This is a critical point in the system - even a small leak can result in flooding of the filament and its damage.
Assembly of the set is simple and can be done independently by a user with basic technical skills. Simply disassemble the filter according to the manufacturer's instructions, remove the old, worn seals and replace them with new parts from the OO-HOZ1510 kit.
Examples of the use of assembly in practice:
- Periodic servicing of the filter before the season - replacing the seals after winter to prepare the pond for the intensive work of the filter system in spring and summer.
- Removal of an apparent water leak from the filter housing - quick diagnosis and replacement of the body seal instead of costly replacement of the entire unit.
- UV lamp repair after sogging - replacement of quartz sleeve seals after flooding, which protects the new filament from repeated failure.
Applications and benefits of using the Hozelock Bioforce OO-HOZ1510 service kit
Main application of the BIOFORCE OO-HOZ1510 kit is a full reconditioning and sealing of pond filters Hozelock Bioforce Revolution 6000 / 9000 / 14000. Regular replacement of seals is crucial to maintain high water quality, proper mechanical and biological filtration, and effective operation of the UV lamp.
Key user benefits:
- Restoration of factory filter tightness - the kit eliminates leaks and prevents air suction, so the pump runs stably, without performance drops and additional noise.
- UV lamp protection and safety of use - New quartz sleeve seals protect the inside of the lamp from water, extending the life of the filament and minimizing the risk of failure.
- Lower operating costs - replacing a set of seals is much cheaper than buying a new filter, and a well-serviced device can work reliably for many seasons.
Examples of daily use:
- Pond at a single-family house - the owner changes the seals every few seasons to keep the water in the pond clear, without unpleasant odors and excessive algae growth.
- Decorative pond in the garden of a restaurant or hotel - professional maintenance staff use the service kit for regular maintenance of Bioforce filters, providing guests with an aesthetically pleasing and clean water tank.
- Pond with ornamental fish (e.g. koi carp) - attention to the tightness and performance of the filter has a direct impact on the health of fish; the use of original seals allows you to maintain stable water parameters.
Key features and benefits of the Hozelock Bioforce OO-HOZ1510 service kit
- Genuine Hozelock parts - Guarantee of perfect fit with Bioforce Revolution 6000, 9000, 14000 filters and full compatibility with the design of the device.
- High material resistance - gaskets are made of durable, flexible plastics resistant to UV, water, temperature changes and water treatment agents.
- Complete service kit - includes all key gaskets necessary to renew the filter seal: main body gasket, control valve gasket and quartz sleeve gaskets.
Benefits from the user's point of view:
- Simple, quick repair - no need to fit replacements, the set includes everything needed for one comprehensive service.
- Filter and installation safety - no leaks reduces the risk of damage to electrical equipment, flooding of the environment or erosion of the ground around the pond.
- Better conditions for plants and fish - stable filter operation translates into clean, oxygenated water, which promotes a healthy tank ecosystem.
Using bioforce original service kit OO-HOZ1510, you are investing in the long-term reliability of the entire filtration system. This solution is especially appreciated by owners of extensive water gardens and users who expect maintenance-free, stable operation of equipment for many seasons.
Technical data - BIOFORCE SERVICE KIT OO-HOZ1510
- Purpose: hozelock Bioforce Revolution 6000, 9000, 14000 pressure filters
- Product type: original set of service gaskets
- Components included:
- main filter body gasket,
- control valve gasket,
- quartz sleeve seals.
- Environmental Purpose: ponds, garden ponds, decorative tanks, tanks with ornamental fish
- Filter type: pressure filter with UV module (Bioforce Revolution line)
- Compatibility: only with original Hozelock Bioforce Revolution filters with capacities of 6000, 9000, 14000 l
- Product code: OO-HOZ1510
- EAN code: 5010646055406
FAQ - Frequently asked questions about BIOFORCE SERVICE KIT OO-HOZ1510
Question 1: Which filters the Bioforce OO-HOZ1510 service kit fits into?
The kit is designed for pressure filters Hozelock Bioforce Revolution 6000, 9000 and 14000. It is not recommended to use it on other models or filters from other manufacturers, because the seals have specific dimensions to fit this series.
Question 2: How often should the seals in the Bioforce filter be replaced??
Frequency of replacement depends on the intensity of use, water quality and operating conditions of the device. It is usually recommended to check the condition of the gaskets every season and to replace them every few years or at the first signs of leakage (leaks, air intake, drop in performance).
Question 3: Can gasket replacement be done by yourself?
Yes. Installation of service set OO-HOZ1510 is simple enough that most users are able to carry it out on their own using the filter manual. It is important to thoroughly clean the gasket slots and properly align the new components.
Question 4: Does the kit contain all the necessary gaskets?
Kit Bioforce OO-HOZ1510 contains the most important sealing components: main body gasket, control valve gasket and quartz sleeve gaskets. This is a set that in most cases fully restores the integrity of the filter and UV lamp sections.
Question 5: What do I gain by choosing an original set instead of cheaper substitutes?
Original Hozelock gaskets guarantee perfect fit, high durability and full compatibility with Bioforce Revolution filter design. This reduces the risk of leaks, accelerated wear of components, and unforeseen failures. As a result, the filter works stably and efficiently, and you avoid the costs associated with possible repairs or replacement of the device.
Question 6: After replacing the gaskets, do I need to additionally lubricate them with silicone?
In most cases, proper seating of new gaskets in clean sockets is sufficient. If the manufacturer allows the use of silicone gasket grease, a thin layer can be applied to make installation easier and increase tightness, but remembering to use only preparations designed for contact with water in ponds.
Question 7: Does replacing gaskets affect pond water quality?
Yes, indirectly is of great importance. An efficient, leak-proof filter ensures a steady, proper flow of water, which translates into effective mechanical filtration, biological filtration and effective UV lamp operation. As a result, the water remains clear and the living conditions for plants and fish are much better.
