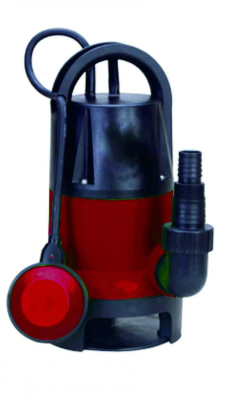

SUBMERSIBLE DIRTY WATER PUMP SP 7501 OB-SP7501
- Submersible pump for dirty water SP 7501 OB-SP7501 - power 750 W, capacity up to 13000 l/h, head 5 m. Ideal for flooded basements, pits, ponds and tanks with debris up to 25 mm. Reliable, mobile solution for home and b
DIRTY WATER DRAINAGE PUMP SP 7501 OB-SP7501 - reliable drainage of basements, pits and dirty water tanks
DIRTY WATER DRAIN PUMP SP 7501 OB-SP7501 is an efficient, compact and easy-to-use device designed for pumping out water contaminated with sand, silt or small solids. It is ideal for use in the home, garden, allotment, workshop and during construction and emergency flood clean-up work.
What is the submersible dirty water pump SP 7501 OB-SP7501?
The SP 7501 OB-SP7501 pump is a 750 Watt electric submersible pump designed to pump contaminated water. The device works completely submerged in the pumped medium, so it effectively and quickly empties flooded rooms, tanks, excavations and other spaces exposed to the influx of water. The design allows safe pumping of water containing solids up to 25 mm in diameter, making it an excellent choice for tasks where ordinary clean water pumps fail.
Where the submersible pump SP 7501 OB-SP7501 is installed?
The SP 7501 pump is mounted directly in the place from which you want to drain water. The device simply needs to be inserted into a flooded room, well, tank, barrel or pit, connect a 1" (25 mm) or 32 mm diameter hose, and then powered by 230 V. Thanks to its compact size and convenient handle, the pump is perfect for mobile applications - it can be quickly moved from the basement to the plot of land, to the construction site or to the backyard pond.
The pump should operate in an upright position, fully submerged in water, on a stable surface, with free space around the inlet so that debris can flow in freely. Installation does not require specialized tools or complex plumbing - all you need is the right hose and access to a 230-volt power outlet.
Application of submersible pump for dirty water SP 7501 OB-SP7501
With a high capacity of up to 13,000 l/h and the ability to pump dirt up to 25 mm in diameter, the SP 7501 pump is widely used in virtually every household and construction site. It is ideal for m.in. to:
- pumping out water from flooded basements, garages, boiler rooms and other utility rooms,
- drying of construction trenches, manholes and formwork after rainfall,
- pumping water from ponds, small ponds, retention tanks or garden pools,
- pumping contaminated water from drums, IBC tanks or other technical containers,
- ad hoc cleanup of water and sewage system failures and flooding,
- applications on the plot and in the garden: irrigation from rainwater collected in tanks, emptying of pits and drainage ditches.
The versatility of the SP 7501 OB-SP7501 pump makes it a practical tool both for the individual user and for construction, service or installation companies that need robust equipment for daily work in harsh conditions.
Product description and technical specifications of SP 7501 OB-SP7501 DIRTY WATER DRAIN PUMP
Submersible pump for dirty water sp 7501
Power 750W
Maximum capacity 13000l/h
Maximum lifting height 5m
Maximum diameter of impurities 25mm
Hose connection 1" (25 mm) and 32 mm
Technical specifications:
| Engine power | 750 W |
| Voltage | 230 V |
| Frequency | 50Hz |
| Lifting height | 5 m |
| Maximum output | 13000l/h |
These parameters mean that the SP 7501 pump is able to pump a very large amount of water in a short time, while maintaining stable operation and low energy consumption in relation to the output achieved. The lifting height of 5 m allows water to be pumped to a higher level, such as from the basement to the first floor, to a reservoir or drainage ditch far from the site of flooding.
Performance and capabilities of submersible dirty water pump SP 7501 OB-SP7501
The SP 7501 OB-SP7501 pump is designed to quickly and efficiently remove dirty water in emergency situations and during scheduled cleanup work. Its key performance features allow the user to save time, energy and costs associated with renting specialized equipment.
High capacity - up to 13,000 l/h
The maximum capacity of 13,000 l/h means that the pump can, under favorable conditions, empty, for example, a typical basement or tank of several thousand liters in a matter of minutes. In practice, this translates into quickly dealing with flooding after heavy rainfall, a burst pipe or a sewage system failure. For owners of single-family houses, outbuildings or workshops, this is a huge time-saver and minimizes losses due to prolonged contact of equipment with water.
Powerful 750 watt motor - stable operation in tough conditions
750 watt motor provides adequate power reserve for dirty water containing sand, silt or small pebbles. This makes the SP 7501 pump suitable for use in construction trenches, manholes and ditches where the presence of contaminants is the norm rather than the exception. Powerful drive minimizes the risk of overloading and ensures long life of the device with regular use.
Lifting height up to 5 m - free water transportation
Maximum lift height of 5 m allows water to be carried to higher floors or to a remote discharge point. For the user, this means flexibility: water from the basement can be pumped directly outside the building, into a storm drain, ditch, manhole or large tank. In daily use, this is especially important where gravity drainage is not possible.
Construction, durability and reliability of the SP 7501 OB-SP7501 pump
Dirty water submersible pump SP 7501 OB-SP7501 is designed for long and trouble-free operation. Robust design, thoughtful shape of the housing and appropriately selected materials provide resistance to mechanical damage and water with solid particles.
Robust housing and thoughtful design
The pump's compact housing is resistant to impact, abrasion and the elements, which is especially important when working in trenches, construction sites or tight wells. Suction holes are located in the lower part of the device, so the pump effectively sucks water from the lower parts of the flooded room, leaving a minimal residual amount. Rounded edges make it easy to remove and carry the device, even when the surface is wet or muddy.
Adaptation to dirt up to 25 mm
Capable of pumping debris up to 25 mm in diameter, the pump can handle water containing gravel, leaves, plant debris or soil fragments. In practice, this makes it possible to effectively empty trenches where clods of soil enter the water, and ponds where leaves and sediment have accumulated. Thanks to this design, the user does not have to worry about frequent clogging of the inlet, which translates into greater comfort and fewer service interruptions.
Electrical protection and reliable 230 V power supply
The pump is powered by a standard voltage of 230 V / 50 Hz, which allows it to be connected to a typical household outlet. Combined with appropriate electrical protection of the installation, this ensures safe operation of the device. A power cord of sufficient length allows convenient positioning of the pump in the flooded area without the need for multiple extension cords. The constant current load is matched to the power of the motor, minimizing the risk of overheating and failure.
Comfort of use and practical applications in daily life
The SP 7501 OB-SP7501 pump is designed for users who want simplicity of operation, reliability and versatility of applications. Thanks to its compact design and intuitive operation, the device can be used both occasionally and regularly - without the need for specialized technical knowledge.
Easy installation and quick startup
To get started, simply connect the appropriate hose to the 1" (25 mm) or 32 mm spigot, insert the pump into the water and turn the power on. Thanks to its universal spigot diameters, the pump works with the most common flexible garden and technical hoses. This is a big convenience for the user - no need to buy specialized connectors, just use the hardware you already have.
Mobility - one device for many tasks
Thanks to its convenient handle and light weight, the pump can be easily moved between different locations: from the house to the lot, from the garage to the construction site or from the workshop to the basement. The user gains a single, versatile device that can handle both draining a backyard pond before winter and emergency pumping out water after an intense storm. The mobility of the equipment also allows it to be lent to neighbors or family in emergency situations.
Time and cost savings
Having your own submersible pump for dirty water significantly reduces the costs associated with hiring equipment or the services of dewatering companies. In the event of sudden flooding, time is of the essence - the ability to act immediately helps limit damage, such as soggy walls, damaged floors or damaged equipment. The SP 7501 OB-SP7501 pump allows you to instantly proceed with disaster recovery, without waiting for specialized service.
Technical data of SP 7501 OB-SP7501 DIRTY WATER DRAIN PUMP
- Type of device: submersible pump for dirty water
- Model: SP 7501 OB-SP7501
- Motor power: 750 W
- Supply voltage: 230 V
- Frequency: 50 Hz
- Maximum capacity: 13000 l/h
- Maximum lift height: 5 m
- Maximum particle diameter: 25 mm
- Hose connection: 1" (25 mm) and 32 mm
- Purpose: pumping dirty water with solid impurities
FAQ - frequently asked questions about the SP 7501 OB-SP7501 pump
1. Is the SP 7501 pump suitable for pumping clean water?
Yes, the pump can also be used to pump clean water, but it was designed primarily to work in contaminated water. In the case of very clean water, such as in a swimming pool, it is recommended to periodically clean the inlet filter and check whether larger contaminants have gotten in.
2. What kind of contaminants this pump can pump?
The SP 7501 OB-SP7501 pump is suitable for pumping water containing solids with a diameter of up to 25 mm. These may be m.in. sand, small pebbles, plant debris, leaves or clods of soil. In contrast, it is not designed for pumping dense media such as concrete, very dense slurry or chemically aggressive substances.
3. Do I need a special hose for this pump?
No, the pump has universal 1" (25 mm) and 32 mm hose connections. This means you can use standard garden or technical hoses of these diameters. It is only important that the hose is suitable for use with water and has adequate pressure resistance.
4. Can the pump be left unattended during operation?
The submersible pump can work independently for a long time, but it is recommended to periodically check its operation, especially in difficult conditions (a large amount of dirt, low temperature, unstable ground). It is also important to ensure that the unit does not run "dry" after the water has been completely pumped out, and that the supply line and discharge hose are properly routed.
5. Is the pump suitable for hot water?
The SP 7501 OB-SP7501 pump is designed to pump water at near ambient temperature. It should not be used for very hot water, such as from central heating systems or process plants. Before using under specific conditions, check the manufacturer's recommendations for the maximum temperature of the medium.
6. How to take care of the pump to make it last as long as possible?
It is a good idea to rinse the pump with clean water after each use to remove sand and sediment from the interior. The condition of the supply line and discharge hose should also be inspected and, if necessary, larger debris should be removed from around the inlet. Store the pump in a dry place, protected from frost and mechanical damage.
7. Can I use this pump for sewage?
The SP 7501 OB-SP7501 pump is designed for dirty water with solid contaminants such as sand or silt. This is not a professional pump for domestic wastewater containing large amounts of grease, fiber or irregularly shaped solids. For typical sewage wastewater, specialized fecal pumps are recommended.
When you choose the SP 7501 OB-SP7501 DIRTY WATER DRAIN PUMP, you are investing in a powerful, durable and versatile device that will work as well in domestic applications as in everyday work on the construction site or in the workshop. With a combination of high performance, robust design and easy operation, this pump is a reliable support wherever you need to get rid of dirty water quickly and efficiently.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
