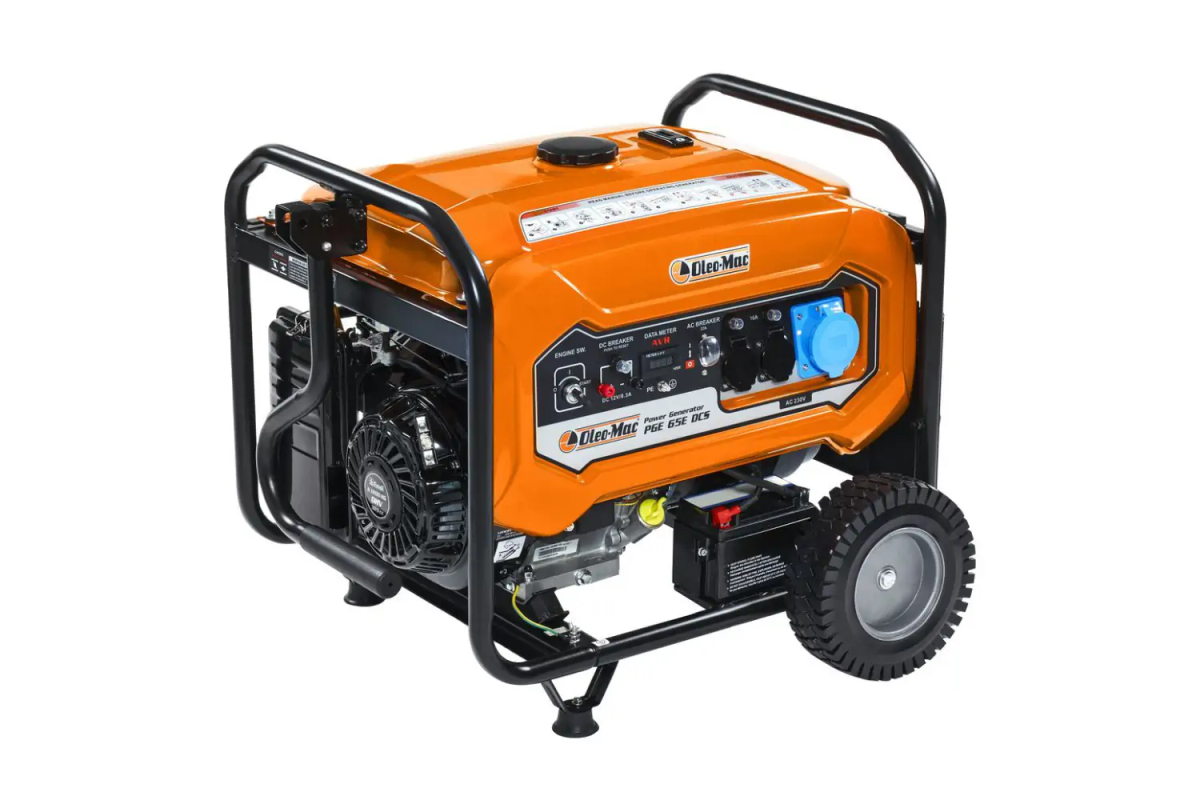

OLEO-MAC AGGREGATE PGE65E DCS 65019004
- OLEO-MAC PGE65E DCS 5.0 kW generator - powerful gasoline generator with AVR, Loncin 389 cm³ engine, electric and manual start, 25 l tank. Ideal for home, business and construction.
OLEO-MAC PGE65E DCS Generator 65019004 is a powerful mobile gasoline generator with a rated output of 5.0 kW and a maximum output of 5.5 kW, designed for professional and domestic use. Provides a stable 230-volt power supply wherever access to the power grid is limited or completely impossible: at home during a power outage, in a business, on a construction site, on a plot of land, in a workshop or in tourism.
What is the OLEO-MAC PGE65E DCS AGREGATE 65019004?
It is a gasoline generator set equipped with a 389 cm³ four-stroke Loncin engine with electric and manual start, a large 25 l fuel tank and AVR voltage stabilization system. The design is based on a sturdy tubular frame with large 9.5" transport wheels, which makes it easy to move the device around the construction site or the garden.
Where the OLEO-MAC PGE65E DCS AGREGATE is mounted 65019004?
The unit is designed to work outdoors or in well-ventilated utility rooms. It is set on a stable, level surface - for example, in the garden next to the house, in the garage or in a specially prepared shed next to the building. With compact dimensions 681 × 546 × 550 mm and a transport cart can be easily transported between different locations.
Typical applications: emergency power supply for the house (refrigerator, lights, CO stove, gate), power supply for power tools at construction sites (concrete mixers, drills, grinders), equipment in the workshop (compressors, pressure washers), food trucks, market stands, camping, recreational plots and small farms.
Product description available:
Generators, also commonly known as generators, are an offer for people who want to be able to provide their own source of energy in the event of a power outage. Of course, their use is not solely related to power shortages. Aggregates are used in tourism, construction, industry and in all developments remote from the power grid.
- output power 5.0 kW (50 Hz)
- 25-liter tank means quite a significant autonomy of work
- powered by a powerful, four-stroke Loncin (gasoline) engine
- easy to use, electric start and large wheels for easy transport
- equipped with AVR voltage stabilization system
Technical specifications:
| Rated power | 5.0 kW |
| Maximum power | 5.5 kW |
| Avr | Automatic voltage regulation |
| Engine capacity | 389 cm³ |
| Engine power at 3600 rpm | 8.2 kW |
| Power outlets | 2 230 V outlets + 1 industrial 230 V outlet |
| Class of workmanship | G1 |
| Oil / fuel tank capacity | 1.1 l / 25 l |
| Startup | manual and electric (from a battery) |
| Voltage | 230 V |
| Wheels | 9,5" |
| Dimensions | 681x546x550 mm |
| Weight | 81 kg |
OLEO-MAC PGE65E DCS AGGREGATE - 5.0 kW power for comfort and safety
The OLEO-MAC PGE65E DCS unit offers rated power of 5.0 kW, which allows simultaneous powering of multiple home and professional devices. You can run your refrigerator, lights, CO pump, garage door, and power tools without worrying - without the risk of overloading the system.
In the event of a power grid failure, the genset ensures continuity of operation of key appliances, protecting householders from loss of heating, melting stocks in the freezer or lack of lighting. In a company or workshop, maintains continuity of production and services - keeps cash registers, computers, tools, and bench lighting operating.
The maximum power of 5.5 kW gives an additional reserve when starting devices with high starting current (such as compressors, concrete mixers or pumps), which translates into trouble-free startup of even demanding consumers.

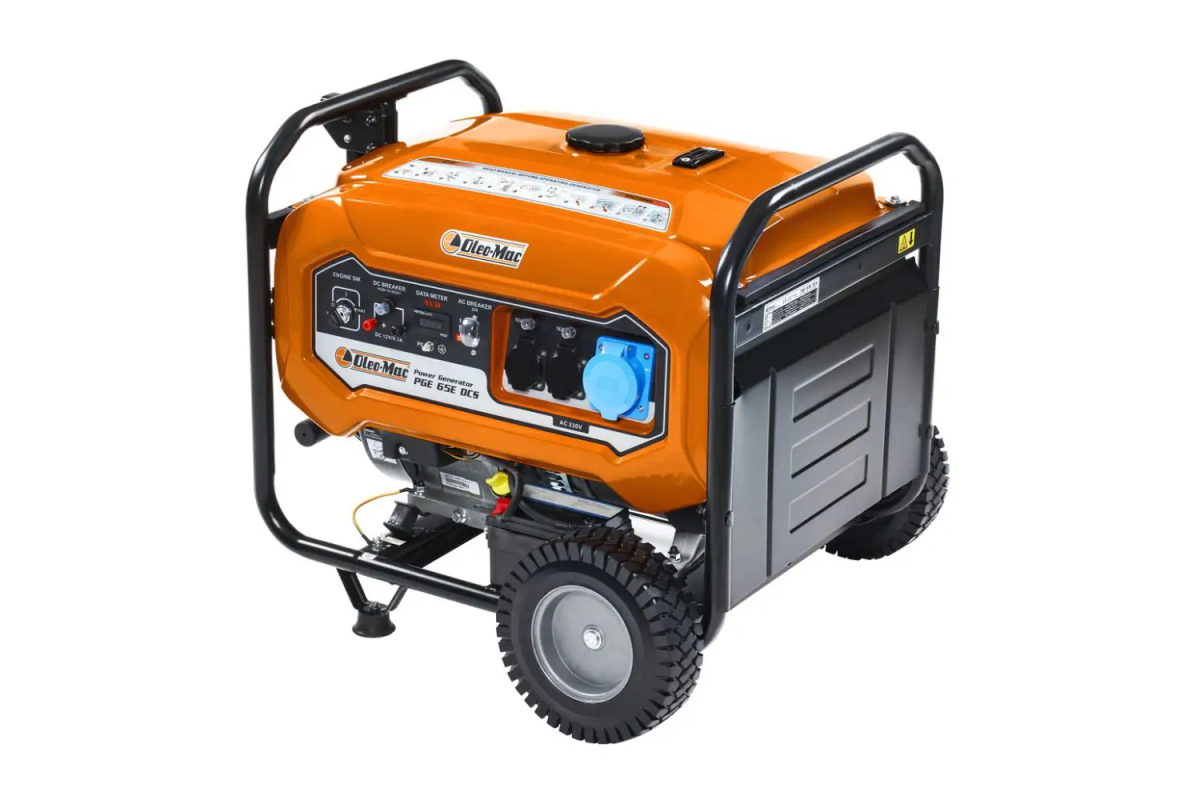

Stable voltage AVR - safe power supply for sensitive electronics
The PGE65E DCS model is equipped with the following aVR system (Automatic Voltage Regulation). It maintains a constant output voltage of 230 V, protecting connected devices from voltage spikes and dips. This makes the genset suitable not only for simple consumers, but also for power supply:
- modern gas stoves with control electronics,
- computers, routers and office equipment,
- tVs, monitoring systems and alarms,
- power tool loaders and tools with soft start.
In practice, this means that during an emergency you can safely power your entire home heating system, home appliances and white goods, without worrying about damaging them. In professional applications, the AVR allows the genset to be used as a stable power source at exhibition stands, mobile service outlets or small workshops.

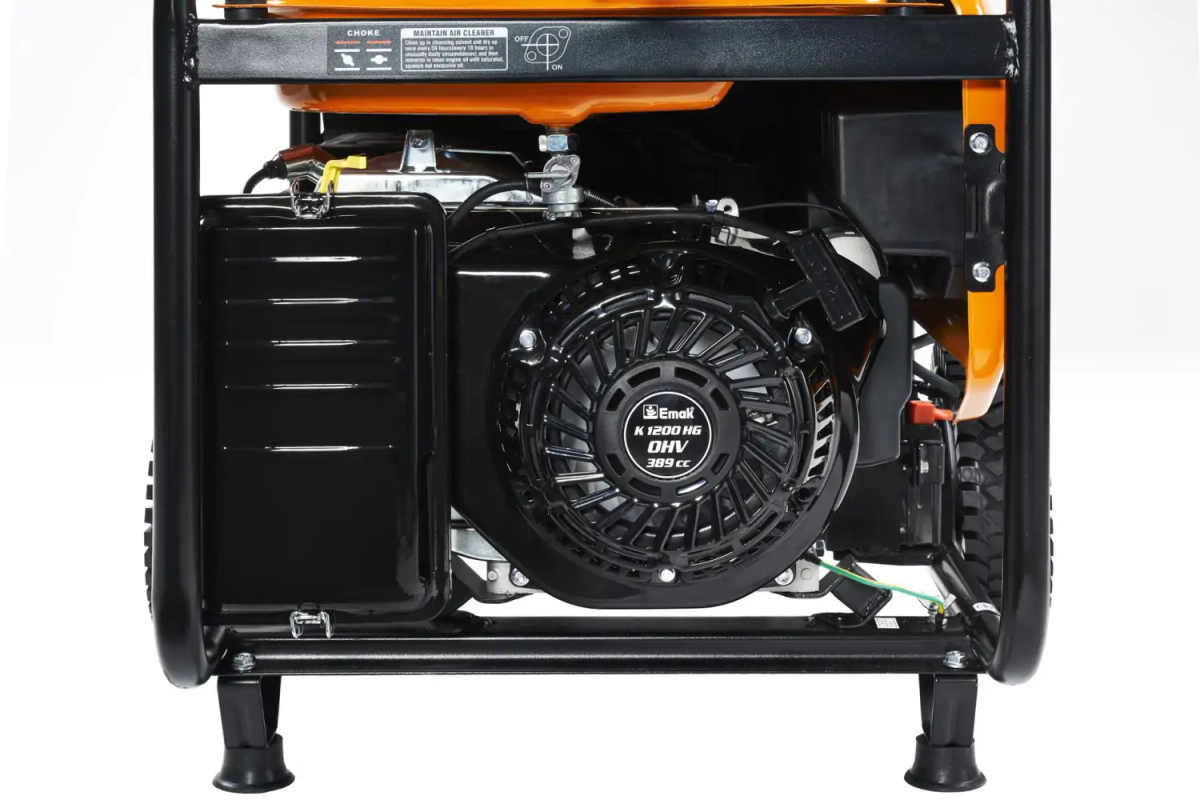

Loncin 389 cm³ engine - economical operation and high durability
At the heart of the unit is a loncin four-stroke 389 cm³ engine and an output of 8.2 kW at 3600 rpm./min. The brand's engines are known for their reliability, low combustion and easy serviceability. The use of OHV valve train, efficient air cooling and robust lubrication ensures a long service life even under intensive use.
In practice, this means lower fuel costs and less frequent maintenance. The unit will be ideal as a regular power source in construction companies, equipment rental companies, farms or garages, where it works for many hours a day.
The oil pan's 1.1-liter capacity makes it easy to maintain proper lubrication levels, and easy access to the oil cap and air filter reduces daily service time.

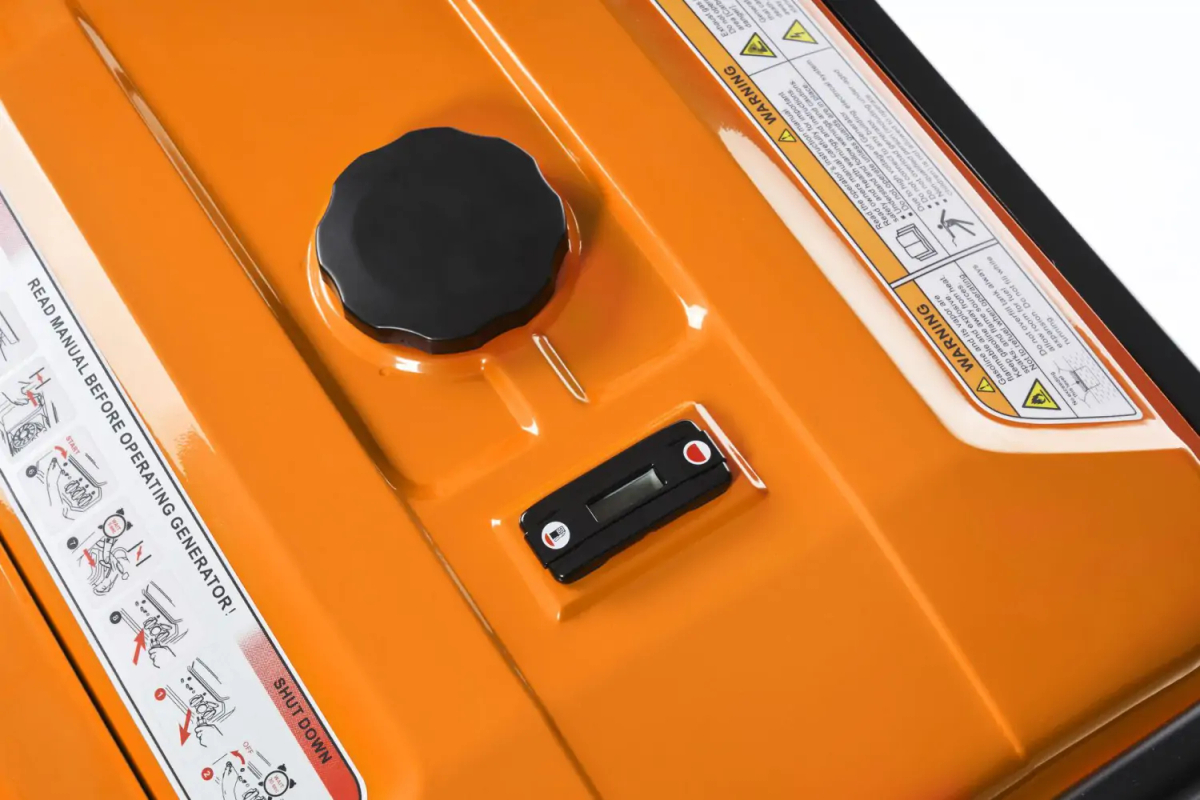

Large 25 l tank - long working autonomy without frequent refueling
One of the biggest advantages of the OLEO-MAC PGE65E DCS is the following fuel tank with a capacity of 25 liters. Such a large amount of gasoline allows the unit to run continuously for hours without the need for frequent refills. This is key at:
- prolonged power failures - you can power your home even through the night without interruption,
- construction and renovation work that lasts many hours a day,
- outdoor events, parties, festivals, where continuity of power supply is a priority.
In addition, there are clear markings on the top of the tank, as well as a convenient fuel filler cap, which facilitates safe refueling, including with canisters.
Electric and manual start - convenience of starting in any situation
The OLEO-MAC PGE65E DCS unit is equipped with the following double start system:
- electric start from the battery - Simply turn the key or press the button to start the engine,
- manual (cable) start-up - independent protection in case of battery discharge.
Such a solution will be appreciated by users who want to be sure of a reliable start even in difficult weather conditions or after a long period of not using the unit. In domestic applications, electric starting will especially benefit the elderly - starting the genset does not require force.

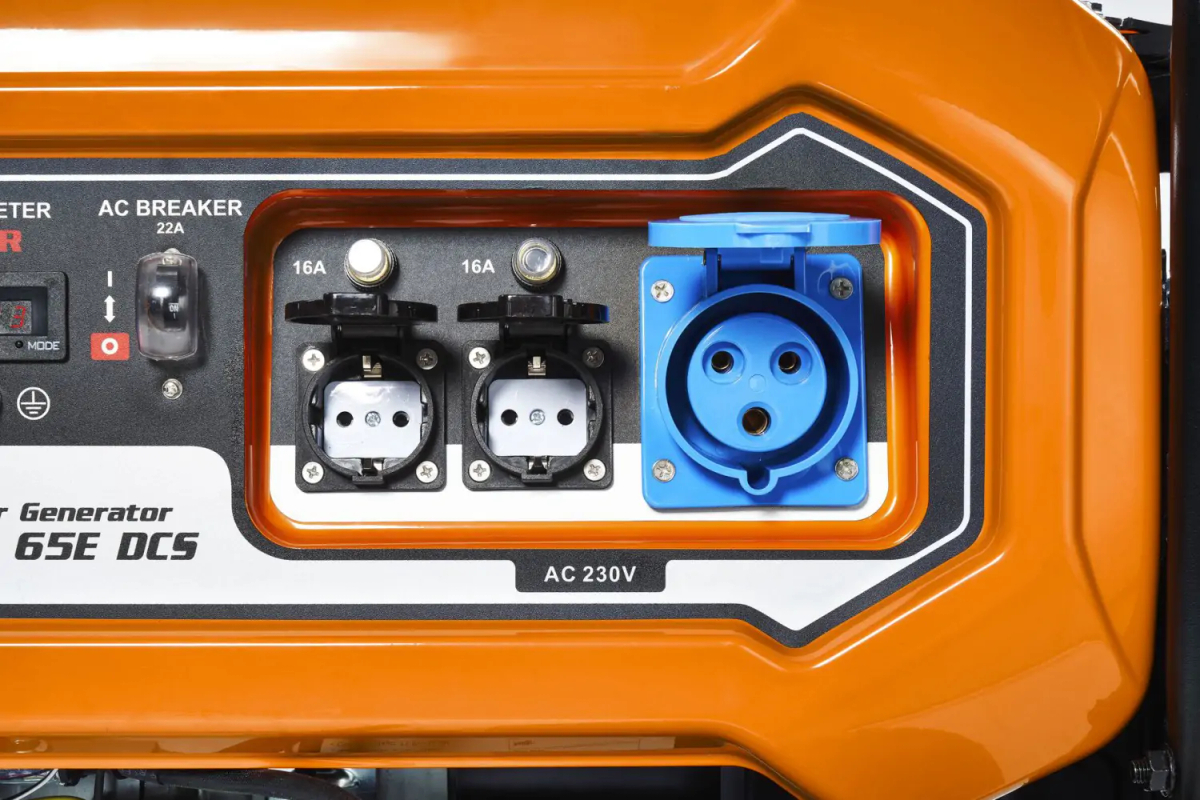

Practical 230 V sockets - convenient connection of domestic and professional appliances
On the output panel there are 2 standard 230 V outlets and 1 industrial outlet 230 V. This allows direct connection of most home and workshop equipment without the need for additional adapters.
Examples of daily applications:
- at home - connecting an extension cord to lights, refrigerator, freezer, washing machine or chargers,
- on construction sites - powering concrete mixers, impact hammers, saws, drills, grinders,
- in service companies - powering pressure washers, compressors, catering equipment, portable air conditioners.
Built-in AC BREAKER 22A overload protection protects the genset and connected equipment from the effects of overloading, automatically disconnecting power in an emergency situation.

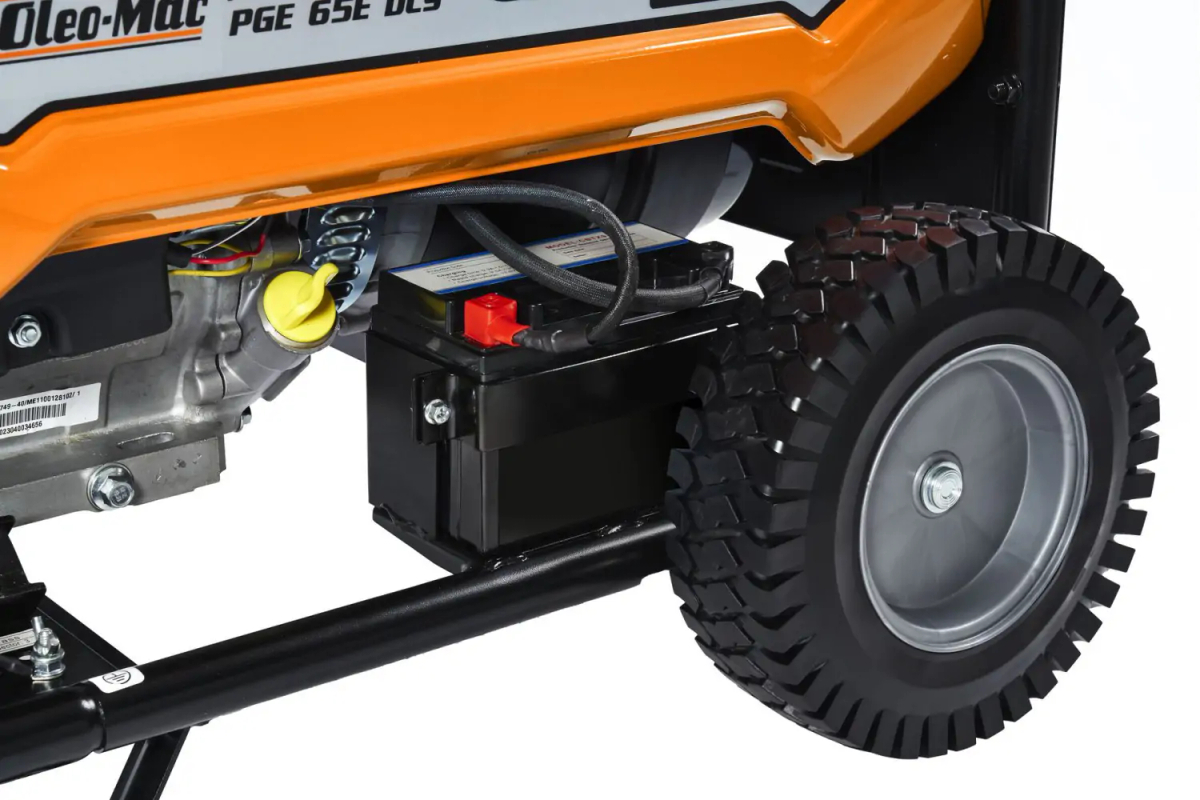

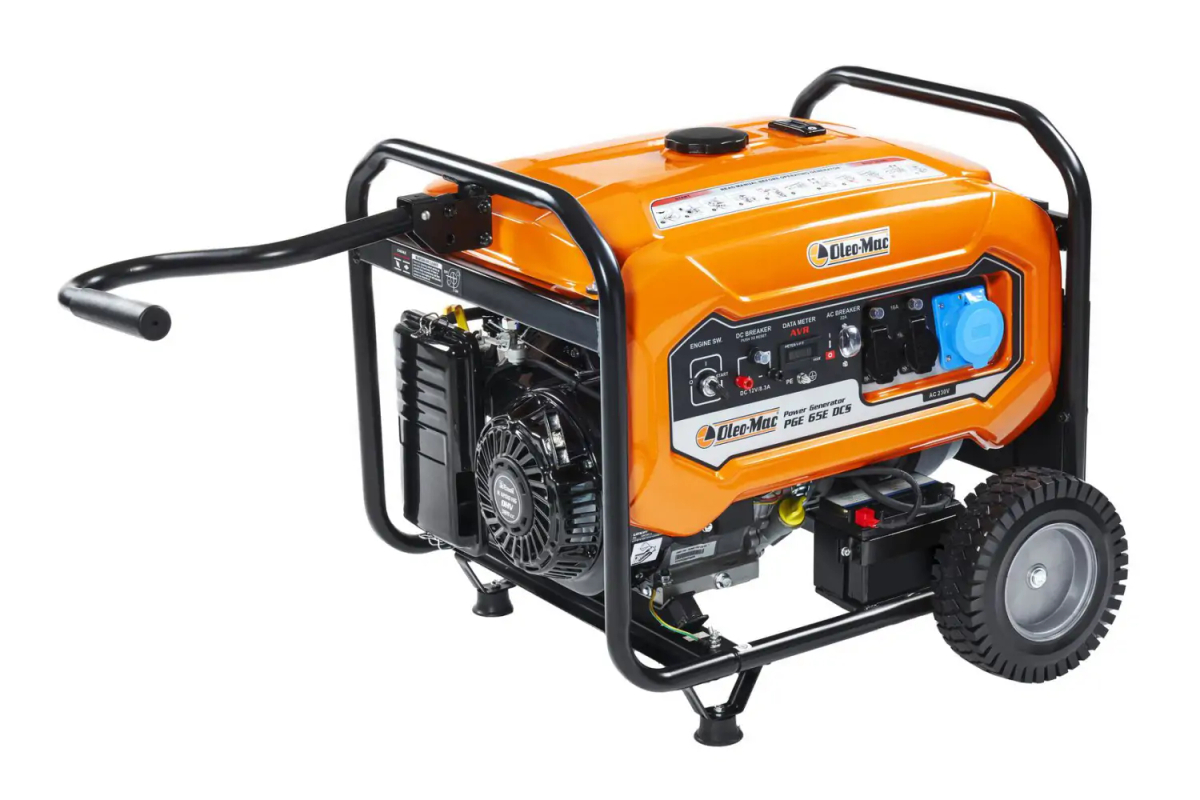

Mobile design with 9.5" wheels - easy transportation over any terrain
The aggregate weighs 81 kg, but thanks to its clever design, it is very mobile. The sturdy steel frame protects the working parts, and the large wheels with a diameter of 9.5" and a convenient transport handle allow one person to easily move the device even over uneven terrain.
It's ideal for construction crews and installers who change work sites daily. The aggregate can be quickly loaded into a delivery truck, driven down a ramp or rolled over gravel or grass on a plot of land.
Rubber stabilizing feet reduce vibration and noise during operation, making it more comfortable to use near the home or workplace.
Professional applications and user benefits
The OLEO-MAC PGE65E DCS is a generator designed for intensive daily use. It will work well in the hands of both demanding professionals and individual users who expect quality and reliability of premium equipment.
Key customer benefits:
- Independence from the power grid - You decide yourself when and where you have electricity; ideal for a plot of land without a connection, for a summer house or a mobile workshop.
- Safety in case of emergency - ensures the operation of the central heating furnace, circulating pumps, refrigerator, lighting and alarm system, protecting household members and property.
- High quality workmanship - OLEO-MAC brand is known for its durable gardening and construction equipment, which translates into long-term, trouble-free operation.
The generator can also be used in tourism and recreation - as a power source for a camper, caravan, sound system at outdoor events or lighting at fishing and camping trips. With its stable voltage and extensive output panel, it is a universal power center for all conditions.
Key specifications of the OLEO-MAC PGE65E DCS AGGENATE 65019004
- Rated power: 5.0 kW
- Maximum power: 5.5 kW
- Output voltage: 230 V (50 Hz)
- AVR system: automatic voltage regulation
- Engine: Loncin, four-stroke, gasoline engine
- Engine Capacity: 389 cm³
- Engine power at 3600 rpm: 8.2 kW
- Fuel tank capacity: 25 l
- Oil sump capacity: 1,1 l
- Sockets: 2 × 230 V + 1 × 230 V industrial outlet
- Startup: manual and electric (from a battery)
- Performance Class: G1
- Wheels: 9,5"
- Dimensions (L. × width. × height.): 681 × 546 × 550 mm
- Mass: 81 kg
FAQ - frequently asked questions about the OLEO-MAC PGE65E DCS
1. Can I power a home gas stove with this unit?
Yes. Thanks to the AVR system and stable voltage of 230 V, the unit is suitable for powering modern gas stoves with control electronics. However, check the furnace manual for the maximum wattage required and select the appropriate electrical safety devices.
2. For how long a full tank of 25 liters of fuel will be enough?
Operating time depends on the load. At partial load, the genset can run for many hours on a single refueling, which in practice is enough to provide an entire night of emergency power to a house or a full day of work at a construction site.
3. Can the aggregate be used indoors?
Do not use the unit in closed, unventilated areas due to exhaust emissions. The device should be operated outdoors or in a very well ventilated area, according to the manufacturer's recommendations.
4. What extension cords to use with this unit?
It is recommended to use extension cords with a wire of the appropriate cross-section (usually 2.5 mm²) and reinforced insulation, suitable for outdoor use. Extension cords should be grounded and have the appropriate IP rating.
5. Does the aggregate require regular maintenance?
Yes. For reliability and long life, change the engine oil regularly, clean the air filter, and periodically check the condition of the spark plug and electrical connections. For service frequency, refer to the manual.
6. Will the genset start if the battery discharges?
Yes. In addition to electric start, the unit also has a manual (rope) start, which allows you to start the engine even with a discharged battery.
7. For which applications this model will work best?
The OLEO-MAC PGE65E DCS is ideal as an emergency power source for the home, for construction and renovation work, in workshops and small service businesses, as well as in tourism - for campers, caravans or outdoor events.
