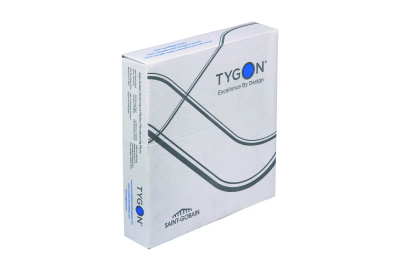

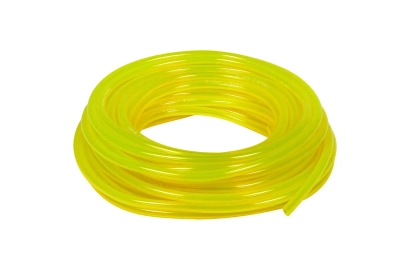

FUEL HOSE 2.03X3.56 MM 15 M R124201
- Fuel hose 2.03x3.56 mm 15 m R124201 - flexible hose for gasoline and fuel-oil mixtures, ideal for chainsaws, lawnmowers, blowers and generators. Resistance to fuel, oil and UV guarantees tightness and long, trouble-free operation of equipment
Fuel hose
| Inner Ø: 2.03 mm , Outer Ø: 3.56 mm , length 15 m |
Fuel hose 2.03x3.56 mm 15 m R124201 is a high quality flexible hose designed specifically for the transfer of fuel and fuel/oil mixtures in small internal combustion engines. Thanks to its precisely selected internal and external dimensions, it provides a tight connection with ferrules and fittings, minimizing the risk of leaks and spills.
The cable is made of fuel-, oil- and weather-resistant plastic that will not harden or crack during use. Its intense, highly visible color makes it easy to check the condition of the hose and the fuel level, which is especially important for service and daily operation of equipment.
Fuel hose 2.03x3.56 mm 15 m R124201 - what is this product and why you should choose it?
Model R124201 is a thin-walled precision fuel hose with an inner diameter of 2.03 mm and an outer diameter of 3.56 mm, supplied in an economical 15 m long roll. Such parameters make it ideal for fuel systems where small line cross sections are required - typically in:
- chainsaws, lawnmowers and petrol trimmers,
- blowers, aerators, soilers and other garden machinery,
- small generators, pumps, diesel sprayers.
The hose is characterized by high flexibility, so it is easily guided inside machine housings, between the fuel tank and the carburetor, fuel filter or shut-off valves. Flexibility facilitates installation even in tight service spaces.
Key advantages from the user's point of view:
- Security - Robust resistance to contact with gasoline, fuel mixture and oils minimizes the risk of system leakage.
- Save - 15 m of cable in a roll allows to serve multiple devices or make several fuel installations, which reduces the unit cost per device.
- Transparency and control - dyed, translucent material allows visual inspection of fuel flow and possible contamination.
Where is the fuel hose 2.03x3.56 mm 15 m R124201 installed and what does the correct installation look like?
Fuel hose 2.03x3.56 mm 15 m R124201 is installed primarily in the supply systems of small internal combustion engines - between the fuel tank, fuel filter, fuel pump and carburetor. Due to its internal diameter of 2.03 mm, it is suitable for ferrules of similar diameter, providing strong, secure clamping without the need for multiple ties.
Typical installation locations:
- Fuel tank input and output - the line that leads the fuel mixture to the filter and further towards the carburetor.
- Connection to the fuel filter - Immersion of the hose inside the fuel tank to connect to the floating filter.
- Carburetor or fuel pump - the final section that delivers fuel directly to the engine.
Examples of daily use:
- Chainsaw service - When replacing an old, frazzled hose with a new, flexible hose that will not crack in cold temperatures.
- Repairing a petrol scythe - Restoration of proper fuel system after engine seizure or contamination with poor quality fuel.
- Modifications to the generator set - routing a new supply line from an external fuel tank to extend the unit's operating time.
Proper installation involves cutting the appropriate length of the section with scissors or a sharp knife, sliding the hose onto the spigot as far as it will go and, if necessary, securing the connection with a hose clamp. Thanks to the soft structure of the material, the hose easily adapts to the shape of the machine, does not kink and does not restrict the flow of fuel.
The main features and technical parameters of the fuel hose 2.03x3.56 mm 15 m R124201
When choosing a fuel line for your device, it is worth paying attention to the exact technical parameters. Model R124201 offers a set of features that translate into reliability and comfort:
- Inside diameter: 2.03 mm - ideal for precision fuel systems of small engines.
- Outer diameter: 3.56 mm - provides optimal wall thickness, combining flexibility with strength.
- Roll length: 15 m - convenient, economical packaging that allows multiple installation in different devices.
- Material: flexible plastic resistant to gasoline, fuel-oil mixtures and engine oils.
- Resistance to outdoor conditions: good resistance to UV radiation, temperature changes, and moisture exposure.
- Color: highly visible, semi-transparent - makes it easy to check the flow of fuel.
- Purpose: small two-stroke and four-stroke engines in gardening, construction and hobby machines.
Thanks to these parameters, the hose works well both in professional services and in home workshops. You can use it for seasonal maintenance of your entire fleet of equipment, from chainsaws to trimmers to small generators and water pumps.
Examples of situations in which technical parameters are crucial:
- Precise fuel supply in chainsaws - adequate internal diameter ensures stable mixture flow, which translates into easier engine starting.
- Durable installation in petrol cutters - The thickness of the hose wall allows it to withstand vibration and accidental impacts during field work.
- Longer service life in internal combustion sprayers - resistance of the material to fuel and weather conditions allows to reduce the frequency of replacements, which saves time and money.
Use of fuel hose 2.03x3.56 mm 15 m R124201 in practice - benefits for the user
Fuel hose 2.03x3.56 mm 15 m R124201 is a universal solution for many tasks. Thanks to its dimensions and material properties, it can be successfully used in various types of equipment and service situations:
- Gardening equipment - chainsaws, trimmers, pruners, petrol shears, blowers, scarifiers powered by gasoline.
- Low-powered municipal and agricultural equipment - sprayers, small pumps, landscaping equipment.
- Breakdowns and maintenance work - quick replacement of an old, leaking line, making up a missing section of hose, rebuilding an existing fuel system.
Customer benefits during daily use:
- Reliable starting and stable engine operation - No leaks in the supply system reduces problems with engine throttling or stalling under load.
- Aesthetic and orderly installation - Flexible cable is easy to lay along factory routing routes, making the interior of the device look professional.
- Less risk of fuel leaks - properly selected diameter and quality of material reduce the risk of accidental dripping of fuel on hot engine components.
How to select and use the fuel hose 2.03x3.56 mm 15 m R124201 to serve as long as possible?
Choosing the right fuel hose is critical to safety and comfort. Model R124201, thanks to its length of 15 m, allows you to adjust the length of the cable exactly to the needs of each device. It is worth remembering some practical rules:
- Precise diameter adjustment - before purchasing, compare the diameter of the ferrules in the device with the parameter 2.03 mm internal diameter. A hose that is too loose can slip off, one that is too tight can make installation difficult.
- Proper cutting - use sharp tools to shorten the hose so that the edges are even and do not cause leaks at the connection.
- Avoiding mechanical damage - Route the cable away from sharp edges, moving parts and hot engine parts to minimize the risk of abrasion and melting.
By following these recommendations, you will significantly extend the life of the cable and reduce downtime caused by the need for repairs to the fuel system. For owners of several combustion equipment, such as in a gardening company, one roll of 15 m of hoses is a convenient service supply for an entire season of work.
FAQ - frequently asked questions about fuel hose 2.03x3.56 mm 15 m R124201
Question 1: For which equipment is best suited fuel hose 2.03x3.56 mm 15 m R124201?
The hose is mainly designed for small internal combustion engines used in chainsaws, lawnmowers, trimmers, blowers, sprayers, small generators and other garden and municipal machines. The key is to match the diameter of the hose to the fuel spigots on your particular unit.
Question 2: Is the hose suitable for gasoline and fuel-oil mixture?
Yes, the 2.03x3.56 mm fuel hose R124201 is made of material resistant to gasoline, fuel-oil mixtures and engine oils, so it can be safely used in typical fuel systems of small internal combustion engines.
Question 3: What length of cable do I get in one package?
In one package you get a roll of hose with a total length of 15 m. You can freely cut the cable into the required lengths and use it for several devices or installations.
Question 4: Do you need additional clamps for mounting?
In many cases, the inner diameter of 2.03 mm provides such a firm enough grip on the spigot that the hose holds securely without additional components. However, for added security, especially in areas subject to vibration or high pressure, the use of fine clamps is recommended.
Question 5: Can the hose be used outdoors throughout the season?
Yes, the hose material has good resistance to weather conditions, including UV radiation and moisture. If properly routed and protected from mechanical damage, the cable can be used outdoors for a long time.
Question 6: How to recognize that the fuel hose is suitable for replacement?
The wear of the hose is evidenced by cracks, hardening of the material, discoloration and visible leaks. If you notice the smell of gasoline around the device, traces of fuel on the housing or problems with engine starting, it is worth checking the condition of the fuel line and, if necessary, replace it with a new model R124201.
