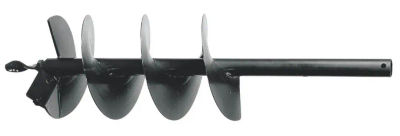

AUGER BIT Ø 100 MM FOR WRG DRILL RIGS OO-OTHWRGS100
- Professional auger bit Ø 100 mm OO-OTHWRGS100 for WRG soil drills (WGR1, WRG2). Steel 1,000 mm tip ideal for posts, spot foundations, tree planting and garden work.
Auger drill Ø 100 MM for WRG OO-OTHWRGS100 - professional soil drill for demanding users
AUGER BIT Ø 100 MM FOR WRG DRILL RIGS OO-OTHWRGS100 is a robust steel soil drill with a diameter of 100 mm and a working length of 1000 mm, designed to work with soil drills of the series WGR1 and WRG2. Designed for professionals and discerning home users, it makes it easy to drill fast, precise holes in the ground for posts, point foundations, tree and shrub plantings, and many other gardening and construction applications.
Drill ø 100 mm
long. 1000 mm
Destination WGR1, WRG2
This auger bit is the ideal choice for users who want reliability, high performance and comfort - whether for everyday gardening work or heavy use at construction sites or service companies.
What is the auger bit Ø 100 mm for WRG OO-OTHWRGS100 drilling rigs?
Auger drill Ø 100 mm OO-OTHWRGS100 is a specialized working bit mounted to soil drills driven by an internal combustion engine or electric motor. The structure is a solid steel shaft of about 1000 mm in length, on which a spiral auger with a cutting blade at the end is mounted. This design ensures that the excavated material is efficiently cut and brought to the surface, so that the hole in the ground is created quickly and without the need for additional cleanup.
Diameter 100 mm is one of the most popular drill bit sizes - it allows to make holes for universal use: for fence posts, stakes, mounting anchors, small spot foundations, as well as for tree and shrub seedlings. The drill is compatible with the drill rig mounting system WGR1 and WRG2, which guarantees secure seating and safe operation.
Where the auger drill Ø 100 mm OO-OTHWRGS100 is mounted?
The auger drill is mounted directly on the drive shaft of the soil boring machine. For models WGR1 and WRG2 seating is done by inserting the drill shank into the exit socket and securing it with a suitable pin or through bolt. This method of installation:
- provides stable connection and eliminates the risk of the drill bit slipping out during operation,
- enables rapid replacement drill to a different size - such as 150 mm or 200 mm - without the need for complicated tools,
- guarantees optimum torque transfer from motor to auger, which translates into smooth drilling.
In practice, installing the drill takes just a few moments: just align the holes of the shank and socket, insert the pin and secure it with a pin or nut. As a result, the drill rig is ready to work very quickly, and the user can efficiently adapt the equipment to current needs.
Application of auger bit Ø 100 mm for WRG drilling rigs
Ø 100 mm auger drill bit is designed for fast and convenient drilling of holes in the ground for various types of gardening, construction and installation work. It will work great m.in. at:
- installation of fences - Making holes for metal, wooden or concrete posts,
- erecting lightweight structures - Arbours, pergolas, sheds, carports, greenhouse support structures,
- horticulture and fruit farming - Planting of trees, shrubs, hedges, plants in trench pots,
- ground installations - Anchoring of road signs, signboards, garden lamps,
- land reclamation and drainage works - Drilling holes for point drains and small diameter absorption wells,
- preparation of point foundations - For example, for lightweight modular terraces or beam substructures.
The 100mm diameter is a compromise between drilling speed and stability of embedded parts, so this drill bit is a popular choice for both contractors and individual users who are upgrading the property themselves.
Auger drill Ø 100 mm OO-OTHWRGS100 - key benefits for the user
When you choose this auger drill, you get a tool that will significantly increase the comfort and speed of work in the field. The most important advantages from the user's point of view are:
- High drilling performance - The spiral design of the auger effectively brings the excavated material to the surface, so that the hole is created quickly and without the need for frequent interruptions of work. This allows you to prepare dozens of holes for fence posts or plantings in a short time.
- Precise, even bore - sharp cutting edges and properly selected pitch of the spiral minimize the "running away" of the drill bit to the sides. The hole is straight, with a similar diameter throughout its depth, which facilitates stable embedding of structural elements.
- Universal application - 100 mm diameter works well for typical domestic and professional jobs - from the garden, to the recreation plot, to the construction site. It's a drill that will be used again and again for various investments.
In practice, this means that you can complete the fencing of a plot of land, which would take up to several days by hand, in a single weekend. Similarly - preparing holes for hedge plantings or pergola posts will take a fraction of the time compared to using a classic shovel or spade.
Drill bit for WGR1 and WRG2 drill rigs - durability, quality workmanship and operational safety
Model OO-OTHWRGS100 has been designed for intensive use in difficult terrain conditions. The design of the drill is based on:
- strong steel shaft - resistant to bending and twisting, which is crucial when working in compacted, clay or rocky soil,
- solidly welded spiral - with the right thickness of material to ensure that the drill retains its shape even under heavy loads,
- sharp cutting edges - enabling efficient drilling without overtaxing the machine and operator.
This combination of features translates into long drill bit life and reproducible quality of work. In combination with drilling rigs WGR1 / WRG2 the user gains a set that provides a high level of safety: secure clamping, reasonable torque and full control over the drilling process.
Examples of daily applications where you will appreciate the quality of workmanship:
- drilling holes in hard, dry soil in summer - the drill bit maintains the drilling line, and the spiral effectively lifts out the dry spoil,
- autumn work in planting trees - the steel structure can cope with moist, heavy soil without losing geometry,
- installation of fence posts in the ground with stones - massive blade and shaft reduce the risk of damage when encountering harder fractions.
Technical parameters of auger drill Ø 100 mm OO-OTHWRGS100
For your convenience, the most important product specifications are collected below:
- Product type: soil auger bit
- Working diameter: 100 mm
- Overall length: 1000 mm
- Purpose/Compatibility: soil drilling rigs WGR1, WRG2
- Type of attachment: cylindrical shaft with through bolt (matched to WRG system)
- Material: structural steel (painted / protected against corrosion)
- Product code: OO-OTHWRGS100
- EAN code: 5903383019346
- Application: drilling holes in the soil for posts, stakes, spot foundations, plantings, elements of small garden architecture.
Such a set of parameters makes the drill the ideal compromise between depth, diameter and comfort - it allows you to make stable holes without having to repeatedly countersink the same spot.
How to get the most out of the Ø 100 mm auger bit in your day-to-day work?
To maximize the potential of the drill OO-OTHWRGS100, it is worth following some simple rules:
- Get the right drill rig - use only compatible WGR1 or WRG2 models. This guarantees correct transmission and full operational safety.
- Start drilling at low speed - This will allow the drill bit to be precisely positioned at the hole and reduce the risk of slipping from the designated point.
- Drill in stages - for deeper holes, lift the drill bit from time to time to remove excess spoil and not overload the machine. This will make the work faster and safer.
- Control the vertical - especially at point foundations or fence posts. The simplicity of the drill guide makes it easier to maintain verticality, but it is worth checking the deviation regularly.
Applying these principles, you will realistically reduce the time of investment implementation - from fencing the plot to the construction of sheds or preparing the ground for landscaping elements.
FAQ - Frequently asked questions about auger bit Ø 100 mm OO-OTHWRGS100
1. Does the Ø 100 mm OO-OTHWRGS100 drill bit fit all drill rigs?
The drill is designed primarily for use with soil drills WGR1 and WRG2. Mounting to other models is possible only if they have identical mounting system and corresponding technical parameters. Always check compatibility with the manufacturer or the equipment's manual before using with another drill rig.
2. What type of soil is this drill suitable for?
Ø 100 mm auger bit works well in most typical soils found in gardens and allotments: sandy soils, clay soils, mixed soils and soil with few stones. In case of very rocky ground or large boulders, be careful and work with less load to avoid damaging the blade.
3. How deep holes can be made with this drill bit?
The total length of about 1000 mm makes it possible to drill holes close to 1 meter deep (depending on the type of soil and stock above the surface). For typical fence posts or plantings, this value is fully sufficient in most cases.
4. Does the drill require special maintenance?
After completing the work, it is recommended to remove the residual soil and stones from the surface of the spiral and the blade. The drill can be wiped with a damp cloth and then dried. Periodically it is a good idea to check the condition of the cutting edges and the protective coating. Storage in a dry place will extend the life of the tool and reduce the risk of corrosion.
5. Can this drill bit be used to drill into concrete or asphalt?
Not. Auger drill Ø 100 mm is designed only for work in soil (earth, sand, clay). Attempting to drill into concrete, asphalt or other hard materials can result in damage to the drill bit and the drill rig, as well as endanger the user.
6. Is this drill suitable for planting fruit trees?
Yes, this is one of the typical applications. Diameter of 100 mm allows quick preparation of holes for smaller trees, shrubs and plants requiring deeper planting. For larger root balls, it may be necessary to widen the hole or use a larger diameter drill bit.
7. How often should you replace the drill bit with a new one?
The life of the drill mainly depends on the intensity of use and the type of soil. For typical seasonal garden work, one drill can last for many years. For professional work (e.g., fence companies, pavers), wear and tear occurs more quickly, but regular cleaning and avoidance of working in extremely unsuitable conditions significantly extends the service life.
