STARMIX DUROSWEEP 77 PRO 18V SWEEPER (HAAGA) OO-OTHHASDS7718V
- STARMIX DUROSWEEP 77 PRO 18V cordless sweeper (HAAGA) - professional, quiet and efficient sweeping of wet and dry dirt in parking lots, halls, warehouses and garages. Ideal for large areas.
STARMIX DUROSWEEP 77 PRO 18V sweeper (HAAGA) OO-OTHHASDS7718V - professional cordless sweeper for large areas
STARMIX DUROSWEEP 77 PRO 18V (HAAGA) OO-OTHHASDS7718V sweeper is a state-of-the-art cordless cleaning device designed for fast and thorough sweeping of large indoor and outdoor areas. Combines Haag's renowned disc brush technology with CAS's powerful 18-volt battery system for high productivity, comfortable operation and maximum reliability in professional applications.
The device is not "mounted" permanently - it is a fully mobile push sweeper, which the operator guides manually over the surface to be swept. With its compact design and working width of 77 cm, it is ideal for parking lots, plazas, sidewalks, warehouses, production halls, logistics centers, workshops, as well as commercial facilities.
The sweeper can perfectly handle both dry and wet debris - from fine dust and sand to larger debris such as leaves, pieces of wood, screws or beverage cans. It is the ideal solution for cleaning companies, industrial plants, gas stations, residential communities and users who want the highest quality and durability of cleaning equipment.
Starmix DuroSweep 77 Pro 18V sweeper (Haaga) - German technology and unique brush system
Haaga is a German brand of almost 60 years in the cleaning industry. After many years of development, it became part of another renowned German company Starmix - one of the top 3 manufacturers of industrial vacuum cleaners in the world. HAAGA's unique sweeping system and high quality components cannot be compared to other sweepers on the market. To ensure the high quality of their products, Haaga sweepers are manufactured exclusively in the Czech Republic and Germany.
The DuroSweep series is based on a patented system of two counter-rotating disc brushes and an additional brushing roller that picks up both fine dust and larger debris from the front of the machine and efficiently transports it to the hopper. Such a solution eliminates the phenomenon of "pushing" garbage in front of the device and ensures a perfectly clean surface after just one pass - which is crucial when maintaining busy areas such as entrances to stores, passageways in warehouses or parking lots under shopping centers.
Brushing system works the same as in sweepers without a motor. An additional advantage is the ability to work with three small induction motors driving two disc brushes and a rear roller. While the disc brushes on regular models only rotate when the operator pushes the sweeper, on battery models, it is possible to work the brushes in place, which improves the quality of cleaning in harder-to-reach areas, corners or areas that require maneuvering the sweeper tremendously.
Comfortable and quiet operation of the sweeper allows for increased productivity and work on larger areas. Haag's disc brush system and an additional brushing roller ensure very thorough surface cleaning. Models in this series sweep both fine sand and larger debris, such as soda cans. For both indoor and outdoor use. They are equipped with an additional gear cover that protects the system and reduces maintenance frequency. Perfect solution because two counter-rotating brushes pick up debris from the front of the machine and move it into the hopper. An additional roller makes sure that even the smallest particles get into the tank. This is a unique system, used only on Haaga sweepers.
CAS 18V battery system - mobility, performance and operation for up to 4-5 hours
This new model was created in the CAS battery system (the system is based on the work of many brands, mainly power tools, the leading of which is METABO). Rechargeable battery (5.2 Ah) and charger to be purchased separately. Thanks to its lightweight and powerful battery, the sweeper can work for up to 4-5 hours.
In practice, this means that large warehouse halls, long passageways or several levels of underground parking can be cleaned at one time without the need for frequent interruption of work. The CAS system also allows the use of batteries from other compatible equipment (e.g., power tools), significantly reducing operating costs for companies that already use CAS technology.
Operation without a battery is also possible - the operator pushing the sweeper himself also drives the work of the brushes. This allows you to finish cleaning even when the battery is discharged, and makes the device can also be used as a classic mechanical sweeper - for example, on smaller areas or for lighter cleaning work.
Speed control, work in dusty areas and indoors
The DURO 18V model is equipped with variable speed control (4 levels). The speed control will be appreciated by any user who works in a dry environment with a lot of fine dust around and those who sweep indoors. The lower the speed, the less dust rises into the air. This fact becomes important during long working hours and for increasing the air quality in the environment. On the other hand, higher speeds allow faster sweeping and are recommended, for example, on wetter, rougher surfaces. BUT REGARDLESS OF THE ROTATION, THE CLEANING EFFECT IS THE SAME - EXCELLENT.
With the ability to adjust the speed of the brushes, the sweeper is great for:
- high-storage warehouses, where floating dust can be a problem for equipment and workers,
- production halls and workshops where it is important to reduce secondary dust,
- shopping malls, DIY stores and home improvement stores, where cleaning work takes place with customers present,
- underground garages and indoor parking lots, where tire dust and sand are a daily problem.
Safety and visibility - LED lighting and high ergonomics at work
The DURO 18V model is equipped with LED lights to illuminate the swept surface. However, the main purpose of the lights is to increase operator visibility - this powerful device is often suitable for cleaning large parking lots and gas stations - which translates into work safety.
You will appreciate the LED lighting especially during:
- cleaning in the early morning or late evening,
- work in poorly lit halls, technical corridors or underground garages,
- maintaining cleanliness at gas stations and highway parking lots where operator visibility is critical to safety.
Ergonomic, folding handle and properly adjusted weight of the device make driving the sweeper does not require much physical strength. This is important in daily operations - especially for cleaning companies, where the device is operated for many hours a day.
Key features of Starmix sweepers - performance, durability and low operating costs
Basic features of Starmix sweepers:
- significant performance,
- wide application, i.e. for cleaning parking lots of playground toes, sidewalks as well as surfaces under the roof (stores, warehouses, etc.).),
- sweeping wet and dry surfaces (including wet and dry leaves),
- central brush pressure adjustment,
- power transmission via road wheels (increased reliability - no belt),
- simple maintenance activities,
- brush bristles is subject to a 4-year warranty.
In practice, this means not only a very high quality of cleaning, but, above all, long-lasting and trouble-free operation. The absence of drive belts reduces the risk of failure and the need for servicing, and a four-year warranty on the bristles of the brushes confirms their ability to withstand heavy use, including on rough concrete surfaces or paving stones.
Applications for the Starmix DuroSweep 77 Pro 18V sweeper - where it works best?
Thanks to its design and technical parameters, the STARMIX DUROSWEEP 77 PRO 18V (HAAGA) sweeper will prove itself wherever work speed, accuracy and the ability to clean in various weather conditions are important:
- Parking lots and driveways - Removal of sand, leaves, slush, customer waste or leftover construction materials.
- Gas stations and MOPs - Regular cleaning of parking bays, sidewalks near the building, areas around fuel dispensers.
- Warehouses, production and logistics halls - collecting dust, sawdust, shavings, paper, film or scattered small parts from long alleys.
- Commercial facilities - Maintenance of cleanliness around entrances, loading ramps, in goods receiving areas.
- Schools, sports facilities, playgrounds - Quick sweeping of sidewalks, interior courtyards, multipurpose fields.
- Service establishments, workshops, services - Removal of dust, sand, metal filings and other dirt from concrete or resin surfaces.
TECHNICAL SPECIFICATIONS OF STARMIX DUROSWEEP 77 PRO 18V (HAAGA) CLEANER
| Battery data | 5.2 Ah / 18V (not included) |
| Drive | push, battery and mechanical operation possible |
| Working width | 77 cm |
| Weight | 16 kg (without battery) |
| Maks. performance | 3600 m²/h |
| Tank capacity | 50 l |
| Gear cover | YES - additional protection for the drive train |
| Additional brushing roller | YES - thorough collection of fine dirt |
| Central working height adjustment | YES - quick adjustment to different surfaces |
| Side guide wheel | YES - easier guidance near walls and curbs |

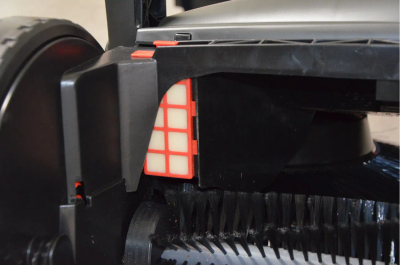

| Two side filters | YES - dust limitation |
| Sealing strip (anti-dust) | YES - better dirt retention in the tank |
Such technical parameters make STARMIX DUROSWEEP 77 PRO 18V (HAAGA) OO-OTHHASDS7718V sweeper one of the most efficient and versatile solutions in its class, dedicated to intensive daily use in professional conditions.
FAQ - Frequently Asked Questions about STARMIX DUROSWEEP 77 PRO 18V (HAAGA) ZAMATZER
1. Are the battery and charger included?
18 V 5.2 Ah battery and charger not included and must be purchased separately. The sweeper works with the CAS battery system, so you can use packs from other devices using this technology.
2. Can the sweeper operate without a battery?
Yes. The device can also operate without a battery, in which case the brushes are driven solely by the operator's pushing power, as in classic mechanical sweepers. This is a useful solution when the battery is discharged or during short cleaning jobs.
3. What surfaces is the Starmix DuroSweep 77 Pro 18V sweeper designed for??
The sweeper is suitable for use both outdoors (parking lots, sidewalks, playgrounds, interior roads) and indoors (warehouses, halls, stores, garages). Sweeps wet and dry surfaces, including wet and dry leaves, sand, dust, fine and larger debris.
4. What is the maximum working capacity of the device?
The maximum working capacity of the sweeper is as high as 3600 m²/h. With a working width of 77 cm and a capacious 50 l tank, the device allows you to quickly clean very large areas.
5. Does the sweeper have a warranty on the brushes?
Yes. The bristles of the brushes are covered by as much as a 4-year warranty, which confirms the high quality of the materials used and their resistance to intensive use.
6. Is the device suitable for use in dusty areas?
Yes. Thanks to the speed control (4 levels), the side filters and the dust bar, you can significantly reduce the dust floating around. Lower speeds are recommended for dry, dusty areas, higher speeds for fast sweeping outdoors and on damp surfaces.
7. Are sweeper operation and maintenance complicated?
Not. The sweeper has been designed with simplicity of daily operation in mind. Maintenance operations are uncomplicated, and the number of components prone to failure is minimized thanks to the drive transmitted by the road wheels and the gearbox cover. This translates into low lifetime maintenance costs.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
