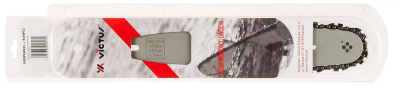

BAR AND CHAIN SET 140SPEA041 +91NP52 OO-ACCVC140SPEA041
- The 140SPEA041 + 91NP52 bar and chain set (14", 3/8" hobby, 1.3mm, 52 links) is a complete, durable cutting system for garden and semi-professional chainsaws for precise, safe wood cutting.
PRAISE AND CHAIN SET 140SPEA041 + 91NP52 OO-ACCVC140SPEA041 - professional 14" guide bar with chain for chainsaws
Bar and chain set 140SPEA041 + 91NP52 OO-ACCVC140SPEA041 is a complete, high-quality chainsaw cutting set for demanding home and semi-professional users. In one package you get a perfectly matched 14" guide bar and a 3/8" pitch hobby chain, which guarantees precise and safe wood cutting in all conditions. Robust construction, long service life and optimized technical performance make it an excellent choice for both daily gardening and more intensive backyard tasks.
Chainsaw bar and chain set:
- Length 14"
- 3/8" hobby pitch
- Chain groove width 1.3 mm
- Tip with 9 teeth fixed with 4 rivets
- Chain 91NP 52 links, half-snout type teeth
- Guide links with anti-reflection projection
What is the bar and chain set 140SPEA041 + 91NP52 OO-ACCVC140SPEA041?
Bar and chain set 140SPEA041 + 91NP52 OO-ACCVC140SPEA041 is a complete cutting system designed for chainsaws (petrol and electric), equipped with 14" bars and working on chains with 3/8" hobby pitch and 1.3 mm groove width. This means that when you buy one product, you get a ready-to-install package that allows you to quickly refurbish or upgrade your saw without having to select individual components.
The set consists of:
- 14" guide bar with a 9-tooth tip, fixed with 4 rivets - which ensures stable chain guidance and long tip life,
- 91NP cutting chain with 52 links, equipped with semi-chisel teeth - guaranteeing efficient cutting while resisting dulling,
- guide links with anti-kickback projection - significantly increasing operator safety.
Such a kit is ideal for users who want to restore the full performance of their chainsaw after the original bar and chain have worn out, or are looking for a complete, quality solution to spare.
Where the bar and chain kit 140SPEA041 + 91NP52 is installed?
The kit installs directly into the chainsaw, replacing the existing bar and chain. It is compatible with chainsaw models that support:
- guide length 14" (about 35 cm),
- 3/8" hobby chain pitch,
- chain groove width of 1.3 mm,
- chain with 52 guide links type 91NP.
Assembly consists of:
- Disconnect the chainsaw from the power supply (or turn off the internal combustion engine and remove the spark plug pipe).
- Unscrewing the side cover and removing the old guide bar with chain.
- Installing the new guide on the mounting studs and chain drive guide.
- Apply the chain to the drive sprocket and guide bar, observing the correct direction of the cutting teeth.
- Pre-tensioning the chain and tightening the side cover, then fine-tuning the tension.
Thanks to its standard dimensions and the 3/8" hobby pitch used, the kit fits into the group of the most popular solutions used in garden and household saws - both well-known brands and many market devices.
The use of bar and chain set 140SPEA041 + 91NP52 OO-ACCVC140SPEA041 in daily operation
The kit is designed for a wide range of household, garden and light workshop applications. It will prove m.in. to:
- preparation of firewood from branches and logs of medium diameter,
- cleanup work after windstorms - removal of broken branches and windbreaks,
- tree care - shortening and cutting branches at height (using appropriate tools and protection),
- construction of wooden structures in the garden, such as pergolas, gazebos, fences or firewood sheds,
- cutting beams, scantlings and boards in the home workshop.
The 14" length is an optimal compromise between maneuverability and cutting performance - the saw remains lightweight, handy and easy to control, while comfortably handling most tasks typical of household and small farm operations.
Victus 140SPEA041 + 91NP52 bar and chain set - quality, durability and cutting safety
The 140SPEA041 + 91NP52 set is made for long-term use and user safety. Key technical features translate directly into comfort and quality of work:
- Tip with 9 teeth fixed with 4 rivets - The multi-toothed tip provides a smooth curve for the chain, which makes it easy to cut both along wood fibers and when felling branches. Mounting with 4 rivets increases rigidity and resistance to mechanical damage, which is especially important when working in harder woods.
- Chain 91NP - semi-snout type teeth - semi-chisel (semi-chisel) profile combines good cutting aggressiveness with increased resistance to dulling compared to solid chisel type blades. In practice, this means that the chain stays sharp longer, even when contact with dirty wood, bark or fine sand happens.
- Guide links with anti-reflection projection - special shape of links reduces kickback force (kickback) in case of chain jamming. This is an important feature that increases the level of safety, especially for less experienced users who use the chainsaw mainly in the garden.
In everyday use, these solutions mean:
- fewer chain sharpenings,
- stable, smooth cutting,
- higher safety even under less favorable conditions (branches under tension, cutting overhead - always respecting health and safety rules).
Technical highlights of the bar + chain set 140SPEA041 + 91NP52
- Guide length: 14" (approx. 35 cm)
- Chain pitch: 3/8" hobby
- Chain groove width: 1.3 mm
- Chain type: 91NP
- Number of chain links: 52
- Type of cutting teeth: semi-chisel (semi-chisel)
- Guide tip: 9 teeth, fastened with 4 rivets
- Guide cells: with anti-reflection projection
- Application: garden, home and semi-professional chainsaws
- Product/System Code: OO-ACCVC140SPEA041
- EAN code: 5903383018271
Such a selection of technical parameters means that the kit is compatible with many popular chainsaw models on the market and is a sensible choice for users looking for a proven, durable and safe cutting solution.
User benefits - why choose this bar and chain set?
When you choose bar and chain set 140SPEA041 + 91NP52 OO-ACCVC140SPEA041, you get:
- Saving time - you don't have to select the bar and chain separately or worry about parameter compatibility. You assemble the complete, matched kit right out of the box.
- Higher cutting precision - Matching guide bar and chain provide a stable cutting line, which translates into more accurate preparation of firewood, even cutting of beams or aesthetic formation of tree crowns.
- Safety of use - Anti-kickback guide links and well-thought-out tooth geometry significantly reduce the risk of the saw rebounding violently towards the operator.
- Longer life - Robust bar tip with 9 teeth, mounted on 4 rivets, minimizes wear at a key stress point, and the half-choke type chain stays sharp longer.
- Universal application - The 14" length and 3/8" hobby pitch is the standard used on many garden saws, making the set great for use as a main or spare set.
In practice, this means you can complete all the usual jobs faster and safer: from cutting wood for the fireplace, to tidying up the orchard, to preparing structural components for small carpentry projects.
How to take care of the bar + chain set to serve as long as possible?
To maximize the life of your guide bar and chain, it's a good idea to follow a few simple operating rules:
- Regular lubrication - always make sure the chain oil level in the chain saw tank is correct. Insufficient lubrication accelerates the wear of both the chain links and the bar groove.
- Proper chain tension - too loose chain can slip off the bar, too tight - will accelerate wear and increase the risk of overheating. The chain should adhere to the guide bar, but be able to be lifted slightly by hand (with the saw off, of course).
- Teeth sharpening - Regular sharpening (e.g., after every refueling or after a noticeable drop in cutting performance) maintains high operating efficiency and reduces engine load.
- Cleaning the guide groove - removal of sawdust and dirt from the groove and lubrication holes allows for proper oil circulation and even wear of components.
- Avoiding contact with the ground and foreign bodies - Sand, pebbles and nails dull the chain's teeth very quickly; so try to work in a clean, possibly litter-free environment.
Applying these basic principles, the set of 140SPEA041 + 91NP52 will serve long and reliably, maintaining high operating culture and safety.
FAQ - Frequently asked questions about bar and chain set 140SPEA041 + 91NP52
1. For which saws this kit fits?
The kit is designed for chain saws that support 14" bars, 3/8" hobby pitch chain, 1.3mm groove width, and 52 guide link type 91NP chain. Before you buy, it's a good idea to check these parameters in your saw's manual or on the markings of your old guide bar.
2. Is the chain in the kit safe for less experienced users?
Yes. The 91NP chain features guide links with an anti-kickback protrusion, which reduces the risk of violent kickback from the chainsaw. Nonetheless, always wear personal protective equipment (gloves, goggles, anti-tear pants, helmet with face shield) and work in accordance with the instructions of the equipment.
3. How often should the 91NP chain be sharpened?
The frequency of sharpening depends on the intensity of work and the type of wood being cut. For typical backyard work, it's a good idea to check the sharpness after each extended use of the saw. When you notice a decrease in the rate of cutting, the appearance of fine dust instead of chips, or greater stress on the engine - this is a sign that the chain needs sharpening.
4. Can I use another chain on this bar?
Yes, as long as it conforms to the parameters of the guide bar and the saw, i.e.: 3/8" hobby pitch, 1.3 mm guide link width and the same number of guide links (52). Use of other parameters may lead to malfunction or damage to the device.
5. Is the kit suitable for intensive, professional forestry work?
The 140SPEA041 + 91NP52 set is designed mainly for home users, gardeners and for lighter semi-professional work. For intensive, all-day work in the woods, dedicated professional systems with longer bar lengths and properly matched chains will work better. However, for most tasks around the house and farm this set is fully sufficient and very convenient.
6. How to store the kit if I only use it seasonally?
After the season is over, it's a good idea to clean the bar and chain of resin and sawdust, lubricate lightly with protective oil, and store in a dry place, preferably in the original packaging or on a sheltered bar mounted on the saw. This will prevent corrosion and ensure readiness for the next season.
