LETTER MOWER TRANSMISSION 69229025A
- Leaf mower transmission 69229025A for MH450 single-axle tractor. Original oil sump with oil bath gearbox. Requires quick connect 69212006. Durable, quiet and trouble-free operation. Ideal for meadows and green spaces.
LETTER MOWER TRANSMISSION 69229025A - PROFESSIONAL POWER AND RELIABILITY FOR MH450 SINGLE AXLE TRACTOR
LETTER MOWER TRANSMISSION 69229025A is a rugged, factory-engineered work piece designed to drive the cutterbar on slat mowers that work with a mH450 single-axle tractor. It is a complete oil pan with gear mechanism that transfers the drive from the drive unit to the cutting bar, ensuring smooth, even and trouble-free operation of the machine. Requires the use of a quick coupler 69212006, which facilitates efficient installation and eventual replacement.
TRANSMISSION FOR LEAF MOWER - OIL SUMP. REQUIRES QUICK CONNECT 69212006
DESIGNED FOR SINGLE-AXLE TRACTOR MH450
PREVIEW PHOTO
Thanks to its compact design, proper oil lubrication, and fit with the MH450 system, the gearbox guarantees high operating culture, less vibration, and long life of the entire cutting unit. It is the ideal choice for users who value safety, precision cutting and low operating costs in the long term.
Letter mower transmission 69229025A for MH450 single axle tractor - construction, installation and principle of operation
The transmission of the leaf cutter plays a key role in the entire cutting system. It is responsible for the efficient transfer of torque from the engine or drive shaft to the cutting bar. Model 69229025A was designed specifically as a transmission oil pan, which means that the internal working components operate in an oil bath. This solution minimizes friction, reduces wear and tear on parts, and keeps noise levels low enough.
The transmission is mounted directly in the space provided at the factory for the leaf mower on the mH450 single-axle tractor. Correct installation is done using dedicated mounting points and is further facilitated by the required quick coupler 69212006. The quick release allows:
- quickly hook up and unhook the cutting unit,
- easy replacement of gears in case of service,
- safe disconnection of the drive without the need for specialized tools.
In practice, this means that the user can remove the slatted mower to use other attachments on the MH450 (e.g., a tiller or plow), and then reinstall the slatted transmission in a short period of time. It saves time and convenience during intensive farm work.
In everyday use, the 69229025A gearbox will prove useful whether mowing meadows, roadsides or drainage ditches, or maintaining green spaces around the farm, orchards, recreational plots or communal areas. A constant oil bath ensures that the bar works evenly even in dense, tall grass, and a properly selected gear ratio guarantees the right speed of the cutting blades' movement.
Durability, safety and comfort with the 69229025A letter mower transmission
Gearbox design is optimized for long, trouble-free operation. Robust metal body that forms an oil sump protects internal gears and bearing components from mechanical damage and contamination. Adequate sealing prevents oil leaks, resulting in less wear and tear on bearings and longer operating time without servicing.

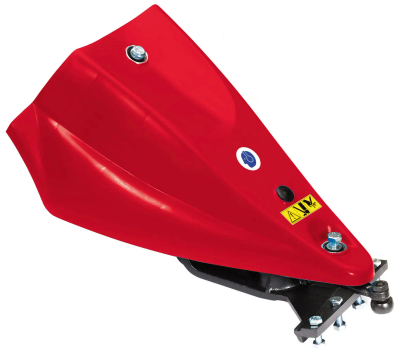

An additional advantage is the presence of cover in the characteristic red color. It performs two important functions:
- Operator protection - Reduces accidental contact with moving parts and protects against thrown rocks or clods of earth.
- Protection of the mechanism - protects the transmission from mud, grass and other debris, which significantly extends the life of the component.
This makes the gearbox perfect for professional service companies that mow large acreages daily, as well as for smaller family farms where reliability in short but intensive mowing periods is important. Stable operation of the leaf cutter reduces operator fatigue, makes it easier to maintain straight cutting lines and improves overall work efficiency.
Examples of daily applications for the 69229025A gearbox:
- mowing meadows intended for hay or haylage,
- care of green areas around the farm and buildings,
- maintenance of access road shoulders and green belts at fences,
- grass mowing in orchards and plantations where precise work close to trees or shrubs is required.
Application, compatibility and benefits of replacing with original 69229025A gearbox
Leaf cutter transmission 69229025A is designed to work with mH450 single-axle tractor and a dedicated slatted mower. It replaces the factory-installed component, making it a perfect fit for the original mounting points and works with the rest of the accessory components. Using an original part with the correct part number minimizes the risk:
- geometric mismatch (incorrect bolt spacing, height or angle of the strip),
- overloading the drive as a result of improper gearing,
- reduced occupational safety due to incompatible guards.
Thus, the user is assured that after replacing the gearbox, the slatted mower will regain full efficiency and its operation will be in accordance with the manufacturer's specifications. This is especially important in the case of intensive use, when improperly selected replacements can lead to faster wear of cutting elements and even failure of the entire drive.
The main benefits of installing the 69229025A gearbox include:
- restore full power and performance of the slat mower after wearing out the old gearbox,
- improving the quality of cut - The even movement of the strip translates into a clean, aesthetically pleasing cut of grass and green plants,
- reduction of service costs thanks to its durable design and oil lubrication,
- increase operator safety by using the correct factory guards and attachment points.
In the daily operation of the farm, the 69229025A transmission allows you to maintain a high standard of green space care, avoiding downtime due to breakdowns. This is especially important during periods of intensive mowing, when every hour of efficient machine operation is important for the quality and timeliness of field work.
Key features and approximate specifications of the 69229025A leaf mower transmission
Although detailed specifications may vary by production batch, letter mower transmission 69229025A has a number of features that are key from the end user's point of view:
- Gear type: mechanical transmission in a housing that acts as an oil pan - working elements are constantly lubricated with oil.
- Purpose: slat mower that works with a single-axle tractor MH450.
- Required accessories: quick link 69212006.
- Housing: metal, resistant to damage, suitable for use in harsh field conditions.
- Outer cover: durable, red in color, with clear warning markings.
- Type of work: continuous, with medium to high loads typical of mowing dense grass, weeds or forage plants.
The use of gearboxes with such characteristics translates directly into the quality of mower operation. Thanks to the stable, properly selected transmission characteristics, the cutting bar maintains an even speed along its entire length, which reduces the phenomenon of "jerking" of the grass and reduces the risk of clogging the cutting unit.
Examples of situations in which a properly selected gearbox is crucial:
- mowing wet grass after rain - even drive avoids skidding and overloading,
- working on inclines - stable transmission ensures safety and control of the machine,
- frequent changes in direction, such as when avoiding trees and plantings - the gearbox maintains constant performance of the slat regardless of maneuvers.
For the user, this means lower fuel consumption, lower noise levels and reduced vibrations transmitted to the guide handles of the single-axle tractor. All these elements directly translate into comfort and safety for the operator.
Why choose the 69229025A letter mower transmission - a summary of user benefits
Selecting letter mower transmission 69229025A, you are investing in a proven, robust drive component that has been specifically designed to work with the mH450 single-axle tractor. It's a guarantee of compatibility, safety and high mowing performance.
Key customer benefits:
- Hassle-free installation - The gearbox fits the factory MH450 mounts, and the use of a quick coupler 69212006 allows for quick attachment and detachment of attachments.
- High durability - oil lubrication and robust housing contribute to long life and resistance to harsh field conditions.
- Better cut quality - Stable cutting bar drive ensures even, aesthetically pleasing mowing, which is important for both the quality of the forage and the appearance of the lawn or meadow.
- Saving time and money - lower failure rate and reduced need for service means real savings during the mowing season.
- Higher level of security - properly designed guards and compliance with the MH450 design reduce the risk of accidents during operation.
It is the ideal solution for both individual users and service companies engaged in professional maintenance of green spaces, who expect reliability and maximum use of the potential of their machines.
FAQ - Frequently asked questions about 69229025A letter mower transmission
Question 1: For which tractor model does the 69229025A transmission fit??
The 69229025A leaf mower transmission is designed to work with a leaf mower mounted on a mH450 single axle tractor. It was designed specifically for this model, so it provides full compatibility and easy installation.
Question 2: Are additional components needed to assemble the transmission?
Yes. The manufacturer provides for the use of quick coupling 69212006, which enables the transmission to be properly and securely connected to the tractor's drive train and facilitates quick connection and disconnection of the slat mower.
Question 3: Is the transmission pre-filled with oil?
Gearbox preparation for operation may vary depending on delivery. It is recommended to check the oil level before the first use and, if necessary, top it up according to the recommendations of the machine manufacturer. Regular inspection of oil level and condition is key to long gearbox life.
Question 4: Under what conditions can I use the 69229025A gearbox?
The gearbox is designed to work in typical field conditions: on meadows, wastelands, in orchards, in green areas around farms or along access roads. Robust housing and guards provide protection from mud, grass and small stones, but always follow manufacturer's recommendations for maximum loads and operating conditions.
Question 5: Can this transmission replace other models in slat mowers?
Model 69229025A is designed as a dedicated part for a slat mower kit working with a MH450 single-axle tractor. Its use in other constructions is possible only after careful verification of the conformity of dimensions, mountings and gear ratio by an experienced service or equipment manufacturer. For complete safety and reliability, it is recommended to use it as originally intended.
