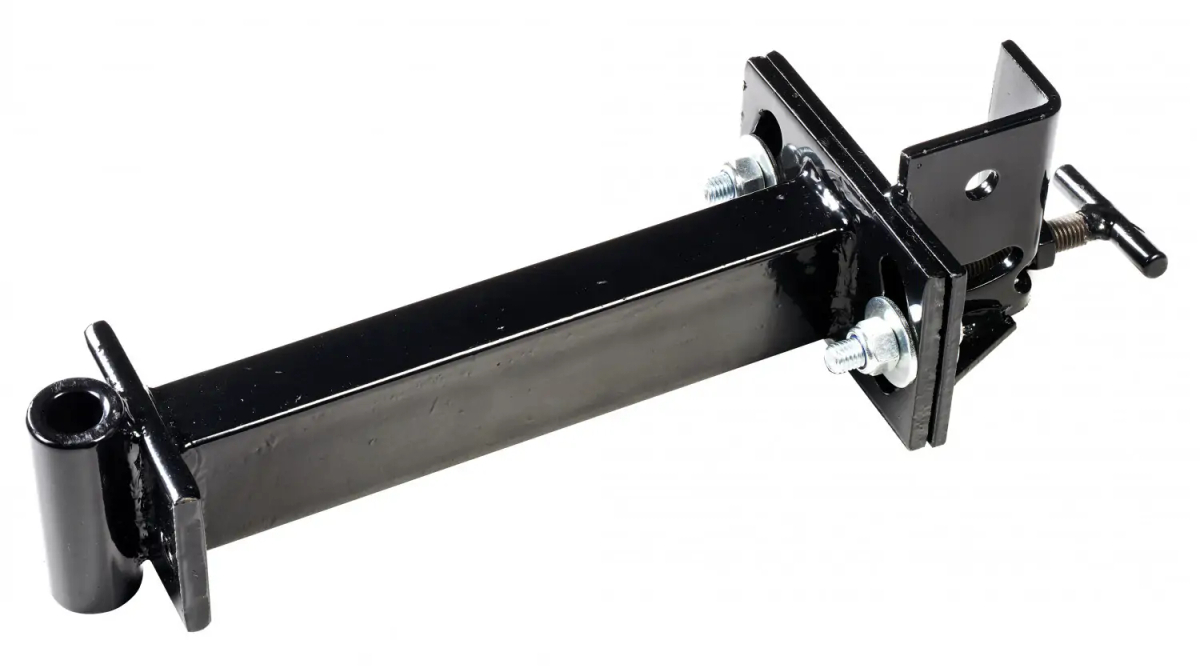

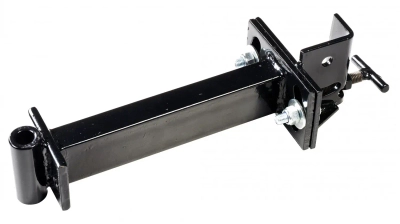

MOUNTING BRACKET FOR MH197/MH198 69209088
- Mounting bracket for MH197/MH198 69209088 is a sturdy steel working hitch for MH soilers, allowing quick mounting of plow, seeders and diggers, increasing the functionality of the machine.
Mounting bracket for MH197/198. NOTE FOR MODEL MH198 SERIES 68589012E5 MOUNTING BRACKET IN STANDARD EQUIPMENT.
Enables the installation of a plow, a landscaper and a potato digger.
Mounting bracket for MH197/MH198 69209088 - what is this item and why is it indispensable on your farm?
Mounting bracket for MH197/MH198 69209088 is a sturdy, steel connecting piece designed specifically for use with MH197 and MH198 series soilers and mini tractors. It is a professional work hitch that allows you to quickly and safely connect tillage attachments such as a plow, a seed drill or a potato digger. This turns one carrier - the MH machine - into a multifunctional tool for work in the garden, orchard or small field.
The bracket's design is based on a thick steel profile and reinforced, bolted mounting plates. This ensures stability when working in harsh conditions such as compacted soil, lots of roots or stones. The handle has been coated with an anti-corrosion coating (black powder varnish), which protects it from rust and mechanical damage, prolonging the life of the entire kit.
It is with this handle that your MH series machine becomes a complete, all-purpose center for cultivation work: from spring ridge preparation to inter-row care to autumn potato digging.
Where you mount the mounting bracket 69209088 and what machines it works with?
Mounting bracket 69209088 is designed to be mounted directly on the body of the MH197 or MH198 machine, in the place provided at the factory for attaching work attachments. The bracket's design has been dimensionally matched to the frame of these models, making installation intuitive, fast and requiring no specialized modifications or additional adapters.
For the model MH198 series 68589012E5 mounting bracket is standard equipment, which means that many users may only need it as a spare part or additional component when expanding their kit. For the other versions, the MH197 and MH198 can be an essential purchase to be able to use the full potential of the machines - especially if you plan to use several cultivation tools that are interchanged depending on the stage of work.
Typical installation applications include:
- Attachment to the rear of the frame mH197 or MH198 soilers/mini-tractors, at the factory mounting points.
- Hooking up work attachments with a pin or bolt passing through a hole in the holder - this ensures a rigid and secure connection.
- Adjustment of the attachment setting (in some configurations) by changing the position of the bolts or clamp - this makes it possible to adjust the working angle of the plow or the ploughshare to the current soil conditions.
In practice, this means that once the chuck is mounted on the machine, the replacement of the working tools goes smoothly: just undo the pin, slide off the previous attachment and put on the new one. This is especially important for users who work seasonally and frequently switch between different types of tasks - for example, from plowing to sowing potatoes.
Use of attachment bracket for MH197/MH198 - maximize use of plow, backhoe and digger
The most important function of the mounting bracket 69209088 is to enabling the mounting of working tools, that determine the versatility of your machine. With it you can easily fix:
- Plough - For plowing and deep loosening the soil before sowing and planting.
- Dipper - For forming and supporting ridges, especially in the cultivation of potatoes, root vegetables or corn.
- Potato digger - for efficiently digging crops out of ridges with minimal damage to tubers.
Examples of daily farm applications:
- In early spring - you mount the plow and prepare the field for sowing or planting. Stable handle is responsible for even plowing depth and maintaining a straight line.
- During the season - you rewire the skimmer to refresh and raise the ridges in potato cultivation, which improves soil aeration and reduces weed growth.
- In autumn - you install a potato digger; thanks to the rigid mounting, the attachment works quietly and evenly, reducing losses during harvesting.
So with one handle, you gain the ability to comprehensively handle the entire cultivation cycle - from soil preparation to plant care to harvesting. This is a real time and money saver, as well as an increase in the convenience of working in the garden or on a small farm.
Durable steel mounting bracket construction 69209088 - quality and reliability for years to come
When working with a plow or digger, the handle is exposed to very high loads - both static and dynamic. For this reason, it was made of high quality structural steel of adequate thickness and rigidity. Welds and the way the components are joined have been selected to minimize the risk of deformation and cracking during intensive use.
The surface of the handle is covered with black protective coating, which has several functions:
- Corrosion protection - protects against rust caused by contact with moisture, fertilizers and soil.
- Scratch resistance - varnish reduces the visibility of minor mechanical damage caused during installation and field work.
- Aesthetics and ease of cleaning - smooth black surface makes it easy to remove dried soil, mud and plant debris.
In practice, this means that even with daily use in harsh conditions, the handle remains fully functional for a long time. Combined with proper maintenance of the machine (lubrication, post-season cleaning, indoor storage), you get an attachment that will easily withstand many years of intensive operation.
It's a solution aimed at both small farm owners and semi-professional users who demand high durability and trouble-free performance from their equipment.
Easy installation and convenient operation of the bracket for MH197/MH198 - saving time in daily work
The mounting bracket 69209088 was designed for users who value simplicity of installation and ease of daily use. The item is equipped with:
- Adapted mounting holes - Fits the frame of the MH197 and MH198 models, eliminating the need to drill or redesign the machine.
- Steel bolts and nuts - guaranteeing a secure and stable connection; when tightened, the handle has no play, which affects the quality of work with the accessory.
- Solutions for easy adjustment (e.g. pressure screw) - allow in some configurations to precisely adjust the position and angle of the tool.
Examples of benefits in practice:
- The owner of a small garden can change the plow to a landscaper in a few minutes, without having to visit a service center or use specialized tools.
- The vegetable farmer can efficiently adjust the angle of the tool to suit different soil types - from light sand to heavy clay soil.
- The person using the machine seasonally does not waste time on complicated adjustments - the mount is installed once, and then acts as a universal base for quick connection of attachments.
This makes the handle a key element that affects the comfort of work - instead of struggling with the assembly, you focus on real tasks in the field or garden.
Key features of the mounting bracket for MH197/MH198 69209088
- Dedicated to machines MH197 i MH198.
- In the model MH198 series 68589012E5 the handle comes as standard equipment (can serve as a spare part).
- Made of durable steel, suitable for heavy soil conditions.
- Black protective coating - protection against corrosion and mechanical damage.
- Allows the installation of: plough, landscaper, potato digger and other compatible tools.
- Stable connection to the machine - reliable operation even under heavy load.
- Easy assembly and disassembly, intuitive operation.
FAQ - Frequently asked questions about the MH197/MH198 mounting bracket 69209088
Question 1: Does the handle 69209088 fit all versions of MH197 and MH198?
Yes, the handle was designed for the MH197 and MH198 series machines. For model MH198 series 68589012E5, the handle is a standard equipment item, for other versions it may be required as a separate purchase or spare part. Before you buy, it's a good idea to verify the machine model from the nameplate.
Question 2: What tools can I mount with this chuck?
The mount allows the installation of primarily ploughs, seeders and potato diggers. Depending on the manufacturer and design of the tool, it is also possible to connect other compatible accessories with the appropriate attachment.
Question 3: Is it difficult to install the bracket yourself?
Not. The bracket is equipped with the appropriate holes and fasteners, so that installation is simple and can be done by yourself with basic wrenches. It is only important to tighten the screws firmly and check the clearances after the first few hours of operation.
Question 4: Does the handle require special maintenance?
Apart from the standard care of agricultural equipment, the handle does not require any special treatment. Periodic cleaning from mud and soil and checking the condition of the paint finish is recommended. For deeper scratches, damaged areas can be protected with anti-corrosion paint.
Question 5: Can the handle be used with other brands of machines?
The mount has been dedicated to the MH197 and MH198 models. Theoretically, it is possible to use it in other structures, but this requires individual verification of the dimensions and method of attachment. The manufacturer recommends using the holder as intended.
Question 6: When is it worth replacing the handle with a new one?
Replacement is recommended if there are visible cracks, permanent deformation, significant corrosion that weakens the material, or problems with secure attachment of the fixture. The new handle ensures safe operation and protects the machine and the user from the consequences of a possible breakage of the attachment.
