RIPPER NIBBI 118 DIESEL 68579002E5S2
- Professional soil tiller NIBBI 118 DIESEL 68579002E5S2 with Emak K7000HDR 349 cm³ engine. Working width 60-100 cm, 3 forward + reverse gears, reinforced transmission. Ideal for heavy soils.
What is the NIBBI 118 Diesel 68579002E5S2 soiler and who it is aimed at?
NIBBI 118 Diesel soil tiller 68579002E5S2 is a professional machine for intensive soil cultivation, designed for small farmers, gardeners, fruit growers, service companies and demanding private users. Equipped with a 349 cm³ Emak K7000HDR Diesel engine with an operating power of 4.9 kW, it provides a huge reserve of torque, necessary for working in heavy, compacted and rocky soils. With its rugged construction, pinion gear and extensive working width adjustment, it is designed for many years of reliable use.
This model of tiller combines the power of a single-axle tractor with the portability of a hand-held gardening machine. It is ideal for preparing soil for vegetable gardening, strawberry plantations, tunnel crops, as well as for soil care on organic farms. It's an investment that significantly reduces the time and effort required to dig or loosen the soil by hand.
Where is the NIBBI 118 DIESEL 68579002E5S2 soil compactor installed and how is it used??
The NIBBI 118 Diesel soil tiller is a self-propelled device that works as an independent machine - it does not need to be connected to a tractor or tractor-trailer. The user guides it behind a control handle that is vertically and horizontally adjustable, allowing the working position to be adjusted according to height and field conditions. Standard features include a tool holder, support foot and pneumatic wheels 69209123 for easy maneuvering and transportation.
The machine is used directly in the field, garden, greenhouse or foil tunnels - wherever precise soil cultivation is required at a width of up to 100 cm and adjustable depth. Thanks to its compact dimensions (L1 1700 mm, H1 1100 mm, width W1 1000-820-600 mm), the tiller can easily drive between crop rows, as well as into narrow passages or passages between tunnels.
Use of the NIBBI 118 Diesel soil tiller on the farm and in the garden
The NIBBI 118 Diesel soil tiller is a versatile tool for:
- soil preparation before sowing and planting vegetables, ornamental plants or lawns,
- loosening and aerating the soil after winter to improve water and nutrient retention,
- the introduction of compost, manure and mineral fertilizers into the soil, which increases the fertility and structure of the soil,
- inter-row care in orchards, berry and vegetable plantations, reducing the development of weeds,
- preparation of soil for tunnel and greenhouse crops, where precision and even loosening are required.
Thanks to its diesel engine and gear transmission, the tiller can handle both light and heavy clay soil. In practice, this means being able to work on neglected wasteland, fallow land or post-construction sites that need to be quickly transformed into fertile land.
NIBBI 118 Diesel soil tiller - reinforced transmission, direct drive and durable working blades

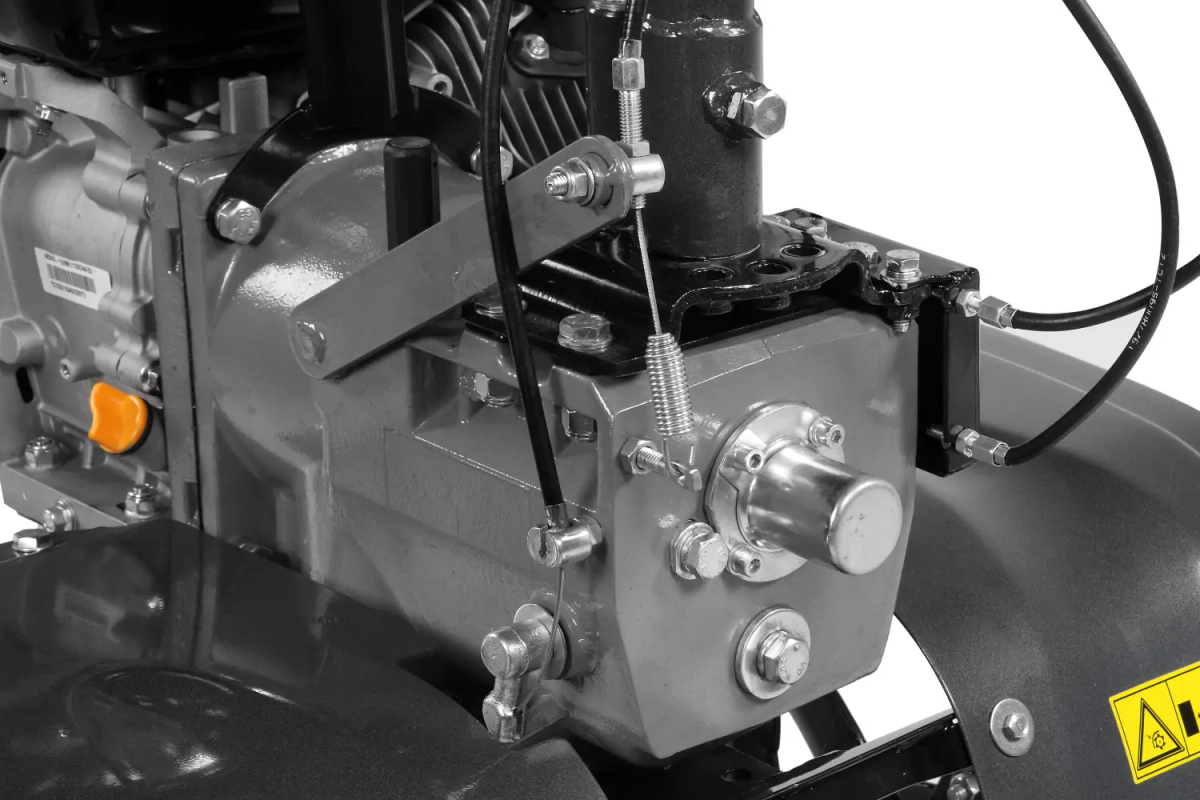

At the heart of this machine is a direct gear transmission on a cam (crank) shaft, which significantly increases the resistance of the entire drive train to overload and stresses. The gearbox housing has been further reinforced to protect it from accidental impacts from stones, roots and other hard objects in the soil. Such a solution minimizes the risk of damage during operation in harsh conditions and extends the life of the device.

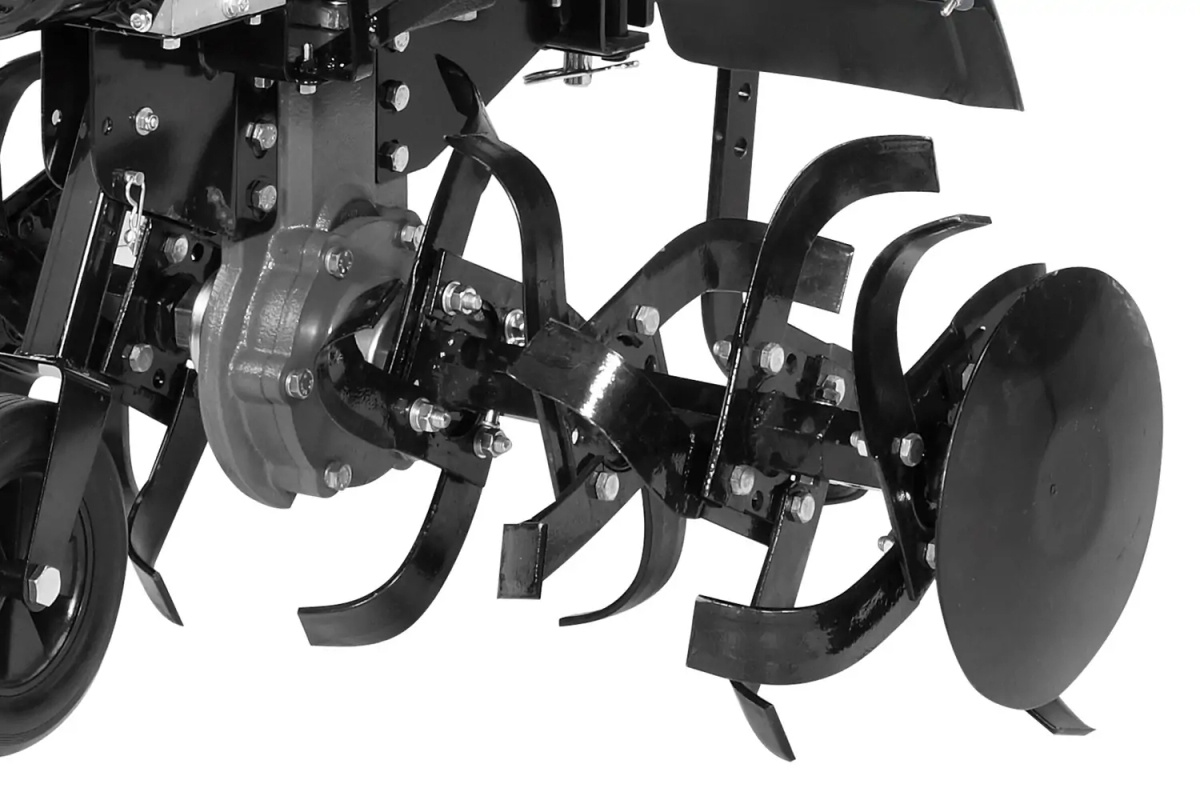

The working elements are 4+4 blades of the tiller, arranged to evenly crumble and mix the soil. The working width is 100 cm, with the possibility to reduce it to 80 or 60 cm - just remove the extreme knife sections. This makes it possible to adjust the width for narrow beds, row crops or work in plastic tunnels. For example, with a full width of 100 cm you will quickly prepare the ground for a large vegetable garden, and at 60 cm you will comfortably loosen the soil between rows of raspberries or currants.
Emak 349 cm³ diesel engine - fuel economy and reliable starting in all conditions
The NIBBI 118 Diesel soil tiller is powered by a 349 cm³ Emak K7000HDR Diesel engine with an operating power of 4.9 kW. The diesel unit provides high operating culture, high pulling power and lower fuel consumption compared to gasoline engines of similar output. This is crucial for farms where the machine works regularly and for many hours.
The diesel engine is perfect for:
- intensive work on large acreages, where economy and reliability matter,
- farms that already use diesel fuel - easy refueling logistics,
- works performed in more difficult weather conditions, when reliable starting and stable revolutions are needed.
Robust construction and the high quality of the components used make the Emak engine stand out for its long service life and low operating costs. For the user, this means less downtime, less frequent repairs and greater return on investment.

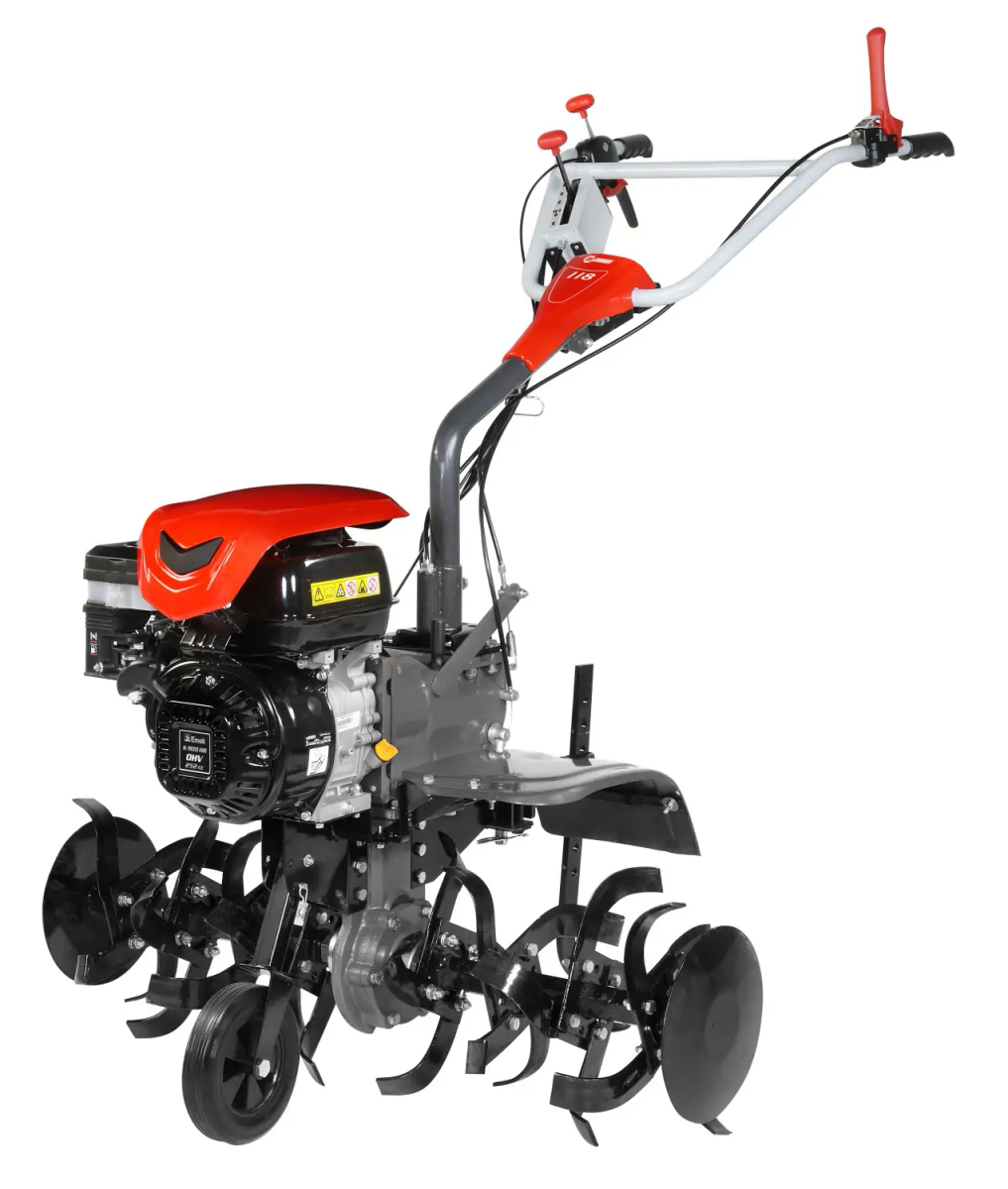

Ergonomic controls, adjustable steering wheel and all-day comfort
In the NIBBI 118 Diesel soil tiller, special attention has been paid to ergonomics. All major levers and control buttons are within easy reach of the operator's hand, making operation of the machine intuitive and safe. Vertically and horizontally adjustable steering wheel allows you to adjust the position to suit your height and the type of work you do.
Such a solution translates into:
- less fatigue during prolonged work in the field or garden,
- higher precision in guiding the machine between beds and in narrow passages,
- easy maneuvering even on inclines and uneven terrain.
The standard support foot makes it easy to put the machine down safely, while the pneumatic wheels 69209123 ensure comfortable transport around the yard, access roads or garden paths. This allows the tiller to be moved quickly between different fields and sectors of the farm.
Precision transmission - 3 forward gears + 1 reverse for maximum control
The mechanical gearbox of the NIBBI 118 Diesel tiller offers three forward gears and one reverse gear, allowing you to perfectly match the working speed to the type of soil and the task at hand. The gear ratios have been chosen to provide an optimal compromise between power and speed:
- 1 gear - 58 rpm./min - ideal for heavy, compacted soils and the first pass on previously uncultivated land,
- 2nd gear - 102 rpm./min - universal setting for typical soil preparation work for seeding and planting,
- 3rd gear - 140 rpm./min - for rapid loosening and mixing of soil on previously tilled areas,
- reverse - 44 rpm./min - makes it easy to get the machine out of tight spots and correct the trajectory with precision.
With the presence of reverse gear, the operator can quickly turn around at the end of a row, move the machine into position, or back out of a nook by a fence or greenhouse. It increases the comfort and safety of work and saves time.
NIBBI 118 Diesel soil tiller - compact dimensions, large working width and expandability
The machine is designed to combine a large working width with a compact design. With dimensions of L1 1700 mm, H1 1100 mm and width W1 adjustable from 600-820-1000 mm, the soil tiller is both stable and maneuverable. The 131 kg weight provides very good traction and bite of the blades into the soil, which is especially important on heavy or compacted soils.
TOOL HOLDER in the standard equipment makes the soil tiller a base for working with additional accessories (e.g., a backfiller, plow, cultivator). This allows you to expand the use of the machine and make even better use of its potential on the farm - from spring tillage, to summer inter-row care, to autumn cleanup.
Technical specifications of the NIBBI 118 Diesel soil tiller 68579002E5S2
- Model: NIBBI 118 Diesel soil tiller 68579002E5S2
- Engine: Emak K7000HDR Diesel
- Engine Capacity: 349 cm³
- Operating power: 4.9 kW
- Working width: 100 cm (reduction to 80 or 60 cm)
- Working knives: 4+4 soil tiller blades
- Gears: 3 forward + 1 reverse
- Gear speed: 1st gear - 58 rpm, 2nd gear - 102 rpm, 3rd gear - 140 rpm, reverse - 44 rpm
- Weight: 131 kg
- Steering wheel: vertical and horizontal adjustment
- Dimensions: L1 1700 mm, H1 1100 mm, W1 1000-820-600 mm
- Standard equipment: tool holder, pneumatic wheels 69209123, support foot
- Gear housing: reinforced, resistant to the impact of stones and other objects
The benefits of buying a NIBBI 118 Diesel 68579002E5S2 soil planter
- Exceptional durability: reinforced gearbox, sturdy frame and high-quality working components ensure many years of trouble-free operation.
- High Performance: diesel engine and working width of up to 100 cm allow you to quickly process large areas, saving time and fuel.
- Versatility: adjustable working width, ability to work with additional tools and work in different soil conditions.
- Comfort of use: ergonomic controls, adjustable steering wheel, pneumatic wheels and reverse gear make everyday work easier.
- Professional application: ideal for farms, horticulture, greenhouses, fruit plantations and landscaping service companies.
FAQ - Frequently asked questions about the NIBBI 118 Diesel soiler
1. For which surfaces the NIBBI 118 Diesel soil tiller is best suited?
The machine will be perfect for medium and large plots, farms, horticulture and plantations. With a working width of up to 100 cm, it allows you to quickly prepare large acreages, and the ability to reduce to 80 or 60 cm makes it easier to work in narrower interrows and plastic tunnels.
2. Can a soil tiller handle heavy, clayey soil?
Yes. The 349 cm³ diesel engine, combined with a gearbox and a weight of 131 kg, provides enough power to work in heavy, compacted soils. It is then recommended to use 1st gear (58 rpm)./min) on the first pass, and then increasing the speed on subsequent passes.
3. What fuel should be used in this model?
The NIBBI 118 Diesel soil planter is equipped with an Emak K7000HDR diesel engine, so use good quality diesel fuel (diesel) that complies with current standards.
4. Can the working width be adapted to narrow beds?
Yes. The standard working width is 100 cm, but this can be reduced to 80 or 60 cm thanks to the modular design of the blades. This allows you to work freely between rows of plants, shrubs or fruit trees.
5. Does the ripper have a reverse gear?
Yes, the ripper has 3 forward gears and 1 reverse gear (44 rpm)./min). Reverse gear makes it significantly easier to maneuver in tight spots, exit corners of the lot, and get the unit into the proper working position.
6. What are the main advantages of the diesel engine in this model?
Diesel engine has lower fuel consumption, high torque and high durability. It is especially recommended for users who plan intensive, regular use of the machine - for example, on farms, gardening or service companies.
7. Does the ripper require special maintenance?
Basic maintenance consists of regularly changing the engine oil, inspecting and possibly sharpening the working blades, checking the fuel level and filter condition, and periodically inspecting the bolts and connections. Thanks to its sturdy construction, the tiller is easy to maintain, and performing maintenance according to the instructions ensures its long and trouble-free operation.
8. Can I use the NIBBI 118 Diesel soil tiller in plastic tunnels and greenhouses?
Yes, after reducing the working width to 80 or 60 cm, the tiller will work great in tunnels and greenhouses. Its compact size and adjustable steering wheel make it easy to maneuver in confined spaces, and its strong engine power allows it to effectively loosen even heavily used soil.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
