DRIVE UNIT. OLEO-MAC/NIBBI MH450/KAM13S GX340 68329210E5
- OLEO-MAC/NIBBI MH450/KAM13S GX340 drive unit with HONDA GX340 389 cm³ engine is a professional base for single-axle micro-tractor. Independent PTO, 3 forward/reverse gears, locking differential - ideal for rotovators, plows, mowers and all-terrain attachm
What is the Oleo-Mac/Nibbi MH450/KAM13S GX340 68329210E5 drive unit?
Drive unit Oleo-Mac/Nibbi MH450/KAM13S GX340 68329210E5 is the heart of a professional single-axle micro-tractor, designed for intensive, year-round use in gardening, horticulture and small-scale agriculture. This is a complete drive module with professional HONDA GX 340 engine with a capacity of 389 cm³, oil-bath gearbox, multi-stage transmission and independent power take-off (PTO) shaft.
The presented product is designed for users who expect performance and reliability of professional-grade equipment - from owners of large gardens and orchards, to farms, to municipal companies. Thanks to its high power output, durable design, and wide compatibility with attachments, the drive unit allows you to create a machine tailored exactly to the specifics of your job.
NOTES: the following is offered as standard the drive unit alone without wheels and tiller. This allows you to select the wheels and accessories perfectly suited to your specific tasks and type of ground.
Where the Oleo-Mac/Nibbi MH450/KAM13S GX340 drive unit is mounted?
Drive unit MH450/KAM13S GX340 is designed for installation on oleo-Mac/Nibbi single-axle micro tractors. It constitutes a central module to which:
- mounts drive wheels of sizes 4.00-10" or 5.00-10" (available as optional equipment),
- connects at the rear or front work attachments, such as: a soil tiller, plow, slat mower, snow rotary plow, sweeping brush, transport trailer and many others,
- is mounted 180° reversible handlebars/handlebars, so you can switch from working with front attachments to rear attachments in a matter of moments.
In practice, this means that when you buy this drive unit, you are building a base for a a multifunctional single-axle micro-tractor, which you can easily retrofit with more attachments. Attachments are mounted using an independent PTO, without the need for tools - a huge time-saver during the season.
Example mounting configurations:
- at the back, a soil tiller, at the front, garden wheels - for intensive soil preparation for vegetables, strawberries or ornamental plants;
- in the front, a snow plow or brush, in the rear, wheels with chains - for winter maintenance of sidewalks, squares and parking lots;
- in the back, a transport trailer, and weights in the front - for carrying wood, fertilizer, fruit boxes or building materials around the property.
Use of OLEO-MAC/NIBBI MH450/KAM13S GX340 drive unit all year round
Drive unit MH450/KAM13S GX340 has been designed as a a versatile work base for all year round. Unlike classic garden machines, whose functionality is usually limited to a single task, a micro-tractor with this power unit can handle a wide range of seasonal work:
- Spring: intensive cultivation of the soil - tilling, cultivation, preparation of beds, work with a skimmer in the vegetable garden, formation of potato ridges;
- Summer: mowing of green areas with slat mowers or other attachments, care of inter-rows in orchards and plantations, light transportation work;
- Autumn: cleaning work in orchards, gardens and communal areas, transporting crops, post-harvest cultivation, mixing fertilizers with soil;
- Winter: clearing snow from driveways, sidewalks and yards with a snowplow or rotary plow, sweeping and clearing pavement, transporting firewood.
Oleo-Mac/Nibbi single-axle micro-tractors are an offer aimed at users who expect the following from a single machine maximum versatility. The right choice of accessories makes it possible to perform varied tasks without having to buy many separate devices. It saves space, money and time on service.
Oleo-Mac/Nibbi MH450/KAM13S GX340 drive unit - powerful HONDA engine and independent PTO
The heart of the drive unit is hONDA GX 340 engine with a capacity of 389 cm³, belonging to a family of professional drive units used in municipal and construction equipment around the world. It is characterized by:
- high power and torque - allowing them to efficiently drive heavy implements, even in difficult soil conditions or when working on inclines,
- low failure rate and long life - Honda's GX design is renowned for its exceptional durability and resistance to heavy use,
- easy mechanical starting - manual engine start is reliable and fast, even at lower temperatures.
The unit has independent power take-off (PTO) shaft, which:
- makes it possible to connect different types of attachments in a few minutes,
- ensures a constant and adequate rpm of the attachment - 973 rpm./min,
- works independently of the movement of the machine, so you can, for example, start a rotovator or snowplow without having to shift gears.
In practice, this means that you can comfortably work with heavy attachments such as a wide tiller or rotary plow, while retaining full control over travel speed and implement operation. This increases the efficiency, precision and safety of the work performed.
Advanced transmission, locking differential and full traction control
Oleo-Mac/Nibbi MH450/KAM13S GX340 drive unit is equipped with a professional oil-lubricated pinion gear and a multi-speed transmission that offers:
- 3 forward gears,
- 3 reverse gears.
Such a range of gear ratios makes it possible to precisely match the working speed to the nature of the work - from very slow driving during deep soil tillage to faster travel with a transport trailer. Operating speeds range from 1.05 km/h to 4.41 km/h, which allows you to comfortably adjust the pace to your needs.
Model MH450/KAM13S was additionally equipped with a differential (differential) with locking mechanism. This function is responsible for:
- even torque transfer to both drive wheels, which improves the machine's traction and stability,
- possibility lock the differential in difficult conditions - when one of the wheels loses traction or hovers over the ground, the locking mechanism makes the axle behave like a rigid one, making it easier to drive out of a slippery terrain or overcome an obstacle,
- confident operation on inclines, in mud, snow or ruts - a key feature for safety and operator comfort.
Multi-disc clutch used in the unit ensures smooth starts, gear changes and precise drive control. The entire gearbox operates in an oil bath, which minimizes wear and tear on components and guarantees a long machine life even with daily use over many hours.
Operating comfort and ergonomics - reversible steering wheel and quick accessory changes
When designing the Oleo-Mac/Nibbi MH450/KAM13S GX340 drive unit, special attention was paid to operator comfort. The machine is equipped with:
- 180° reversible steering wheel - In about 30 seconds (without tools) you can change the configuration from front to rear attachments and vice versa,
- clear and comfortable control levers - The gears, drive and PTO are operated intuitively, reducing the learning time of operation even for less experienced users,
- easy access to service elements - Air filter, oil cap, fuel cap or control cables are conveniently located.
Operation of Oleo-Mac micro tractors is extremely simple and requires no specialized training. Thanks to sturdy handles, properly contoured grips and logical arrangement of levers, work is less tiring and maneuvering the machine is safer and more precise, even in tight spaces between tree or shrub plantings.

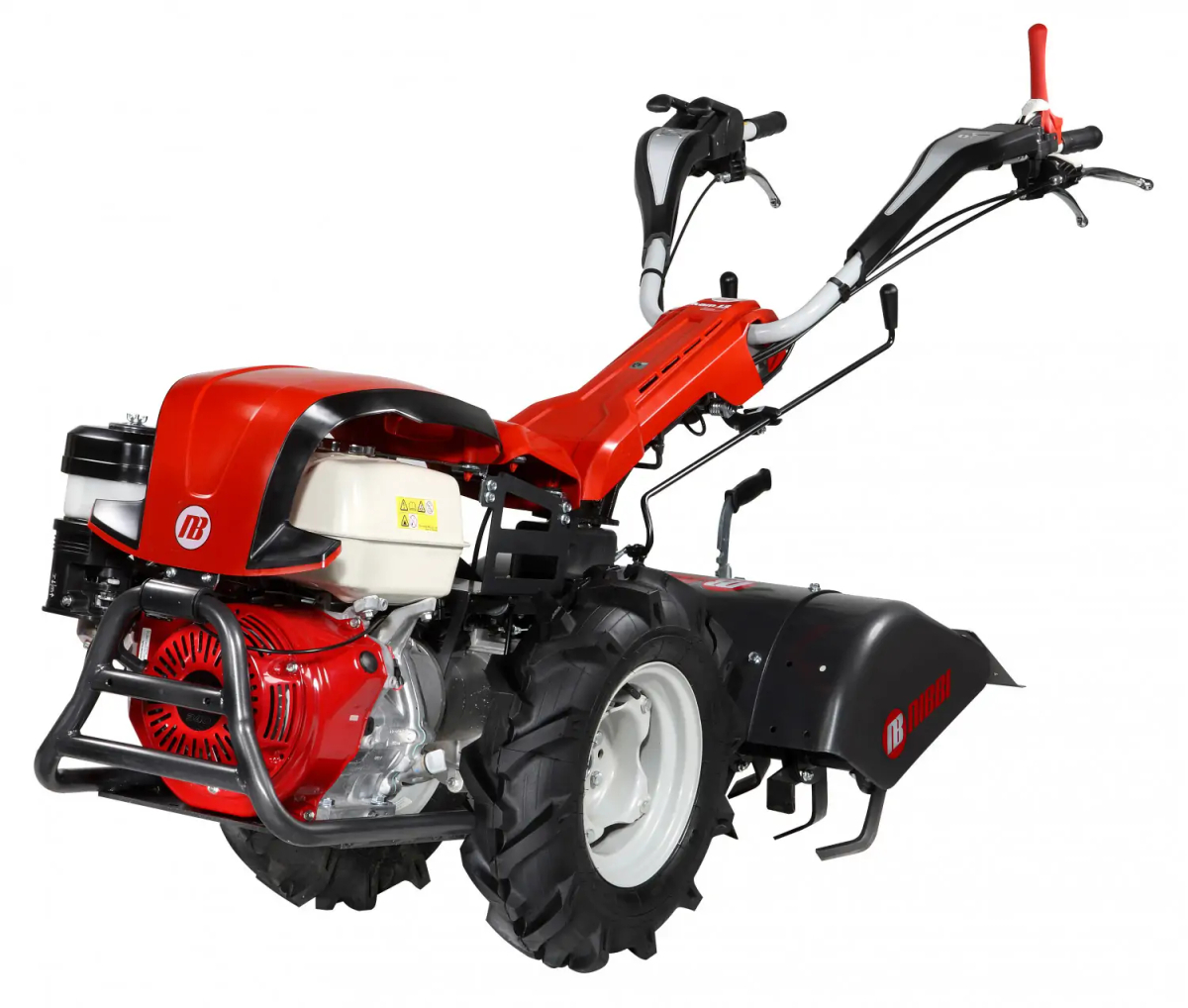

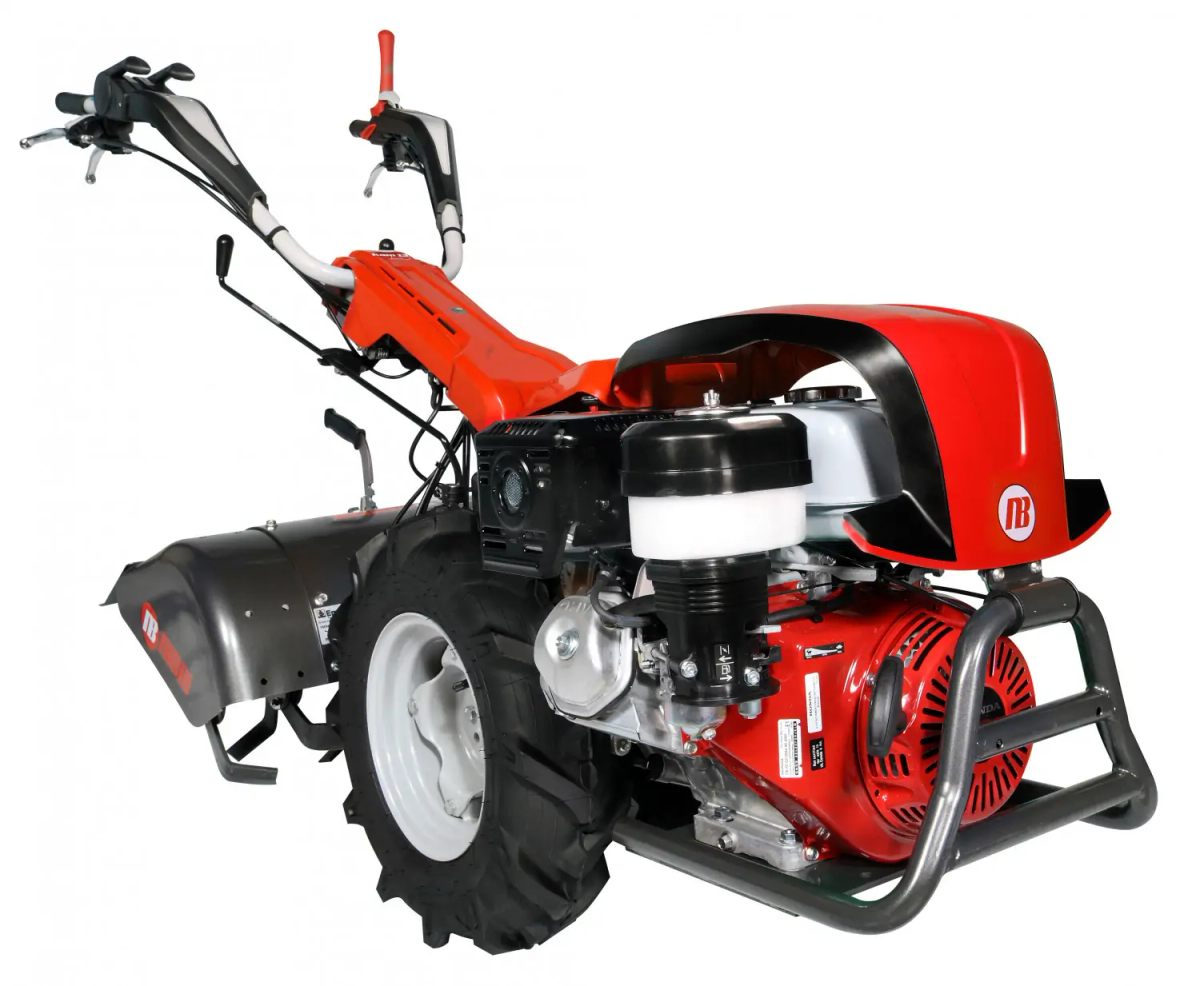

Complete with wheels and tiller, the finished micro-tractor weighs about 130 kg, which ensures adequate ground pressure and stability in all terrain conditions. The drive unit itself, however, is easily transported and configured with the selected accessories on its own.
Operating safety with the MH450/KAM13S GX340 drive unit
The manufacturer has taken care of a number of safety features that protect both the operator and the machine itself. Among the key components of the security system are:
- simple and effective motor switch - allows you to instantly stop the operation of the unit in an emergency situation,
- clutch lock - Prevents uncontrolled starting of the machine,
- power take-off engagement lock - Prevents accidental engagement of reverse gear when the PTO is engaged and vice versa; this reduces the risk of damage to the attachment and increases operator safety.
Thanks to such solutions, the micro-tractor based on the MH450/KAM13S GX340 unit meets the requirements of both individual users and professional gardening or municipal crews, for whom safety and repeatability of work are a priority.
Technical specifications of Oleo-Mac/Nibbi MH450/KAM13S GX340 drive unit
- Model: Oleo-Mac/Nibbi MH450/KAM13S GX340 Drive Unit
- Engine: HONDA GX 340
- Engine Capacity: 389 cm³
- Drive: oil-lubricated pinion gear
- Startup: mechanical (manual)
- Transmission: 3 forward gears + 3 reverse gears
- Driving speeds: from 1.05 km/h to 4.41 km/h (depending on the selected gear)
- PTO (power take-off): independent, 973 rpm./min
- Additional features: locking differential; independent PTO
- Clutch: multi-disc
- Steering wheel: 180° reversible
- Wheels: optional 4.00-10" / 5.00-10" (not included in standard kit)
- Weight of a complete micro-tractor with wheels and tiller: about. 130 kg
- Fuel tank: 6,1 l
- Engine oil tank: 1,1 l
- Product code: 68329210E5
- EAN code: 8026619071493
Why choose an OLEO-MAC/NIBBI MH450/KAM13S GX340 drive unit?
By choosing this drive unit, you are investing in a a professional solution with a very wide range of applications. It is ideal for people who:
- need a single, reliable base for work in the garden, orchard, farm and around the house all year round,
- expect maximum durability - thanks to the Honda GX 340 engine and oil-bath gearbox,
- want to be able to independently "assign" tasks to their machine by selecting a variety of appetizers,
- value high comfort of service - Reversible handlebars, comfortable levers, quick attachment installation without tools,
- focus on job security - PTO, clutch and reverse gear locks minimize the risk of an accident.
This is a solution that will meet the expectations of not only demanding hobbyists, but also professionals - gardeners, fruit growers, farmers, and crews responsible for maintaining green spaces and communal areas.
FAQ - Frequently asked questions about Oleo-Mac/Nibbi MH450/KAM13S GX340 drive unit
1. Does the kit include wheels and a soil conditioner?
Not. The following are sold as standard only the drive unit MH450/KAM13S GX340. Wheels, tiller and other attachments must be selected and purchased separately, so you can configure the machine exactly to your needs.
2. What kind of work I can use this drive unit for?
When equipped with the right accessories, the micro-tractor with the MH450/KAM13S GX340 unit will perform m.in. for: tilling, cultivating, plowing, sowing, mowing, sweeping, snow removal, transporting and many other horticultural and municipal tasks.
3. What fuel to use in a HONDA GX 340 engine?
HONDA GX 340 engine is a gasoline engine - it uses unleaded gasoline of appropriate quality, in accordance with the recommendations of the engine manufacturer. The capacity of the fuel tank is 6.1 liters.
4. Is it complicated to operate a micro tractor with this unit?
Not. Despite its advanced design, operation is intuitive. A 180° reversible steering wheel, easy-to-read gear and drive levers, and quick installation of attachments without tools mean that the machine can also be handled by a less experienced user, after reading the instructions.
5. What are the main advantages of a locking differential?
Locking differential improves traction and stability rough terrain. In standard operation, it makes turning and maneuvering easier. When the differential is locked, both wheels receive the same amount of torque - this allows you to get out of the mud, get over ruts or go up a hill.
6. How often should you change the oil in the engine and transmission?
The frequency of oil changes depends on the intensity of use. It is recommended to follow hONDA GX 340 and Oleo-Mac/Nibbi engine manufacturer's service schedule. Regular maintenance and oil changes in the engine (1.1 l) and transmission significantly extend the life of the drive unit.
7. Is the unit suitable for professional work, such as in a service company?
Yes. Designed with a professional Honda engine, oil-bath transmission, locking differential and independent PTO, the MH450/KAM13S GX340 drive unit is fully equipped for professional work - Whether in horticultural, municipal or orchard companies.
8. What is the approximate fuel consumption?
Exact fuel consumption depends on the type of work, load and field conditions. Thanks to the modern design of the HONDA GX 340 engine, the unit is characterized by a favorable ratio of power to combustion, which, with a fuel tank capacity of 6.1 liters, allows you to work effectively for a long time without the need for frequent refueling.
