MOUNTING BRACKET FOR MH175 68209087
- Mounting bracket for MH175 68209087 - sturdy steel adapter for MH175 soilers. Allows quick installation of a plow, a landscaper and a potato digger, increasing the functionality of the machine in gardening and farming work.
Mounting bracket for MH175.
Enables the installation of a plow, a landscaper and a potato digger.
What is the mounting bracket for the MH175 68209087 and why it is so important in daily operations?
Mounting bracket for MH175 68209087 is a sturdy, steel attachment designed specifically for use with the MH175 type rotovator or mini tractor. Its task is to safely and stably connect the machine to additional work tools, such as plow,draper and potato digger. This allows one drive unit to perform several different jobs on the farm, allotment or home garden.
The item is made of strong steel, protected by a black lacquer coating, which protects it from corrosion and mechanical damage. Properly selected material thickness, precise mounting holes and adjusting screws guarantee a secure hold on the attachment even when working in heavy soil conditions, such as on compacted, clayey or rocky soils.
In practice, this means that when you buy one holder, you get a a universal, durable base for many tools, and your MH175 becomes a convenient, multi-functional accessory carrier.
Mounting bracket for MH175 68209087 - mounting location and secure connection to the machine

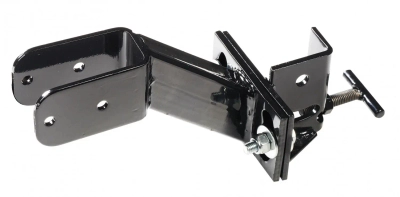

Mounting bracket 68209087 mounts directly to the frame or the rear of the body of the MH175 type of rotovator/single-axle tractor. The design of the handle provides:
- dedicated mounting holes for machine attachment screws,
- adjustable screw clamp, which allows for easy and quick position adjustment,
- two-armed handle part with holes for mounting working tools.
The half-face, "fork" design with through holes allows the use of pins or bolts as connecting elements to the plow, backhoe or digger. This makes replacing the accessory simple and requires no special tools - just unscrew the safety catch, slide out the pin, replace the tool and lock it back in place.
Examples of daily use of the bracket at the site:
- In the spring - installation of a plow for pre-seeding plowing on a home vegetable plot.
- In summer - installation of a backfiller for forming ridges and topping potatoes or other row crops.
- In autumn - quickly switch to the digger and efficiently dig up potatoes without lifting or digging by hand with a shovel.
The stable mounting location of the handle ensures adequate transfer of working forces from the machine to the tool, which improves operator comfort, reduces wear and tear on the equipment, and increases the quality of the procedures performed.
Application of the attachment bracket for MH175 - plow, planter, digger and more possibilities
The mounting bracket for the MH175 68209087 was designed mainly with three key tools in mind:
- Plough - For plowing small to medium-sized areas, preparing soil for sowing, digging up wasteland or refreshing plots before the season. Thanks to its stable mounting, the plow maintains the set depth and working angle.
- Dipper - For forming ridges, sowing potatoes, carrots, leeks or other vegetables grown in rows. The handle allows you to maintain the correct line of guidance of the backfiller, which makes it easier to achieve even beds.
- Potato digger - to dig up tubers quickly with as little damage to the crop as possible. Rigid mounting ensures even vibration and operation of the digger's working elements.
Depending on the attachment system you adopt, you can also use the handle for other tools adapted to the MH175 standard attachment, such as simple harrows, small scarifiers or additional care items. In this way, one machine becomes a universal center for gardening and farming work.
Practical examples of application on the farm:
- On a small family farm - quick switch between plow and digger when handling several acres of potatoes.
- On ROD plots - use of a backfiller to create aesthetically pleasing, even vegetable beds.
- In horticultural services - the ability to offer customers plowing, loosening and digging potatoes with one mobile machine with a universal handle.
Durability, safety and convenience - key advantages of the MH175 chuck 68209087
Professional mounting bracket for MH175 68209087 is an investment for years to come. Robust, welded construction and factory-quality workmanship ensure reliable and safe operation with heavy attachments, even under heavy use.
Key features of the handle:
- High mechanical strength - The thickness of the steel and the welding method have been selected so that the handle can carry the heavy loads encountered during plowing or digging without deformation or backlash.
- Corrosion resistance - the surface is covered with a black lacquer coating that protects the metal from rust, moisture and dirt, which is important when working in wet soil and storing equipment in unheated areas.
- Convenient operation - the use of screws and nuts in standard sizes makes it easy to install, adjust and remove the handle and tools. Users can quickly adjust settings without complicated tools.
For the user, this means real savings in time and money:
- fewer breakdowns and work stoppages,
- no need to make your own adapters and modifications,
- safer, more stable operation of the machine, which protects both the operator and the crop.
Daily user benefits:
- Ability to perform a full cycle of work - from plowing to sowing to digging potatoes - without buying separate machines.
- Easy storage - the holder does not take up much space, and its compact size allows it to be transported even in the trunk of a passenger car together with the accessories.
- Increase the value and functionality of the MH175 - a machine with a set of handle + accessories becomes more attractive both in daily use and in eventual resale.
Key features and potential specifications of the MH175 mounting bracket 68209087
Key product features relevant to the user are summarized below:
- Purpose: dedicated mounting bracket for MH175 type soil planter/one-axle tractor.
- Compatible accessories: plow, landscaper, potato digger (and other tools adapted to this mounting system).
- Construction: steel, welded construction with arm and forked end having mounting holes.
- Mounting elements: bolt and pin holes, clamping screw with "T" type knob (for easy adjustment and locking).
- Finishing: black protective paint coating for increased resistance to corrosion and mechanical damage.
- Example application: field and horticultural work on allotments, small farms, horticultural services, growing potatoes and row vegetables.
- User benefits: multifunctionality of one machine, saving time and cost, professional field work effect.
If you are looking for a secure, original mounting bracket for your MH175, the 68209087 model will be the right choice - it guarantees compatibility, safety and long life even under heavy use.
FAQ - frequently asked questions about the MH175 mounting bracket 68209087
1. For which machine the mounting bracket fits 68209087?
The bracket is designed to work with a machine like MH175 - a rotovator or a mini tractor/single-axle tractor of this designation. With dedicated mounting holes, it provides a secure and stable connection to the machine frame.
2. What tools can I mount with this holder?
The mount allows the installation of plow,draper and potato diggers. Depending on the configuration of the attachment, other tools adapted to this mounting system can also be connected.
3. Is it complicated to install the handle?
Installation of the bracket is simple and can be done by yourself, using basic workshop tools. Simply bolt the handle to the MH175 frame using the appropriate bolts, and then attach the selected work tool with pins or bolts with nuts.
4. Is the handle corrosion and weather resistant?
Yes, the handle has been coated with a black protective lacquer coating to protect the steel from moisture and corrosion. With proper use and storage in a dry place, the handle will serve for many seasons.
5. Does the handle fit other models of soilers?
The handle was designed for the MH175 model. In some cases, it may be possible to apply to other machines with similar frame dimensions and hole spacing, but this requires individual verification by the user. The manufacturer recommends that the holder be used for its intended purpose.
6. How to take care of the handle after the work is done?
After the season is over, it is a good idea to clean the holder of soil and moisture, and then store it in a dry room. Periodically checking the condition of the paint and tightening the screws will ensure trouble-free operation for years to come.
