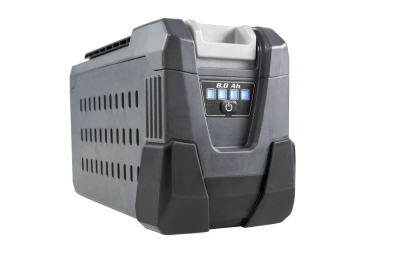

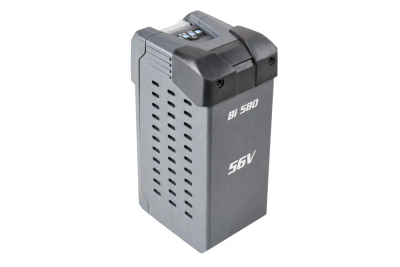

OLEO-MAC BI580 BATTERY (8.0AH - 56V) 54300003
- OLEO-MAC BI580 8.0Ah 56V battery 54300003 - professional Li-Ion power supply for 56V lawnmowers and garden tools. High capacity of 403 Wh, fast charging and long wireless operation. Ideal for demanding users.
What is the Oleo-Mac Bi580 battery (8.0Ah - 56V) 54300003?
Oleo-Mac Bi580 battery (8.0Ah - 56V) is a powerful lithium-ion power source designed for Oleo-Mac professional and hobby garden equipment operating on 56V system. With a high capacity of 8.0 Ah and a voltage of 56 volts, the battery provides long run time on a single charge, stable power and full mobility - no cables, no fumes, no compromise in performance.
It is a premium battery, specially created for intensive work in home gardens, green areas around companies, public facilities or municipal services. The use of lithium-ion cells and an electronic charging and discharging control system guarantees safe use, repeatable parameters and long service life.
Where the Oleo-Mac Bi580 battery (8.0Ah - 56V) is mounted?
Oleo-Mac Bi580 battery is designed to work perfectly with Oleo-Mac 56V series cordless lawn mowers and other gardening equipment. Its size and mounting method are matched to the special battery sockets on these machines, ensuring quick installation and secure seating in the machine.
In practice, this means that you simply slide the battery into the guides of the mower or other 56V tool until you hear the characteristic click of the locking mechanism. Disassembly is just as easy - with a push of the release button, the battery can be removed in seconds and repositioned to another device or connected to a charger.
Such a solution allows the use of a single battery for the entire fleet of 56V machines - for example, in a lawn mower, trimmer, leaf blower or hedge trimmer, which significantly reduces the cost of purchasing a whole set of equipment and makes it easier to organize work.
Oleo-Mac Bi580 8.0Ah 56V battery - key features and user benefits
High capacity of 8.0 Ah and energy of 403 Wh - The battery offers a large energy reserve, allowing extended operation of 56V devices. In practice, this means being able to mow a large lawn, tidy up the perimeter of a plot, or do a range of maintenance work without having to load up so often. This is ideal for owners of larger gardens, green space managers and service companies.
Stable voltage of 56 V - high voltage value provides high power and torque to devices powered by this battery. Mowers and other tools maintain top performance even under heavier loads, such as when mowing thick, tall grass, working on uneven terrain or removing damp vegetation.
Modern lithium-ion cells - Li-Ion guarantee no memory effect, minimal self-discharge and the ability to recharge the battery at any time without risk of capacity loss. As a result, the user does not have to keep an eye on full discharge cycles, and the tool is always ready to work whenever it is needed.
Modern design - charge control and fast charging
LED indicator lights placed on the battery housing clearly inform about the current level of charge (4 positions). With just a glance, you can judge whether it is safe to start the next job or whether it is better to connect the battery to the charger beforehand. This is a great convenience on a daily basis, especially for intensive work, when time planning is crucial.
Short charging time keeps interruptions to a minimum. Oleo-Mac Bi580 battery can be recharged:
- in about 65 minutes from 0 to 80%,
- in about 80 minutes from 0 to 100%.
As a result, even with very intensive use, you only need one additional battery for virtually no downtime - while one is working in the mower, the other is finishing charging.
Ergonomic weight and robust housing - comfort and safety
Low own weight (reported by design to be about 1.5-2.7 kg, depending on how it is weighed) ensures that the battery does not overload the device, and the whole thing remains balanced and comfortable to drive. This is especially important when working for longer periods of time, when every extra pound makes a difference in the fatigue of the user.
Robust, reinforced housing effectively protects the cells from mechanical damage, moisture and dirt found in typical garden conditions. Ventilation holes in the design allow efficient heat dissipation, which increases battery life and performance stability.
Examples of daily applications:
- long-term mowing of home lawns without frequent battery replacement,
- care of extensive green areas around hotels, businesses or residential areas,
- regular cleaning work performed by gardening companies, where equipment reliability is crucial.
Oleo-Mac Bi580 battery for 56V mowers - application and compatibility
The size of this battery allows for use in 56V series mowers. This means that the Bi580 is dedicated to horticultural equipment operating on the same voltage system, ensuring full compatibility and optimal performance. By unifying the system, the user can:
- use a single type of battery across the entire set of 56V devices,
- easily expand your fleet with more tools without having to buy new and different batteries,
- reduce operating and storage costs by always having a spare battery on hand to fit several machines.
Typical applications include m.in. grass cutting in home gardens, work on recreational plots, care of green areas at institutions and semi-professional use by gardening companies. Wherever quiet operation (no combustion engine), no emissions, and ease of use are important.
Built-in technology - safety and reliability of the Oleo-Mac Bi580 battery
The Oleo-Mac Bi580 battery uses an an advanced battery management system (BMS), which controls the process of charging and discharging the cells. This system ensures that batteries are not overcharged or over-discharged, extending their life and ensuring maximum capacity utilization.
Additionally:
- thermal protections protect the cells from overheating during intensive operation or charging,
- short-circuit protection devices minimize the risk of damage in case of improper use,
- outdoor-resistant housing design helps protect the inside of the battery from dust and moisture.
As a result, the battery retains its high efficiency for many charge/discharge cycles, and the user is assured that the equipment will be ready to work even after a long period of non-use.
Technical specifications of Oleo-Mac Bi580 battery (8.0Ah - 56V)
- Cell type: Li-Ion (lithium-ion)
- Capacity: 8.0 Ah
- Voltage: 56 V
- Energy Capacity: 403 Wh
- Charging time: about. 65 min (from 0 to 80%)
- Charging time: about. 80 min (from 0 to 100%)
- Approximate weight: about. 1.5-2.7 kg
- Purpose: 56V series mowers and garden equipment
Why choose the Oleo-Mac Bi580 8.0Ah 56V battery?
By choosing an Oleo-Mac Bi580 battery, you are investing in a a proven solution from a reputable manufacturer gardening equipment. You get a combination of high power, high capacity, and state-of-the-art lithium-ion technology for long-lasting, trouble-free use. It is an ideal choice for those who want to work efficiently, ecologically and comfortably, without annoying noise and exhaust fumes.
If you are looking for a reliable power supply for 56V equipment, the ability to work on a single battery for a longer period of time and fast charging make the Bi580 a product that translates into practical savings in time and money, as well as greater comfort in every stage of garden work.
FAQ - Frequently Asked Questions about Oleo-Mac Bi580 Battery (8.0Ah - 56V)
Question 1: To which devices the Oleo-Mac Bi580 8.0Ah 56V battery fits?
Bi580 battery is designed for Oleo-Mac lawn mowers and other garden power tools operating on 56V system. Its size and mounting are matched to the battery sockets in the devices of this series.
Question 2: How long does the Bi580 battery take to charge??
Charging time is about 65 minutes to reach 80% capacity, and about 80 minutes to charge the battery from 0 to 100% using a dedicated charger.
Question 3: How to check the battery charge level?
On the battery housing there are LED indicator lights (4 levels). When the indicator button is pressed, the corresponding LEDs light up, indicating the current state of charge.
Question 4: Can the battery be recharged when it is not completely discharged?
Yes. Thanks to Li-Ion technology, the Oleo-Mac Bi580 battery has no memory effect. It can be safely recharged at any time without risk of capacity loss.
Question 5: Is the Bi580 battery resistant to outdoor conditions?
The battery has a robust, reinforced housing with a ventilation system that protects the cells from common contaminants and allows heat dissipation. However, avoid direct contact with water and store it in a dry place as recommended by the manufacturer.
Question 6: How to take care of a battery to make it last as long as possible?
It is recommended to store the battery at a moderate temperature, avoid discharging it completely for a long time, and recharge it regularly, especially after the season is over. Proper operation and storage significantly extend the life of the cells.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
