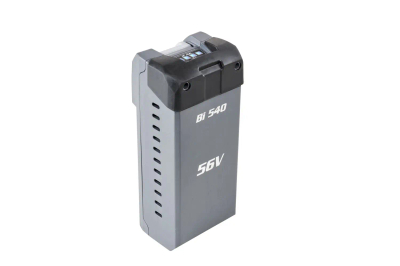

OLEO-MAC BI540 BATTERY (4.0AH - 56V) 54300002
- Oleo-Mac Bi540 4.0Ah 56V Battery 54300002 - powerful, lightweight (1.5 kg) Li-Ion 202 Wh power supply for 56V Oleo-Mac garden equipment. Fast charging 29/45 min, LED indicator, no memory effect. Ideal for mowers, trimmers, blowers.
What is the Oleo-Mac Bi540 Battery (4.0Ah - 56V) 54300002?
Oleo-Mac Bi540 Battery (4.0Ah - 56V) 54300002 is a high-performance lithium-ion power source designed for use with Oleo-Mac rechargeable gardening and municipal devices. With a voltage of 56V and a capacity of 4.0Ah, the battery provides a large amount of energy while maintaining compact dimensions and low weight, which translates into longer operation on a single charge and high user comfort. It is ideal for discerning home users, horticultural companies and green maintenance services who want reliability, mobility and quiet, emission-free operation.
This battery uses modern lithium-ion cells, which are characterized by the absence of memory effect, low self-discharge, and stable performance over their lifetime. LED indicator lights located on the case allow you to quickly check the battery charge level - the user has four easy-to-read charge levels, so you always know how much power is left to go.
Where the Oleo-Mac Bi540 4.0Ah 56V battery is mounted?
Oleo-Mac Bi540 4.0Ah 56V battery installs directly into the power socket of Oleo-Mac 56V-capable battery equipment. Its size is identical to the Bi525 2.5Ah 56V battery, so full size compatibility is maintained - you can easily swap batteries between devices, confident of a perfect fit.
Typical mounting locations for this battery are m.in.:
- oleo-Mac 56V cordless mowers,
- cordless trimmers and trimmers,
- leaf blowers,
- hedge trimmers and cordless pruning shears,
- other Oleo-Mac garden and municipal machines with 56V battery system.
When installing the battery pack, simply slide it into the device's guides until it snaps into place. Thanks to sturdy latches and a refined housing design, the battery is firmly seated, which is crucial for intensive work, such as when mowing large lawns or blowing leaves for long periods of time.
Oleo-Mac Bi540 4.0Ah 56V lithium-ion battery - high capacity and energy efficiency 202 Wh
One of the key advantages of the Oleo-Mac Bi540 battery is its energy capacity of 202 Wh. This means that the battery is able to power the device for a longer period of time, maintaining stable operating parameters. In practice, this translates into an opportunity:
- mow a larger area of lawn without having to stop work to recharge,
- longer trimming of hedges or trees without a drop in power,
- efficiently remove leaves and dirt from large areas, such as driveways, sidewalks and garden alleys.
The battery is based on technology Li-Ion (4.0 Ah / 56 V), so it has high energy density, low weight, and can be recharged multiple times without degrading performance. No memory effect allows you to recharge the battery at any time - no need to fully discharge it before connecting it to the charger. This is a great convenience and time-saver, especially during the busy gardening season.
Examples of daily use of high capacity 202 Wh:
- regular mowing of the home lawn of several hundred square meters on a single charge cycle,
- care of the garden in the busy season - working with a lawn mower and then a trimmer, using the same battery,
- maintenance of green areas at commercial facilities, such as hotels, guesthouses, schools, where quiet and emission-free operation is important.
Oleo-Mac Bi540 56V system battery - convenience of use, fast charging and low weight of 1.5 kg
Oleo-Mac Bi540 battery is designed for maximum user comfort. Its weight is only 1.5 kg, which significantly relieves the burden on handheld devices such as trimmers, hedge trimmers and leaf blowers. Lighter equipment means less arm, shoulder and back fatigue, which will be appreciated by both home users and professionals working many hours a day.
A big advantage is also express charging time:
- 29 minutes - 0 to 80% charge,
- 45 minutes - 0 to 100% charge.
Such fast charging allows virtually uninterrupted operation with two batteries - when one is powering the device, the other can be charged. This is a great convenience for gardening companies and people who value high efficiency in their work.
Thanks to the built-in LED indicator lights the user can check the battery charge level at any time. Four easy-to-read positions indicate the approximate energy level, making it easier to plan work and preventing unexpected discharge during important tasks, such as final mowing before a garden party.
Examples of practical use of comfort and charging speed:
- intensive mowing on the weekend - when the lawn is larger and the work is divided into several stages, the battery can be recharged in a short break,
- care of customers' gardens by service companies, where time is of the essence and the ability to return to work quickly after a short charge,
- everyday chores around the house-from trimming lawn edges to cleaning up leaves-without a noticeable drop in equipment power.
Oleo-Mac Bi540 4.0Ah battery - durability, safety and compatibility with 56V system
Oleo-Mac brand is known for producing robust and durable gardening equipment - the Bi540 4.0Ah 56V battery is a natural addition to this system. The battery case is designed to resistance to mechanical damage and difficult working conditions was as high as possible. This is important in a gardening environment, where the battery is exposed to dust, vibration, temperature changes and accidental impacts.
Li-Ion lithium-ion technology ensures not only high performance, but also voltage stability and safety of use. Built-in protection systems protect the battery from overcharging, over-discharge and overheating. As a result, the product retains its parameters for a long time, and the investment in the battery is economically justified - it does not require frequent replacement, as is the case with cheaper, less advanced technologies.
The battery's compatibility with other Oleo-Mac 56V equipment means you can build a a complete system of rechargeable tools based on one type of power supply. It's a convenient solution that reduces the number of batteries and chargers needed, and also helps keep the workplace tidy.
Examples of applications highlighting durability and compatibility:
- intensive use in a gardening company serving multiple properties daily,
- operation in conditions of increased humidity and dust - for example, when mowing lawns after rain or cleaning up large green areas,
- creation of a set of tools (mower, trimmer, shears, blower) powered by one type of battery - logistical convenience and financial savings.
Use of Oleo-Mac Bi540 battery (4.0Ah - 56V) 54300002 in practice
Oleo-Mac Bi540 battery will be used wherever it counts quiet, ecological and efficient operation without cables and exhaust fumes. It will be perfect for:
- home gardens - for mowing, trimming, pruning and cleaning up leaves,
- allotment gardens - where mains power is not always available,
- recreational areas and parks - where quiet operation is required, not disturbing recreation,
- servicing the areas around hotels, boarding houses, kindergartens, schools and public facilities,
- professional gardening and municipal companies that rely on ecological, modern solutions.
With fast charging, light weight, high capacity and maintenance-free, the Oleo-Mac Bi540 4.0Ah 56V battery is the optimal choice for anyone who wants to enjoy the full capabilities of the brand's battery equipment.
Technical specifications of Oleo-Mac Bi540 4.0Ah 56V battery
Battery type Lithium-ion (Li-Ion) Capacity 4.0 Ah Nominal voltage 56 V Energy capacity 202 Wh Charging time about. 29 min (0-80%), approx. 45 min (0-100%) Weight 1.5 kg Charge indicator LED, 4 levels Compatibility Oleo-Mac 56V rechargeable devices, size as Bi525 2.5Ah 56V Embedded manufacturer's description - Oleo-Mac Bi540 battery (4.0Ah - 56V)
Oleo-Mac Bi540 Battery (4.0Ah - 56V)
Modern lithium-ion cells.

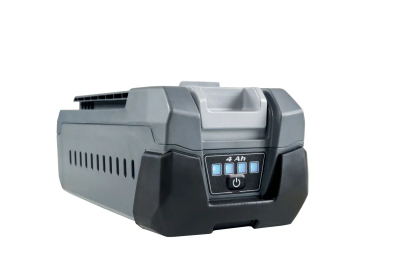

LED indicator lights inform the user about the level of charge in an easy and convenient way (4 positions).
Energy capacity of the battery: 202 Wh
Charging time: 29 min (0 to 80%) or 45 min (0 to 100%)
Weight: 1.5 kg.
The size of this battery is equal to that of the Bi525 2.5 Ah -56V battery.
Technical specifications:
Battery data Li-Ion (4.0 Ah/56 V) Charging time 45min (from zero to 100%) Weight 1.5 kg FAQ - Frequently asked questions about Oleo-Mac Bi540 4.0Ah 56V battery
1. To which devices the Oleo-Mac Bi540 4.0Ah 56V battery fits?
Oleo-Mac Bi540 4.0Ah 56V battery is designed for use with Oleo-Mac 56V rechargeable garden equipment. Fits m.in. for lawnmowers, trimmers, hedge trimmers, blowers and other brand machines designed for 56V batteries. With the same dimensions as the Bi525 2.5Ah 56V, it easily fits into the same sockets.
2. How long the Oleo-Mac Bi540 battery takes to charge?
Battery charging time is about 29 minutes to reach 80% capacity, and about 45 minutes to get a full 100% charge. The exact time may vary slightly depending on the condition of the battery, the ambient temperature and the type of charger used recommended by the manufacturer.
3. Can the battery be recharged or does it need to be completely discharged?
Oleo-Mac Bi540 Li-Ion battery has no memory effect, so it can be freely recharged at any time. There is no need to completely discharge before reconnecting to the charger - this is convenient and beneficial for battery life.
4. How to check the battery charge level?
The battery charge level can be checked using the built-in LED indicator lights. Pressing a button on the housing activates an indicator that easily shows the current energy status in four levels. This makes it easy to assess whether you can start the next task or whether it's worth recharging the battery sooner.
5. Is the Oleo-Mac Bi540 battery heavy?
No, the battery weighs only 1.5 kg, making it lightweight and comfortable to use. Low weight is especially important in handheld devices such as trimmers, shears and blowers, where every extra gram is felt during prolonged operation.
6. How to take care of a battery to make it last as long as possible?
It is best to store the battery in a dry place, at room temperature, away from sources of heat and moisture. Do not allow the battery to be completely discharged for long periods of time - it is a good idea to store the battery partially charged. Use only the dedicated charger recommended by the manufacturer and avoid using the battery in extremely low or high temperatures.
7. Is the battery suitable for professional use?
Yes, thanks to its high capacity of 4.0Ah, 56V voltage, fast charging time and robust design, the Oleo-Mac Bi540 battery will be perfect for professional gardening and municipal services. Enables intensive daily use in demanding working conditions.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
