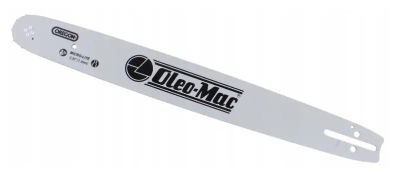

GUIDE FOR SAWS 20" - 51 CM .3/8"X.058" 1.5 MM 50310177R
- Professional 20" (51 cm) 3/8 "x.058" 1.5 mm chainsaw guide 50310177R with 72 links. Ideal for petrol and electric saws, provides precise, fast cutting of firewood and construction timber. Durable, safe, for home users
Guide bar for chainsaws 20" - 51 cm .3/8 "x.058" 1.5 mm 50310177R - professional durability and precision cutting for demanding users
20" CHAINSAW GUIDE - 51 CM .3/8 "x.058" 1.5 MM 50310177R is a high-end work piece for chainsaws, designed for intensive daily use. It is responsible for guiding the cutting chain in a stable and precise manner, which directly affects the quality, speed and safety of cutting. With a length of 51 cm (20") and a popular pitch .3/8 "x.058" and a guide link width of 1.5 mm, it is an excellent choice for both professional users and demanding amateurs.
The guide bar is mounted directly in the body of the chainsaw, in place of the standard rail mounting. In combination with a properly selected chain, it forms a complete cutting system, used for household, garden, forestry and construction work - from limbing branches, to cutting firewood, to preparing logs for carpentry processing.
The product is distinguished by its robust design, optimized geometry and technical parameters adapted to modern petrol and electric saws. Carefully selected dimensions of the guide allow for an ideal compromise between cutting performance, maneuverability and durability of the entire cutting system.
PROVIDER for saws 20" - 51 cm 50310177R - what it is and how it works?
A chainsaw guide bar is a metal rail on which the cutting chain travels. In the model 50310177R working length used 51 cm (20"), which allows you to cut both medium and thicker trunks. Pitch .3/8"x.058" and guide link width 1.5 mm provide an optimum fit for popular chains used on many brands of saws.
The role of the guide bar is to keep the chain stable in its track, minimize its vibration and ensure proper lubrication. It is the quality of the guide that determines a straight, even cut and the life of the entire cutting system. In daily operation, the guide is exposed to high loads, friction and heat, so precision manufacturing and the right material are crucial for user safety and equipment reliability.
In practice, this means that a well-chosen and well-maintained guide facilitates any type of work: from trimming branches in the garden, to cutting firewood, to more demanding applications in the construction of wooden structures, gazebos or carports.
Mounting a 20" 51 cm bar 50310177R in a chainsaw - ease, compatibility and safety
20" CHAINSAW GUIDE - 51 CM .3/8 "x.058" 1.5 MM 50310177R was designed to make its installation intuitive and quick for both professionals and occasional users. The guide bar is mounted to the body of the saw at the point of attachment of the rail - just loosen the nuts of the clutch cover, remove the old guide bar, put the new one on the mounting studs and the tensioner, and then put on the appropriate chain and adjust its tension.
Thanks to the standard scale .3/8"x.058" i link width 1.5 mm the bar fits many popular models of chainsaws from well-known manufacturers. It is important to match it with a cutting chain of the same pitch, width and number of links - in this model it is 72 links. Such a combination ensures smooth operation of the system, even wear of the components and high user comfort.
The safety of working with a chainsaw largely depends on the condition of the bar. Model 50310177R, thanks to its robust design and accurate guide groove finish, minimizes the risk of chain popping out, which is especially important when cutting at height, limbing or precision cutting wood parts.
Application of the guide for saws 20" - 51 cm .3/8 "x.058" 1.5 mm 50310177R in daily operation
Universal parameters of the guide 20" - 51 cm make the product perfect for a wide range of applications. It is ideal both for the individual user who regularly prepares firewood, and for companies engaged in landscaping, minor forestry or carpentry work.
In practice, the 50310177R guide is great for:
- cutting logs and logs of medium and larger diameter when preparing firewood,
- limbing and pruning tree branches in plots, gardens and orchards,
- cleanup work after windstorms and storms - removing fallen trees and thick branches,
- cutting structural elements made of wood in carpentry and joinery workshops,
- works in the construction of wooden structures - gazebos, terraces, sheds, garages or fences.
Thanks to the optimal length of 51 cm, the user gets a very good compromise between cutting range and tool control. The guide is not too heavy, which makes the saw easier to maneuver and reduces operator fatigue during prolonged operation.
Key technical features of the 20" chainsaw guide 50310177R and their benefits for the user
The following technical parameters determine the high functionality and durability of the bar 20" CHAINSAW GUIDE - 51 CM .3/8 "x.058" 1.5 MM 50310177R:
Chain saw guide bar:
- Length: 51 cm - 20"
- Pitch: .3/8"x.058"
- Guide link width: 1.5 mm
- number of cells: 72
Such selected parameters mean in practice:
- High cutting performance - length of 51 cm and chain with 72 links allow efficient cutting of thick parts, while maintaining precision.
- Versatility of applications - pitch .3/8 "x.058" is one of the most common standards, making it easy to select compatible chain and replacements.
- Stable operation of the chain - 1.5 mm link width ensures that the chain runs securely in the bar groove, which reduces its "floating" and the risk of jumping out.
For the user, this means less frequent tension adjustment, even chain wear and less vibration during operation, which contributes to comfortable and safe cutting for many seasons.
Why choose a 20" - 51 cm guide 50310177R? Durability, reliability and convenience of use
Investing in a guide bar 20" CHAINSAW GUIDE - 51 CM .3/8 "x.058" 1.5 MM 50310177R, you gain not only a replacement part, but, above all, the guarantee of stable, long-term operation of the chain saw. Robust construction, precision-machined guide groove, and a refined lubrication system significantly extend the life of the chain and the bar itself.
In everyday use, this means lower service costs, less frequent replacement of cutting parts, and the assurance that the saw will be ready to go whenever you need it - whether you're preparing wood for winter, cleaning up after a storm, or completing a timber construction job.
When you choose guide 50310177R, you are betting on a solution that delivers:
- reliable work in all conditions - From home gardening to intensive outdoor use,
- precise and even cuts - crucial in preparing structural components and cutting logs aesthetically,
- operator comfort - Limited vibration, stable chain running and easy control of the saw.
FAQ - Frequently asked questions about the 20" 51 cm chainsaw bar .3/8 "x.058" 1.5 mm 50310177R
1. For which saws the guide bar 50310177R fits?
The guide bar is designed for chainsaws that support 20" (51 cm) long bars and pitch chains .3/8 "x.058" and a link width of 1.5 mm. Before you buy, it's a good idea to compare these parameters with the specifications of your chainsaw and chain.
2. What chain will be suitable for this bar?
Match the guide bar with a pitch chain .3/8 "x.058", a guide link width of 1.5 mm and a number of 72 links. Maintaining these values will ensure proper operation of the cutting system.
3. How often should you replace the guide bar on your chainsaw?
The frequency of replacement depends on the intensity of use, the quality of lubrication and the type of wood being cut. The signs of wear and tear are m.in. uneven cuts, excessive chain slack, tip overheating or visible groove distortion. Regular inspection and rotation of the guide (up and down) extends its life.
4. Does the installation of guide 50310177R require specialized tools?
No, the installation of the guide bar is done with a standard chainsaw wrench (combining a nut socket and a flat screwdriver to adjust the chain tension). Just follow the chainsaw manufacturer's instructions and safety rules.
5. What kind of work is a 20" (51 cm) long guide best suited for??
The 20" guide bar is an all-purpose choice for cutting firewood, removing thick branches, trimming logs with sizable diameters, and carpentry and joinery work on wooden structures. Provides adequate depth of cut while maintaining good control of the saw.
