25" CHAINSAW GUIDE - 64 CM .3/8"X.058" 1,5 MM 50022041R
- Saw chain guide 25" 64 cm 3/8 "x.058" 1.5 mm 50022041R - professional, heavy-duty chain guide for intensive forestry and farm work. Ideal for cutting thick logs and firewood.
Guide bar for chainsaws 25" - 64 cm .3/8 "x.058" 1.5 mm 50022041R - professional length, precision cutting, maximum durability
25" CHAINSAW GUIDE - 64 CM .3/8 "x.058" 1.5 MM 50022041R is a high-quality chainsaw bar designed for intensive work in the forest, garden and construction sites. Appropriate length of 64 cm (25") and sturdy construction ensure efficient and precise cutting of even thick trunks and branches. It is the ideal choice for users looking for a reliable accessory for their chainsaw - both professionals and demanding home users.
The guide bar is responsible for guiding the cutting chain in the correct line, stabilizes the cut and affects the safety of work. Model 50022041R is designed to withstand long-term use, maintaining rigidity, resistance to overheating and high sawing culture.
What is a guide for chainsaws 25" - 64 cm .3/8 "x.058" 1.5 mm 50022041R?
Guide bar for chainsaws 25" - 64 cm .3/8 "x.058" 1.5 mm 50022041R is the metal work piece on which the cutting chain moves. Together with the chain, it forms the basic cutting set of any chainsaw. Its task is to keep the chain in the cutting axis, minimize its vibration and ensure smooth movement of the links during operation.
The guide is made of durable steel, resistant to deformation, which allows it to work in demanding conditions - when cutting hard wood, long-term load and frequent contact with resin and dirt. The 25" (64 cm) length allows effortless cutting of thick logs, large logs and branches, which will be appreciated by professional woodcutters as well as users preparing large amounts of firewood.
Where the guide bar for 25" - 64 cm chainsaws is mounted .3/8 "x.058" 1.5 mm 50022041R?
The guide bar is mounted directly in the body of the chainsaw - between the clutch drum and the side guard. One end of the guide bar is attached to the saw with the appropriate mounting holes and slots, and the other end remains free, working with the cutting chain.
To properly install the guide, you need to:
- remove the side cover of the saw,
- put the guide on the mounting pivots and properly seat it in the tensioner socket,
- fit a suitable pitch chain .3/8", width of guide link .058" / 1.5 mm and number of links 88,
- adjust the chain tension, tighten the guard and recheck the tension after the first few cuts.
Proper installation ensures long life of both the bar and chain and reduces the risk of the chain slipping or jamming during operation.
Application of the guide 25" - 64 cm .3/8 "x.058" 1.5 mm 50022041R
Guide 25" - 64 cm .3/8 "x.058" 1.5 mm 50022041R is designed for use with chainsaws in demanding conditions. It will be perfect for:
- Forestry work and timber skidding - felling of medium and thick trees, limbing, cutting of logs into long or shorter sections.
- Preparation of firewood - efficient sawing of logs, trunks and branches into fireplace or boiler sections.
- Building and construction work - trimming wooden structural elements, beams, columns or sleepers.
- Economic tasks around the house and farm - Removal of thick branches, old fruit trees, cleaning up the area after storms.
Thanks to its robust design and well-chosen parameters, the guide can cope with both soft soft coniferous wood and hard hardwood species, maintaining cutting stability and high performance.
Oleo-Mac/Oregon 25" chainsaw guide bar - durability, precision and safety for everyday use

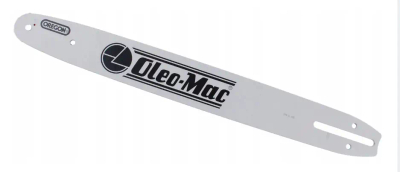

The presented guide, shown in the photo, represents the segment of long-life accessories, often used in chainsaws of reputable brands, such as Oleo-Mac with Oregon accessories. The combination of a properly selected shape, a solid steel profile and a careful edge finish means that the guide remains stable and does not easily warp, even during intensive use over many hours.
In daily use, this translates into:
- Even, clean cut - less tendency for the saw to "run away" to the side, which is especially important when cutting to length or at an angle.
- Better tool control - Stable chain guidance reduces vibration, improving comfort and precision of work.
- Greater security - Less risk of the chain getting jammed or suddenly blocked in the wood.
Such a guide is perfect for felling trees on clearcuts, cutting logs for lumber logs, as well as for any utility work where repeatability and repeatable accuracy of cutting is important.
Key technical data of the guide for chainsaws 25" - 64 cm 50022041R
The most important technical parameters of the product are summarized below:
Chain saw guide bar:
- Length: 64 cm - 25"
- Pitch: .3/8'' x .058''
- Guide link width: 1.5 mm
- Number of cells: 88
This combination of parameters means that the bar works with the popular type of chains with a pitch of 3/8", designed for both semi-professional and professional chainsaws. A groove width of 1.5 mm (0.058") and a link count of 88 ensure optimum mating with the chain, which has a direct impact on the operating culture, steering precision and life of the entire cutting set.
In practice, this means that the user gains:
- easy availability of replacement chains - The 3/8" pitch and 1.5 mm thickness are very popular standards,
- reliable cooperation with many models of saws - especially those with the power to make full use of the guides 25",
- optimum balance between cutting speed and durability - the combination of chain length and dimensions guarantees high performance.
Utility advantages of the 25" guide - comfort, efficiency and longer equipment life
Choosing the right guide bar has a direct impact on the comfort of your daily work with the saw. The 50022041R is designed to provide maximum support to the user in demanding tasks:
- Comfortable work for a long time - Stable chain guidance reduces vibration, so hands and arms get less tired. You will appreciate it when cutting several or more cubic meters of firewood in one day.
- Greater cutting efficiency - Precise 25" length allows for cutting thick logs without frequent turning of the material, which reduces processing time and increases the speed of work.
- Saw and chain protection - A well-fitted guide bar distributes loads evenly, which reduces wear on the clutch, drum and drive sprocket and extends the life of the chain.
In practice, this means real savings - you buy a new chain less often, the saw stays in full working order for longer, and the risk of costly repairs due to overloading is significantly reduced.
Forest, farm and business applications - how you will use the 50022041R guide on a daily basis?
Guide bar for chainsaws 25" - 64 cm .the 3/8 "x.058" 1.5mm 50022041R is a versatile solution that will work in many scenarios:
- Forestry and lumber work - Precise cutting of thick logs at an angle when harvesting lumber or construction timber.
- On-farm operations - Rapid preparation of firewood, removal of volunteer trees, regulation of tree canopies on baulks.
- Municipal and service work - cleaning up areas after windstorms, cutting down hazardous trees, caring for large trees in parks and on properties.
- Construction and renovation - Cutting beams, columns and scantlings, as well as work on wooden structures with larger cross sections.
Thanks to its universal parameters and robust design, the guide will be a reliable support both on professional assignments and at home cleaning or preparing wood for winter.
FAQ - Frequently asked questions about the 25" - 64 cm chainsaw bar .3/8 "x.058" 1.5 mm 50022041R
1. How to choose the right chain for this bar?
For 25" guide - 64 cm .3/8 "x.058" 1.5 mm 50022041R pitch chain should be used 3/8", width of guide link 1.5 mm (.058") and the number of drive cells 88. Only such a set will ensure proper operation, safety and long life of the attachment.
2. Is the 25" guide suitable for less experienced users?
Yes, but keep in mind that the 25" guide is mainly for larger saws and more serious work. For beginners, it is recommended to use shorter guides, easier to control. However, if you work with thicker wood on a regular basis and have a sufficiently powerful saw, this model will provide high performance with complete safety of use.
3. How to take care of the slide to serve as long as possible?
Regularly check the chain tension, make sure the chain is properly lubricated, and from time to time reverse the bar (swapping the top with the bottom) to wear the edges evenly. Avoid working with dull chains and contact of the bar tip with soil, rocks or metal parts - this will significantly extend its life.
4. Isn't the 25" length too long for backyard work?
If you occasionally cut single branches or small wood, a shorter guide bar may be more convenient. However, when preparing larger quantities of fuel or cutting thick logs, the 25" length proves to be very practical - it reduces the turning of the material and significantly speeds up the work.
5. Does this guide fit any chainsaw?
Not. To select a guide bar, check the saw's manual for the maximum allowable bar length and the compatibility of chain pitch and groove thickness. Model 50022041R works with saws suitable for 25" bar and chain with 3/8" pitch and 1.5 mm link width.
