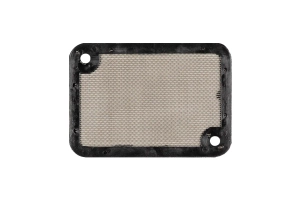

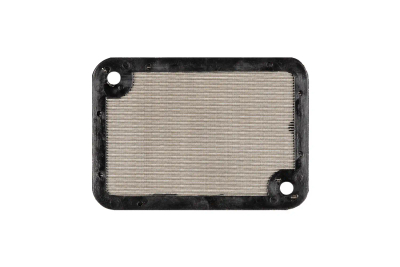

AIR FILTER FOR SOIL DRILL MTL51 4098025R
- Original Oleo-Mac air filter 4098025R for MTL51/MTL40 soil boring machine. Effectively traps dust and dirt, protects the engine from wear and tear, provides full power, easy starting and lower fuel consumption. Ideal for working in heavily dusty soil.
Oleo-Mac MTL51 / MTL40 air filter
Air filter for Oleo-Mac MTL51 / MTL40 soil boring machine, part number 4098025R, is the original consumable part responsible for effectively purifying the air sucked into the engine when drilling into the ground. The drill rig operates in an extremely dusty environment - particles of sand, soil and dust float in the air with each hole. The filter's job is to stop these contaminants before they reach the cylinder and combustion chamber.
Properly selected and regularly replaced oleo-Mac MTL51 / MTL40 air filter (4098025R) provides:
- clean air-fuel mixture and stable engine operation,
- higher working power when drilling even in heavy, dry and loose soils,
- reduced fuel consumption due to optimal combustion,
- protection of the cylinder, piston and carburetor from premature wear.
What is the air filter for soil drill MTL51 4098025R?
Air filter for MTL51 soil boring machine 4098025R is a simple but key component of the intake system of the Oleo-Mac two-stroke drill engine. Consists of a precision filter cartridge embedded in a robust frame, designed for use in dusty environments. Its function is to capture dust, dust, plant debris, clay particles and sand sucked in with the air during auger operation.
It is this inconspicuous element that largely determines the life of the engine and the comfort of your work. It gets clogged gradually, so replacing the filter is a typical maintenance activity that should be performed by every rig user - both professional and amateur users.
Where the MTL51 / MTL40 4098025R air filter is installed?
MTL51 / MTL40 air filter with the symbol 4098025R mounts in the factory air filter housing, located between the carburetor and the outer protective cover of the rig. In the Oleo-Mac MTL51 design, the filter works together m.in. z:
- air filter base (pos. 4098008AR),
- filter cover (pos. 4100371C),
- seals and fasteners of the entire intake assembly.
In practice, the replacement looks like this: after removing the filter cover, the user removes the used insert and inserts a new one in its place air filter 4098025R. Thanks to the factory dimensions and shape, this part fits perfectly into the socket, requires no modifications and guarantees a tight fit over the entire surface.
Application of Oleo-Mac air filter 4098025R
Original oleo-Mac air filter 4098025R it is intended for use in:
- oleo-Mac MTL 51 soil boring machine,
- oleo-Mac MTL 40 soil boring machine,
- and other compatible devices with identical filter system design.
It is used wherever the drilling rig operates in dusty conditions, m.in. at:
- drilling holes for fence posts and foundations,
- preparation for planting trees, shrubs and orchard posts,
- assembly of light structures (sheds, pergolas, irrigation systems),
- installation works (holes for probes, anchors, piles, chemical anchors).
In each of these applications, the filter must effectively separate soil particles from the air drawn into the engine - the condition of the filter determines whether the machine will maintain full power over a long duty cycle.
Technical data of air filter for Oleo-Mac MTL51 / MTL40 soil drill 4098025R
- Part type: air filter (filter cartridge of the intake system)
- Purpose: oleo-Mac MTL51 soil drill, Oleo-Mac MTL40 soil drill
- Part number / symbol: 4098025R
- External dimensions: about. 88 × 62 × 2 mm
- Status: new, original, replacement part
- Manufacturer/Brand: Oleo-Mac (Emak S.p.A.)
- Function: filtration of air sucked into the combustion chamber of a two-stroke engine
Why choose the original Oleo-Mac MTL51 / MTL40 4098025R air filter?
Using an original air filter is not only a matter of fit, but more importantly of safety and longevity of the engine. Cheap replacements often have a material structure that is too thin, a weaker seal or improper dimensions, causing dust particles to enter the cylinder, which act like sandpaper.
User benefits when using the original 4098025R filter:
- Protecting your engine from costly failures - clean intake means fewer scratches on the cylinder, longer piston ring life and less risk of seizure.
- Stable power and easy start-up - Correct airflow means optimal fuel-air mixture, fast revving and reliable operation under load.
- Lower fuel consumption - proper combustion with well-filtered air results in less combustion, which translates into real savings with frequent use of the machine.
- Hassle-free installation - the filter has exactly the same dimensions as the factory-installed part, so you can replace it yourself in a few minutes.
Engine protection and higher performance - in what situations is it necessary to change the filter?
Soil drills, such as Oleo-Mac MTL51 and MTL40, do a very demanding job. When drilling in dry, sandy soil, the filter must take on most of the dirt. Over time, its structure will become so clogged that it will begin to restrict the flow of air. The symptoms of a worn out filter are m.in.:
- a drop in rig power when drilling deeper,
- problems with getting into high gear,
- engine intermittency or "throttling" under load,
- increased fuel consumption and smoke.
In such cases, replacement with a new air filter 4098025R often immediately restores the efficiency of the machine. For professional installation crews, gardeners, construction companies or farms, this means less downtime on the job and greater predictability of equipment.
Easy maintenance and self-replacement of the Oleo-Mac 4098025R air filter
Regular maintenance of a soil drill doesn't have to be complicated. Oleo-Mac MTL51 / MTL40 air filter is among those components that the user can replace on his own, without specialized tools.
Sample service procedure:
- Place the drill rig on a stable surface and disconnect the ignition.
- Unscrew or detach the air filter cover.
- Remove the old filter cartridge and clean the inside of the housing of loose dirt.
- Insert new filter 4098025R, taking care of proper alignment and adhesion.
- Close the cover and make sure it is securely fastened.
Such an activity usually takes a few minutes and can even be done in the field, in between drilling more holes. That way, instead of running on a clogged filter, you simply put on a new one - and the engine thanks you with a longer life span.
Professional applications of MTL51 / MTL40 air filter in the field
Oleo-Mac MTL51 and MTL40 soil drills are machines that often work continuously - when establishing fences, planting orchards, building power lines or installing wooden structures. Under such conditions the quality and condition of the air filter play a key role.
Examples of daily applications where the 4098025R filter is of particular importance:
- Panel and mesh fences - with hundreds of holes for metal or concrete posts, the filter must work continuously, protecting the engine from dust from the drilled holes.
- Planting of trees and shrubs - in orchards, nurseries and farms, the drill rig makes many holes in different types of soil: from clay to sandy soil.
- Installation work - Drilling for anchors, advertising poles, point foundations or landscaping elements requires reliable drill rig operation - a clogged filter can stop the unit at a crucial moment.
Air filter for Oleo-Mac MTL51 soil boring machine 4098025R - an investment in reliability
Replacing an air filter is a small cost compared to repairing a worn cylinder, piston or carburetor. Therefore oleo-Mac filter 4098025R it is worth treating as an operating component, replaced regularly - especially when the drilling rig works in very harsh and dusty conditions.
In summary, by choosing this product, you gain:
- Original Oleo-Mac part - Full compatibility with MTL51 and MTL40 models.
- Effective protection of the drive unit - lower risk of failure and lower service costs.
- Higher operating culture of the drilling rig - Stable RPM, fast start-up, better load response.
- Simple installation - you will change the filter quickly and on your own, even in field conditions.
FAQ - Frequently asked questions about MTL51 / MTL40 4098025R soil boring machine air filter
Question 1: How often should you change the air filter in the Oleo-Mac MTL51 / MTL40 drill rig??
There is no one-size-fits-all value in working hours, as it all depends on conditions. For occasional use in clean, moister soil, the filter is usually enough for a few dozen work sessions. However, if you are drilling intensively in dry, sandy soil, it is a good idea to check the condition of the filter even after each working day and replace it whenever it is heavily soiled or clogged.
Question 2: Is it possible to clean the filter instead of replacing it?
Partial cleaning of the filter surface from loose dust can temporarily improve airflow, but this is no substitute for a full replacement. Over time, the filter material loses its properties. For engine safety, it is recommended regular replacement with a new filter 4098025R, especially when the driller is working professionally.
Question 3: Does the filter 4098025R fit models other than MTL51 and MTL40?
The filter was designed primarily for models Oleo-Mac MTL51 and MTL40. It can be used in other devices only if the manufacturer clearly indicates their compatibility with this catalog number. To avoid fitting problems, it is best to compare the part symbol with the machine nameplate or service manual.
Question 4: How to recognize that the filter is original?
The original Oleo-Mac air filter has the correct part number 4098025R, precisely made edges and properly selected filter material. When you buy from a reputable store, you get a brand-new, factory-supplied part designed specifically for the brand's soil drills.
Question 5: Can a worn out filter damage the engine?
Yes. An excessively dirty filter restricts the air supply, resulting in an overly rich mixture, decreased power and increased smoke. In turn, a damaged or leaking filter allows dust and sand particles to pass through, which accelerate the wear of the cylinder and piston rings. Therefore regular replacement of the filter 4098025R is a basic and inexpensive form of protection for your rig's engine.
