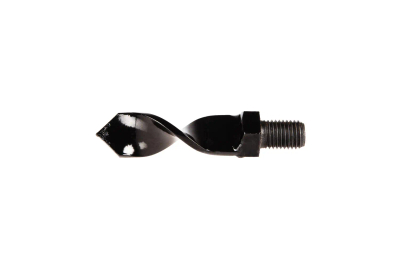

Guide tip for drill bit 100-500 mm 375100088AR is a specialized work piece designed for soil drills of the series MTL. It is responsible for precise guidance of the auger in the ground, facilitating the start of drilling, stabilizing the working path and increasing the safety of the whole process. It makes any drilling in the ground - from light domestic work to intensive professional applications - faster, more accurate and predictable.

Destination: MTL51, MTL81R, MTL85R.

What is the guide bit for the 100-500 mm drill bit 375100088AR and how it works?

Guide tip for drill bit 100-500 mm 375100088AR is a a metal piece attached to the beginning of an earth auger. Its task is to "pull" the drill bit into the ground and keep it aligned, which translates into a straight, level hole of the set diameter. Specially shaped spike and spiral groove provide high drilling aggressiveness while maintaining directional control.

Thanks to its robust construction and threaded end the guide lug is easy to install and remove, and can withstand the high axial and lateral loads encountered when working in diverse soil types - from soft soil to more compacted substrates.

Where the guide bit for the 100-500 mm drill bit 375100088AR is mounted?

The 375100088AR guide tip is mounted on the face of the earth auger with a diameter in the range of 100-500 mm. It is the first element coming into contact with the ground, so its quality has a direct impact on the comfort and speed of work.

The product is dedicated for use with drill / auger models:

• MTL51 - Compact drill rig for lighter and medium-duty installation work,
• MTL81R - A more powerful drill rig model designed for more demanding tasks,
• MTL85R - powerful drill rig for professional tasks.

The tip is screwed onto a standard auger thread - installation is done easily with a wrench, without the need for specialized tools. Such a solution makes it possible to quickly replace a worn component and minimize downtime on the construction site.

Use of guide bit for drill 100-500 mm 375100088AR in daily work

Thanks to its versatility and compatibility with popular MTL drill rig models, the 375100088AR guide bit is widely used in both backyard work, as well as in professional installation and fencing services. It works well m.in. at:

• drilling holes for fence posts - Metal, wood and panel,
• preparation of holes for point foundations small structures (sheds, gazebos, terraces, tool houses),
• works on installation of road signs, information and advertising boards,
• drilling for anchors, brackets, gate posts and elements of small garden architecture,
• gardening tasks, such as. planting trees and shrubs, when a larger hole diameter and depth are required,
• installation works - preparing holes for stakes, supports for above-ground installations (e.g., photovoltaic) in light ground.

In each of these applications, the guide bit is responsible for the precise and stable start of drilling, so that the hole does not "escape" and the work goes faster and without unnecessary corrections.

Guide tip for drill bit 100-500 mm 375100088AR - compatibility with MTL51, MTL81R, MTL85R and secure drill bit guidance

Choosing the right guide bit is crucial to effective drilling operation. Model 375100088AR has been designed specifically for use with drill rigs MTL51, MTL81R and MTL85R, which guarantees a perfect thread fit, proper torque transmission and an optimal angle of entry into the ground.

Thanks to this tip:

• Drill straight and without deviating from the axis - properly profiled guide spike makes the drill bit hold its direction from the first turns. This is especially important when installing fence posts or gates, where accurate alignment of the elements matters.
• You start drilling without "slipping" on the surface - aggressive, spiral geometry makes it easier to bite into the ground, including lightly hardened soil, speeding up work and reducing the need for scoring or undermining beforehand.
• Protect the auger and the drill rig gearbox - Precise guidance and even load influences less wear and tear on the other components of the set, which in practice means lower service costs and longer life of the entire tool.

Example of everyday use: when installing a long section of panel fence, the 375100088AR guide bit allows you to make dozens of identical post holes in a short time, without having to correct the position of the auger each time.

Durability, quality of workmanship and cost-effectiveness of the 375100088AR tip investment

The guide bit for the 100-500 mm drill bit 375100088AR is made of high quality, hardened structural steel, resistant to abrasion and dynamic loads generated when drilling in hard or rocky soils. The working surface is additionally protected by a protective coating, which reduces corrosion and makes it easier to clean the component after work is completed.

Key benefits from a sustainability perspective:

• Resistance to abrasive wear - spiral shape and appropriate hardness of the material make the tip maintain its cutting properties for a long time, even with intensive use.
• Stable mounting thread - Precision-manufactured threads are not easily knocked out, so the item can be unscrewed and screwed on repeatedly without losing connection security.
• Reducing operating costs - replacing the guide bit alone is significantly cheaper than buying a new auger or drill bit, making this component a a cost-effective service solution.

In practice, this means that the investment in the 375100088AR bit pays for itself quickly - both for the individual user who performs seasonal work in the garden, and for the fencing or construction company that uses the drills every day.

Safety and comfort with guide tip 100-500 mm 375100088AR

A properly selected and installed guide bit has a significant impact on the operator safety and the comfort of operating the drilling rig. The 375100088AR, thanks to its design, helps reduce undesirable phenomena such as sudden jerks or the auger escaping sideways.

Benefits to enhance safety and convenience:

• Less physical effort for the operator - The tip "pulls" the drill into the ground, so the operator does not need to over-pressure the auger, even with larger diameters (up to 500 mm).
• Stable operation of the drilling rig - even penetration into the ground reduces the risk of auger jamming and excessive vibrations transmitted to the hands.
• Easier to stay upright - especially in the first few inches of drilling, when ordinary drills tend to "run away" on the surface, the guide bit effectively maintains direction.

In day-to-day work, this means greater comfort when drilling multiple holes in a row - such as when building a fence around a property or putting up a line of posts for a carport.

Easy installation, service and operation of the guide tip 375100088AR

The guide tip for the 100-500 mm drill bit 375100088AR is designed to make its operation intuitive even for less experienced users. Just screw it onto the face of the auger, make sure the thread is fully tightened and you can start drilling.

Practical operating tips:

• Regularly check the condition of the thread - after a few intense days of work, it is worth checking whether the connection has loosened under vibration.
• Remove debris after drilling - Mud, clay or damp earth left on the tip can accelerate corrosion; a simple rinse with water or cleaning with a brush greatly extends the life of the component.
• If the tip wears out, replace it with a new one - noticeable blunting of the spike or deformation of the spiral affects the pace of work and safety. Replacement is quick, and the cost is several times lower than buying a new auger.

Thanks to its simplicity of use, the 375100088AR tip is an ideal choice for both private users and installation teams who need a reliable yet easy-to-service accessory.

Key features and benefits of the 100-500 mm drill guide bit 375100088AR

• Dedicated to MTL51, MTL81R, MTL85R drilling rigs - full compatibility and secure attachment.
• Auger diameter range 100-500 mm - versatile use in various earthworks.
• High-quality steel - resistance to abrasion, impact and deformation.
• Precision-made thread - quick assembly and disassembly, no backlash.
• Facilitated start of drilling - aggressive spike and spiral shape.
• Higher safety at work - stable auger guidance reduces the risk of sudden jerks.
• Lower operating costs - you replace only the tip, not the entire auger.

FAQ - Frequently asked questions about the 100-500 mm drill guide bit 375100088AR

Question 1: Will this tip fit my auger?
The 375100088AR guide tip is designed for use with drill and auger models MTL51, MTL81R and MTL85R. If you use one of these models and work in the diameter range of 100-500 mm, the tip will be the right choice.

Question 2: How often do you need to replace the guide tip?
The frequency of replacement depends on the intensity and operating conditions. For typical garden work, the item can serve for many seasons. In professional applications, when drilling in hard or rocky ground on a daily basis, it is recommended that the wear of the spike and spiral be checked regularly - replacement is advisable when dulling or deformation is evident, which increases drilling time or affects safety.

Question 3: Will the tip work in hard, clay soil?
Yes, the 375100088AR tip is designed to work in a variety of soil types, including clay and compacted soils. In very hard ground, however, the speed and downforce should be adjusted according to the drill manufacturer's recommendations so as not to overload the machine.

Question 4: Do you need special tools to install the tip?
No, assembly is done by screwing the tip onto the thread of the auger. Usually a standard wrench is all that is needed to tighten the connection slightly. It is only important that the thread is clean and undamaged.

Question 5: Can the bit be used on drill rigs from other manufacturers?
The element is dedicated to drilling machines MTL51, MTL81R, MTL85R. Theoretically, it can fit other augers with compatible threads and similar parameters, but you should always check the compatibility of the threads and the equipment manufacturer's recommendations before use. For complete confidence and safety, it is recommended to use the tip as intended.

Question 6: How to take care of the tip to make it last as long as possible?
After finishing the work, it is worth clean the tip from soil and mud, dry and store in a dry place. Do not store it submerged in moist soil or water. Periodic thread protection with a light coat of technical oil will help reduce corrosion.
