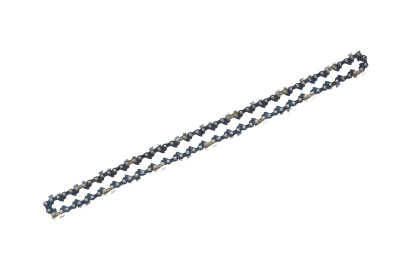

OLEO-MAC 1.5 MM CUTTING CHAIN .325" 78 GUIDE LINKS 30629008C
- Oleo-Mac 1.5 mm cutting chain .325" 78 links 30629008C - original chain for GSH 520, GSH 51, 510, 56, 560 chainsaws. High durability, half chisel teeth, fast and precise cutting of wood in the forest, garden and orchard.
Oleo-Mac 1.5 mm cutting chain .325" 78 guide links 30629008C is a high-end cutting accessory designed for Oleo-Mac brand petrol chainsaws. Designed for intensive work in the forest, orchard and garden, it provides fast, clean and precise wood cutting while reducing vibration and wear on the guide bar. Thanks to its robust construction and the use of half chisel links, the chain is perfect for both the discerning amateur and the professional chainsawist.
- Length 40 guide links
- pitch: .325"
- Chain groove width 1.5mm
- Semi-chisel type cutting teeth
Cutting chain for Oleo-Mac chainsaws : GSH 520; GSH 51, 510, 56, 560
Oleo-Mac 1.5 mm cutting chain .325" - what it is and why you should choose it?
Oleo-Mac 1.5 mm cutting chain .325" 78 guide links 30629008C is the original factory chain designed for Oleo-Mac petrol chainsaws. This is the working element of the chainsaw responsible for the proper cutting of wood - from small branches to thicker logs. It is made of high-quality, hardened wear-resistant steel, so it stays sharp for a long time and does not require frequent sharpening.
Designation .325" determines the pitch of the chain, that is, the distance between successive rivets. This is a very popular pitch in multi-purpose and semi-professional saws - it combines high cutting performance with good working culture and reduced vibration levels. Groove width 1.5 mm (0.058") ensures a perfect fit with the compatible bar, stable chain guidance and less risk of chain popping out of the groove.
78 guide links is responsible for the total length of the chain, and thus for matching the specific length of the bar. In practice, this means that you are assured of correct chain tension and comfortable chainsaw operation without stopping for adjustments.

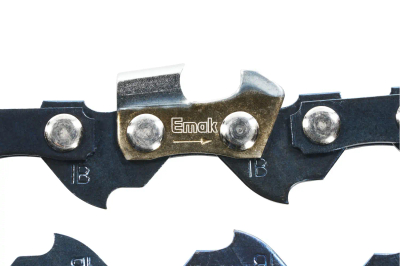

Cutting teeth of the type semi-chisel provide an optimal compromise between cutting aggressiveness and cutting edge durability. This type of tooth profile is less sensitive to contaminants in the wood (sand, soil, bark), so the chain stays sharp longer and better withstands harsh working conditions.
In daily use, this means for you:
- fewer sharpening breaks,
- high operating culture - the saw does not "jerk" when cutting into the wood,
- clean cut, which facilitates further processing of wood (chopping, storage, drying).
Where the Oleo-Mac 1.5 mm cutting chain is mounted .325" 78 guide links 30629008C?
The Oleo-Mac 30629008C cutting chain is mounted on the guide bar of a petrol chainsaw in combination with a suitable clutch drum and a pitch drive sprocket .325". This is a dedicated chain for the following models of Oleo-Mac chainsaws:
- Oleo-Mac GSH 520
- Oleo-Mac GSH 51
- Oleo-Mac 510
- Oleo-Mac 56
- Oleo-Mac 560
Thanks to the precise fit of the above models, installation is quick and hassle-free. Simply remove the saw's side cover, loosen the bar, place the new chain on the drive sprocket and bar groove, and then properly tension the chain according to the machine's instruction manual.
The chain can be mounted on both new and used guides, provided:
- the guide groove is 1.5 mm,
- the pitch of the drive pinion and guide are .325",
- bar length is compatible with 78 guide link chain.
Typical applications of mounting this chain:
- replacement of worn chain in work saws on professional construction sites,
- periodic service of a chainsaw used on a farm or in a gardening company,
- retrofitting the chainsaw with an additional set of chains for intensive work - such as seasonal firewood harvesting.
Application of Oleo-Mac 1.5 mm cutting chain .325" in daily work
Oleo-Mac 1.5 mm chain .325" 78 guide links 30629008C is designed as a chain versatile and efficient, ideal for a wide range of woodworking tasks. It works well for both light domestic work and more demanding tasks in the woods or on construction sites.
Example application areas:
- Work in the garden and orchard - pruning branches, removing dry branches, crown molding, cleaning up after storms. Semi-chisel teeth allow for smooth and controlled cutting, which is important for precise pruning of branches.
- Preparation of firewood - cutting logs into fireplace or stove sections, sawing logs and branches into smaller pieces. The chain retains its sharpness even when working for a long time on hardwood (e.g. oak, beech), which reduces fuel preparation time.
- Forestry and logging work - felling of medium-sized trees, trunk limbing, thinning of young trees. Stable chain operation facilitates precise directional cuts and reduces operator fatigue.
- Wood construction - cutting beams, scantlings, structural elements, preparing wood for roof trusses or sheds. Accurate and even cutting reduces the need for additional machining.
Thanks to the well-thought-out geometry of the teeth, the chain copes well with both soft wood (spruce, pine) and hard wood (oak, acacia). Properly driven and regularly lubricated, it allows to significantly speed up the work, while increasing the safety of the operator.
Key features and advantages of Oleo-Mac 30629008C cutting chain
When you choose this chain, you get a product developed by specialists with years of experience in the forestry equipment industry. The most important benefits for the user are:
- High durability and wear resistance - hardened steel and precision-made links ensure long service life even in intensive use. It saves you time and money because you replace the chain less often and use fewer consumables.
- Semi-cutting teeth - are characterized by a softer edge compared to full-hole teeth, which makes them more resistant to dulling due to contact with dirt. In practice, you can work longer between sharpening, and the chain "forgives" the occasional snag on the ground or sand in the bark.
- Stable, smooth operation of the saw - pitch .325" and a width of 1.5 mm ensure high operating culture, reducing vibration and recoil. This makes it easier to guide the saw along the cutting line and translates into greater safety, especially for less experienced users.
- Optimal fit for Oleo-Mac chainsaws - Designed specifically for GSH 520, GSH 51, 510, 56, 560 models. The original chain eliminates the problem of mismatching technical parameters and guarantees full use of the power of the device.
- High cutting performance - Aggressive but controlled tooth geometry enables rapid penetration into the material, resulting in shorter job completion times. This is especially important for seasonal logging, when every working hour counts.
In daily use, this means you can plan without worry:
- cleaning up a plot of land after a windstorm in one day,
- preparing firewood for the entire season in a few intensive work sessions,
- execution of horticultural and forestry orders without the risk of unplanned downtime due to chain damage.
Technical parameters of Oleo-Mac 1,5 mm cutting chain .325" 78 guide links
| Manufacturer | Oleo-Mac / Emak |
| Model/code | 30629008C |
| Product type | Chainsaw cutting chain |
| Chain pitch | .325" |
| Groove width (thickness of the guide link) | 1.5 mm (0.058") |
| Number of guide links | 78 |
| Type of cutting tooth | Semi-chisel (semi-chisel) |
| Destination | Oleo-Mac GSH 520, GSH 51, 510, 56, 560 chainsaws |
| Material | Hardened alloy steel |
| EAN | 8026619109059 |
How to take care of your Oleo-Mac cutting chain to make it last as long as possible?
Durability and operational safety of the chain largely depend on proper operation and maintenance. To get the most out of the Oleo-Mac 30629008C chain, it is worth following a few simple rules:
- Regular sharpening - sharpen the chain at the first signs of a decrease in cutting performance (increase in sawdust, the need to press the saw harder against the wood). Use a file with the correct diameter for the pitch .325".
- Proper chain tension - the chain should not sag from the bar, but must be able to be lifted slightly by hand so that the guide links do not come completely out of the groove. A chain that is too loose increases the risk of falling off, one that is too tight accelerates wear and tear.
- Proper lubrication - always take care of the correct level of chain lubrication oil. Dry chain heats up, dulls faster and can damage the bar.
- Avoiding pollution - try not to cut in the ground or in direct contact with stones and metal parts (nails, screws). Sand and foreign bodies drastically shorten the life of any chain.
- Storage - after the season is over, clean the chain, lightly oil it and store it in a dry place. This will protect it from corrosion.
With this kind of operation, the chain will serve you for a long time, ensuring not only high cutting efficiency, but also safety and comfort at work.
FAQ - Frequently asked questions about Oleo-Mac 1.5 mm cutting chain .325" 78 guide links 30629008C
1. Will this chain fit my Oleo-Mac chainsaw?
The chain is designed for Oleo-Mac chainsaws: GSH 520, GSH 51, 510, 56, 560. If you have one of these models and use a guide with a 1.5 mm groove and pitch .325", the chain will be suitable.
2. How to check if my guide is compatible?
Check the markings stamped on the bar or in the saw's manual. The pitch (.325"), groove width (1.5 mm) and number of guide links (78). Compatibility of these parameters means full compatibility.
3. For what kind of work is a chain with half chisel teeth best suited??
Semi chisel teeth are perfect for all-purpose work: cutting firewood, pruning branches, felling medium-sized trees or gardening work. They are more resistant to dulling than full-hole teeth, so they are especially recommended for work in varied conditions.
4. How often should you sharpen your chain?
Sharpening frequency depends on the intensity and working conditions. For typical use in a home garden, sharpening every few fuel fill-ups is usually sufficient. With intensive professional use in the forest, more frequent sharpening may be necessary - even once a day.
5. Can I replace the chain in my chainsaw myself?
Yes, replacing the chain is a maintenance activity provided by the manufacturer. Only a basic saw wrench is required. However, remember to always follow the device's instruction manual and take extra care when installing and tensioning the chain.
6. Is the original Oleo-Mac chain better than the replacements?
The original chain is designed specifically for specific chainsaw models, taking into account their power, chain speed and operating characteristics. This ensures optimum performance, greater durability and safety in use. In many cases, the original avoids the problems typical of poor-quality replacements, such as rapid dulling or difficulties with tension.
7. What if I am not sure if this chain model is correct?
Take a peek at the markings on the guide bar and in the saw's manual. If the parameters match: .325", 1.5 mm, 78 guide links and the saw is on the list of models (GSH 520, GSH 51, 510, 56, 560), you can confidently choose this chain. If in doubt, consult your service center or dealer with your chainsaw model and chain code 30629008C.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
