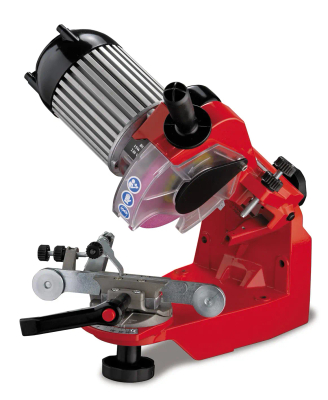

PROFESSIONAL ELECTRIC CHAIN SHARPENER JOLLY STAR 11359001
- Professional electric chain sharpener JOLLY STAR 11359001 - stationary 214 Watt workshop sharpener for fast, precise sharpening of 1/4" chainsaw chains, .325", 3/8", .404" and limiters
PROFESSIONAL ELECTRIC CHAIN SHARPENER JOLLY STAR 11359001 - MAXIMUM PRECISION SHARPENING OF CHAINSAW CHAINS
JOLLY STAR professional electric chain sharpener 11359001 is an advanced, stationary device designed for fast, repeatable and precise sharpening of almost all types of chains for petrol and electric saws. It is a solution created for demanding users - forestry companies, service companies, sawmills, municipalities, garden equipment service, as well as advanced individual users who appreciate perfect sharpness of cutting teeth and long chain life.
JOLLY STAR sharpener 11359001 is mounted stationary, usually on a sturdy workbench, worktop or special service bench. The body of the device has mounting holes that allow it to be permanently fixed to the ground with screws or bolts, which increases stability and safety of operation. This makes chain sharpening comfortable, accurate, and free of unwanted vibration, even with prolonged use.
The application of the sharpener includes all places where chainsaws are worked intensively: professional forestry companies, service companies, construction and roofing companies, fuel depots, sawmills, farms and technical warehouses. The device is suitable both for daily service of many chains and for occasional sharpening of chains of an individual user who expects service-level quality.
Professional Electric Sharpener for efficient and precise sharpening of almost all chainsaw chains.
Characteristics:
- rated voltage: 230 V
- frequency: 50 Hz
- power consumption: 214 W
- rPM: 2800 1/min
- weight: 6.0 kg
- sound pressure level Lp: 77 dB (A)
- vibration value ah (handle): < 2.5 m/s2
- maximum outer diameter of the disc: 145 mm
- bore diameter/motor shaft diameter: 22.2 mm
- possible disc thicknesses: 3.2 mm - 4.7 mm - 6.0 mm
- possibility to sharpen chainsaws with graduations: 1/4'', .325'', 3/8'', .404'', 3/4'' (after installing additional accessories)
Equipment:
- blade profiling gauge
- three chainsaw blades with graduations: 1/4'', .325'', 3/8'', .404'' and for pit stops
- wheel profiling whetstone
PROFESSIONAL JOLLY STAR SHARPENER 11359001 - WHAT IT IS AND WHO IT IS FOR?
Professional electric chain sharpener JOLLY STAR 11359001 is a specialized workshop tool designed for precision grinding of chainsaw cutting teeth. Instead of sharpening by hand with a file, the user fixes the chain in the sharpener's vise and then guides the grinding wheel to a precise angle. This makes it possible to achieve a perfectly repeatable shape and angle of each link, which is virtually impossible to achieve with traditional manual methods.
The device was developed with professional users in mind, but it will also work well in extended households with several chainsaws. Forestry companies and service providers can use it to sharpen multiple chains per day, achieving repeatable cutting quality. For the individual user, this means the ability to keep all chains in perfect condition without frequent service visits.
The sharpener supports a wide range of chain pitches (1/4'', .325'', 3/8'', .404'', 3/4'' - after using additional accessories), making it suitable for most popular models of saws found on the market. This is one device that will successfully handle chains on backyard saws, professional forestry saws, as well as specialized machines used in lumber mills.
WHERE AND HOW TO MOUNT THE JOLLY STAR CHAIN SHARPENER 11359001?
JOLLY STAR sharpener 11359001 is a stationary device that is best mounted on a stable, rigid work surface. The body, made of durable material, has factory mounting holes that allow it to be bolted to the table with screws or bolts. Thanks to such a solution, the sharpener remains stationary during operation, which translates into maximum accuracy and operator safety.
A standard single-phase 230 V / 50 Hz power supply is required for proper operation of the unit. Simply connect the sharpener to a power outlet, remembering to follow basic health and safety rules - use extension cords with the appropriate cross-sectional area and electric shock protection. Due to its relatively light weight (6 kg), the device can be moved between workstations, but a fixed location is recommended to ensure quick access during daily operation.
In practice, the sharpener is most often installed in chainsaw service shops, forestry workshops, hobbyist garages or professional woodworking shops. Positioned near the saw washing and maintenance station, it allows you to create a complete service center where you can clean, inspect and sharpen any chain in one place.
APPLICATIONS - WHERE THE JOLLY STAR ELECTRIC CHAIN SHARPENER WILL COME IN HANDY?
JOLLY STAR electric sharpener 11359001 is designed for heavy use and frequent sharpening of chains. It will be perfect for companies that use several or a dozen chainsaws every day - in forestry, landscaping, municipal management, construction, as well as in companies engaged in logging and processing firewood.
On households and farms, the sharpener will keep chains for chainsaws used for firewood cutting, orchard cleanup, structural timber preparation or repair and construction work in excellent condition. Instead of replacing dulled chains with new ones, users can restore them to factory sharpness in minutes, generating real savings.
The device also allows sharpening of the plunge stops, which is crucial for comfort and speed of cutting. Using the right discs, you can handle most standard chains used by the most popular brands of chainsaws. In practice, this means that JOLLY STAR can be the central service tool in any professional and semi-professional workshop.
POWER AND TECHNICAL PARAMETERS - WHY JOLLY STAR 11359001 WORKS SO EFFECTIVELY?
At the heart of the sharpener is a powerful 214 W electric motor, powered by 230 V / 50 Hz mains supply. Such power guarantees a stable speed of 2800 rpm./min, which translates into fast and even collection of material from the cutting teeth. Constant speed minimizes the risk of chain overheating and ensures high operating culture even under prolonged load.
The maximum outer diameter of the disc is 145 mm, and the diameter of the mounting hole is 22.2 mm. The sharpener works with 3.2 mm, 4.7 mm and 6.0 mm thick discs, which allows you to perfectly match the working tool to a specific type of chain. This gives the user optimum grinding performance on both thin chains for amateur saws and massive chains for professional saws.
Sound pressure level Lp at 77 dB(A) and a low vibration level ah < 2.5 m/s2 make working with the device relatively quiet and comfortable. In practice, this means less operator fatigue, better control of the machine and less risk of errors during sharpening, which directly translates into cutting edge quality.
WIDE RANGE OF SUPPORTED CHAINS - ONE SHARPENER FOR MULTIPLE SAWS
JOLLY STAR 11359001 has been adapted for sharpening chains with the most popular pitches on the market: 1/4'', .325'', 3/8'', .404''. In addition, with the use of appropriate accessories, it is also possible to sharpen chains with a pitch of 3/4''. Such a range makes the device versatile and perfect for places where different types of saws are operated - from lightweight models for backyard work to powerful forestry saws.
With interchangeable grinding discs and precise angle settings, the sharpener ensures that the factory tooth geometry is achieved. This is especially important for chains used in professional applications where cutting performance and operator safety are key. Evenly sharpened teeth guarantee a straight cut line and reduce the tendency of the saw to "pull" to one side.
The device also allows the machining of cavity stops to restore the original depth of cut. In practice, this means that after a full sharpening cycle, the chain regains almost factory cutting parameters, and the user can operate the saw faster and lighter, while extending the life of the bar and the chain itself.
STANDARD EQUIPMENT - EVERYTHING YOU NEED FOR PROFESSIONAL SHARPENING
Included with the sharpener, the user receives a gauge for profiling discs, three grinding discs designed for sharpening chains with 1/4'' pitches, .325'', 3/8'', .404'' and for machining cavity stops, as well as a whetstone for profiling discs. Such equipment allows you to immediately start working with most standard chains without having to buy additional accessories.
The disc profiling gauge allows you to maintain the correct shape of the discs, which is crucial for the quality of sharpening and the life of the discs themselves. The whetstone makes it possible to quickly refresh the abrasive edge, which translates into an even collection of material from each tooth of the chain. As a result, the sharpening process remains fast and efficient even after a long period of use of the sharpener.
The well-chosen equipment makes the JOLLY STAR 11359001 a complete service kit - after removing it from the package and properly assembling the device, you can immediately start sharpening chains under workshop or service conditions, achieving repeatable, professional results.
USER BENEFITS - WHY CHOOSE JOLLY STAR 11359001?
By investing in a professional chain sharpener from JOLLY STAR 11359001, you will first and foremost gain full control over the condition of your chains. Instead of relying on external service, you can restore full sharpness to even a very worn chain at any time. This not only saves time, but also real reductions in chainsaw operating costs - a well-sharpened chain runs lighter, cuts faster and uses less fuel or electricity.
Precision blade guidance and adjustable sharpening angles ensure that each tooth is ground identically. As a result, the saw does not "pull" sideways, and the risk of kickback (kickback) is reduced. This directly translates into greater operator safety, which is extremely important in intensive professional use of the equipment.
The unit's low weight, compact design, and low noise and vibration levels make operating the sharpener comfortable even during longer sharpening sessions. Intuitive settings and easy replacement of discs mean that both experienced service technicians and less advanced users who have previously used only hand files can cope with the device.
TECHNICAL SPECIFICATIONS - JOLLY STAR CHAIN SHARPENER 11359001
- Supply voltage: 230 V
- Frequency: 50 Hz
- Power Consumed: 214 W
- Speed: 2800 rpm./min
- Weight of the device: 6.0 kg
- Sound pressure level Lp: 77 dB(A)
- The value of the vibration ah (handle): < 2.5 m/s2
- Maximum disc diameter: 145 mm
- Disc / motor shaft bore diameter: 22.2 mm
- Disc thicknesses: 3.2 mm, 4.7 mm, 6.0 mm
- Range of sharpened chain pitch: 1/4'', .325'', 3/8'', .404'', 3/4'' (after using additional accessories)
- Accessories: disc profiling gauge, 3 grinding discs, disc profiling whetstone
- Purpose: sharpening chains of petrol and electric saws, sharpening plunge stops
FAQ - FREQUENTLY ASKED QUESTIONS ABOUT JOLLY STAR SHARPENER 11359001
1. Is the JOLLY STAR sharpener 11359001 suitable for home use?
Yes. Although it is a professional-grade device, it can be successfully used in households and farms. If you own one or more chainsaws and regularly prepare firewood, the investment in this sharpener will quickly pay off, as you will sharpen each chain yourself.
2. What chains can I sharpen with this sharpener?
The sharpener supports most standard chain pitches: 1/4'', .325'', 3/8'', .404'' and after using additional accessories also 3/4''. It is also possible to sharpen the pit stops, which allows you to comprehensively renew the chain.
3. Where is the best place to mount the sharpener?
Secure the unit to a sturdy, rigid workbench or countertop with screws passing through the mounting holes in the base. This will ensure that the sharpener will stand firmly and work safely and precisely.
4. Is the operation of the sharpener complicated?
Not. After a brief familiarization with the principle of operation and sharpening angle settings, operation is intuitive. The chain is clamped in a vise, the desired angle is set, and then the disc is lowered onto the cutting tooth. With repeatable settings, each tooth is ground the same way.
5. What are the benefits of regularly sharpening your chain on this sharpener?
Regular, precise sharpening ensures faster and lighter cutting, less fuel or energy consumption, higher levels of safety, and extended life of the chain and bar itself. With JOLLY STAR 11359001, you'll get professional-level sharpening quality.
6. Does the set include grinding discs?
Yes. In the set you will receive three discs designed for sharpening chains of different pitches and for working on pit stops, as well as a gauge for profiling them and a whetstone for keeping the discs in perfect condition.
7. Is the device noisy?
Sound pressure level is 77 dB(A), which is moderate for a sharpener of this class. However, the use of hearing protectors is recommended, especially for prolonged work in confined spaces.
8. How to take care of a sharpener so that it serves for many years?
After each work session, it is a good idea to clean the device of metal filings, check the condition of the discs and, if necessary, profile them using the included whetstone. Regular inspection of the power cord and fasteners will increase the safety and durability of the device.
