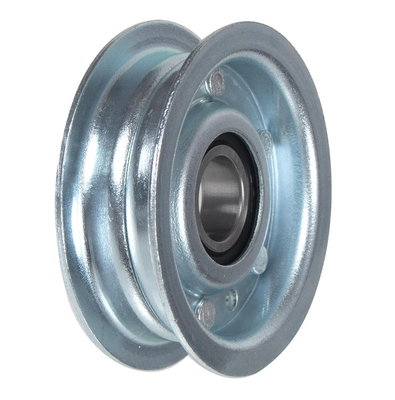

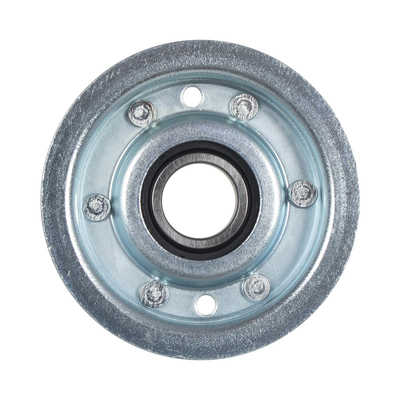

Castelgarden Stiga drive tensioner pulley 125601588/0, 25601576/0, 1134-6516-01 NZ1049
- Castelgarden Stiga drive tensioner pulley NZ1049 (125601588/0, 25601576/0, 1134-6516-01) - heavy-duty steel wheel with bearing for garden tractors. Guarantees proper belt tension, quiet and smooth drive operation. A perfect replacement for the original.
Castelgarden Stiga drive tensioner pulley 125601588/0, 25601576/0, 1134-6516-01 NZ1049 is a high-quality component of the drive system in garden tractors, responsible for the proper tension of the drive belt. Thanks to precise manufacturing and the use of durable materials, it guarantees stable operation of the belt transmission, smooth starting and even power transfer from the engine to the transmission or drive bridge. This is a key component for reliable tractor driving during mowing, transportation and other garden work.
Pulley NZ1049 is installed in the drive tensioner system of tractors and ride-on mowers of the brands Castelgarden and Stiga, as well as in selected related machines using the same design and part numbers: 125601588/0, 25601576/0, 1134-6516-01. The product is an ideal factory replacement with dimensions in line with the original, making it easy to install and ensuring full compatibility with the existing drive system.
Application in practice: tensioner pulley maintains proper tension on the drive belt during tractor operation. When the belt is too loose, the tractor loses power, jerks or stops driving altogether. A worn, worn out or seized pulley leads to accelerated belt wear, excessive noise, vibration and a decrease in operating comfort. Replacement with new NZ1049 pulley restores quiet, smooth and reliable drive operation.
Castelgarden Stiga drive tensioner pulley NZ1049 - construction, installation and key dimensions
Presented castelgarden Stiga drive tensioner pulley NZ1049 has been designed for trouble-free installation in place of the worn original part. Its geometry, diameters and height meet the design requirements of tractors, so no modifications or additional spacers are needed during replacement. The product is ready for immediate installation after removal from the package.
What is the drive tensioner pulley? It is a steel-bearing component that mates with the drive belt. Mounted on the arm or carriage of the tensioner, the wheel guides the belt and maintains its proper tension. As a result, the belt transmission operates with minimal losses and the travel drive responds smoothly to the operator's movements. The tensioner pulley is one of the most stressed components of the system - it works under high pressure and at high speeds, so it must be made of materials with increased strength.
Where the NZ1049 pulley is installed? This component is mounted in the drive section of a garden tractor - usually between the engine pulley and the transmission or drive bridge pulley. Depending on the design of the machine, it can serve a function:
- drive belt guide wheel,
- tension wheel controlled by a driving lever or pedal,
- of the component that co-forms the mechanism of the driving clutch.
When installing a new NZ1049 pulley, seat it on the pin or bushing of the tensioner, making sure that the bearing runs smoothly and without play. Thanks to the dimensional compatibility with the original, the replacement runs smoothly and the risk of a misfit is minimized.
Dimensions of the drive tensioner pulley NZ1049:
Dimensions:
Outer diameter (A): 63 mm
Inside diameter (B): 52 mm
Overall height (C): 20 mm
Strap width (D): 16 mm
Hole diameter (E): 15 mm
Such dimensions ensure that the standard drive belts used in Castelgarden and Stiga tractors are correctly guided and properly aligned in the wheel groove, which minimizes slippage and extends the life of the belt.
Example of application in daily work: when mowing a large lawn with numerous hills and curves, the tractor's drive operates with high load variability. The NZ1049 pulley, with the right dimensions and precision manufacturing, keeps the belt in alignment and prevents it from falling off during sudden maneuvers, allowing you to finish the job without unplanned downtime.
Durability, build quality and comfort of Castelgarden Stiga tensioner pulley 125601588/0
Castelgarden Stiga drive tensioner pulley 125601588/0, 25601576/0, 1134-6516-01 NZ1049 was made of high-grade steel, resistant to deformation and abrasion. The working surface of the wheel is smooth and evenly profiled, which significantly reduces belt wear and reduces the generation of vibration and noise during machine operation.
Built-in rolling bearing for light, smooth operation even at high speeds. The bearing is adequately protected from dirt - dust, grass or small stones - which in garden conditions could quickly lead to seizure. As a result, the entire drive system retains its efficiency for a long time, even under heavy use.
User benefits:
- Lower service costs - durable pulley reduces wear and tear on drive belts, reducing the need for frequent belt replacement.
- Higher comfort at work - less vibration and lower noise levels translate into more pleasant operation of the tractor during long hours of mowing.
- Operational safety - Stable belt tension minimizes the risk of belt rupture during driving and thus sudden loss of drive.
In everyday use-whether mowing extensive backyard areas, tending to recreational areas, or mowing on plots with varied terrain-the reliability of components like the tensioner pulley translates directly into less downtime, fewer service visits, and greater productivity.
Use of NZ1049 pulley in Castelgarden and Stiga tractors - compatibility and replacement
Drive tensioner pulley NZ1049 is designed primarily for tractors and ride-on mowers of the brands Castelgarden i Stiga, which use the part numbers listed: 125601588/0, 25601576/0, 1134-6516-01. This is a proven replacement for many popular models from these manufacturers, used both in home gardens and in professional landscaping companies.
Typical signs of tensioner pulley wear that indicate the need for replacement:
- perceptible play or radial runout of the wheel,
- loud operation of the drive (squeaking, humming, rasping),
- excessive heating of the bearing,
- cracks, abrasion or deformation of the belt raceway surface,
- frequent dropping or rapid wear of the drive belt.
Replacing the tensioner wheel is a service activity that can be done in-house with basic technical skills. In practice, it is as follows:
- Immobilize the tractor and disconnect the ignition for safety.
- Removal of the drive belt covers according to the manufacturer's instructions.
- Loosen the belt tension and remove the old wheel from the tensioner axle.
- Checking the condition of the belt and other wheels and guides.
- Installing a new NZ1049 pulley and reinstalling the belt.
- Adjustment of belt tension and control of the correctness of its guidance.
Example of daily use: the owner of a Castelgarden tractor used for regular mowing of several thousand square meters of lawn notices that the machine starts with a delay, and there are momentary "slips" of the drive while driving. Upon verification, it turns out that the worn tensioner wheel has noticeable play and an uneven raceway. Replacing it with a new wheel NZ1049 restores the tractor to full efficiency and allows it to work again in a stable rhythm, without jerks and loss of power.
The most important technical parameters of the drive tensioner pulley NZ1049 - data for demanding users
- Purpose: drive tensioner pulley for Castelgarden tractors and ride-on mowers, Stiga and other models using the same design solutions.
- Replacement part numbers: 125601588/0, 25601576/0, 1134-6516-01, NZ1049.
- Outer diameter (A): 63 mm.
- Inside diameter (B): 52 mm.
- Overall height (C): 20 mm.
- Strap width (D): 16 mm - adapted to popular drive belts used in garden tractors.
- Bore diameter (E): 15 mm - under standard tensioner pins and bushings.
- Weight: about. 0.140 kg - optimum weight for stable belt guidance.
- Material: high-quality steel, properly protected against corrosion.
- Bearing type: roller bearing for smooth operation and low resistance to motion.
Thanks to the above parameters, the NZ1049 pulley is ideally suited to the requirements of users expecting both high durability and full compatibility with their machines. This is a product that will work well for heavy-duty tractors operating several hours a week, as well as for machines used occasionally, where a reliable start after a long break is important.
An application example for the demanding user: green space maintenance company uses several Stiga tractors during the season from spring to late autumn. Regularly replacing consumable parts, including tensioner wheels, with quality parts such as NZ1049 reduces unplanned machine downtime, allows you to better plan your mowing schedule and builds a professional company image by completing orders on time.
FAQ - frequently asked questions about Castelgarden Stiga NZ1049 drive tensioner pulley
1. Will the NZ1049 pulley fit my Castelgarden or Stiga tractor?
To be sure of compatibility, compare the part numbers listed in the manual or on the old part with the markings: 125601588/0, 25601576/0, 1134-6516-01, NZ1049. If any of them agree, the pulley will be a suitable replacement. It is also a good idea to check the dimensions of the old wheel and compare them with the given technical parameters.
2. How to recognize that the tensioner pulley is worn and needs to be replaced?
Wear and tear of the tensioner pulley is indicated by such symptoms as a squealing or loud noise from around the drive, noticeable play on the bearing, visible cracks or wear on the raceway, as well as frequent belt drop or problems starting the tractor. If you notice any of these symptoms, it is worth replacing the wheel with a new one as soon as possible.
3. Do I need specialized tools to replace the NZ1049 pulley?
In most cases, basic workshop tools will suffice: socket or open-end wrenches, possibly safety pliers, and a screwdriver to remove the covers. However, it is important to follow safety rules when working - immobilize the machine, disconnect the ignition and work on a stable surface.
4. When you replace the pulley, do you always have to replace the drive belt as well?
It is not absolutely necessary, but it is recommended to check the condition of the belt at the same time. If the belt is cracked, frayed, has obvious scorch marks or is overstretched, it's a good idea to replace it with a new one right away. Combining a new NZ1049 tensioner pulley with a worn belt may not have full repair effect.
5. How to take care of the tensioner pulley to make it last as long as possible?
Regularly clean the area around the drive from grass residue and dirt, check the belt tension and the condition of the guards. Avoid operating the tractor with excessive load, and once a season carry out an inspection of the entire drive system. This will ensure that the NZ1049 pulley and other transmission components will work stably for a long time.
