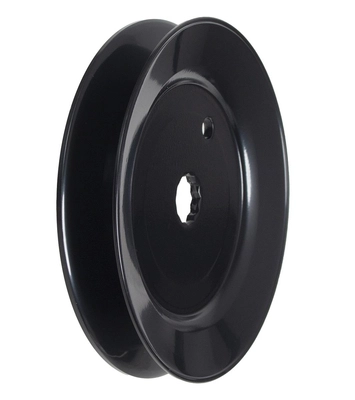

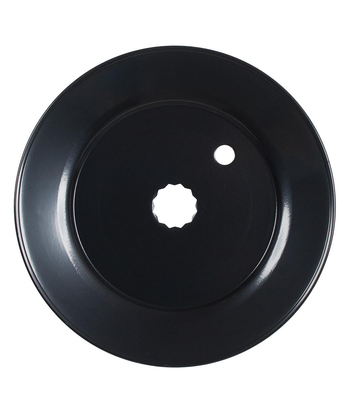

Mtd 600 series cutter shaft pulley 756-0969 NZ1048
- MTD 600 series blade shaft pulley 756-0969 NZ1048 - original replacement for garden tractors. High quality steel, 17.5 mm spline bore, 17 mm strap. Guarantee a precise drive and an even lawn cut.
MTD 600 series cutter shaft pulley 756-0969 NZ1048 is a high-quality component of the drive system, responsible for the efficient transmission of power from the V-belt to the blade shaft in MTD 600 series tractors and garden mowers. Properly selected and precisely made pulley guarantees even blade operation, clean lawn cutting and long, trouble-free operation of the entire machine.
The product was designed as a spare part for selected models of mTD tractors, ensuring a perfect fit on the knife shaft and drive belt. The splined mounting hole and optimally selected diameters ensure stable seating of the pulley and reliable torque transmission.
Dimensions:
Outer diameter (A): 128 mm
Inside diameter (B): 95 mm
Overall height (C): 23 mm
Strap width (D): 17 mm
Bore diameter (E): spline 17.5 mm
Logistics parameters:
Package length: 142 mm
Package width: 140 mm
Package height: 40 mm
Product weight: 0.468 kg
Product code/index: NZ1048
EAN code: 5906434251252
MTD 600 series cutter shaft pulley 756-0969 NZ1048 - what it is and why it is crucial?
MTD 600 series 756-0969 NZ1048 knife shaft pulley is a precision stamped steel belt transmission component, mounted directly on the knife shaft of MTD tractors and riding mowers. Together with the V-belt and the other wheels, it forms the system responsible for driving the cutting blades.
During operation, the tractor engine transmits power to the belt, and the belt - thanks to the appropriate profile of the pulley - sets the blade shaft in motion. On the condition of this element depends:
- the uniformity and stability of knife rotation,
- quality of grass cutting (no uprooting, fraying, "ragged" lawn),
- v-belt life (correct profile and 17 mm width minimize wear),
- operational safety of the entire cutting system.
In practice, this means that a worn, bent or corroded pulley is worth replacing with a new one - such as the following NZ1048 - to restore the original working culture and reliability of the tractor.
Where the MTD 756-0969 NZ1048 knife shaft pulley is installed and what machines it fits to?
The 756-0969 NZ1048 pulley is mounted directly on the the knife shaft in the cutting unit tractor - usually in the area of the knife spindle (spindle). Mounting hole in the form of spline 17.5 mm guarantees secure seating on the spline end of the shaft and eliminates the risk of the wheel rotating relative to the axle.
Typical product applications:
- mTD 600 series garden tractors,
- self-propelled/ride-on mowers with a belt-driven cutting deck with a width of 17 mm,
- selected models of related brands cooperating with MTD (after verification of part number and dimensions).
The pulley is designed both as a service part for scheduled replacement of worn parts and in case of failure - for example, after a belt breakage, jamming of the blade on a stone or a strong impact on an obstacle.
Precise dimensions and fit - the key to trouble-free installation
One of the most important advantages of MTD 756-0969 NZ1048 knife shaft pulley is perfect dimensional fit. Properly selected diameters and heights ensure that the component will work in exactly the same position in which the original manufacturer's part was located.
Key technical dimensions:
- Outer diameter (A): 128 mm - Ensures proper belt guidance and stable power transmission.
- Inside diameter (B): 95 mm - Is responsible for the shape of the working surface of the belt, affecting its tension.
- Overall height (C): 23 mm - Allows the wheel to be properly seated in the cutting unit and maintains the proper geometry of the system.
- Strap width (D): 17 mm - the wheel is suitable for popular 17mm wide V-belts, making it easy to select replacement parts.
- Bore diameter (E): spline 17.5 mm - precise, reinforced shape provides a perfect fit to the knife shaft and minimizes the risk of backlash.
By maintaining all key parameters, the product can be used as a direct replacement for the factory pulley. Installation in most cases is limited to the removal of the old component, cleaning of the shaft and installation of the new wheel, without the need for modifications or additional spacers.
Examples of practical application:
- seasonal replacement of worn components in the tractor service before the start of intensive spring work,
- quick repair after a broken belt, when it turns out that the cause of the malfunction is also a spun or cracked pulley,
- regeneration of older models of MTD tractors, which after replacing the pulleys regain full efficiency and working culture.
Durability, reliability and safe operation with MTD NZ1048 pulley
MTD 756-0969 NZ1048 knife shaft pulley is made of high quality steel and coated with a resistant coating that protects against corrosion and mechanical damage. As a result, the product retains its properties even during intensive use in harsh garden conditions - in contact with moisture, mud or plant residues.
Key user benefits:
- Longer life of the cutting system - Stable belt guidance and even blade operation reduce vibration and bearing loads, resulting in lower failure rates.
- Safe operation - A solidly seated pulley with the right profile reduces the risk of the belt slipping during operation and the blades coming to an uncontrolled stop.
- Better mowing quality - The correct rotation of the blades ensures an even cut, which keeps the lawn in impeccable condition.
In everyday use, this means that a tractor equipped with the new NZ1048 pulley runs quieter, evenly and without jerks. The lawn is smooth after mowing, and the user can focus on work instead of worrying about further breakdowns.
MTD 600 series cutter shaft pulley 756-0969 NZ1048 - ideal for service and conscious users
The presented pulley is a product that will be perfect for both professional gardening services and demanding individual users. Clearly defined dimensions, part code NZ1048 and compatibility with MTD's 600 series make it easy to identify and select the right part.
Example usage scenarios:
- service workshop, which performs a comprehensive inspection of the customer's tractor before the season and prophylactically replaces worn pulleys to avoid complaints,
- the owner of a large property who takes care of the technical condition of his tractor on his own and orders an NZ1048 pulley as part of a planned upgrade of the cutting system,
- a landscaping company for which equipment reliability is key - replacing key drive components minimizes downtime.
Investing in mTD 600 series cutter shaft pulley 756-0969 NZ1048, you are choosing a proven, durable and precisely made component that will restore your tractor to full performance and allow you to take full advantage of its capabilities.
Technical specifications of MTD 756-0969 NZ1048 knife shaft pulley
- Purpose: blade shaft pulley for MTD (600 series) tractors/lawnmowers
- Part number: 756-0969
- Commercial Code: NZ1048
- Outer diameter (A): 128 mm
- Inside diameter (B): 95 mm
- Overall height (C): 23 mm
- Strap width (D): 17 mm
- Bore diameter (E): spline 17.5 mm
- Material: steel
- Protective coating: lacquer / powder coating (black color)
- Weight: 0.468 kg
- Purpose: blade drive system, belt transmission of garden tractors
FAQ - Frequently asked questions about MTD 600 series cutter shaft pulley 756-0969 NZ1048
1. Will the NZ1048 pulley fit my MTD tractor?
First of all, check the original part number in the machine documentation (instruction manual, parts catalog) or on the old pulley. If the specification includes the number 756-0969 or dimensions (128 mm outside diameter, belt width 17 mm, spline bore 17.5 mm) are identical, the NZ1048 wheel will be a suitable replacement.
2. Can I do the pulley replacement myself?
Yes, in many cases the replacement is possible to do it yourself, provided that safety rules are observed. Before starting work, disconnect the spark plug, protect the machine from accidental starting and use the manufacturer's instructions. If you are inexperienced, it is recommended to install at an authorized service center.
3. What symptoms may indicate the need to replace the pulley?
The most common signals are: noisy operation of the cutting system, belt slippage, visible grooves or pitting on the wheel surface, uneven grass cutting, frequent belt breakage. In such a situation, it is worth checking the condition of the pulley and the entire drive.
4. Which V-belt the NZ1048 pulley works with?
The wheel is designed to work with V-belts of 17 mm wide. For best results, it is recommended to use good quality belts, designed for use in garden tractors.
5. Is the pulley protected from corrosion at the factory?
Yes, the MTD 756-0969 NZ1048 pulley is made of steel with a durable protective coating (lacquer / powder coating), which significantly reduces the risk of corrosion and extends its life, even with intensive use in humid environments.
6. How to store the spare pulley if it will not be installed right away?
It is best to store them in a dry, clean place, in the original packaging, away from chemicals and moisture. This will keep your work surfaces in perfect condition and ready for installation at any time.
7. Will replacing the pulley improve mowing quality?
If your existing pulley was worn, deformed, or corroded, yes, replacing it with a new, precision-made NZ1048 pulley will positively affect the evenness of blade rotation, the stability of belt operation, and ultimately the quality of grass cutting.
