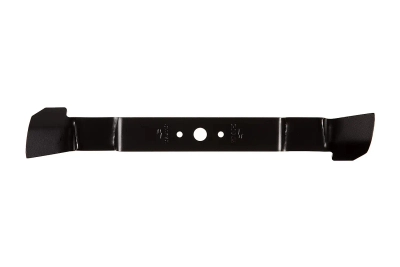

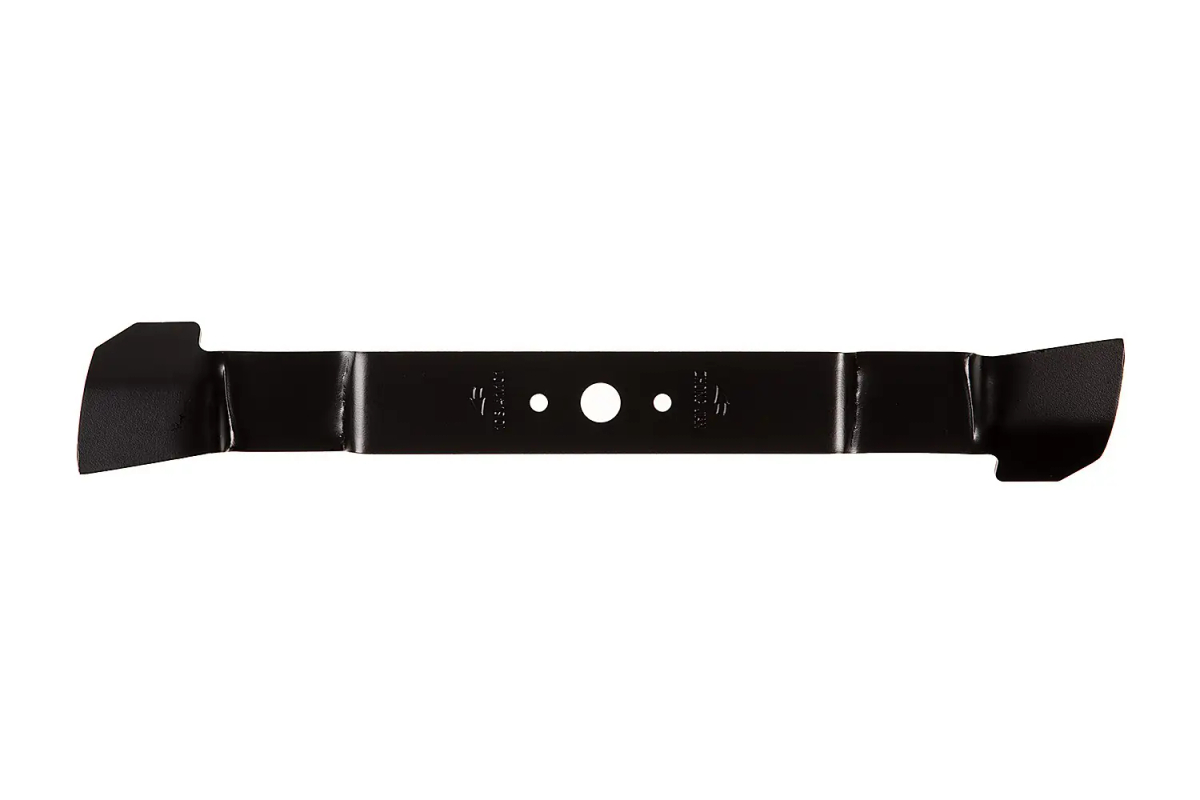

KNIFE 545MM FOR COMFORT SERIES TRACTOR OM109R TS000146R
- Knife 545mm for COMFORT OM109L/OM109R series tractor TS000146R - tough, hardened steel blade. A perfect fit (20 mm bore, 8.5 mm sides, 65 mm spacing) guarantees precise, even grass cutting and safe operation t
545MM BLADE FOR COMFORT SERIES TRACTOR OM109R TS000146R - PROFESSIONAL BLADE FOR PRECISION GRASS CUTTING
KNIFE 545MM FOR COMFORT SERIES TRACTOR OM109R TS000146R is a high-quality cutting blade designed for COMFORT series garden tractors. Designed for precision mowing, long life and trouble-free operation, it is the ideal choice for users looking for a proven replacement or original operating equipment for their tractor.
The blade is made of durable steel with increased hardness, which provides resistance to abrasion, mechanical damage and deformation. Specially contoured blade tips ensure that the grass is effectively lifted and evenly cut, resulting in a perfect-looking, well-groomed lawn.
KNIFE 545MM FOR COMFORT SERIES TRACTOR OM109R TS000146R - EXACT SPECIFICATIONS AND PERFECT FIT
What is the 545MM KNIFE for the COMFORT OM109R series tractor TS000146R?
This is the working element (cutting blade) mounted on the garden tractor, responsible for cutting the grass while the mower is running. It is the quality and condition of the blade that determines the quality of mowing, the evenness of the cut and the appearance of the lawn. The described model has been developed for users of COMFORT OM109 series tractors and complies with the requirements of the equipment manufacturer.
Where the 545MM KNIGHT KNIGHT for COMFORT OM109R series tractor TS000146R is mounted?
The blade is mounted directly on the working shaft in the housing of the cutting unit (deck) of the garden tractor. It is bolted to the hub with a center bolt using the center hole and two side locating holes. Proper installation ensures safe and stable blade operation, without vibration or unwanted backlash.
Application of 545 mm blade for COMFORT OM109R tractor
The blade is designed for standard and intensive grass cutting on home lawns, recreational areas, playing fields, allotments and larger green spaces. It will be ideal for both grooming neat, level lawns and mowing slightly taller grass in commercial areas.
Technical parameters:
- length: 545 mm
- width: 55 mm
- Ø center hole: 20 mm
- Ø side hole: 8.5 mm
- distance between side openings: 65 mm
- purpose: for COMFORT Series OM109L / OM109R tractor
- material: steel with increased hardness
- color: black
These precise dimensions guarantee a perfect fit of the blade to the intended tractor model, which translates into stable and safe operation of the entire cutting system.
DURABILITY AND RELIABILITY OF COMFORT TRACTOR BLADE OM109R TS000146R IN DAILY OPERATION
The 545 mm blade for the COMFORT OM109R series tractor TS000146R is made of high-grade steel, which undergoes hardening and proper finishing processes. This has resulted in an optimal balance between the hardness of the cutting edge and its resistance to breakage.
Three key features of durability and reliability:
- High abrasion resistance - During regular mowing, the blade comes into contact with grass, soil and sometimes small stones or twigs. The steel used and the proper hardening minimize blade wear and extend the time between sharpenings. In practice, this means less service downtime and lower operating costs for the tractor.
- Dimensional stability and resistance to deformation - precisely designed shape and appropriate thickness of material prevent the blade from bending when hitting an obstacle. For the user, this means greater safety, less risk of vibration and full comfort even during longer mowing sessions.
- Protection against corrosion - black finish of the knife provides an additional layer of protection against corrosion. As a result, the blade retains its properties for a longer period of time even when it works in a humid environment or is stored in less favorable conditions, such as in an unheated garage.
Examples of daily use:
- regular mowing of the home lawn once or twice a week during the growing season,
- care of recreational areas at guesthouses, cottages or resorts,
- mowing of playing fields, playgrounds, grass parking lots and other usable areas where speed and quality of cutting are important.
PRECISE MOWING AND HIGH COMFORT - HOW THE 545MM OM109R KNIFE AFFECTS THE END RESULT?
Properly contoured blade geometry and its length of 545 mm allow for a wide mowing belt, which speeds up work on large areas. The shape of the tips causes intensive suction of grass blades into the body of the mower, so they are cut evenly across the width of the mower.
Three key features that affect mowing quality:
- Even cutting without "jagged" edges - sharp knife edges ensure a clean, even cut. The grass is not torn out or shredded, but precisely cut. As a result, the lawn retains an intense, healthy color, and the tips of the blades do not dry white.
- Optimum airflow in the cutting unit - the blade profile improves air circulation in the deck housing, which makes it easier to eject the cut grass into the trash or to the side. The work of the tractor is more efficient, and the user less often has to stop to clean the ejection channels.
- Vibration and noise reduction - properly balanced knife works smoothly without excessive vibration. As a result, the tractor operator experiences less fatigue, and the mower itself is less likely to experience accelerated wear on bearings and drive components.
Examples of daily use:
- thorough mowing of representative lawns in front of the house or business, where aesthetics is a priority,
- turf care on amateur fields, where an even surface without "clumps" of grass is important,
- maintenance of green areas at commercial facilities - hotels, restaurants, parks.
EASY INSTALLATION AND COMPATIBILITY - 545MM BLADE FOR COMFORT SERIES TRACTOR OM109R / OM109L TS000146R
One of the most important advantages of the presented blade is its full compatibility with COMFORT OM109L / OM109R series tractors. Accurate mapping of the dimensions of the mounting holes makes blade replacement quick and hassle-free, even for less experienced users.
Three key mounting features:
- Precisely matched mounting holes - central hole with a diameter of 20 mm and side holes of 8.5 mm with a spacing of 65 mm guarantee a secure attachment to the original hub. The user does not need to make any modifications or adjustments - the knife fits "out of the box".
- Simple replacement procedure - Simply lift the tractor (with safety precautions), lock the blade rotation and unscrew the central screw. After removing the old blade, put on the new one, setting it in the right direction of rotation. Thanks to the precise holes and profile, replacement takes just a few minutes.
- Safe use - proper mounting and balancing of the blade minimize the risk of loosening during operation. The user gains confidence that the blade will work steadily even at high speeds and in dense grass.
Daily application examples:
- quickly replace the blade before the mowing season to prepare the tractor for heavy use,
- replacement of the blade after accidentally hitting a stone or root - without the need for a service visit,
- regular servicing of a fleet of tractors at a landscaping company.
SAVING TIME AND MONEY - WHY CHOOSE A 545MM TS000146R BLADE FOR YOUR TRACTOR?
When you invest in a high-quality 545 mm blade for the COMFORT OM109R tractor, you not only get a better visual effect on your lawn, but also real savings in time and money. A well-chosen blade works efficiently, cutting grass faster and requiring sharpening or replacement less often.
Three features that provide tangible benefits:
- Short mowing time - Working width of 545 mm allows for efficient mowing of larger areas of lawn with fewer passes. This is especially important for large gardens and commercial areas, where every minute saved counts.
- Lower operating costs - the durable blade needs to be replaced less often, and the durable cutting edge ensures longer sharpening intervals. This reduces your expenses on spare parts and service.
- Better lawn condition - A healthy, evenly trimmed lawn is less susceptible to disease and weeds, reducing the need for pesticides and intensive fertilization. This, in turn, translates into lower green care costs.
Examples of daily use:
- running a gardening company serving many customers - fast mowing and fewer tractor breakdowns,
- maintenance of large private properties or residences, where the mowing area is counted in thousands of square meters,
- operation of tractors in municipalities, schools, sports and recreation centers.
FAQ - FREQUENTLY ASKED QUESTIONS ABOUT 545MM BLADE FOR COMFORT SERIES TRACTOR OM109R TS000146R
1. To which models of tractors this blade fits?
The 545 mm blade TS000146R is designed for COMFORT series garden tractors, in particular for OM109L and OM109R models. Before you buy, it's a good idea to compare the length of the blade and the diameters and spacing of the holes with the original blade.
2. How often should you replace the blade in the tractor?
Frequency of replacement depends on the intensity of use and operating conditions. For typical home use, it is recommended to check the condition of the blade at least once a season. If the blade is badly dulled, chipped or deformed, replace it with a new one.
3. Can this knife be sharpened?
Yes, the knife can be sharpened several times, as long as it is not excessively damaged. It is important to maintain the correct sharpening angle and balance of the blade. In case of large material loss or cracks, it is recommended to replace with a new blade.
4. How to safely replace the blade in a tractor?
Before starting work, disconnect the ignition and remove the key and, if possible, unplug the spark plug wire. Then lift the tractor, block the blade rotation, unscrew the central screw and remove the old blade. Install the new knife in the same position, tightening the screw firmly. It is recommended to use original screws and washers.
5. Is the blade suitable for mulching?
The 545 mm TS000146R is primarily a mowing knife. In many cases, it works well with mulching kits, but the ultimate effectiveness depends on the specific configuration of the tractor and the mulching system. If intensive mulching is a priority, it's worth checking the tractor's manual to see if the manufacturer provides for dedicated mulching blades.
6. Can I install this blade on a tractor model other than the COMFORT OM109?
Theoretically, this is possible if the dimensions of the blade and mounting holes are identical to the requirements of the model in question. However, it is safest to use the blade as intended, that is, on COMFORT OM109L / OM109R series tractors, in order to maintain full compliance and safe operation.
7. How to store a knife in the off-season?
After the season is over, it's a good idea to clean the knife of grass and soil residue, dry it and protect it with a thin layer of oil or anti-corrosion agent. It is best to store it in a dry place, away from moisture, which will further extend its life.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
