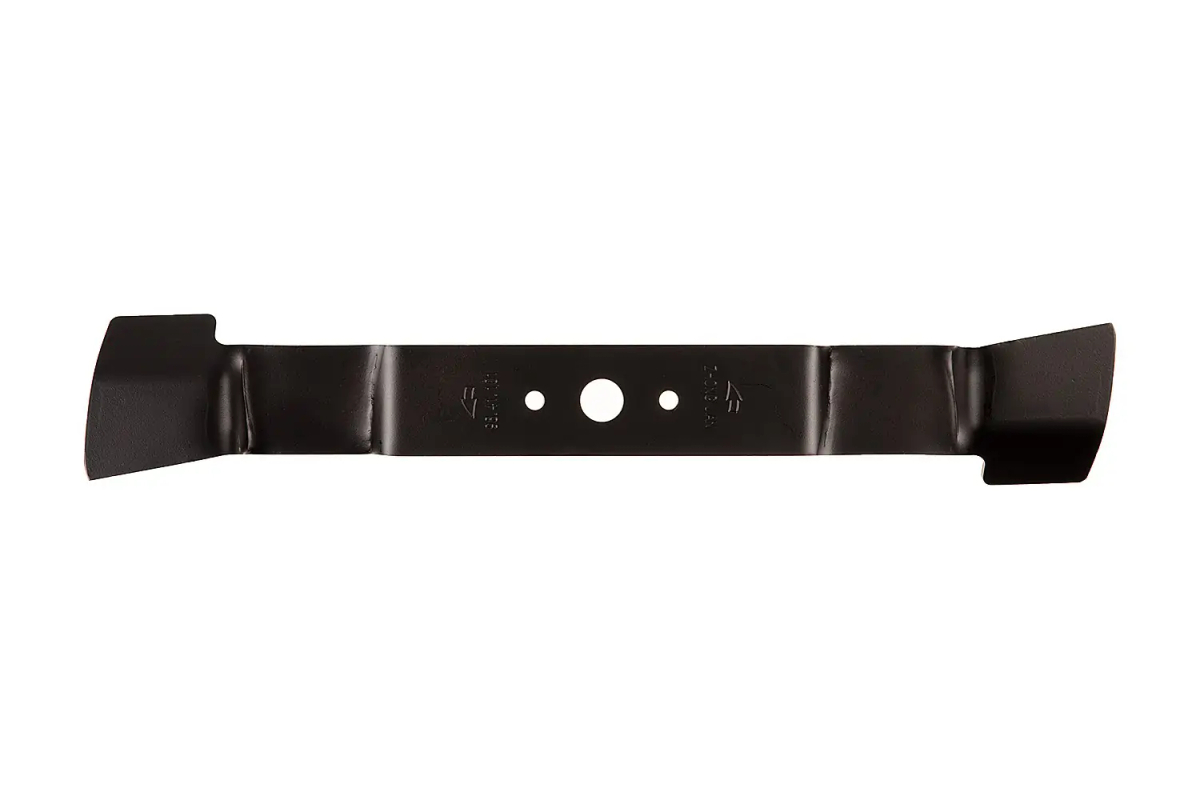

500MM BLADE FOR COMFORT SERIES TRACTOR OM99R TS000137R
- 500MM blade for COMFORT OM99R series tractor TS000137R - original hardened blade for OM99L/OM99R models. Precise cutting, perfect fit (20 mm hole, 65 mm spacing), less vibration and longer life of the tractor. Ideal for large lawns.
500MM BLADE FOR TRACTOR COMFORT SERIES OM99R TS000137R - PROFESSIONAL BLADE FOR PRECISION GRASS CUTTING
KNIFE 500MM FOR COMFORT SERIES TREATER OM99R TS000137R is a high quality, brand new cutting element designed for COMFORT Series garden tractors. Thanks to the appropriately selected length and geometry of the blade, it provides even, aesthetic mowing of large areas of lawn and effective ejection or collection of cut grass into a basket. The product is designed for users who want reliability, durability and a secure fit for their tractor.
Knife 500mm for COMFORT OM99R series tractor TS000137R - construction, dimensions and key technical parameters
The presented blade is a key component of the cutting system of the tractor, responsible for the quality of mowing and safety of operation. It is made of durable tool steel, hardened and properly balanced to minimize vibration and extend the life of the tractor's transmission and shaft. The design of the blade is suitable for intensive use in home gardens, estate green spaces and company properties.
Knife specifications:
- overall length: 500 mm - Perfectly matched to the working width of the COMFORT series mowing deck, it provides a wide cutting strip with each pass;
- blade width: 55 mm - guarantees stability, rigidity and an optimal cutting surface;
- center hole diameter: Ø 20 mm - Fitted to the shaft of the tractor, which ensures a secure and safe installation;
- diameter of side holes: Ø 8.5 mm - allow additional attachment and stabilization of the knife on the hub;
- distance between side openings: 65 mm - Compatible with the attachment standard for COMFORT OM99 series tractors;
- purpose: for COMFORT OM99L / OM99R series tractor.
length: 500 mm, width: 55 mm, Ø central hole 20 mm, Ø side hole 8.5 mm, distance between holes 65 mm; for COMFORT OM99L series tractor
Thanks to these parameters, the user can be sure that the blade will fit perfectly into the dedicated models of tractors, and the replacement itself will go quickly and smoothly. Properly selected thickness and hardness of steel minimizes the risk of deformation during contact with dense grass, weeds or small twigs.
Where does the 500mm COMFORT OM99R TS000137R blade mount and what tractors it fits to??
500MM blade for COMFORT OM99R series tractor TS000137R installs directly into the cutting unit (mowing deck) of the garden tractor. It is attached to the drive shaft with a central bolt and additional attachment points, which ensures its stability and proper balance during high-rpm operation.
The blade was designed specifically for use on cOMFORT OM99 series tractors, in particular:
- models designated as OM99R - A newer version of the tractor with a basket or rear ejection;
- models OM99L - Tractors with a similar working width, with which the blade works fully compatible.
Before installation, it is a good idea to compare the dimensions of the old blade - length, hole diameter and spacing - with those of the new blade. This will make sure that the customer chooses a part that is 100% matched to their device, which will translate into safe and fully effective operation.
Examples of installation applications:
- replacement of a worn blade in a tractor used on a large home plot of 2000-4000 sq. m;
- seasonal tractor service at a gardening company preparing equipment for intensive work in spring and summer;
- installation in a tractor used in recreational areas, playgrounds or areas of residential communities.
Use of 500mm blade - ideal choice for regular lawn care
The 500mm TS000137R blade is designed for mowing medium and large lawns. Its task is not only to shorten blades of grass, but also to lift them properly and throw them - into the basket or to the side, depending on the design of the tractor. Profiled blade tips improve air circulation under the deck, resulting in more accurate swath collection and a cleaner end result.
Main uses of the knife:
- Regular lawn mowing - provides an even cut, without fraying the ends of the grass, which reduces yellowing and disease;
- Intensive seasonal work - designed for frequent use, ideal for those who mow the lawn every few days during the period of intensive growth;
- Maintaining a low, presentable lawn - The width of 500 mm speeds up work on extensive areas such as show gardens, areas next to companies or guesthouses.
In everyday use, the new, sharp blade allows you to reduce mowing time, reduce fuel consumption (the tractor does not have to "tire" with dull blades) and gives a much better visual effect - the lawn looks like after the work of a professional gardening team.
Durability, safety and comfort with the 500mm COMFORT OM99R knife
The customer who chooses the 500mm knife TS000137R receives a product that is designed for long service life and a high level of safety. Hardened steel is resistant to abrasion, and proper balance reduces vibration, making tractor operation more comfortable for both the operator and the machine itself.
Benefits of the TS000137R knife:
- Longer tractor life - Less vibration means less strain on bearings, the shaft and the entire cutting system;
- Higher level of security - properly selected and solidly fixed knife minimizes the risk of damage or loosening during operation;
- User comfort - The tractor runs quieter and smoother, which is important for longer mowing sessions.
An example of everyday use is mowing a large, uneven plot, where there happen to be small twigs, tougher weeds or molehills. A suitably powerful 500mm blade can handle such a load, and after a season it only needs to be sharpened to continue to provide high quality cuts.
How to take care of the 500mm TS000137R knife to make it last as long as possible?
To realize the full potential of the COMFORT OM99R series tractor blade, it's a good idea to follow a few simple operating and maintenance rules. Regular inspection of the condition of the blade and the correctness of the installation has a direct impact on the safety, comfort and appearance of the lawn.
- Periodic sharpening - depending on the intensity of use, it is recommended to sharpen 1-3 times a season. A sharp knife cuts, not jerks the grass;
- Balance control - after sharpening, check that the knife is properly balanced; if necessary, entrust this operation to a service technician;
- Cleaning after mowing - Removing grass and mud residue from the blade reduces corrosion and improves air circulation in the deck;
- Safe installation - always tighten the mounting bolts according to the recommended torque and with the engine switched off, secured.
In practice, it is enough after every few mowings to inspect the knife, remove larger dirt and check for cracks or deeper chips. If you notice more serious damage, replace the blade with a new one - like the presented model TS000137R - which is the safest solution for the user and the tractor itself.
Why choose the original 500mm blade for the COMFORT OM99R TS000137R series tractor?
Deciding to buy this model of blade, the customer gains not only the certainty of fit, but also the a guarantee of stable operation of the entire tractor. Original or qualitatively equivalent blades are designed with specific machines in mind, so they meet stringent strength and safety standards.
- Certainty of compatibility - The parameters of the attachment have been adapted to COMFORT OM99L / OM99R tractors, which eliminates the risk of accidentally selecting the wrong part;
- Optimized blade geometry - Properly shaped tips improve grass ejection and mowing quality, which is difficult to achieve in cheap replacements;
- High durability - the use of hard steel and precision machining contribute to a longer service life compared to low-quality products.
In practice, this means less downtime due to service, lower operating costs, and an always neat, even lawn - both in front of the house and in larger green areas.
FAQ - Frequently asked questions about the 500mm blade for the COMFORT OM99R TS000137R tractor
1. Will the 500mm blade TS000137R fit my tractor?
The blade is designed for tractors cOMFORT OM99 series, in particular OM99R and OM99L. Before you buy, it's a good idea to compare the length of 500 mm, the width of 55 mm, the diameter of the central hole of 20 mm, the diameter of the side holes of 8.5 mm and the distance between them of 65 mm with the dimensions of the original blade from the tractor.
2. How often should I replace the blade in the tractor?
Replacement of the knife is recommended when it is heavily worn, chipped, warped or can no longer be sharpened properly. With intensive horticultural use, replacement every 1-2 seasons is normal practice. If the lawn is mowed less often, the blade can last longer, assuming regular sharpening.
3. Can I replace the blade in the OM99R tractor myself?
Yes, many users are doing the replacement on their own. However, one should always:
- turn off the engine and disconnect the wire from the spark plug,
- set the tractor steady,
- use proper wrenches and be careful when working with the blade.
If you don't have experience, it's best to have your replacement done by an authorized service center.
4. Is the new knife sharpened right away?
Yes, the knife is factory-prepared for use. No need for additional sharpening before first use. Over time, depending on the intensity of use and working conditions, regular sharpening is recommended to maintain high quality cutting.
5. What to do if the tractor vibrates a lot after replacing the blade?
Strong vibrations may be indicative of:
- improper installation or under-tightening of screws,
- damage to the shaft or hub,
- incorrect balance of the knife (for example, after self-sharpening).
In this case, stop work immediately, check the fixings and consult the service department. A properly selected and installed 500mm blade TS000137R should run smoothly and without excessive vibration.
6. Is this blade suitable for mulching?
The presented model is primarily a standard knife, designed for classic mowing with ejection or collection into a basket. For intensive mulching of grass it is worth considering a dedicated mulching blade, if the manufacturer of the tractor has provided for such an option. In many applications, however, a standard 500mm blade will do very well in slightly damp or dry grass.
When you choose the 500MM blade for the COMFORT OM99R series tractor TS000137R, you are investing in a reliable, durable cutting element that will translate into an aesthetically pleasing lawn, trouble-free tractor operation and the safety of you and your loved ones.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
