RIGHT-HAND 620 MM COLLECTOR BLADE WITH INCREASED CAPACITY FOR OM124J/124JH SERIES TRACTOR SGS532050422673
- Right-hand 620 mm collector blade with increased capacity for Oleo-Mac/Efco OM124J/124JH tractors. Hardened steel, precise balance, perfect fit and fast basket filling - professional mowing of large lawns.
The 620mm right-hand collector blade with increased capacity for OM124J/124JH series tractor SGS532050422673 is a high-performance cutting bar designed for Oleo-Mac and Efco garden tractors. Designed as a working element of the mowing system, it guarantees efficient mowing, effective grass collection in the basket and long, trouble-free operation. Thanks to its precise dimensions and reinforced construction, it is an ideal choice for both private users and companies that professionally maintain green spaces.
What is the right 620 mm collecting knife for OM124J/124JH tractor SGS532050422673?

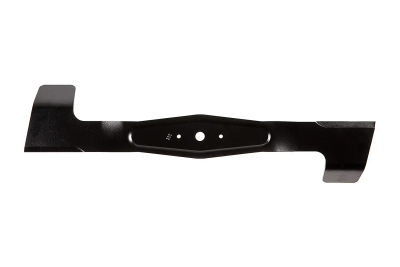

Right 620 mm collecting blade with increased capacity is a hardened steel cutting bar mounted on the right side of the garden tractor mower deck (viewed from the operator's position). Its specially shaped tips and appropriately shaped center section create a powerful airstream during rotation:
- lifts grass blades in front of the blade, ensuring an even and clean cut across the entire working width,
- effectively transports grass clippings to the ejection channel or basket, increasing collection efficiency,
- reduces the risk of clogging the ejection tunnel when the grass is taller or damp.
This element works in tandem with the left blade to form a set responsible for the full width of mowing. The model on offer is an enhanced-capacity pick-up knife, which means its geometry has been optimized for faster mowing of larger areas while maintaining high quality of cut and efficient filling of the hopper.
Where the right-hand knife 620 mm for the OM124J/124JH series tractor is mounted?
The 620 mm right blade is mounted in the cutting unit (deck) of the OM124J/124JH series garden tractor, on the right side, looking in the direction of travel. It is designed to work with a 122-cm-wide cutting unit with two opposite knives - a right and a left one.
Thanks to the precisely selected dimensions of the mounting holes and their spacing, the knife fits perfectly into the knife hub, maintaining the correct balance of the entire cutting system. Correct installation guarantees:
- stable operation without excessive vibration,
- less stress on bearings and drive belts,
- safe operation of the tractor even when mowing for long periods of time.
In practice, installation comes down to the removal of the old blade, cleaning the hub of dirt and corrosion tarnish, and then attaching the new blade, observing the direction of operation and the appropriate tightening torque of the mounting screw. This is a quick service operation that many users perform themselves in their own garage.
Application of the right-hand 620 mm collector blade - to which tractors it fits?
The offered blade is designed for OM124J/124JH series garden tractors and related Oleo-Mac and Efco models equipped with 122 cm wide cutting deck and trash ejection. Its length and hole spacing correspond to the factory parameters used in these designs, allowing the product to be considered a high-quality replacement for the original blade.
Typical applications include:
- regular mowing of home gardens ranging from 1,000 to several thousand square meters,
- maintenance of green areas at companies, guesthouses, farms and recreational facilities in perfect condition,
- care of playing fields, areas of housing communities or neighborhood parks, where high quality cutting and fast work is important.
Thanks to its efficient grass collection function, the blade is ideal for places where it is undesirable to leave a swath - for example, on representative lawns in front of office buildings, hotels, restaurants or single-family houses.
Key features and advantages of the 620 mm right-hand knife SGS532050422673
Right-hand 620 mm collecting blade with increased capacity is distinguished by technical parameters adapted to intensive work in difficult garden conditions. Its most salient features are:
- Overall length: 620 mm - provides a large working width, thus reducing the time needed to mow large areas.
- Width: 55 mm - optimal combination of rigidity and low weight for stable operation and fast rotation.
- Center hole diameter: 16 mm - matched to the hub standard used on OM124J/124JH series tractors.
- Side hole diameter: 6 mm - allows you to securely and safely fix the knife.
- Distance between holes: 75 mm - in accordance with the factory dimensions of the aggregate, which ensures perfect adhesion of the blade to the attachment.
- High-quality, hardened steel: increased resistance to abrasion and impact against stones, twigs or small terrain obstacles.
- Gathering profile with increased efficiency: special "shovel" shape intensively sucks in and throws out the grass, maximizing the filling of the basket.
In daily use, this translates into tangible benefits: the lawn looks even, without clumps or "burn-through" after a single pass, and the garbage can fills quickly and evenly, reducing the number of necessary passes and stops for emptying.
Quality workmanship - durability, safety and comfort
The 620mm right-hand collector knife is made of high-quality, hardened steel, so it retains its sharpness and shape even during intensive use. Properly selected material thickness and heat treatment process minimize the risk of deformation, cracking or chipping.
Care has also been taken to ensure that the knife is precisely balanced. This means:
- lower vibration levels transmitted to the tractor frame and steering wheel,
- less wear and tear on bearings, belts and the entire cutting unit,
- higher operator comfort during prolonged mowing.
For the user, this means not only saving time and money on service, but also greater safety - a stable blade reduces the risk of damage to the cutting mechanism and uncontrolled vibration.
Daily uses of the 620 mm right-hand knife in practice
The 620mm right-hand pick-up blade with increased capacity will work well in many scenarios of garden tractor use:
- Mowing the home garden: ideal for regular lawn care around the house - allows you to quickly mow a large area without multiple passes.
- Maintenance of areas around businesses and commercial facilities: provides an aesthetic appearance of greenery in front of offices, stores, warehouses or restaurants, which positively affects the image of the company.
- Servicing recreational areas: will prove useful on plots of land, on farms, at cottages and in recreational areas where comfort and convenience are of key importance.
Thanks to the intensive grass collection function, the blade also performs well during periods of rapid grass growth (spring, early summer), reducing the need for frequent raking and additional cleanup work.
Why choose a right-hand knife 620 mm collector SGS532050422673?
When you choose this knife model, you get a product designed specifically for OM124J/124JH series tractors that combines:
- full compatibility with cutting unit - matching dimensions and mounting holes,
- high durability thanks to the use of hardened steel and robust construction,
- increased collection efficiency grass into the basket - a special collecting profile,
- working comfort resulting from low vibration and even balance,
- aesthetics of mowing - even, clean cut without fraying the tips of the blades.
It's the ideal choice for people who want their garden tractor to be reliable and work at a high quality for many seasons, while at the same time they want to reduce the amount of time spent on garden maintenance work.
Technical data - right-hand 620 mm collecting blade for OM124J/124JH tractor
| Overall length | 620 mm |
| Knife width | 55 mm |
| Central hole diameter | 16 mm |
| Side opening diameter | 6 mm |
| Distance between holes | 75 mm |
| Destination | Tractors OM124J/124JH series, aggregate ok. 122 cm, basket throw |
| Knife type | Right-hand, collecting, with increased capacity |
| External system code | SGS532050422673 |
FAQ - Frequently asked questions about the 620mm right-hand knife for the OM124J/124JH tractor
1. Does this blade fit my Oleo-Mac OM124J/124JH tractor?
Yes, the 620 mm right-hand collector blade with increased capacity has been designed for OM124J/124JH series tractors with a cutting deck width of about 122 cm. Before buying, it is additionally worth comparing the length of the old blade and the diameters and spacing of the mounting holes.
2. Do I always have to replace a set of blades, or can I just replace the right one?
It is recommended to replace both blades (right and left) at the same time in order to maintain an even balance of the cutting system and identical cutting quality on both sides of the unit. Replacing just one badly worn blade can cause a difference in cutting height and increased vibration.
3. How often should you replace the blade in the tractor?
Frequency of replacement depends on the intensity of use and operating conditions. When typically mowing the garden 1-2 times a week, it is recommended to check the condition of the blade at least once a season. When the cutting surface is dull, badly chipped or deformed, the blade should be replaced with a new one - this affects the quality of the cut, safety and the load on the drive.
4. Is this blade suitable for mulching?
It is primarily a collection blade with increased capacity, designed to efficiently transport grass to the basket. On many tractors, it can also operate in non-binned mowing mode, spreading the swath behind the machine. However, the full mulching function (shredding hard and leaving the grass on the lawn) depends on the design of the unit and the plugs used - if in doubt, check the tractor manual.
5. How to take care of a new knife to make it last as long as possible?
After each mowing, it's a good idea to clean the blade of grass and soil debris, reducing the risk of corrosion. Avoid driving over rocks, steel elements or thick roots. If the cutting edge becomes dull, it can be sharpened carefully, making sure to keep the knife balanced. When cracks, deep chipping or pronounced deformation appear, it is imperative to replace the blade with a new one.
