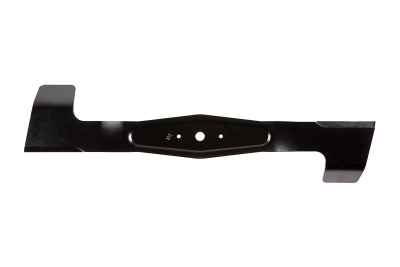

LEFT KNIFE 620 MM COLLECTOR WITH INCREASED CAPACITY FOR TRACTOR OM124J/124JH SERIES SGS532050422663
- Left 620 mm collecting blade with increased capacity for OM124J/124JH tractor SGS532050422663 - precise cutting, strong grass suction and fast filling of the basket. Ideal for large lawns.
Left-hand 620 mm collector blade with increased capacity for OM124J/124JH series tractor SGS532050422663 is a high-quality work piece designed for professional and amateur mowing of large lawns. Thanks to its specially shaped design and precise dimensions, it provides extremely effective cutting and intensive suction and transport of the cut grass to the basket. It's the ideal solution for users who want a perfectly even lawn, reduced work time and reliability for many seasons.
The presented blade is an originally designed working component, which is a key part of the cutting system in OM124J and OM124JH series garden tractors. It is responsible not only for the precise cutting of grass blades, but also for their efficient lifting and ejection into the collection basket, which is especially important when mowing taller or damp turf. With increased collection efficiency, you can count on a clean, aesthetically pleasing result after just one pass.
Left knife 620 mm for OM124J/124JH tractor - what it is and why you should choose it?
Left-hand 620 mm collecting blade with increased capacity for OM124J/124JH series tractor SGS532050422663 is a carefully balanced steel cutting blade mounted on the left side of the cutting unit in a garden tractor. Its task is to precisely cut the grass at a preset height, lift it and direct it towards the ejection channel or into the basket. The special shape of the blades and the appropriate contouring provide a powerful air stream that helps to effectively collect the swath from the entire working width.
Made of high-quality steel, the knife is characterized by high resistance to wear, mechanical damage and deformation. The use of hard, durable steel and careful sharpening of the cutting edge translates into long life and less frequent need for replacement. It's an investment that quickly pays for itself in the form of less downtime, lower operating costs and better mowing performance.
Application of left knife 620 mm SGS532050422663 in OM124J/124JH series tractors
The presented blade was designed for OM124J and OM124JH series garden tractors. It is an original or fully compatible replacement for the factory left-hand knife installed in the cutting unit. Its primary uses are:
- mowing of backyard lawns of medium and large areas,
- maintenance of green areas around companies, institutions and public facilities,
- maintenance of playing fields, recreational areas and allotment gardens,
- mowing of areas on housing estates and around commercial properties, where speed and aesthetics of the work are important.
Thanks to the increased collection capacity, the blade will be perfect for wherever you want a perfectly clean surface free of grass residue - for example, on the representative lawns in front of the house, at the hotel or restaurant. It reduces the amount of unmowed bits and debris left behind after a pass, which means fewer corrections and more time for other garden work.
Where does the left 620mm collector blade for the OM124J/124JH tractor mount??
Left knife 620 mm SGS532050422663 is mounted in the cutting unit (cutting unit) of the garden tractor on the left side, as seen from the perspective of the operator sitting on the seat. It works together with the second blade (usually the right or middle blade, depending on the design of the unit) to form a complete mowing system.
Installation is done by bolting the knife to the hub or holder on the knife shaft with a suitable set of screws. Pay attention to the fit:
- the diameter of the central mounting hole (Ø central hole 16 mm),
- the diameter of the lateral locating holes (Ø side hole 6 mm),
- spacing between holes (distance between holes 75 mm),
- the total length of the blade (620 mm) and the working width (55 mm).
The use of the right sized blade is crucial for operational safety, proper balance of the unit and optimal mowing results. The 620mm left-hand knife has been specially developed for OM124J/124JH tractors, so you are assured of a perfect fit and stable operation at recommended speeds.
The most important benefits of using a collection knife with increased capacity
Choosing the 620 mm left-hand collecting blade with increased capacity for the OM124J/124JH tractor offers a number of practical advantages that can be felt at the first mowing:
- Better cut quality - sharp, precision-sharpened edges ensure that grass is cut evenly without tugging. The lawn looks healthy and the tips of the blades do not turn yellow.
- Increased grass suction power - special profiling of the blades generates a strong airflow that lifts the grass before cutting and intensively transports the swath into the basket. The result is a clean, even lawn with no grass clumps.
- Higher productivity - thanks to efficient collection, the need for repeated passes is reduced. Save time, fuel and extend the life of your tractor.
- Stable operation of the cutting unit - The well-balanced blade reduces vibration, thereby increasing operator comfort, while protecting bearings, shafts and housings from premature wear and tear.
- Safety and reliability - the use of high-quality steel and appropriate thickness reduces the risk of cracking and deformation even during intensive use.
In everyday use, this means, for example, quickly and cleanly mowing a 2000-3000 sq. ft. home lawn in one pass, efficiently cleaning up the areas around a company's building without the need for additional raking, or aesthetically preparing the garden for parties and family celebrations.
Technical data of left-hand knife 620 mm for tractor OM124J/124JH
The exact technical parameters of the product:
- overall length: 620 mm,
- width: 55 mm,
- center hole diameter: Ø 16 mm,
- side opening diameter: Ø 6 mm,
- distance between holes: 75 mm,
- purpose: for OM124J / OM124JH series tractor,
- type: left-hand, collecting knife, with increased capacity,
- external system code: SGS532050422663.
Precise matching of dimensions ensures trouble-free installation and proper cooperation with other components of the unit. If your existing blade shows signs of severe wear, chipping or warping, replacing it with a new model with the same specifications is the best way to restore your tractor to full performance.
Why it is so important to regularly replace the blade in the OM124J/124JH tractor?
Even the best knife dulls with time and natural wear and tear, especially when there are small stones, twigs or sand in the grass. Blunted or damaged knife:
- jerks the grass instead of cutting it evenly, leading to yellowing of the tips and deterioration of the turf,
- increases the load on the engine and the entire drivetrain,
- causes vibrations that accelerate the wear of bearings and suspension components of the aggregate,
- reduces the effectiveness of grass collection in the trash, leaving unsightly clumps on the lawn.
Replacing an old, damaged knife with a new 620mm left-hand pick-up knife with enhanced performance SGS532050422663 is a simple way to:
- restore the original cutting quality and appearance of the lawn,
- increase operator comfort,
- protect the tractor from excessive loads and premature failures.
In practice, regular inspection of the condition of the knives (at least once a season) and their replacement when necessary allows you to enjoy reliable operation of the machine for many years and significantly reduces service costs.
Examples of daily use of the left-hand knife 620 mm collector
The left-hand knife 620 mm for the OM124J/124JH tractor will be perfect for many common situations:
- Regular mowing of the lawn at a single-family house - you will maintain a well-groomed turf without having to rake the grass residue, as most of the swath will go directly into the basket.
- Cleaning work around the company building - well-kept greenery in front of the office, warehouse or showroom positively influences the image of the company and the comfort of employees.
- Maintenance of recreational areas - Playgrounds, squares or playing fields require even and frequent mowing; the powerful collecting blade makes this work much easier.
- Servicing larger properties and farms - With large areas, every minute of work counts, so increased collection efficiency and fewer passes are especially appreciated.
Whether you are an individual user, property manager, gardener or landscaping company, a sturdy, well-fitted tractor blade is one of the key pieces of your equipment.
FAQ - Frequently asked questions about the left-hand 620mm collector blade for OM124J/124JH tractor
1. Will this knife fit my tractor?
The blade was designed for OM124J and OM124JH series garden tractors. Before purchasing, it is recommended to compare the length (620 mm), width (55 mm) and diameter and spacing of the holes (Ø 16 mm central, Ø 6 mm lateral, distance between holes 75 mm) with the data of the original blade.
2. Which means that the knife is a "collector with enhanced performance"?
This means that the shape of the blade and vanes is specially designed to generate a stronger airflow. This allows the grass to be lifted and transported more efficiently to the basket, reducing the amount of residue left on the lawn.
3. How often should I replace the blade in the tractor?
Frequency of replacement depends on the intensity of use and operating conditions. When typically mowing a home lawn, it is a good idea to check the condition of the blades at least once a season. If you notice chipping, warping, cracking or significant dulling, the knife should be replaced.
4. Can I install the knife myself?
Yes, you can do the installation yourself, as long as you follow the safety precautions: disconnect the ignition, lock the tractor against accidental starting, use the right wrenches and always install the blade in the correct direction. If you are inexperienced, it is worthwhile to have the replacement done by an authorized service provider.
5. Is the knife balanced at the factory?
Yes, the product is factory-balanced, which ensures stable operation of the cutting unit. However, after any interference with the blade (e.g., after sharpening), its balance should be rechecked to avoid vibration and excessive wear on tractor components.
6. Is this blade suitable for mulching?
It is primarily a collecting knife. On some tractors, it can work with mulching systems, but its main task is to effectively mow and transport the grass to the garbage can. For intensive mulching, special mulching blades are recommended.
7. How to take care of a knife to make it last as long as possible?
When you're done, it's a good idea to clean the blade and the aggregate of grass debris, soil and small stones. Regularly check the sharpness of the cutting edge, and gently sharpen it if necessary. Avoid hitting rocks, curbs or hard obstacles - they significantly shorten the life of the knife.
