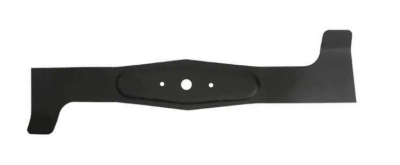

LEFT-HAND KNIFE 530MM FOR OM102/104J/104H/105J/105JH/106/106J/106S SERIES TRACTOR SGS532050422103
- LEFT KNIFE 530MM FOR THE OM102/104J/104H/105J/105JH/106/106J/106S SGS532050422103 - Durable, balanced cutting blade for mowing, collecting and mulching grass, ensuring a precise, even cut of the lawn.
LEFT BLADE 530MM FOR OM102/104J/104H/105J/105JH/106/106J/106S SGS532050422103 SERIES TRACTOR PROFESSIONAL REPLACEMENT SHARPENER FOR GARDEN TRACTORS
LEFT KNIFE 530MM FOR OM102/104J/104H/105J/105JH/106/106J/106S SGS532050422103 series tractor is a high quality, brand new work piece designed for OM series garden tractors. It is responsible for the precise cutting of the grass, its efficient ejection or collection into the basket and even mulching. A properly selected and balanced blade ensures an aesthetically pleasing lawn, less strain on the engine and safe operation of the entire tractor mower.
The presented model of the blade is a left-hand version with a length of 530 mm, designed specifically for garden tractors of the series: OM102, OM104J, OM104H, OM105J, OM105JH, OM106, OM106J, OM106S. The mounting holes used provide a perfect fit to the original hub, allowing you to replace the old, dulled or damaged blade easily and quickly.
length: 530 mm, width: 58 mm, Ø center hole 16 mm, Ø side hole 6.5 mm, distance between holes 75 mm; for tractor series OM102/104J/104H/105J/105JH/106/106J/106S
The blade is mounted directly on the knife shaft (hub) in the cutting unit of the tractor. Correct installation and selection of the correct direction (left-hand blade) ensures proper air circulation in the cutting unit, effective lifting of grass blades and their even shredding. The product is designed for both private users and professional landscape care companies.
Left-hand knife 530mm SGS532050422103 for OM series tractor - precise fit and easy installation
One of the most important features of the presented blade is its perfect fit for specific models of OM series tractors. With carefully designed dimensions and spacing of mounting holes 530 × 58 mm, central hole Ø 16 mm, side hole Ø 6.5 mm, distance between holes 75 mm you are assured that the item will replace the original knife without the need for modifications.
This fit translates into:
- Easy installation - simply unscrew the screw holding the old knife, clean the hub and attach the new element, paying attention to the correct direction of operation (left-hand knife).
- No vibrations - A well-fitted and balanced blade minimizes vibrations that could damage bearings, the hub or the cutting unit itself.
- User security - Stable mounting means less risk of the blade coming loose during high-speed operation.
In everyday use, this means that every time you replace a blade, you don't waste time adjusting holes, shims or making up spacers. With just a standard set of wrenches and a few minutes of work, the tractor is again ready to mow large garden areas, sports fields, areas around companies or public institutions.
Durability, workmanship and reliability in all working conditions
The 530mm left-hand blade is made of high-quality tool steel, which is resistant to the wear and impact it is subjected to when mowing. The design of the blade ensures that the cutting edge is hard enough, yet flexible enough to minimize the risk of breakage upon accidental contact with a rock, branch or curb.
Three key features that affect durability and reliability:
- Abrasion resistance - the steel and heat treatment process are selected so that the knife will stay sharp for a long time, even when frequently mowing larger areas.
- Factory balance - Even weight distribution reduces vibration, thereby extending the life of hubs, bearings, V-belts and the entire cutting unit.
- Corrosion resistance - protective coating and the right structure of the steel protect the knife from rusting, which is important for storage in less heated areas or periodic contact with moisture.
In practice, owners of larger gardens and gardening companies appreciate this durability: a tractor used several times a week during the season requires much less frequent blade changes, and sharpening can be done at longer intervals. This directly translates into lower operating costs and less service downtime.
Professional quality grass cutting and aesthetically pleasing lawn appearance
A well-chosen blade is not only a matter of safe operation of the tractor, but most importantly the appearance of the lawn. The 530mm model's precision blade geometry ensures that the grass is evenly cut, not jerked. The tips of the blades remain smooth, so the lawn recovers faster and looks healthy and dense.
Three elements that affect the quality of cutting:
- The right profile of the knife blades - Provides an efficient airflow that lifts the grass before cutting and then ejects it into a basket or distributes it evenly over the surface with the mulching function.
- Length 530 mm - guarantees a wide working belt, which speeds up mowing of larger areas and reduces the number of tractor passes.
- Sharp cutting edge - the factory-prepared blade is ready for use immediately after installation, and any future sharpening can be easily done in any service center or by yourself with the appropriate tools.
In practice, this means that the lawns around the house, recreational garden, resort or hotel look neat after just one pass with the tractor. Even cutting prevents the formation of "clumps" and strips of uncut grass, which is especially important in representative green areas.
Universal application for OM102/104J/104H/105J/105JH/106/106J/106S series tractors
Left-hand knife 530 mm fits many popular models of OM series tractors: OM102, OM104J, OM104H, OM105J, OM105JH, OM106, OM106J, OM106S. This allows owners of several machines or gardening services to use one type of blade on different tractors, making spare parts management easier.
Examples of applications in daily work:
- Maintaining home lawns - Regular mowing of plots of 1000-3000 m² and larger gardens in single-family developments.
- Work for gardening companies - care of areas around housing estates, commercial buildings, warehouses, parks or playgrounds.
- Operation of recreational areas - mowing of greenery around holiday resorts, guesthouses, hotels, sports facilities and grass fields.
Using a single, proven knife model on multiple machines reduces parts inventory costs, improves service planning, and facilitates rapid response to knife wear during busy seasons.
Safety of use and proper operation of the left-hand knife 530mm
The professional cutting blade operates at very high speed, so user safety is crucial. Model SGS532050422103 is designed to maintain appropriate standards of balance and durability. Proper installation and operation ensure safe use for a long time.
The three most important rules of use:
- Regularly check the condition of the knife - before you start mowing, it's a good idea to inspect the cutting edge and blades of the blade to make sure they aren't chipped or noticeably bent after hitting an obstacle.
- Checking the tightness of the screws - blade mounting screws should always be properly tightened, as recommended by the tractor manufacturer.
- Caution when disassembling and sharpening - remove the knife after disconnecting the ignition and removing the key, preferably with protective gloves. When sharpening, you need to maintain the balance of the knife and not overheat the cutting edge.
Applying these principles not only improves safety, but also allows the knife to reach its full potential, ensuring repeatable cutting quality and extending its service life.
Technical specifications of the 530mm left-hand knife for OM series tractor
- Product type: left-hand cutting blade for garden tractor
- Overall length: 530 mm
- Width: 58 mm
- Center hole diameter: 16 mm
- Side hole diameter: 6.5 mm
- Distance between holes: 75 mm
- Purpose: oM102 / OM104J / OM104H / OM105J / OM105JH / OM106 / OM106J / OM106S series tractors
- Direction of work: left-hand knife
- Application: mowing, throwing and collecting grass, mulching (depending on the tractor configuration)
- External system code: SGS532050422103
The selection of a blade with exactly these parameters makes the cutting unit of the tractor work as intended by the manufacturer, and the user gets the best possible mowing results without risking damage to the machine.
FAQ - Frequently asked questions about the 530mm left blade for OM series tractors
Question 1: Does this knife fit all OM tractor models?
The 530mm left blade SGS532050422103 is designed for garden tractors series: OM102, OM104J, OM104H, OM105J, OM105JH, OM106, OM106J, OM106S. Before buying, it is a good idea to compare the dimensions and hole diameters with the old knife installed in your machine.
Question 2: What does it mean that the knife is "left"?
The term "left" refers to the direction of rotation of the knife and its geometry. The left-hand blade works in a specific way in the cutting unit - swapping it for the right-hand model (or vice versa) could result in improper ejection of grass, poorer cutting quality and even damage to the tractor. Therefore, always select a knife according to the manufacturer's recommendations.
Question 3: How often should the blade in the tractor be replaced?
Frequency of replacement depends on the intensity of use and operating conditions. For standard household use, regular sharpening is usually sufficient. Replacement is recommended when the blade is visibly chipped, crooked or too badly worn, making it impossible to maintain the correct blade geometry.
Question 4: Is the knife factory sharpened?
Yes, the knife is ready to work right after installation. Over time, as a result of normal use, it may require sharpening. This should be done with safety precautions and care to properly balance the knife.
Question 5: How to take care of a knife to make it last as long as possible?
After mowing, it is a good idea to clean the cutting unit and the blade itself from the grass and soil, and store the tractor in a dry place during the winter period. Periodic sharpening and checking the tightness of the fastening screws will maximize the life of the knife and ensure safe use.
