GOLIATH 2X4 mulching mower S536027044701x
- GOLIATH 2X4 professional mulching mower S536027044701x for special tasks. Hydrostatic drive, B&S Vanguard 627 cm³ engine, slope work up to 22°. Ideal for utility companies and agriculture.
What is the Goliath 2x4 mulching mower S536027044701x and who it was made for?
Mulching mower Goliath 2x4 S536027044701x is a professional, premium self-propelled municipal mulcher designed for intensive work in the toughest terrain conditions. Of all the mulchers on the market, it represents the the widest spectrum of possibilities - From systematic maintenance of green areas to extreme cleanup work on wastelands, slopes or industrial sites.
It is flagship model among municipal mulchers, which, thanks to its powerful B&S Vanguard gasoline engine, hydrostatic drive and well-thought-out design, allows comfortable work on large areas, in high and woody vegetation, and on slopes of up to 22° (40%). It will be ideal in the hands of municipal companies, road managers, farms, greenery maintenance services, as well as demanding private users with extensive, difficult terrains.
Where to install and how to configure the Goliath 2x4 mulching mower?
Model Goliath 2x4 is offered in basic version - without cutting unit. This means that the user receives a complete mobile machine with drive, engine and control system, and to take full advantage of its capabilities selects the appropriate cutting unit, tailored to the specific work and type of terrain.
Depending on your needs, one of three cutting units with working widths can be fitted to the mower:

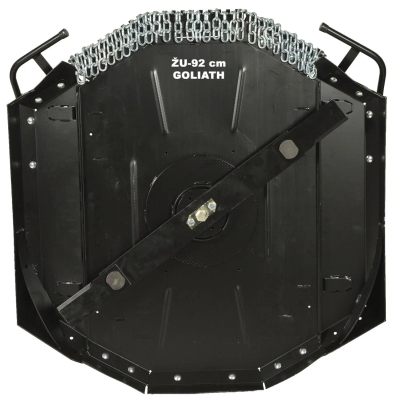

- 92 cm - Ideal for areas with a lot of obstacles, narrow passages, between trees, on slopes next to ditches and embankments,

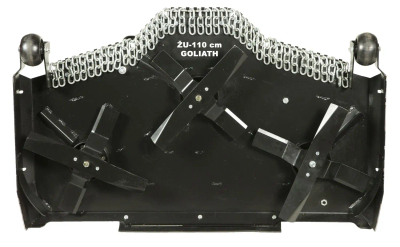

- 110 cm - A versatile compromise between maneuverability and surface performance,
- 132 cm - the widest cutting unit for fast clearing of large open spaces (meadows, wastelands, investment areas).
The cutting unit is mounted directly to the supporting structure of the machine and is mechanically driven from the engine. Cutting height adjustment in the range 40-135 mm (depending on the aggregate used) allows you to precisely adjust the working parameters to the type of vegetation - from low grass to tall weeds and forest undergrowth.
Use of Goliath 2x4 mulching mower S536027044701x in daily work
Mulching mower Goliath 2x4 was developed for the most demanding tasks where ordinary tractor or flail mowers fail. With its powerful engine, hydrostatic drive and specialized cutting units, it excels in work:
- Municipal - Maintenance of road lanes, shoulders, slopes next to roads, railroad embankments, areas next to sewage treatment plants and landfills.
- Agricultural and forestry - Clearing of wastelands, drainage ditches, pastures, feral meadows, preliminary preparation of land for afforestation or reclamation.
- Industrial and investment - Ongoing maintenance of areas around plants, logistics facilities, photovoltaic farms, retention basins, slopes over water bodies.
Mulching involves shredding vegetation into fine fractions that remain on the surface as a natural layer of mulch. With this:
- there is no need to export the cut biomass,
- the cost of land maintenance is reduced,
- the soil is protected from drying out and nutrients are returned to the ground.
Goliath 2x4 mulching mower / OLEO-MAC - maximum power, efficiency and reliability
Goliath 2x4 / OLEO-MAC of all mulchers represents the the widest spectrum of possibilities. This is the flagship model among municipal mulchers, designed for the most demanding conditions. It is powered by a powerful engine B&S Vanguard 627 cm³, OHV, air-cooled, which guarantees high operating culture, low vibration and adequate torque reserve when cutting dense, tall vegetation.
Responsible for the transmission is tuff Torq K664 hydrostatic transmission with rear-wheel drive and mechanical differential lock. The solution provides:
- infinitely variable speed control without shifting gears,
- high maneuverability comfort in terrain of varying relief,
- excellent grip on slippery, uneven or soft surfaces.
With a combination of performance, robust design and efficient drive Goliath 2×4 is able to handle even the most difficult terrain where other equipment cannot reach. In practice, this means the ability to mow safely on slopes, in narrow gaps between trees, in wet meadows or areas with damaged infrastructure.
Operator safety and comfort - ROPS frame, ergonomics and equipment
During intensive work on inclines and difficult ground, operator safety is crucial. Therefore goliath 2x4 mulching mower has been equipped with certified ROPS (Roll Over Protection System) safety frame. It protects the user in case of a possible overturn of the machine, increasing the safety level of work even in very demanding terrain.
Ergonomic, well-padded seat, comfortable controls and wide entry steps mean that the operator can spend many hours in the field without excessive fatigue. Driving speed up to 9.5 km/h forward and to 6 km/h backwards allows you to move efficiently between work sections, saving time and fuel.
Additional features, such as working hours counter and cruise control, make it easier to schedule periodic services and maintain a constant operating speed - especially for long, repetitive trips, such as along dikes or reservoir shorelines.
Versatility of applications - active and passive accessories for Goliath 2x4
One of the greatest strengths of the mower Goliath 2x4 is the possibility of using a wide range of active and passive accessories, which significantly expand its functionality. This allows one machine to replace several different seasonal equipment, reducing investment and service costs.
Typical examples of applications using accessories include:
- Maintenance of areas in winter - after the use of appropriate accessories, the machine can be used to work as a carrier of winter accessories (such as plows, gritters),
- Cleanup work throughout the year - The installation of sweepers, trailers or other passive tools makes it possible to efficiently serve vast municipal and industrial areas,
- Specialized tasks - possibility of individual configuration of attachments for specific needs (e.g. maintenance of strips under power lines, near fences, along watercourses).
Such flexibility makes the investment in Goliath 2x4 pays for itself faster - one machine handles different types of work throughout the year with minimal downtime.
Stability on inclines and thoughtful design of Goliath 2x4 chassis
Mulching mower Goliath 2x4 has been designed for safe operation on inclines of up to 22° (40%). The use of appropriately sized wheels - front 16" i rear 20" - guarantees high grip and driving stability on both dry and wet surfaces. Low center of gravity further improves safety when maneuvering on slopes, embankments or embankments.
The entire design of the mower is compact, yet extremely sturdy. Dimensions 2350 x 1040 x 1740 (1370) mm make it easy to transport on a trailer or in a delivery vehicle and allow you to move freely in narrow spaces, such as between trees, poles or elements of road infrastructure.
Thanks to its large, 16-liter fuel tank the machine can work for a long time without frequent refueling. This is especially important when servicing vast areas, where service interruptions generate real losses of time and money.
Key specifications of the Goliath 2x4 mulching mower S536027044701x
- Model: Goliath 2x4 S536027044701x / OLEO-MAC
- Engine: B&S Vanguard, 627 cm³, OHV, air-cooled
- Battery: 12 V / 32 Ah
- Drive: hydrostatic, rear, Tuff Torq K664 transmission, mechanical differential lock
- Weight: 357 kg
- Cutting width: choice of 92 / 110 / 132 cm (cutting unit purchased separately)
- Cutting height range: 40-135 mm (depending on the cutting unit)
- Wheels: front 16", rear 20"
- Dimensions (L. x width. x height.): 2350 x 1040 x 1740 (1370) mm
- Maximum working inclination: 22° (40%)
- Fuel tank capacity: 16 l
- Driving speed: up to 9.5 km/h (front), up to 6 km/h (rear)
- Accessories: possibility to use passive and active accessories
- Safety: certified ROPS frame

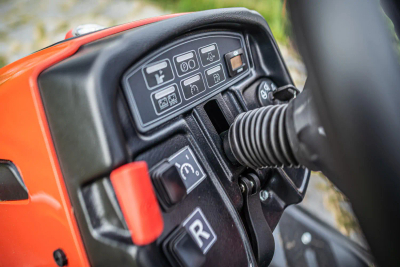

- Comfort: hour meter, cruise control
Why choose a Goliath 2x4 mulching mower for your fleet?
Investing in Goliath 2x4 S536027044701x, you gain a machine that combines the power of a professional mulcher, the safety of an all-terrain vehicle and the convenience of a municipal tractor. It's a solution created for users who need reliable equipment for daily hard work.
The mower offers:
- Exceptional durability - Robust components, branded engine and hydrostatic transmission guarantee a long life, even with intensive use.
- Time and cost savings - fast work pace, no need to collect and dispose of biomass, possibility to use one machine for multiple tasks.
- Versatility - Flexible selection of working width, wide range of active and passive accessories, year-round operation.
- Operator safety and comfort - ROPS frame, ergonomic workstation, cruise control, easy-to-read control panel.
If you are looking for a reliable and efficient solution for professional maintenance of green spaces, wastelands and slopes - the Goliath 2x4 is an investment that pays for itself quickly, while ensuring trouble-free operation for years to come.
FAQ - frequently asked questions about the Goliath 2x4 mulching mower S536027044701x
1. Is the Goliath 2x4 mower sold with a mower deck?
No, model Goliath 2x4 is offered in the basic version without cutting unit. The cutting unit with a width of 92, 110 or 132 cm must be selected and purchased separately, depending on the planned tasks and type of terrain.
2. On what inclines can the Goliath 2x4 safely operate?
The mower is designed to work on inclines of up to 22° (40%). Combined with properly selected tires, a low center of gravity, and a ROPS frame, this provides a high level of safety when mowing slopes, embankments, and hillsides.
3. For which applications this model is best suited?
Goliath 2x4 great for municipal, agricultural, forestry and industrial work. Suitable for mulching tall grass, weeds, brush, forest undergrowth and for maintaining road lanes, railroad embankments, industrial sites or wastelands.
4. What are the operating speeds of the mower?
The maximum forward speed is up to 9.5 km/h, and to the rear up to 6 km/h. Thanks to the hydrostatic transmission, the operator can smoothly adjust the speed according to the terrain conditions and mulching intensity.
5. Does the Goliath 2x4 require special operator training?
Operation of the mower is intuitive, however, due to the professional nature of the device and work on inclines, it is recommended that the operator undergo a short training course on safe operation, familiarize yourself with the instruction manual and the rules for working with the ROPS frame.
6. How often should this machine be serviced?
Frequency of service depends on the intensity of use. Built-in hour meter facilitates the scheduling of periodic inspections according to the manufacturer's recommendations. Regular replacement of oil, filters and inspection of the condition of working components will ensure long and trouble-free operation.
7. Can the mower be retrofitted with additional accessories?
Yes, Goliath 2x4 allows the use of a wide range of passive and active accessories, which allows it to be used as a universal tool carrier for seasonal and year-round work in the maintenance of green spaces and municipal areas.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
