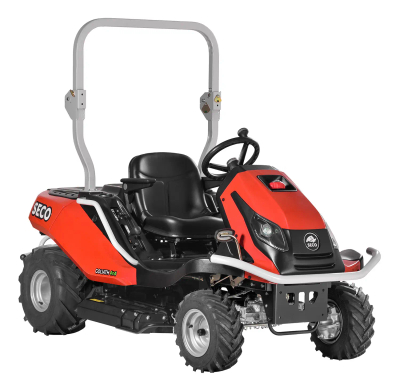

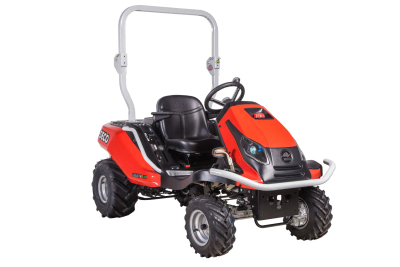

GOLIATH 4X4 mulching mower S536027044544x
- GOLIATH 4x4 professional mulching mower S536027044544x with Kawasaki FS730V engine, 4x4 hydrostatic drive, ROPS and slope operation up to 22°. Ideal for utility companies.
GOLIATH 4X4 MULCHER S536027044544x - PROFESSIONAL COMMUNITY MULCHER for the most difficult terrains
What is the GOLIATH 4x4 mulching mower S536027044544x?
GOLIATH 4x4 mulching mower S536027044544x is a professional, self-propelled municipal mulching mower with four-wheel drive, designed for intensive work in the toughest terrain conditions. Combines the performance of a flail mower, the power of a garden tractor, and the stability of a working machine specifically designed to work on inclines of up to 22° (40%). Thanks to its advanced design and wide range of active and passive attachments, the GOLIATH 4x4 is ideal for maintaining municipal green spaces, investment areas, roadsides, slopes, railroad embankments and wastelands overgrown with tall grass, weeds, self-sown trees and shrubs.
Where the GOLIATH 4x4 mulching mower is installed and how it works?
The GOLIATH 4x4 is a complete self-propelled machine - a ride-on mower ride-on with space for the operator. It does not mount to a tractor or quad - it is an independent, fully functional work vehicle. The user occupies an ergonomic seat, operates the machine from a convenient control console, and all-wheel drive and hydrostatic transmissions ensure smooth maneuvering even on difficult, soft or steep terrain.
The machine is offered in the basic version, without cutting unit. The cutting unit of your choice is mounted to the GOLIATHA frame with a width of 92, 110 or 132 cm, selected according to the type and size of the areas served. As a result, a single carrier can handle different types of work - from precision mulching of lawns to intensive shredding of brush and weeds on wasteland.

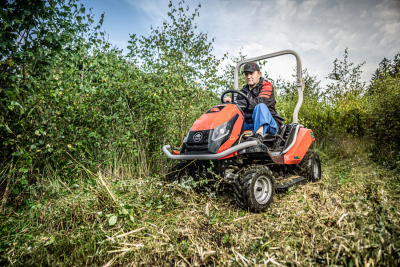

Application of the GOLIATH 4x4 mulching mower
The GOLIATH 4x4 has been designed as the the flagship model of the municipal mulcher to work in the most demanding conditions. It will work great in:
- maintenance of municipal greenery - city parks, recreational areas, squares, neighborhood greens, green belts along roads,

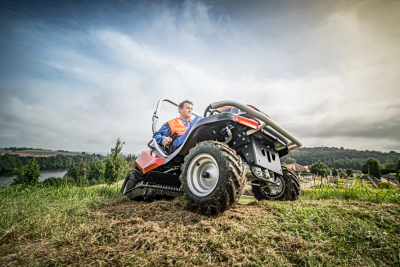

- mowing and mulching of slopes, embankments, dikes, slopes and hilly areas,
- works on wasteland - building lots, fallow fields, investment areas, meadows and pastures,
- maintenance of industrial sites - economic zones, manufacturing plants, treatment plants, storage reservoirs, power lines,
- seasonal applications - preparing land for development, weeding before winter, cleaning up after the growing season.
Mulching involves shredding vegetation into small fragments that remain on the surface as a natural fertilizer and a protective layer of soil. As a result, the GOLIATH 4x4 allows you to reduce biomass disposal, reduce maintenance costs, and streamline the process of caring for green spaces.
GOLIATH 4x4 mulching mower / OLEO-MAC - maximum capabilities in the toughest terrain
Goliath 4x4 /OLEO-MAC
Of all the mulchers, it represents the widest spectrum of capabilities.
This is the flagship model among municipal mulchers, designed for the most demanding conditions.
It is powered by a powerful Kawasaki engine and equipped with two hydrostatic transmissions, Tuff Torq (rear) and Kanzaki (front).
With its combination of performance, design and four-wheel drive, the Goliath 4×4 is capable of handling even the toughest terrain where other equipment can't reach. In addition, the machine allows a wide range of active and passive accessories, which increases its versatility and adaptability to different work requirements - from mulching to seasonal work. The operator is protected by a certified ROPS safety frame (roll over protection system).
It is offered in the basic version; without cutting unit. Depending on the needs, the customer can choose cutting unit with a width of 92 / 110 / 132 cm.
Designed to work on inclines of up to 22 degrees (40%).
Technical specifications:
| Battery data | 12V/32Ah battery |
| Engine capacity | Kawasaki FS730V 726cc, OHV, air-cooled |
| Drive | hydrostatic 4x4, with mechanical differential lock ; Rear drive Tuff Torq K664 transmission, Front drive Kanzaki KXH10N transmission |
| Weight | 377 kg |
| Cutting width | choice of 92 / 110 / 132 cm (cutting unit is purchased separately) |
| Cutting height adjustment | 40-135mm; depending on the cutting unit |
| Wheels | front 16" / rear 20" |
| Dimensions | 2350 x 1040 x 1740 (1370) mm |
| Features | work on slopes of 22 degrees (40%) |
| Fuel tank capacity | 16 l |
| Speed | up to 9.5 km/h (front); up to 6 km/h (rear) |
| Accessory equipment | possibility to use passive and active accessories |
| Hour meter / cruise control | yes / yes |
Powerful Kawasaki FS730V engine - reliability and high work efficiency
At the heart of the GOLIATH 4x4 mulching mower is the following 726 cm³ professional Kawasaki FS730V gasoline engine, oHV system, air-cooled. This unit is known for its very high operating culture, low vibration levels and high torque, crucial for intensive mulching of tall and dense vegetation.
For the user, this means:
- stable speed under load - The machine does not choke in dense bushes, which reduces the working time,
- easy start and reliability in daily use,
- longevity confirmed by the experience of professional users in the utility industry.
In practice, the Kawasaki engine will work well both for regular work in urban areas - where time and reliability count - and for seasonal, high-intensity wasteland mowing, when the machine runs at full load for many hours.
Hydrostatic 4x4 drive Tuff Torq & Kanzaki - full control on inclines up to 22°
GOLIATH 4x4 uses advanced hydrostatic all-wheel drive. Two reliable transmissions are responsible for the transmission:
- rear transmission Tuff Torq K664,
- front transmission Kanzaki KXH10N.
This combination provides:
- smooth acceleration and deceleration without shifting gears - The operator adjusts the speed with a single pedal,
- excellent traction on wet grass, mud, forest paths and slopes,
- working on inclines of up to 22° (40%), unavailable to most standard mowers and tractors,
- mechanical differential lock, which prevents wheel slippage in difficult terrain.
In day-to-day use, this means safe and fast mowing of steep road embankments, dykes or slopes next to reservoirs - without the need for additional equipment or workers with petrol mowers.

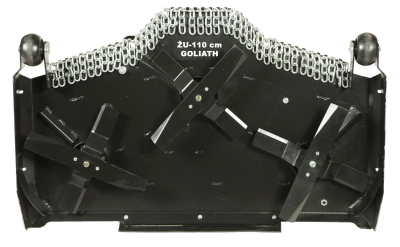

Versatile cutting system - three working widths to choose from
One of the biggest advantages of the GOLIATHA 4x4 is the ability to choice of cutting unit to individual needs:

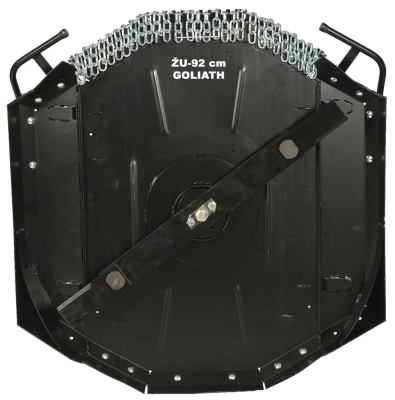

- working width 92 cm - Ideal for narrow alleys, slopes of varying shapes, areas with limited accessibility,
- working width 110 cm - A universal solution for utility and service companies,

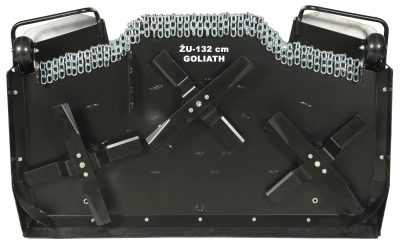

- working width 132 cm - Maximum performance in large open areas.
The cutting unit is purchased separately, allowing you to match the machine configuration to the actual tasks. Cutting height adjustment from 40-135 mm (depending on the cutting unit used) allows both low mowing of the lawn and high mowing of difficult areas where it is important to avoid stones and unevenness.
In practice, one GOLIATH 4x4 carrier with several aggregates can handle:
- regular mowing of municipal lawns,
- seasonal cleanup of wasteland,
- maintenance of greenery along power lines and fences.
Operator comfort and safety - ROPS frame, ergonomics and full control
GOLIATH 4x4 is designed for long hours of work by professional operators. The machine offers:
- rOPS certified safety frame (roll over protection system), which protects the operator if the machine tips over,
- a comfortable, well-shaped chair with adequate support,

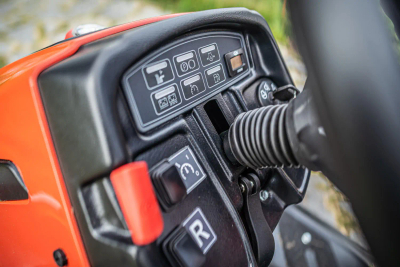

- an easy-to-read control panel with clear pictograms,
- hour meter, making it easier to schedule services and document work,
- cruise control, allowing you to maintain a constant speed over long distances.
With such solutions, the operator can focus on the quality of the cut being made, rather than constantly correcting settings. This translates into higher productivity, less fatigue and safety, especially when working in hilly terrain and on slopes.

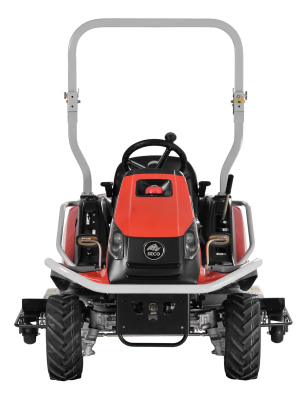

Maneuverability, stability and thoughtful chassis design
The GOLIATHA 4x4's stable chassis is designed to provide confident handling even on inclines and uneven surfaces. Responsible for this are m.in.:
- large wheels: 16" front and 20" rear, providing excellent traction and cushioning,
- compact dimensions 2350 x 1040 x 1740 (1370) mm, making it easy to maneuver between obstacles and transport on a trailer,
- low center of gravity, increasing safety on slopes and in corners.
In everyday work, this translates into the ability to easily bypass trees, poles, small architecture or elements of technical infrastructure, which is especially important for municipal crews and service companies operating in urban areas.
Work efficiency - high travel speed and capacious fuel tank
The GOLIATH 4x4 mulching mower is designed to maximize productivity:
- travel speed up to 9.5 km/h forward allows you to handle large areas quickly,
- reversing speed up to 6 km/h makes it easier to maneuver in tight spaces,
- fuel tank with a capacity of 16 l ensures long operating time without the need for frequent refueling.
For site managers, this means lower operating costs, shorter time on site, and the ability to complete more jobs per season. For the operator - fewer interruptions, fewer returns to base and greater comfort.
Possibility to mount active and passive accessories - one machine, many tasks
GOLIATH 4x4 has been adapted to work with a range of active and passive accessories, so it can serve as a multi-purpose municipal carrier. Depending on the available range of accessories, it can be used m.in. to:
- seasonal snow removal and maintenance of internal roads,
- sweeping and cleaning the pavement,
- transport of light loads on green or construction sites.
For the user - whether a municipality, utility company or service entrepreneur - this means that the investment in GOLIATHA can be allocated to many different tasks, increasing the rate of return and reducing the amortization time of the purchase.
Key specifications of the GOLIATH 4x4 mulching mower S536027044544x
- Model: GOLIATH 4x4 S536027044544x
- Manufacturer/Brand: OLEO-MAC / SECO (Goliath line)
- Machine type: self-propelled mulching mower / municipal mulcher 4x4
- Engine: Kawasaki FS730V, 726 cm³, OHV, air-cooled
- Battery: 12 V / 32 Ah
- Drive: hydrostatic 4x4, Tuff Torq K664 rear transmission, Kanzaki KXH10N front transmission, mechanical differential lock
- Working on inclines: up to 22° (40%)
- Cutting width: 92 / 110 / 132 cm (cutting unit sold separately)
- Cutting height adjustment:
- Wheels: front 16", rear 20"
- Weight: 377 kg
- Dimensions: 2350 x 1040 x 1740 (1370) mm
- Driving speed: up to 9.5 km/h (front), up to 6 km/h (rear)
- Fuel tank capacity: 16 l
- Accessories: possibility to use passive and active accessories
- Additional features: hour meter, cruise control, ROPS safety frame
Why choose the GOLIATH 4x4 mulching mower S536027044544x?
Investing in a GOLIATHA 4x4 is a machine choice:
- professional - created for service companies, municipal units and large farms,
- reliable - based on proven Kawasaki, Tuff Torq and Kanzaki components,
- comprehensive - The possibility of selecting a cutting unit and working with accessories,
- efficient - High travel speed, ability to work on inclines, stable 4x4 traction,
- safe and comfortable for the operator - ROPS frame, ergonomic workstation, cruise control.
It's ideal for those who need a single, robust machine to handle a wide range of green maintenance tasks - from regular mowing to scrub mulching to seasonal and specialized work in difficult terrain.
FAQ - Frequently asked questions about the GOLIATH 4x4 mulching mower S536027044544x
1. Does the GOLIATH 4x4 mower come with a cutting deck?
The machine is offered in the basic version, without cutting unit. The cutting unit must be selected separately, choosing one of the available widths: 92, 110 or 132 cm. This allows you to perfectly match the equipment to your working conditions.
2. Which jobs the GOLIATH 4x4 is best suited for?
GOLIATH 4x4 is designed for intensive mulching in difficult terrain: on escarpments, embankments, wastelands, roadsides, parks and communal areas. It perfectly handles tall grass, weeds and light overgrowth, and can also be used for other seasonal work when the right attachments are selected.
3. What slope of terrain can this mower safely handle?
The GOLIATH 4x4 mulching mower is suitable for work on slopes up to 22° (40%). This is much more than typical garden tractors, making the machine suitable for embankments, slopes and slopes.
4. What are the main advantages of 4x4 drive with Tuff Torq and Kanzaki transmissions?
Four-wheel drive with Tuff Torq K664 (rear) and Kanzaki KXH10N (front) hydrostatic transmissions ensures smooth speed control, excellent traction and safe operation in difficult terrain. In addition, a mechanical differential lock helps maintain traction on slippery ground.
5. What are the options for adjusting the mowing height?
Depending on the cutting unit used, the cutting height adjustment range is from 40 to 135 mm. This allows both low maintenance mowing and high mowing of difficult areas where stones and bumps need to be avoided.
6. Is the GOLIATH 4x4 suitable for intensive daily use?
Yes. Kawasaki FS730V engine, rugged chassis design, hydrostatic transmissions and ROPS safety frame make the GOLIATH 4x4 fully equipped for professional, multi-hour operation by service companies and municipal services.
7. What additional features make the machine easier to use?
The mower is equipped with m.in. w hour meter, which helps with service scheduling and job billing, and cruise control, allowing you to maintain a constant mowing speed. Ergonomic operator station and easy-to-read control panel significantly increase the comfort of daily work.
8. For whom GOLIATH 4x4 will be the best choice?
It is an ideal machine for:
- municipal companies and utilities,
- professional green maintenance service companies,
- managers of large industrial, recreational and sports areas,
- owners of large farms and resorts.
If you are looking for a reliable, powerful and versatile mulching mower for the toughest conditions - GOLIATH 4x4 S536027044544x will be an investment that will pay off quickly and provide many years of trouble-free operation.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
