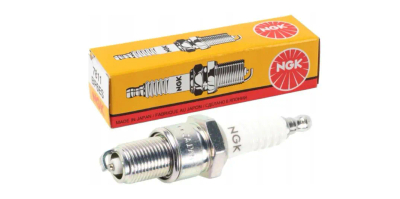

NGK BPR6HS SPARK PLUG R101183
- NGK spark plug BPR6HS R101183 - short thread M14 x 1.25, 5 kΩ resistor, nickel electrode. Ideal for motorcycles, scooters, lawnmowers and quads. Reliable starting and stable engine operation.
NGK BPR6HS R101183 spark plug is a high-quality ignition system component, designed for gasoline engines in vehicles and machines equipped with an ignition system with M14 x 1.25 thread and a short thread length of 12.7 mm. It is responsible for creating the ignition spark in the combustion chamber, ensuring a sure engine start, even idling and optimum performance over the full rpm range.
The BPR6HS model is a resistor spark plug with a screw-on SAE connector, equipped with a nickel center electrode and one ground electrode. Perfect for motorcycles, scooters, outboard engines, lawnmowers, ATVs, generators and other combustion machines where reliability, durability and stable spark are important.
The right choice of NGK BPR6HS R101183 spark plug not only starts the drive unit reliably, but also protects the engine from premature wear, reduces fuel consumption and lowers exhaust emissions. It is the ideal solution for users who value the quality of consumable parts and expect trouble-free engine operation in daily use.
Spark plug BPR6HS, brand NGK.
Highlights:
- Key size: 20.8 mm
- Thread size: M14 x 1.25
- Thread length: 12.7 mm
- Spark plug: unscrewed SAE connector
- Spark plug: nickel center electrode
- Spark plug: 1 ground electrode
- Spark plug: debarked, 5 kOhm
- Spark plug: with flat gasket socket
- Position of electrodes: 3.5 mm
NGK spark plug BPR6HS R101183 - construction, parameters and benefits for the engine
NGK BPR6HS R101183 is a spark plug with a short thread (12.7 mm) and M14 x 1.25 thread diameter, making it an ideal choice for a wide range of small gasoline engines. The 20.8mm wrench size makes it easy to install and remove the plug even in hard-to-reach heads, which will be appreciated by both professionals and users who service the equipment themselves.
Center electrode made of high quality nickel alloy provides stable spark and good resistance to heat wear. In practice, this means longer spark plug life, less risk of misfiring and cleaner burning of the air-fuel mixture. One precisely shaped ground electrode ensures that the spark jumps reliably at the optimal point in the combustion chamber, resulting in fast starting, even engine operation and improved gas response.
A built-in 5 kΩ resistor reduces electromagnetic interference (de-noising) that can affect the operation of on-board electronics, CDI ignition or control systems. As a result, the NGK BPR6HS spark plug not only provides a strong spark, but also works seamlessly with modern ignition systems. The flat seat of the gasket ensures a tight fit on the head to prevent blowouts and loss of compression.
In daily use, these benefits can be seen m.in. w:
- easier firing of a cold engine in a motorcycle or scooter, even after a long stop,
- stable idle speeds in mower and generator engines,
- smoother RPM entry on quads and recreational machines.
NGK BPR6HS candle application - where and when to use it?
NGK spark plug BPR6HS R101183 is widely used in many types of gasoline engines, especially where the manufacturer has provided for a short plug with M14 thread and resistor. It is encountered in road and off-road motorcycles, scooters, some ATVs, boat outboard motors, as well as in gardening equipment such as lawnmowers, soilers, snowblowers and leaf blowers.
Thanks to the use of a resistor and nickel electrode, the NGK BPR6HS perfectly withstands frequent starting cycles and operation under varying load conditions, which is typical for garden equipment and working machinery. The plug is also a popular choice for recreational vehicle users because it provides a repeatable, strong spark even after many hours of engine operation, minimizing the risk of ignition interruption while driving.
Examples of everyday applications for the NGK BPR6HS candle:
- Motorcycles and scooters - Improved engine culture, reliable ignition when starting from under the lights, lower fuel consumption in city driving.
- Garden engines - Quick start of the mower or tiller, stable rotation for long-term mowing or heavy-duty work.
- Recreational machines - Reliable starting of quads, go-karts and other vehicles used seasonally, even after a long break.
Before buying, it is always a good idea to compare the specifications of the plug with the recommendations of the manufacturer of the specific engine or vehicle to ensure that NGK BPR6HS is a suitable replacement.
Installation of NGK BPR6HS R101183 candle - fast replacement and long-lasting reliability
Installation of the NGK BPR6HS R101183 spark plug is simple and can be done even by less experienced users, provided that basic service principles are observed. The 20.8mm wrench size allows you to securely grip the plug with a pipe or pipe wrench, and the flat gasket socket makes it easy to properly press the plug against the head without the risk of overtightening it.
The screw-on SAE connector gives you the ability to fit the plug to different types of ignition pipes - both those with a nut end and threaded end. This makes the candle universal and can replace many of the models used by the factory in various devices. In practice, this means no problems with connecting the ignition cable, which will be appreciated especially by users of older vehicles and machines.
Using NGK BPR6HS candle according to the recommendations (proper gap, tightening torque, proper heat dissipation) you can:
- extend the intervals between candle replacements,
- reduce the risk of "flooding" the candle with frequent firing,
- maintain a high engine operating culture throughout the operating season.
These types of solutions are particularly important in seasonally used machines, where reliability on first startup after winter is crucial - such as in lawnmowers, boats and recreational quads.
Why choose NGK spark plug BPR6HS R101183?
For years, the NGK brand has been recognized as one of the leaders in ignition technology. When you choose the NGK BPR6HS R101183 spark plug, you are investing in a product that is designed to provide stable, repeatable ignition and protect your drive unit from damage caused by improper mixture combustion.
The most important advantages from the user's point of view:
- High reliability - resistance to thermal and mechanical wear thanks to nickel center electrode.
- Stable spark - properly selected design of one mass electrode and position of 3.5 mm electrodes provide optimal ignition conditions.
- Electronics protection - 5 kΩ resistor minimizes RF interference and impact on sensitive electronics, which is important in modern vehicles and machinery.
These features make the NGK BPR6HS R101183 candle an excellent choice for both private users and service workshops that need a proven, durable product for everyday use.
The most important technical data of the NGK BPR6HS R101183 candle
- Product type: spark plug with resistor
- Brand: NGK
- Model: BPR6HS
- Code: R101183
- Key size: 20.8 mm
- Thread size: M14 x 1.25
- Thread length: 12.7 mm
- Center electrode: nickel
- Number of mass electrodes: 1
- Resistance: 5 kΩ (de-noised)
- Socket: flat with gasket
- Position of electrodes: 3.5 mm
- Connector: unscrewable SAE connector
FAQ - the most common questions about NGK spark plug BPR6HS R101183
1. To which engines the NGK BPR6HS R101183 plug fits?
NGK BPR6HS R101183 plug fits many gasoline engines with M14 x 1.25 threads and a short thread length of 12.7 mm. It is used m.in. in motorcycles, scooters, quads, gardening equipment and some outboard engines. Always check the engine manufacturer's recommendations to confirm compliance.
2. Does the NGK BPR6HS candle have a resistor?
Yes, it is a de-coked candle with a built-in 5 kΩ resistor. This reduces radio interference and ensures proper interaction with vehicle or machine electronics.
3. How often should you replace the NGK BPR6HS spark plug??
Replacement frequency depends on engine type, driving style and fuel quality. In many applications it is accepted to check the plugs every season or every few hundred hours of engine operation. If there are signs of wear, excessive deposits, or firing problems, the plug should be replaced sooner.
4. Is the NGK BPR6HS suitable for self-assembly?
Yes, you can install the candle yourself, remembering to use the correct 20.8mm wrench, clean the socket in the head and tighten to the recommended torque. If you are inexperienced, it is a good idea to get help from a mechanic to avoid damaging the threads in the head.
5. Is the unscrewable SAE connector mandatory for use?
The SAE screw-on connector increases the versatility of the plug - it can be left on or unscrewed depending on the type of ignition pipe. This allows you to fit the candle to both older and newer design installations without the need for additional adapters.
