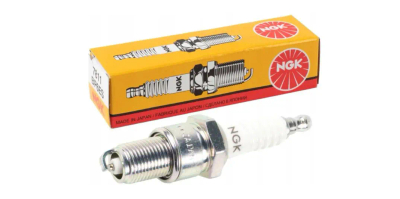

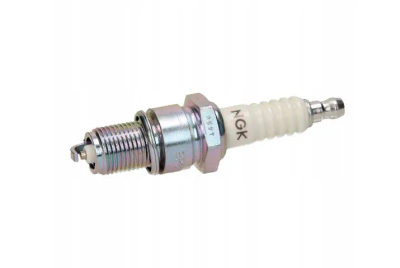

SPARK PLUG NGK BP6ES R101122
- NGK BP6ES R101122 spark plug for Honda, Subaru, Loncin and garden machinery engines. Thread M14x1.25, length 19 mm, electrode spacing 0.9 mm. Reliable starting and stable engine operation.
SPARK PLUG NGK BP6ES R101122 is a high-quality spark plug designed for four-stroke overhead-valve engines. The use of proven NGK technology guarantees reliable starting, stable engine operation and long service life in the most demanding operating conditions - from lawn mowers to soilers to generators.
Model NGK BP6ES provides a popular and readily available replacement for many candles from other manufacturers (m.in. Bosch, Champion, Denso, Brisk, Oregon), which facilitates the selection and service of garden machinery and equipment with Honda, Subaru, Loncin engines and numerous equivalents.
NGK BP6ES spark plug - what it is and how it works in your engine?
NGK BP6ES spark plug R101122 is a key component of the ignition system in gasoline engines. It is responsible for creating an electric spark in the combustion chamber, which ignites the fuel-air mixture. Thanks to precisely matched thermal parameters and thread dimensions, the candle ensures optimum combustion and thus higher engine efficiency and lower fuel consumption.
In practice, this means easier cold-starting for the user, less risk of "flooding," and consistent operation of the drive unit even under heavy load - such as when mowing dense grass or milling hard ground.
Where NGK BP6ES candle is installed?
The plug is mounted directly in the engine head, in the place provided by the manufacturer of the drive unit. Fits standard candle sockets with threads M14x1.25 and thread length 19 mm. For its installation, a candle wrench of size 20.8 mm.
Examples of daily use:
- powered and unpowered internal combustion mower engines,
- garden soilers and scarifiers,
- generators with Honda, Subaru, Loncin engines,
- compactors, cutters and other construction machinery,
- forestry and gardening machinery brands Oleo-Mac, Victus, Nac, Alko, Topsun, Stihl, Husqvarna, Dolmar, Efco and others.
NGK BP6ES R101122 spark plug - highest ignition quality, durability and reliability
NGK spark plug BP6ES
Candle fits Honda, Subaru, Loncin four-stroke overhead valve engines. Also suitable for Oleo-mac, Victus, Nac, Alko, Topsun, Stihl Husqvarna Dolmar, Efco, and machines other.
Candle counterpart:
| Brand | Candle Model |
| Oregon | 77-350 |
| Denso | W20EP |
| Champion | N89GY |
| Champion | N9YC |
| Brisk | LR17Y |
| Bosch | W200T |
| Bosch | W175T |
| Bosch | W7DC |
| Bosch | W7D0 |
| Bosch | W6D |
Choosing NGK BP6ES R101122, you gain a candle with parameters tailored to a wide range of engines and operating conditions:
- Stable spark under all conditions - precisely matched electrode spacing 0.9 mm provides powerful ignition on both cold and hot engine starts.
- Durable design - high quality electrode materials and ceramic insulator are resistant to high temperature and vibration, resulting in a long life of the candle.
- Engine protection - a properly selected spark plug reduces the risk of knocking combustion, carbon build-up and premature wear of the piston and valves.
In daily use, this translates into:
- confidently start the mower after the winter break,
- equal operation of the generator when powering a house or workshop,
- less vibration and machine noise, which improves operator comfort,
- lower fuel consumption and less frequent need for engine servicing.
Use of NGK BP6ES spark plug in Honda, Subaru, Loncin and garden machinery engines
Candle NGK BP6ES R101122 was developed to handle a wide range of machines and equipment equipped with four-stroke overhead-valve engines. Thanks to its universal thread dimensions and suitable thermal performance, it is used as original equipment or as a high-quality replacement in many popular models.
Typical application areas:
- Petrol mowers - Ensures easy starting and even engine operation under varying loads, such as when mowing dense or wet grass.
- Rake, scarifiers, aerators - Stable ignition helps maintain a constant RPM when working in hard, compacted soil.
- Generators - reliable ignition is a guarantee of uninterrupted operation of the generator, especially important when powering the house, workshop or outdoor events.
- Compactors, cutters, other construction machinery - correct operation of the engine under high load, without the risk of ignition loss.
- Forestry and gardening machinery (Oleo-Mac, Victus, Nac, Alko, Topsun, Stihl, Husqvarna, Dolmar, Efco and others) - a versatile candle that can easily fit in place of many models from other brands.
Thanks to its compatibility with many candle symbols (Oregon 77-350, Denso W20EP, Champion N89GY/N9YC, Brisk LR17Y, Bosch W200T/W175T/W7DC/W7D0/W6D), the user can easily match the NGK BP6ES as a replacement when the original model is hard to find or more expensive.
Technical parameters of NGK BP6ES R101122 spark plug - exact match to the engine
For a spark plug to work properly, it must be precisely matched to the engine design. Model NGK BP6ES has the following key technical parameters:
- Thread size: 14.0 mm
- Thread length: 19.0 mm
- Thread diameter: 14.0 mm
- Electrode spacing: 0.9 mm
- Key size: 20.8 mm
- Candle type: BP6ES - single-electrode candle, standard, with selected thermal properties
- Product code / part number: R101122
- EAN code: 0087295078112
This combination of parameters ensures that the candle:
- fits standard head sockets on many popular engines,
- ensures proper heat dissipation, preventing candle overheating and knocking combustion,
- allows for quick and trouble-free installation using a typical 20.8 mm candle wrench.
In practice, this means that the user can replace the old candle himself, in a few minutes, with a NGK BP6ES, restoring full efficiency of the machine without the need for a visit to the service center.
User benefits - why choose NGK BP6ES spark plugs?
Investment in nGK BP6ES R101122 spark plug is a tangible benefit for any user of gasoline engine machines:
- Hassle-free startup - A strong spark makes it easier to start the engine even after a long standstill, which is of great importance, for example, after storing the mower in the garage for the winter.
- Lower fuel consumption - optimum combustion of the fuel-air mixture reduces fuel consumption and exhaust emissions, which benefits the household budget and the environment.
- Higher engine culture - steady operation without interruption or jerking translates into comfortable operation of the machine and less operator fatigue.
- Longer engine life - proper ignition protects the valves, piston and exhaust system from damage caused by underfired fuel.
- Easy availability of a replacement - thanks to its wide compatibility with other candle models, NGK BP6ES is one of the most widely used service solutions.
As a result, the user gets a reliable candle that works well in both the home garden and in heavy-duty construction or service machines.
FAQ - Frequently asked questions about NGK BP6ES R101122 spark plug
1. To which engines the NGK BP6ES spark plug fits?
The plug is designed for four-stroke overhead valve engines (OHV) applied m.in. in machines with engines Honda, Subaru, Loncin. It also works well on many Oleo-Mac, Victus, Nac, Alko, Topsun, Stihl, Husqvarna, Dolmar, Efco and other brands of equipment where the manufacturer has provided a BP6ES spark plug or its equivalent.
2. What are the equivalents of NGK BP6ES candle of other brands?
NGK BP6ES can replace m.in.: Oregon 77-350,Denso W20EP,Champion N89GY, N9YC,Brisk LR17Y,Bosch W200T, W175T, W7DC, W7D0, W6D. However, it is always a good idea to compare the parameters and recommendations of the engine manufacturer before installation.
3. What is the recommended electrode spacing of the NGK BP6ES candle?
Standard electrode spacing in the BP6ES model is 0.9 mm. Before installation, it is a good idea to check and, if necessary, adjust the clearance to the value recommended by the manufacturer of the respective engine.
4. With what wrench to unscrew and tighten the BP6ES plug?
To install and remove the NGK BP6ES spark plug, use the following 20.8 mm wrench (typical M14 plug wrench). It is important not to exceed the recommended tightening torque, so as not to damage the threads in the head.
5. What does replacing an old plug with a new NGK BP6ES give you?
Replacing a worn or contaminated spark plug with a new one NGK BP6ES usually results in: easier engine starting, even running without interruption, less smoke from the exhaust, and better fuel economy. This is one of the easiest and cheapest maintenance activities that really improves the comfort of the machine.
6. Can I replace the NGK BP6ES spark plug myself?
Yes. With basic technical skills and the use of a suitable wrench, most users are able to replace a spark plug themselves in a few minutes. Just remember to turn off the ignition, disconnect the high-voltage wire pipe, unscrew the old plug, screw in the new one by hand as far as it will go, and then tighten it with a wrench with feeling.
7. How often should you replace the NGK BP6ES spark plug??
Frequency of replacement depends on the intensity of machine use and operating conditions. In typical garden mowers, it is recommended to check the plug at least once a season and replace it every 1-2 seasons. In equipment working professionally (e.g. compactors, generators), the candle is worth checking more often.
