SNOWBLOWER FS100 (FOR OM106/124) OB-ACCS536059550003
- Snowblower FS100 for Oleo-Mac OM106/OM124 tractors is a professional snowblower attachment with a working width of 100 cm. Provides fast, efficient snow removal for large driveways, roads and parking lots, increasing tractor functionality year-round. Idea

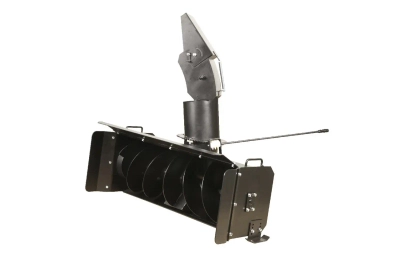

Snowblower FS100 (for OM106/124) OB-ACCS536059550003 is a robust, professional snow attachment for Oleo-Mac premium line of OM106 and OM124 garden tractors. Designed for heavy-duty use in demanding winter conditions, it allows you to quickly and safely remove snow from large areas - from driveways and sidewalks, to long driveways, parking lots and the area around commercial buildings. Thanks to its well-thought-out design, reliable drive and large working width of 100 cm, it significantly reduces working time and increases operator comfort.
It is original Oleo-Mac accessory, which turns a garden tractor into a year-round, multi-functional grounds maintenance machine - from spring scarifying to summer mowing to winter snow removal.

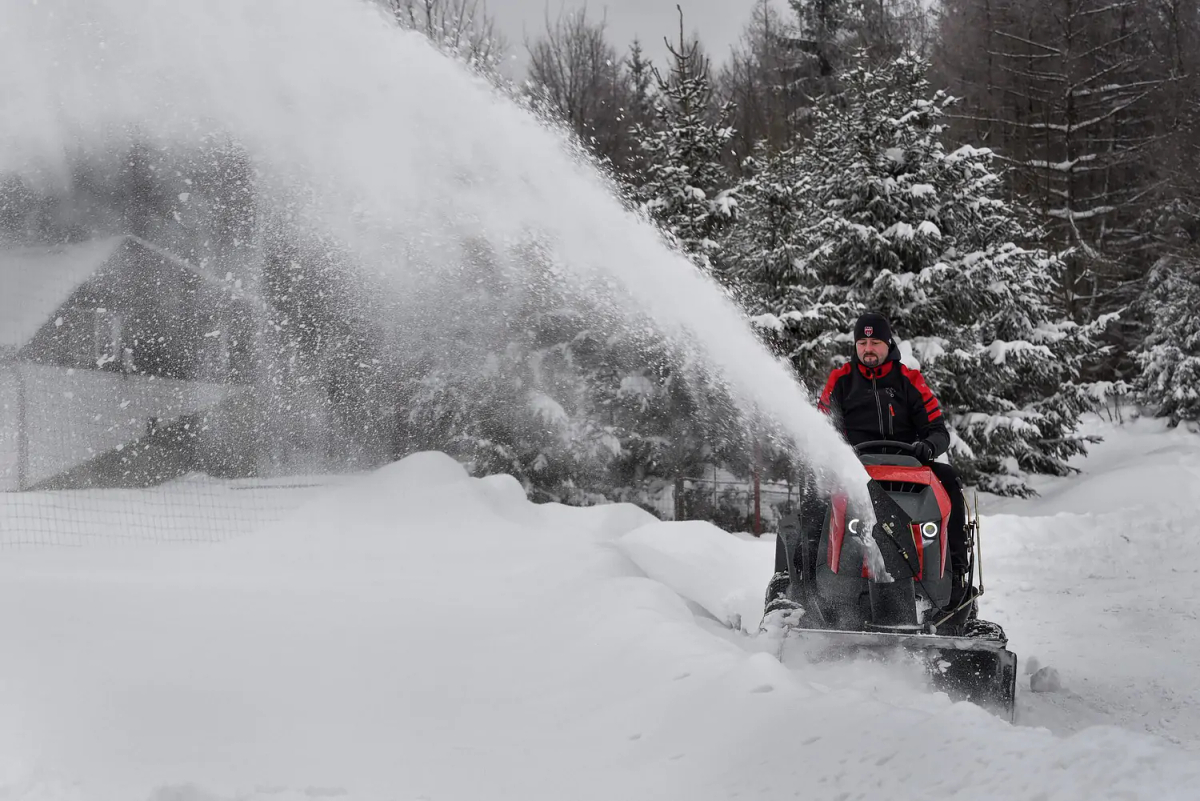

Oleo-Mac FS100 snowblower - high performance snow removal on large areas
The FS100 snowblower is designed for users who need maximum snow removal efficiency in areas with a significant area. Working width 100 cm allows you to quickly remove snow from long driveways, access roads or internal alleys on private properties, housing estates and company sites.
The drive of the auger is realized by v-belt connected to the tractor cutting unit pulley. Such a solution ensures smooth, stable operation and efficient power transfer from the tractor engine to the snow attachment. To avoid damage to the cutting unit (also due to corrosion), it is necessary to disassemble it before installing the snowblower - so the tractor is properly prepared for the winter season.
FS100 snowblower as part of a complete set allows efficient snow removal over a relatively large area, ensuring clean and safe travel even after heavy snowfall. The maximum speed of movement during operation is 2 km/h, which guarantees thorough collection of snow, without leaving any uncleaned parts.
Examples of applications in daily work:
- quickly remove snow from a long driveway of a single-family home or residence,
- maintenance of internal roads on the premises of the company, farm or resort,
- regular snow removal from paths, sidewalks and parking lots in winter.
Where the FS100 snowblower (for OM106/124) is mounted and which tractors it works with?
The FS100 snowblower is dedicated to work with Oleo-Mac premium line OM106 and OM124 garden tractors. It is mounted on the front of the tractor as an interchangeable work attachment, providing excellent visibility of the work field and precise control of the snow clearing track from the operator's position.
To properly install and use the FS100 snowblower, it is required to purchase of two components:
- OO-OTHS000000002180 - ZP5 ATTACHMENT - A special mounting frame to connect attachments to the tractor,
- OO-OTHS532933702563 - PPT5 CONTROL SYSTEM - control system that allows convenient operation of attachments from the operator's seat.
These two key mounting components allow not only the FS100 snowblower, but also other attachments:
- AGREGATE VT73 - For scarifying and aerating the lawn,
- HIGH GRASS MOWER BS105 - For mowing brush and tall grass,
- SWEEPER ZK120 - For sweeping paved surfaces,
- SNOWBLOWER FS100 - described attachment for winter work.
Thanks to this oleo-Mac tractors of the Premium line become machines to work all year round, and the ZP5 mount and PPT5 control system is a universal solution for all four attachments.
An additional attachment that requires a ZP5 attachment, is also sR120 snow plough - in its case, the PPT5 control system is no longer needed. This allows you to flexibly select the configuration of machines to the specifics of the terrain and user expectations.
Examples of installation and use locations:
- private properties with a large garden and a long entrance, where the OM106/124 tractor works as a mower in summer and as a snow plow in winter,
- farms and agritourism farms that need a reliable machine for year-round site maintenance,
- estates, housing communities and companies that take care of the maintenance of internal roads and parking lots.
Applications and benefits of using FS100 snowblower for OM106/124
The FS100 snowblower is designed for intensive, regular snow removal paved surfaces and paved dirt paths. It works well wherever a classic hand-push snowblower is insufficient or too time-consuming.

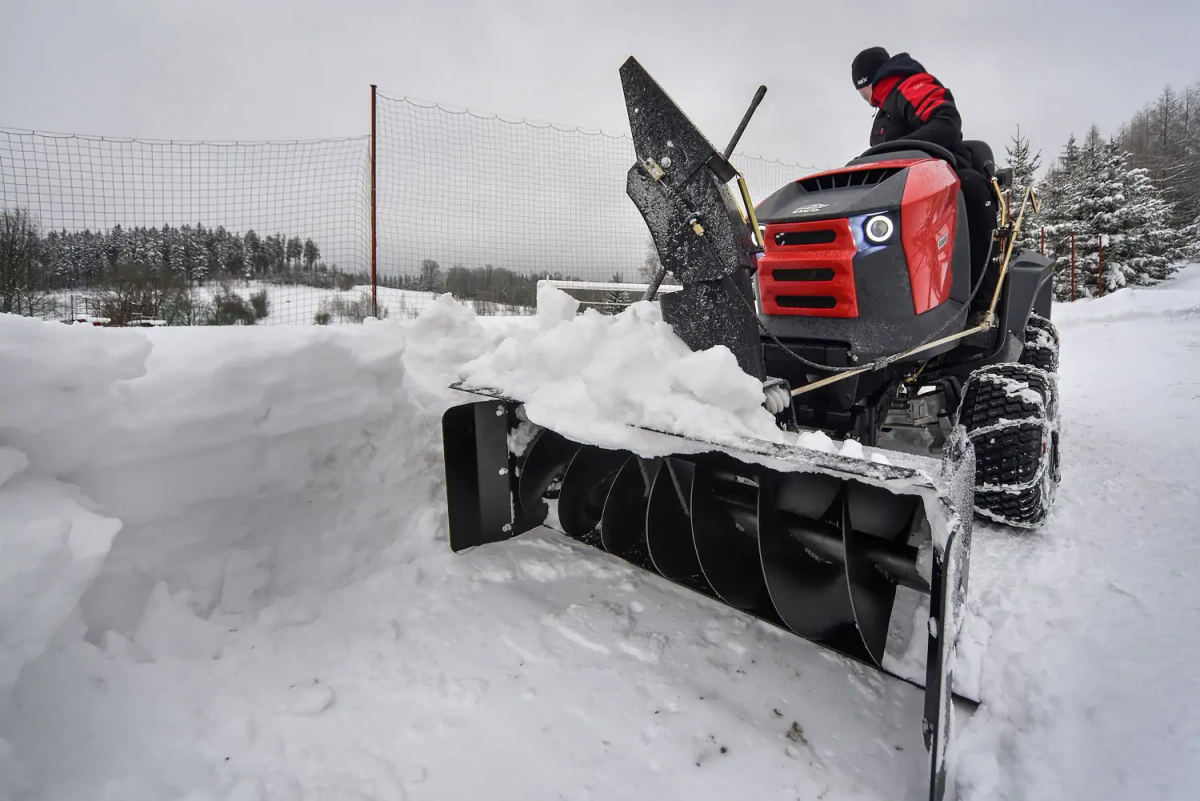

With a working width of 100 cm and robust auger design, the FS100 allows you to efficiently collect both fresh, loose snow and more compacted powder after vehicle passes. Ejection channel deflector controlled from the operator's position allows you to quickly adjust the direction of snow ejection, without having to get down from the tractor. This is an important advantage for frequent changes of direction and working on varied terrain.
The snow collection height can be easily adjustable with the skids, which allows you to adjust the work of the snowblower to the type and condition of the surface. It is possible to leave a thin layer of snow on delicate pavement or decorative surfaces or to collect snow more aggressively from concrete and asphalt driveways.
Typical applications in practice:
- snow removal from parking lots at companies, workshops, warehouses and service facilities,
- keeping internal roads at farms and resorts passable,
- cleaning long garden alleys, access roads to garages and outbuildings.
It is recommended the use of chains on the wheels of the tractor, to improve traction in difficult conditions - especially on icy climbs or steeper gradients. When working on slippery surfaces and at steeper inclines, it is also recommended to use an an additional rear-mounted weight in place of the basket. Such a solution significantly increases the stability of the set and the safety of the operator.
FS100 snowblower for Oleo-Mac OM106/OM124 tractors - design, safety and convenience of use
The FS100 snowblower is designed to provide maximum durability and reliability under harsh winter conditions. Robust construction made of high-quality steel guarantees resistance to mechanical damage and corrosion, and properly selected operating parameters allow trouble-free operation for many seasons.
Key specifications of the FS100 snowblower:
- Working width: 100 cm - ideal for clearing snow from wide driveways and interior roads,
- Maximum moving speed during operation: 2 km/h - guarantees thorough snow collection,
- Weight: 67 kg - provides stability and effective penetration into the snow,
- Dimensions: 605 x 1030 x 1030 mm,
- Height during transportation: 11 cm - makes transit and maneuvering easier,
- Permissible slope of the site: up to 10° - safe operation on moderately sloping surfaces,
- Ejection deflector: controlled from the operator's position,
- Collection height adjustment: with the help of skids,
- Drive: v-belt from the tractor cutting unit pulley (the unit must be removed before installing the snowblower).
For the sake of user safety, solutions have been used to facilitate control of the machine - the operator remains at all times in a comfortable position on the tractor seat, controlling the ejection deflector and working height without having to descend. This is especially important during prolonged work in low temperatures.
Important installation note:
For those without experience, assembling the machine can be a time-consuming and difficult task. To avoid possible problems, it is recommended to contact a service point cooperating with the seller or an authorized Oleo-Mac service center.
When you choose the FS100 snowblower for your Oleo-Mac OM106 or OM124 tractor, you are investing in a a proven, branded solution, which will significantly increase the functionality of your machine and allow you to use its potential all year round.
FAQ - Frequently asked questions about the FS100 snowblower (DO OM106/124)
1. To which tractors the FS100 snowblower fits?
FS100 snowblower is designed as an accessory for garden tractors Oleo-Mac Premium line OM106 and OM124. This is not a universal attachment for all tractors - compatible Oleo-Mac models are required for proper installation.
2. What parts do I need to buy to use the FS100 snowblower?
To run the FS100 snowblower, it is necessary to purchase:
- OO-OTHS000000002180 - ZP5 MOUNT,
- OO-OTHS532933702563 - PPT5 CONTROL SYSTEM.
These two components also allow the tractor to work with other attachments: VT73, BS105 and ZK120.
3. Do I need to disassemble the cutting unit before installing the snowblower?
Yes. Disassembly of the cutting unit is necessary, to avoid damaging it, including through corrosion, and to ensure proper transmission to the FS100 snowblower.
4. Is the FS100 snowblower suitable for sloping terrain?
The FS100 snowblower is designed to work on inclines 10° maximum. When working on more demanding terrain, take extra care and make sure the tractor is properly equipped (wheel chains, rear weight).
5. What accessories increase safety and efficiency?
For maximum safety and traction, it is recommended:
- installation wheel chains,
- application a weight to be mounted on the rear of the tractor, in place of the basket, especially when working on slippery surfaces or steeper inclines.
6. Can I install the FS100 snowblower myself?
Assembling the FS100 snowblower requires basic knowledge of tractor construction and tool operation. For those without experience, this task can be time-consuming and difficult, therefore, it is recommended to contact a professional service center, which will take care of the correct installation and adjustment of the attachment.
7. What are the main benefits of choosing the FS100 snowblower?
Key benefits include:
- high snow removal efficiency thanks to the width of 100 cm,
- saving time and effort compared to manual snow removal,
- full control from the operator's position (deflector control, collection height adjustment),
- possibility of year-round use of the tractor Oleo-Mac OM106/OM124 with various attachments.
