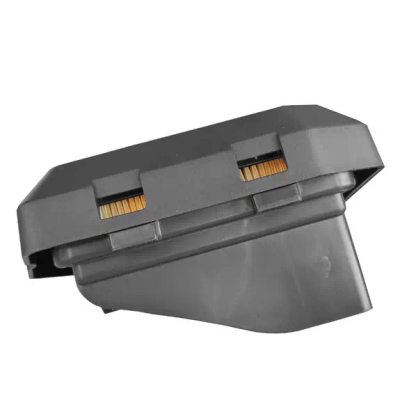

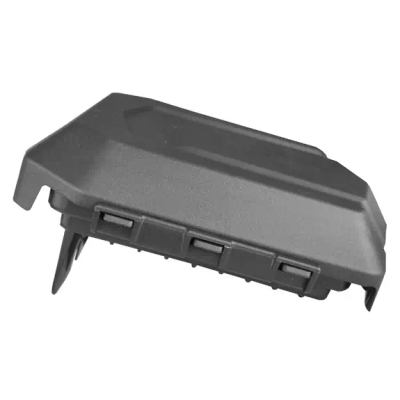

COMPLETE EMAK K805 ENGINE AIR FILTER l66151609
- Complete engine air filter EMAK K805 l66151609 for Oleo-Mac mowers (G 53 PK/TK/VK, GMC 53, GV53, GV25+, Max 53). Original module with base, cartridge and cover - effective filtration, engine protection and easy installation.
Complete engine air filter EMAK K805 l66151609 is a factory-assembled filter, base and cover kit designed for Emak K805 series engines used in Oleo-Mac mowers. It is responsible for effectively cleaning the air sucked into the combustion chamber, protecting the engine from dust, grass and fine debris. Regular replacement of the air filter ensures stable power, lower fuel consumption and a significantly longer life of the drive unit.
The product is an original assembly set dedicated to selected models of Oleo-Mac mowers equipped with K805 engine. So you are assured of a perfect fit, easy installation and full compatibility with factory carburetor settings.
Emak K805 complete engine air filter - what it is and why it is so important?
Complete engine air filter Emak K805 l66151609 is a ready-to-install intake system module, consisting of:
- filter basics - body, which attaches to the engine and on which the filter cartridge is seated,
- replacement air filter element - Precisely folded paper accordion liner with a large filtration area,
- filter covers - closing the whole and protecting the cartridge against mechanical damage and against the ingress of impurities from the outside.
The task of the air filter is to separation of solid contaminants (dust, dust, grass residue, sand) from the air sucked in by the engine. Clean air is essential for proper fuel-air mixture and efficient combustion. A worn or clogged filter causes a loss of power, increased combustion, rough idle, and in extreme cases can lead to serious damage to the cylinder and piston.
When you choose an original Emak set, you get a a part identical to the factory-installed one in a new mower, minimizing the risk of leaks and engine adjustment problems after replacement.
Where is the Emak K805 l66151609 air filter installed and with which models of mowers it works with??
Air filter EMAK K805 l66151609 mounts directly on the engine body, in place of the factory filter system. It is a component usually located on the side or front of the engine - enclosed in a plastic housing, which is accessed by tilting or removing the cover.
This model is designed for emak K805 engines and works with popular Oleo-Mac brand lawn mowers. The kit fits the following models:
Complete air filter for Emak engine - for which models of Oleo-Mac mowers it fits?
Emak complete engine air filter
For K805 engine models
For mower models:
- Oleo Mac G 53 PK (K805)
- Oleo Mac G 53 TK (K805)
- Oleo Mac G 53 VK (K805)
- Oleo Mac GMC 53 (K805)
- Oleo Mac GV53 (K805)
- Oleo Mac GV25+ (K805)
- Oleo Mac Max 53 (K805)

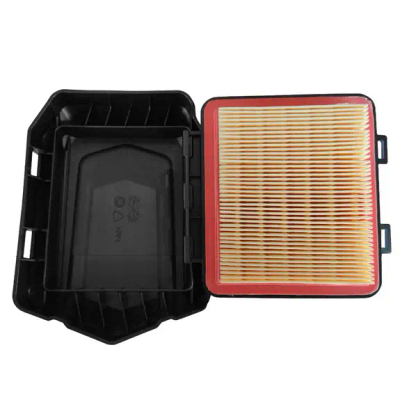

Included: filter base / air filter / filter cover
Thanks to the precise fit for the above models, installation is quick and easy - just unscrew or detach the old housing, remove the complete module and insert the new kit in its place. No need to fit additional components or alterations. This solution is ideal for both service technicians and individual users who take care of their devices themselves.
Application of Emak K805 air filter - when and why to replace it?
Air filter EMAK K805 l66151609 is applicable wherever mowers with the K805 engine are used in garden, home and semi-professional conditions. It will work well for owners of smaller lawns, as well as in more demanding applications - for regular mowing of larger areas, recreational plots or green areas around businesses.
Filter replacement is especially recommended when:
- the mower noticeably loses power or "choking" at higher grass,
- engine runs unevenly at idle or goes off after warming up,
- you notice visible dirt on the filter cartridge or the filter is clogged with dust and grass residues,
- the mower was used in very dusty conditions (e.g., when mowing dry, dusty areas, roadsides, or orchards),
- passed at least one season of intensive work without changing the filter.
Examples of daily applications:
- regular mowing of the lawn around the house - the filter protects the engine from dust rising when cutting dry grass,
- care of greenery on a recreational plot - especially where part of the land is dry, sandy soil,
- lawn mowing at guesthouses, hotels or businesses - reliable engine operation is crucial for frequent use.
The most important advantages of Emak K805 engine air filter set l66151609
Choosing a set EMAK K805, you invest in:
- Complete installation kit - base, filter cartridge and cover in one product, ready for immediate installation.
- Original fit for K805 engine - Guarantee of proper airflow and compatibility with factory carburetor settings.
- Effective filtration - harmonic design of the cartridge increases the filtering surface, accurately capturing fine impurities.
- Engine protection - reduce the risk of scratching the cylinder, wear of piston rings and valves by dust particles.
- Stable power and easy start-up - clean air is the correct fuel-air mixture, so the engine runs evenly and starts reliably.
- Lower fuel consumption - the right amount of air in the mix means more economical operation.
- Simple installation - replacement does not require specialized tools or service experience.
This solution is especially recommended for users who want to keep their Oleo-Mac mower in perfect condition for many seasons, minimizing the risk of costly engine repairs.
Quality, durability and reliability - Emak K805 air filter in practice
Air filter EMAK K805 l66151609 was designed for high resistance to harsh working conditions. Robust housing made of durable plastic protects the filter cartridge from mechanical damage, while resisting moisture, dirt and temperature changes.
In practice, this means:
- reliable protection throughout the season - Even with frequent mowing,
- stable engine operation when mowing wet grass, when more debris can enter the housing,
- maintaining an appropriate work culture - Reduced vibration and noise due to even operation of the drive unit.
In daily use, owners of mowers with the K805 engine will appreciate the fact that after replacing the filter:
- mower fires up more easily after winter,
- engine responds better to load by the tall and dense grass,
- fuel combustion is more predictable and lower compared to working on an old, clogged filter.
Basic data and performance characteristics of the Emak K805 air filter
- Purpose: emak K805 series internal combustion engines
- Application: oleo-Mac petrol mowers:
- Oleo Mac G 53 PK (K805)
- Oleo Mac G 53 TK (K805)
- Oleo Mac G 53 VK (K805)
- Oleo Mac GMC 53 (K805)
- Oleo Mac GV53 (K805)
- Oleo Mac GV25+ (K805)
- Oleo Mac Max 53 (K805)
- Product type: complete air filter (module with base, cartridge and cover)
- Components included: filter base / air filter / filter cover
- Product code: l66151609
- Housing material: durable plastic
- Cartridge type: paper filter of accordion type (dry)
Thanks to the use of the classic, proven paper filter design, the product offers a very good relationship filtration efficiency to price, while being easy to replace and available as a spare part.
How to take care of the Emak K805 air filter to make it last as long as possible?
Though air filter EMAK K805 l66151609 is a relatively simple component, is critical to the longevity of the engine. To take full advantage of its capabilities:
- Regularly check the condition of the filter - Preferably every few mowings, especially in dry weather.
- Do not wash the paper cartridge with water - This may lead to its damage and loss of filtration properties.
- Gently blow or tap the cartridge (if it is not yet completely clogged) - this will extend its life a bit between replacements.
- Change the filter every season or more often if the mower works in difficult conditions (dust, sand, dry weeds).
Such simple service actions significantly reduce the risk of engine failure and provide comfortable, trouble-free operation of the mower for many seasons.
FAQ - frequently asked questions about Emak K805 l66151609 air filter
1. Is the Emak K805 l66151609 air filter complete and ready for installation?
Yes, it is complete set consisting of filter base, filter cartridge and cover. There is no need to buy any additional components - just remove the old module and install the new one in its place.
2. For which models of Oleo-Mac mowers this filter fits?
The filter is designed for Emak K805 engines installed in mowers: Oleo Mac G 53 PK, G 53 TK, G 53 VK, GMC 53, GV53, GV25+ and Max 53. Before buying, it's a good idea to check the engine designation and mower model on the nameplate.
3. How often should you change the air filter on the K805 engine?
It is recommended to replace at least once a season intensive use, or more often if the mower operates in dusty conditions (such as sandy, dry areas). Symptoms of wear and tear include loss of power, rough engine operation and visible dirt on the cartridge.
4. Can I clean the air filter instead of replacing it?
The paper insert can be gently cleaned by tapping or briefly blowing with compressed air from an appropriate distance, but this is a temporary solution. For full engine protection, it is recommended regular replacement with a new filter.
5. Is it difficult to replace the air filter?
Not. The replacement is simple and intuitive - usually only requires unfastening or unscrewing the cover, removing the old module and putting on the new one. The task can easily be handled by most home users.
6. What are the benefits of using an original Emak filter instead of a replacement?
Original filter guarantees a perfect fit to the housing and air channels, optimal throughput and high filtration efficiency. This reduces the risk of dust entering the engine, as well as firing and carburetor adjustment problems that can occur with cheaper replacements.
Select COMPLETE EMAK K805 ENGINE AIR FILTER l66151609, to ensure your Oleo-Mac lawn mower runs reliably, has a clean and well-protected engine, and mows comfortably for many seasons to come.
